Product Information

Description:

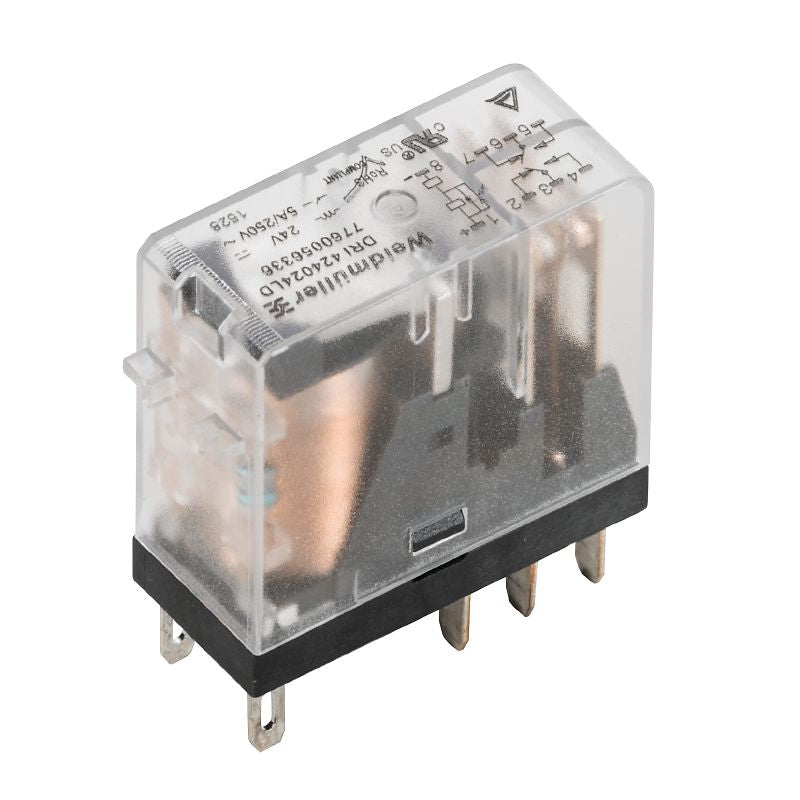

Introducing the D-SERIES DRI Relay, a reliable device equipped with 2 CO contacts crafted from AgSnO, designed to operate at a control voltage of 230 V AC This relay offers a continuous current rating of up to 5 A and features flat blade connections measuring 25 mm x 05 mm Please note that a test button is not included Perfect for a variety of applications, this product is RoHS compliant and comes with E312083 certification, ensuring high standards of safety and performance.

Features and Benefits:

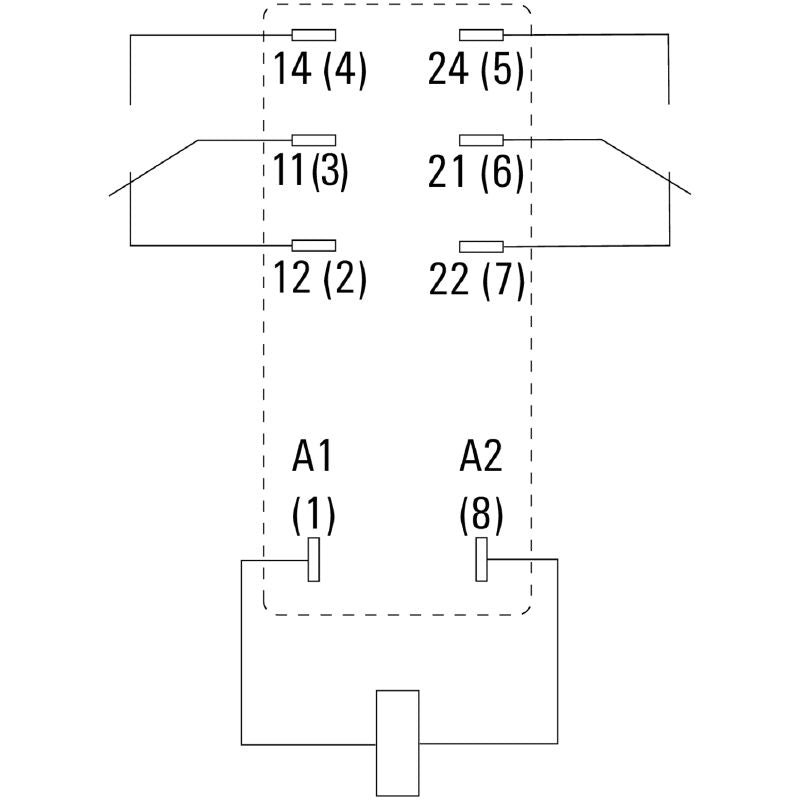

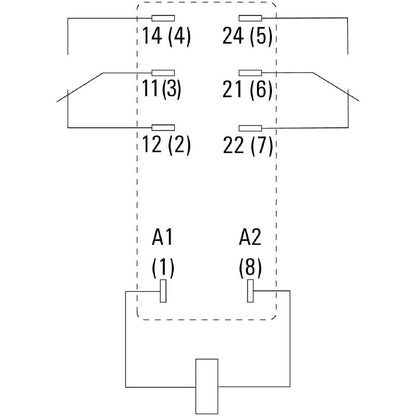

•Two CO contacts.

•Flat blade connections of 2.5 mm x 0.5 mm.

•RoHS compliant without exemptions.

•Compact design with small dimensions.

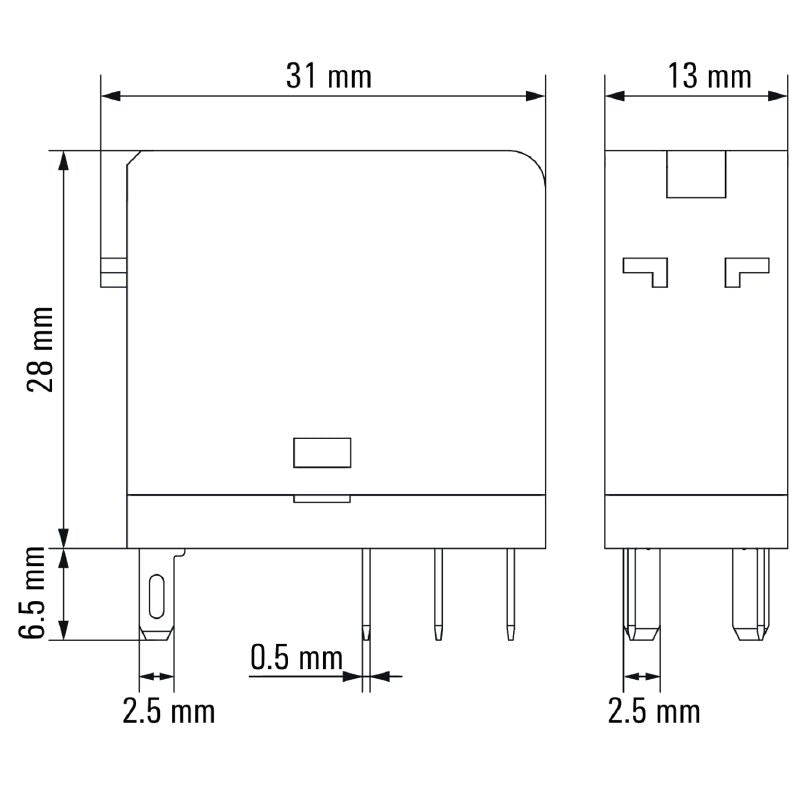

Specifications:

Depth	28 mm
Height	31 mm
Width	13 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…55 °C
Humidity	35...85 % relative humidity, no condensation
Rated control voltage	230 V AC
Rated current AC	4.9 mA
Power rating	1.1 VA
Coil resistance	23500 Ω ± 10 %
Continuous current	5 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Max. switching voltage, DC	250 V
Min. switching power	10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
AC switching capacity (resistive), max.	1250 VA

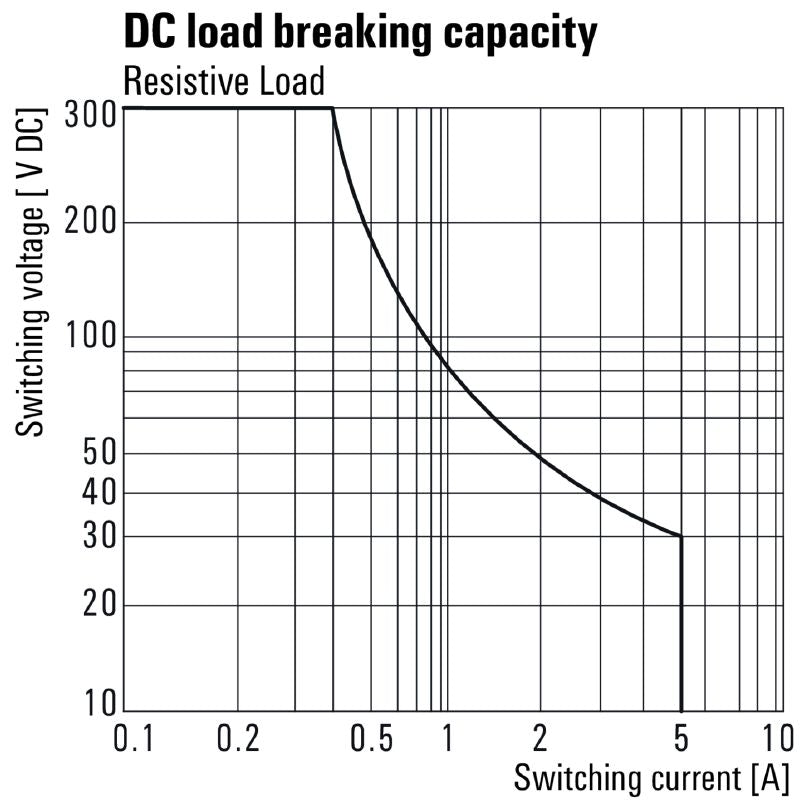

DC switching capacity (resistive), max.	150 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms
Mechanical service life	10 x 10^6 switching cycles
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances': '≥ 4 mm', 'Dielectric strength for control side - load side': '5 kV eff / 1min', 'Dielectric strength of neighbouring contacts': '1.5 kV eff / 1 min', 'Dielectric strength of open contact': '1 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)', 'Protection degree': 'IP20'}
Certification number	E312083
