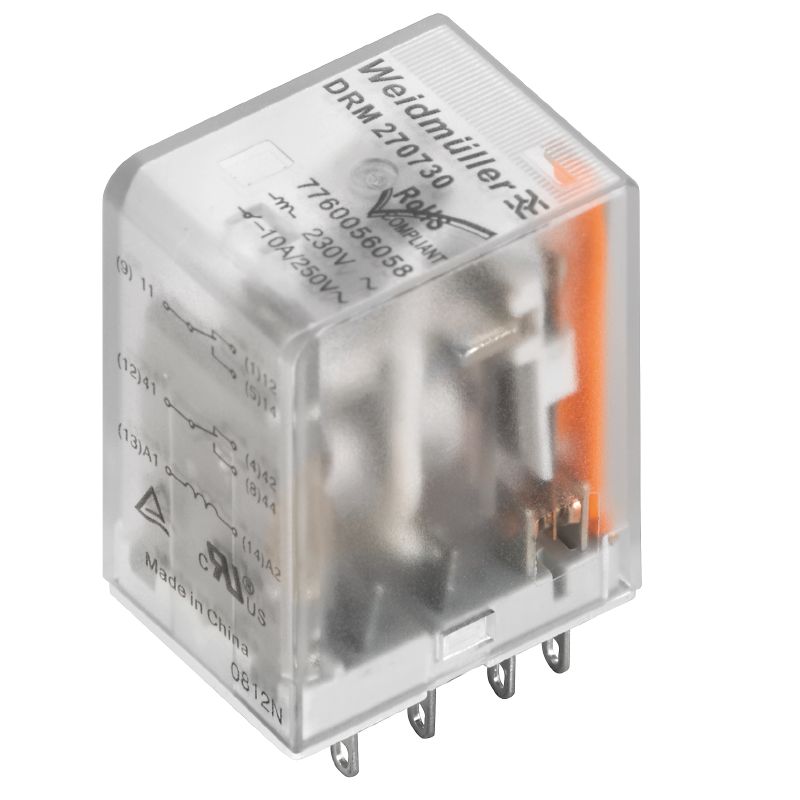

7760056105 - 24V DC D-SERIES Relay with 4 AgNi Contacts, 5A (Pack of 20)

SKU: SKU: 7760056105 Download PDF

Select a Variant:

7760056105 - 24V DC D-SERIES Relay with 4 AgNi Contacts, 5A (Pack of 20)

SET THE QTY:

Now $142.39 Web pricing policy

~~BEFORE $0.00~~ Now $142.39 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the D-SERIES DRM relay, equipped with four CO contacts made from AgNi material and featuring a gold plating for enhanced conductivity This reliable relay operates at 24 V DC and supports a continuous current of 5 A, ensuring optimal performance in various applications Designed for easy plug-in installation, it meets environmental standards as per RoHS regulations For quality assurance, this product carries the UL file number E312083.

Features and Benefits:

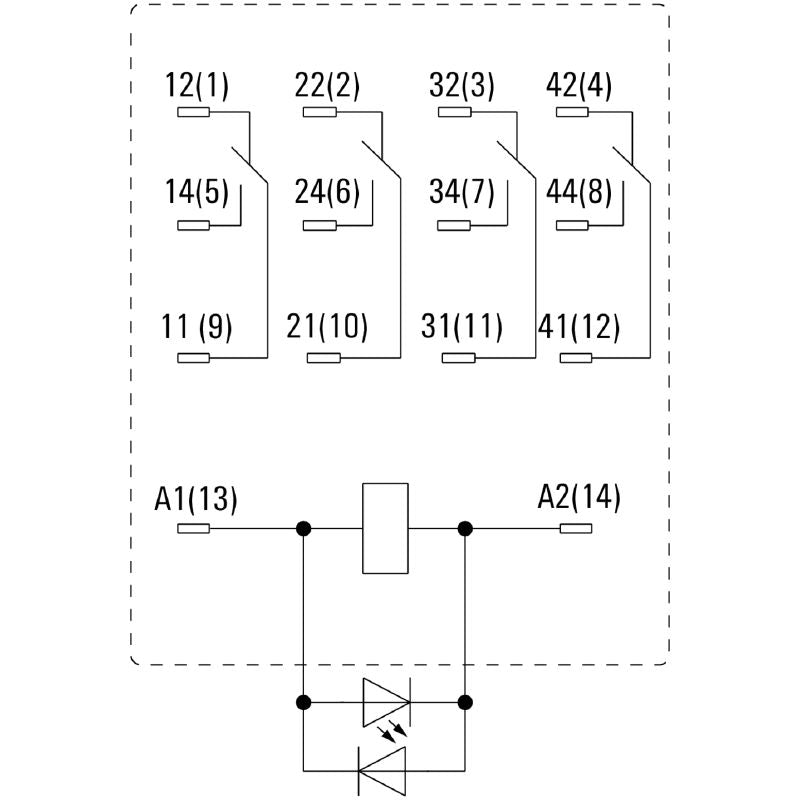

•4 CO contacts.

•AgNi flash gold-plated contacts.

•Rated control voltage of 24 V DC.

•Plug-in connection design.

•Environmental compliance with RoHS.

Specifications:

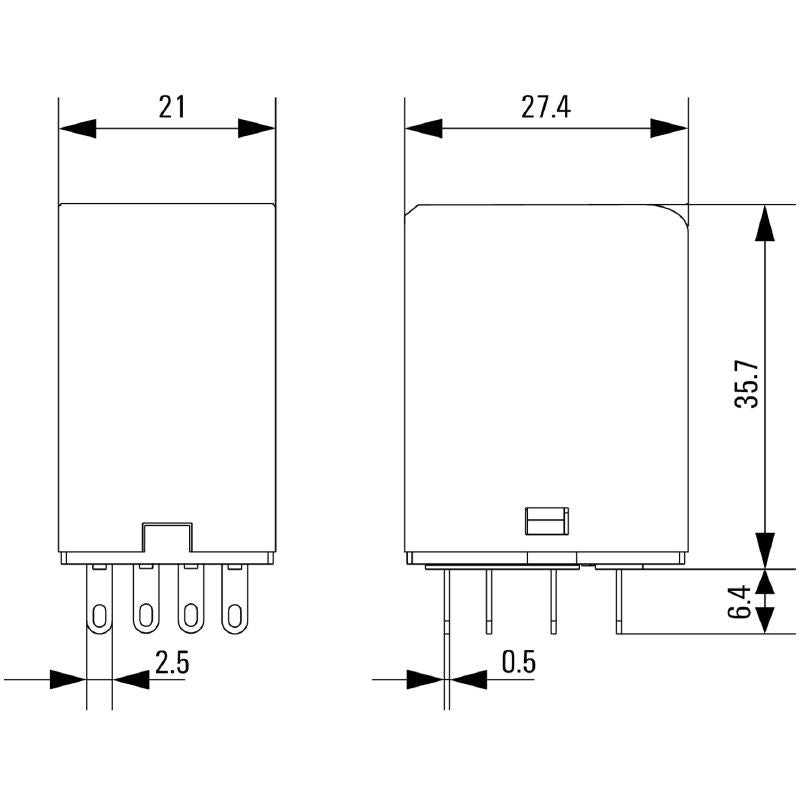

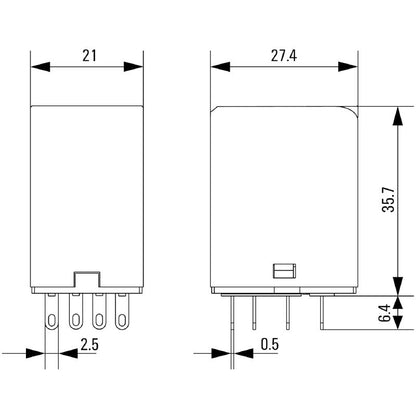

Depth	35.7 mm
Height	27.4 mm
Width	21 mm
Storage temperature	-40 °C...70 °C
Ambient temperature	-40 °C...60 °C

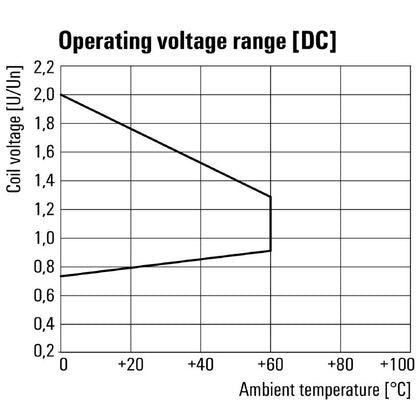

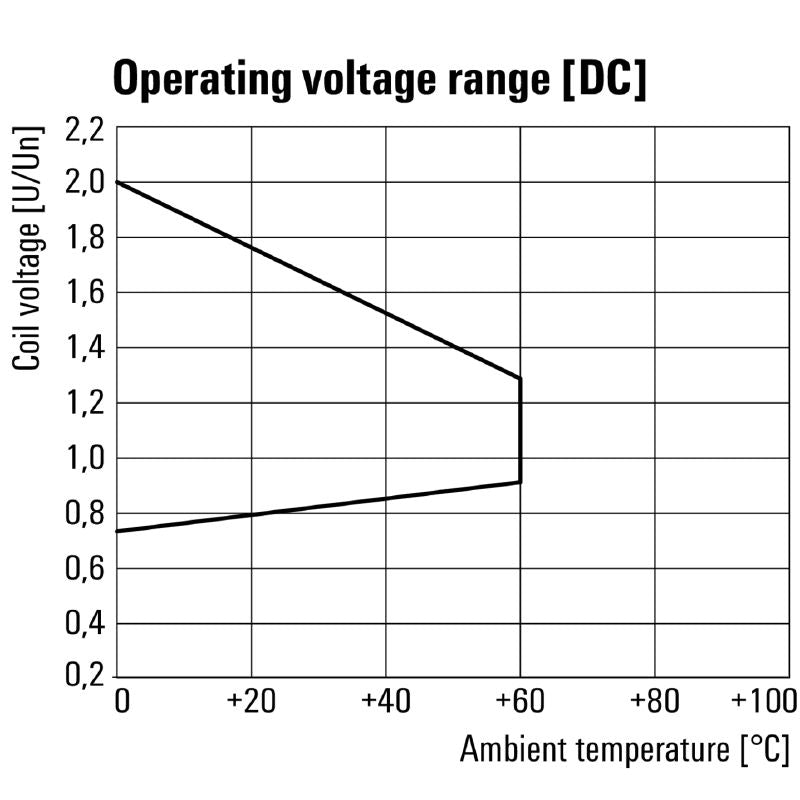

Rated current DC	37.8 mA
Power rating	0.9 W
Coil resistance	630 Ω ± 10 %
Status indicator	Green LED
Rated switching voltage	250 V AC
Continuous current	5 A
Max. switching frequency at rated load	0.1 Hz
Min. switching power	10 mA @ 12 V, 100 mA @ 5 V
Inrush current	10 A / 50 ms

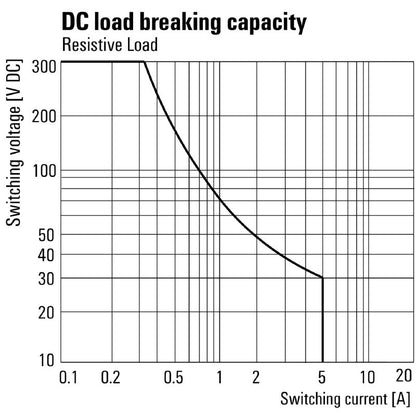

AC switching capacity (resistive), max.	1250 VA

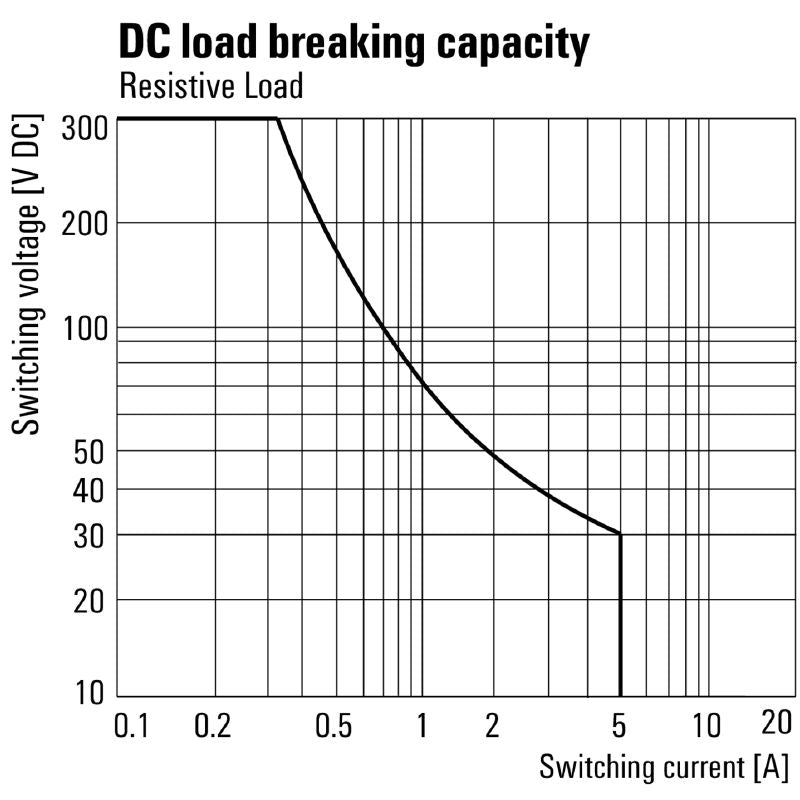

DC switching capacity (resistive), max.	120 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

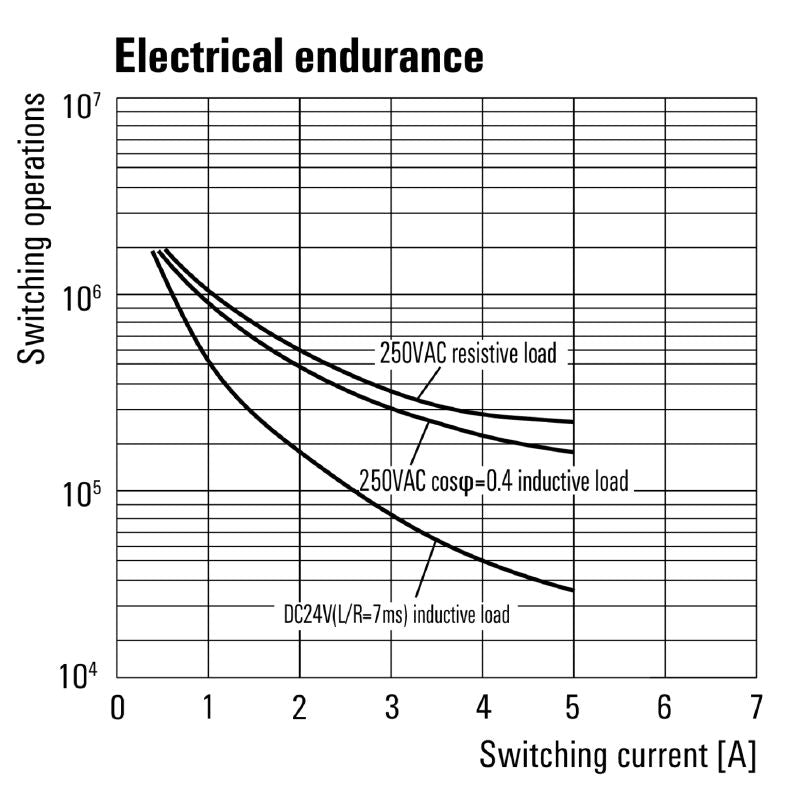

Mechanical service life	20 x 10^6 switching cycles
Test button available	No
Mechanical switch position indicator	Yes
UL94 flammability rating	V-2 for relay cover, V-0 for relay baseplate, HB for relay status indicator
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III'}
Clearance and creepage distances for control side - load side	≥ 5.5 mm
Dielectric strength for control side - load side	1.8 kV eff /1 min.
Dielectric strength of neighboring contacts	1 kV eff / 1 min.
Dielectric strength of open contact	1 kV eff / 1 min.
Impulse withstand voltage	6 kV (1.2/50 µs)
Protection degree	IP20

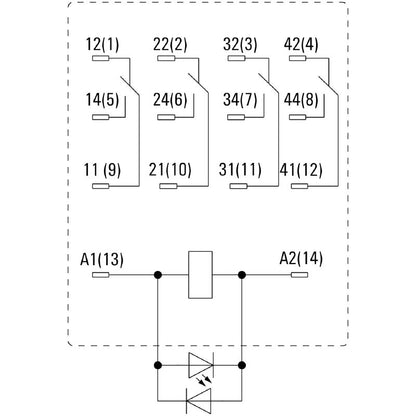

Wire connection method	Plug-in connection

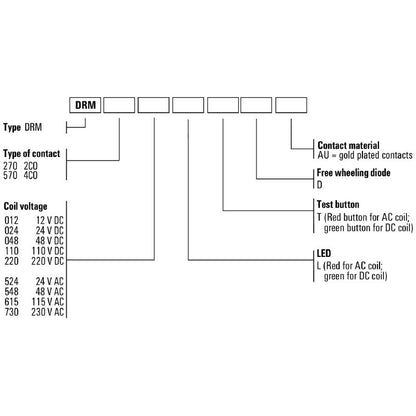

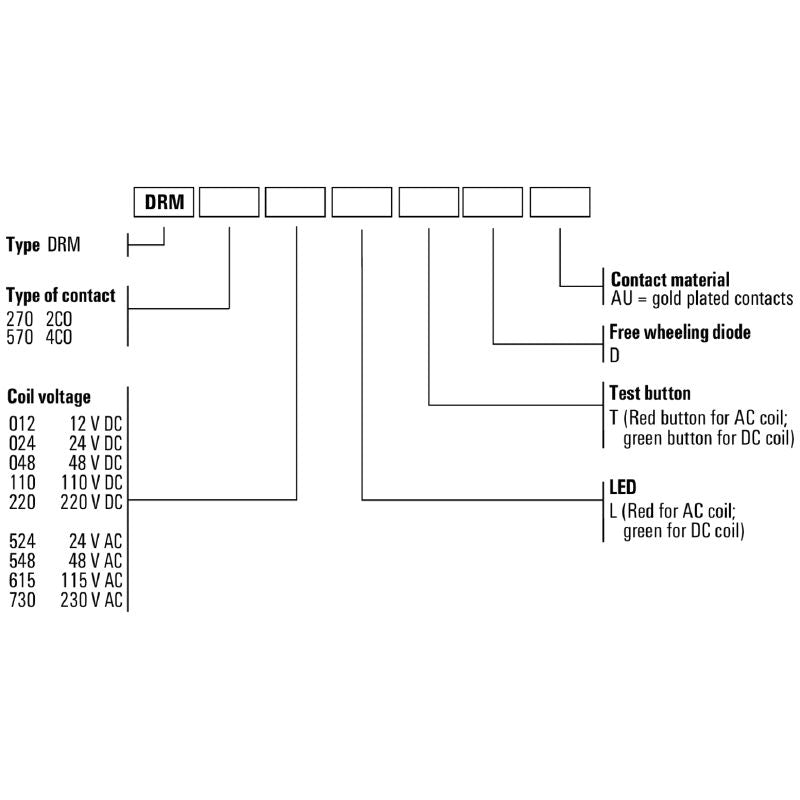

General ordering data	{'Version': 'D-SERIES DRM', 'Order No.': '7760056105', 'GTIN (EAN)': '4032248855599', 'Qty.': '20 items'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant without exemption', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
