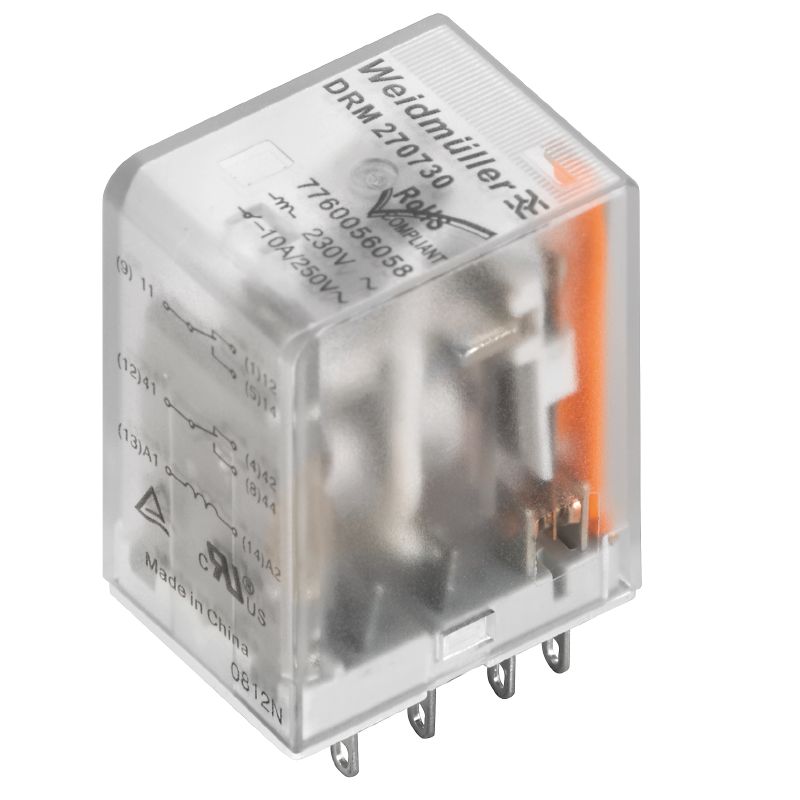

7760056084 - D-Series Relay with 4 Contacts, 48V AC, 5A (Pack of 20)

SKU: SKU: 7760056084 Download PDF

Variant:

7760056084 - D-Series Relay with 4 Contacts, 48V AC, 5A (Pack of 20)

Now $137.88

~~BEFORE $0.00~~ Now $137.88

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the D-series relay, engineered with 4 changeover (CO) contacts composed of AgNi and enhanced with a flash gold plating for optimal performance This relay operates at a control voltage of 48 V AC and is capable of managing a continuous current of 5 A Its plug-in connection design ensures straightforward installation, and it meets both UL and RoHS standards, guaranteeing compliance and reliability.

Features and Benefits:

•Plug-in connection method.

•No test button available.

•Mechanical switch position indicator.

•IP20 protection degree.

Specifications:

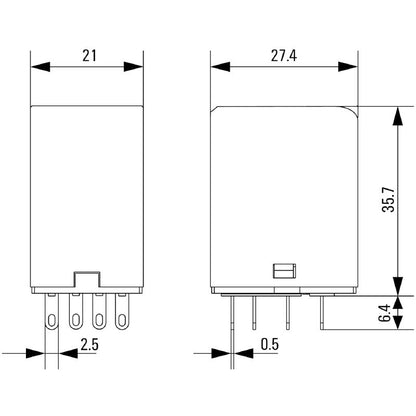

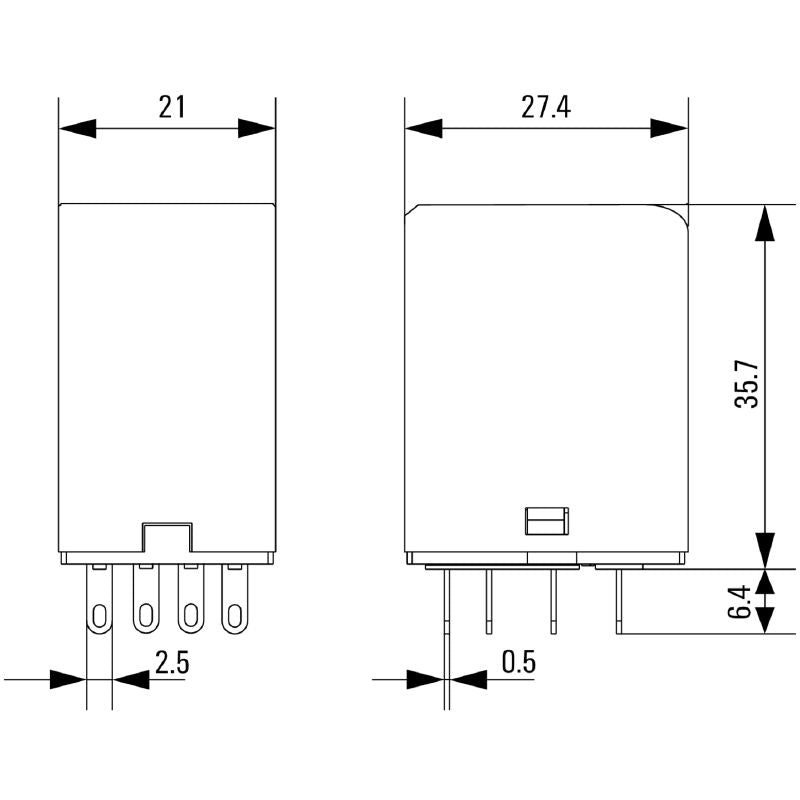

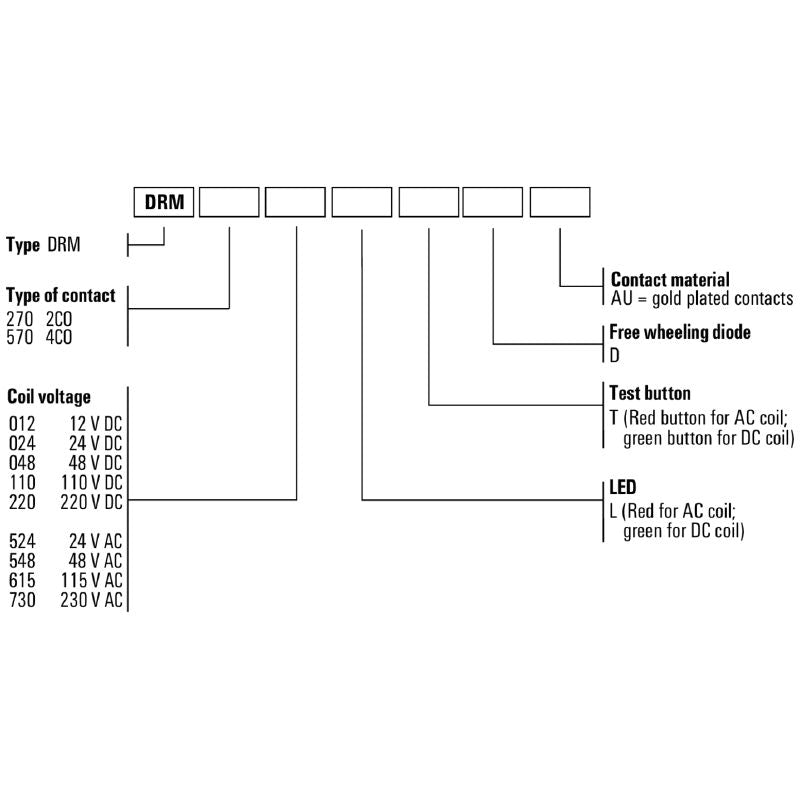

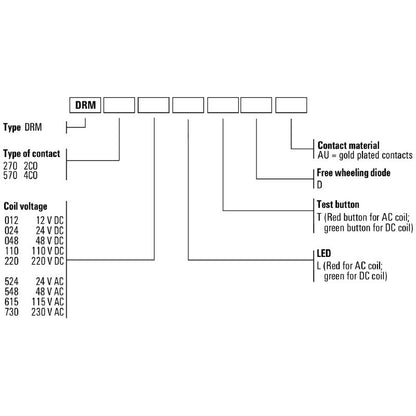

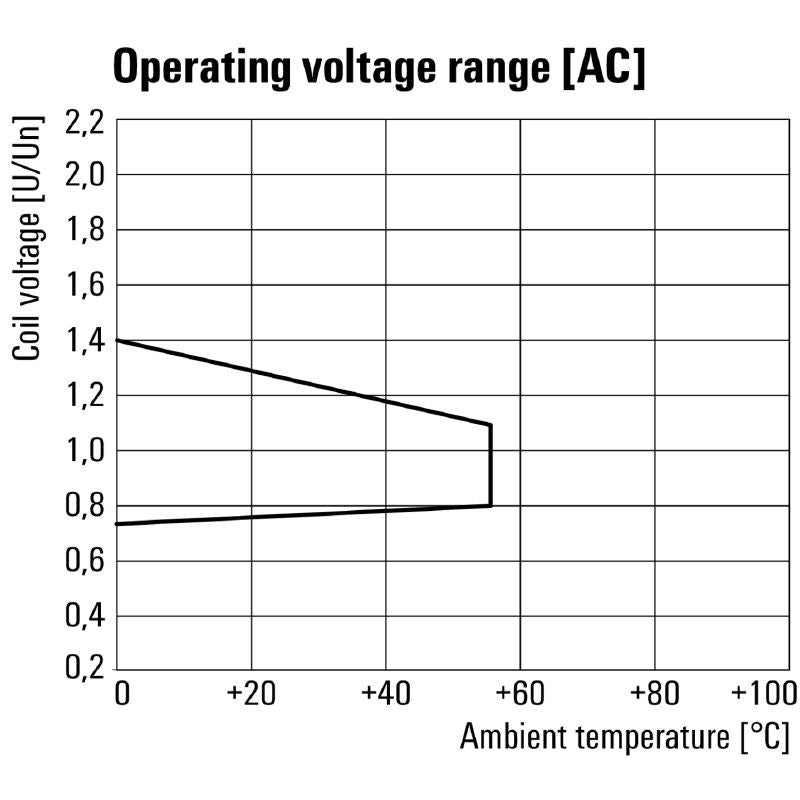

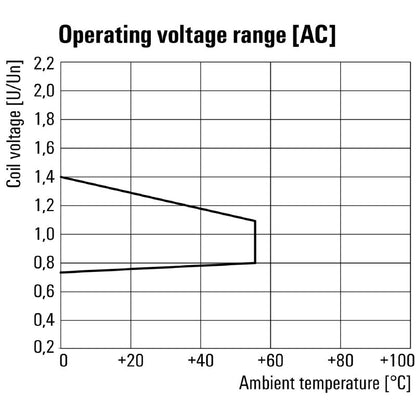

Rated control voltage	48 V AC
Rated current AC	33.3 mA (50 Hz), 27.8 mA (60 Hz)
Power rating	1.0...1.2 VA (60 HZ)
Coil resistance	615 Ω ± 10 %
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Min. switching power	10 mA @ 12 V, 100 mA @ 5 V
Inrush current	10 A / 50 ms
AC switching capacity (resistive), max.	1250 VA

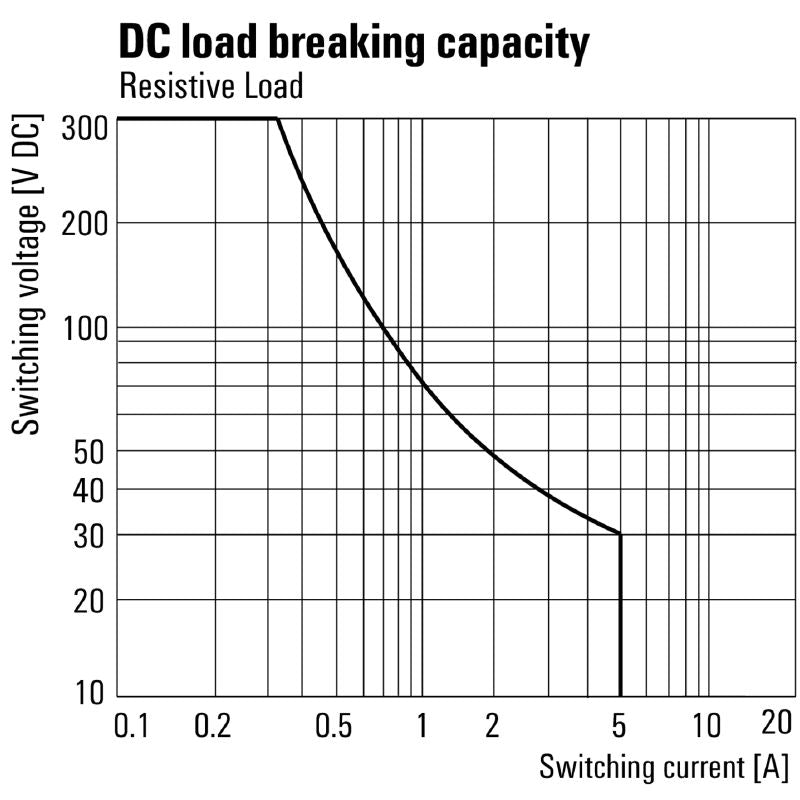

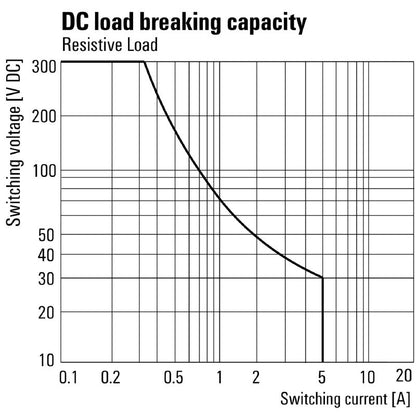

DC switching capacity (resistive), max.	120 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

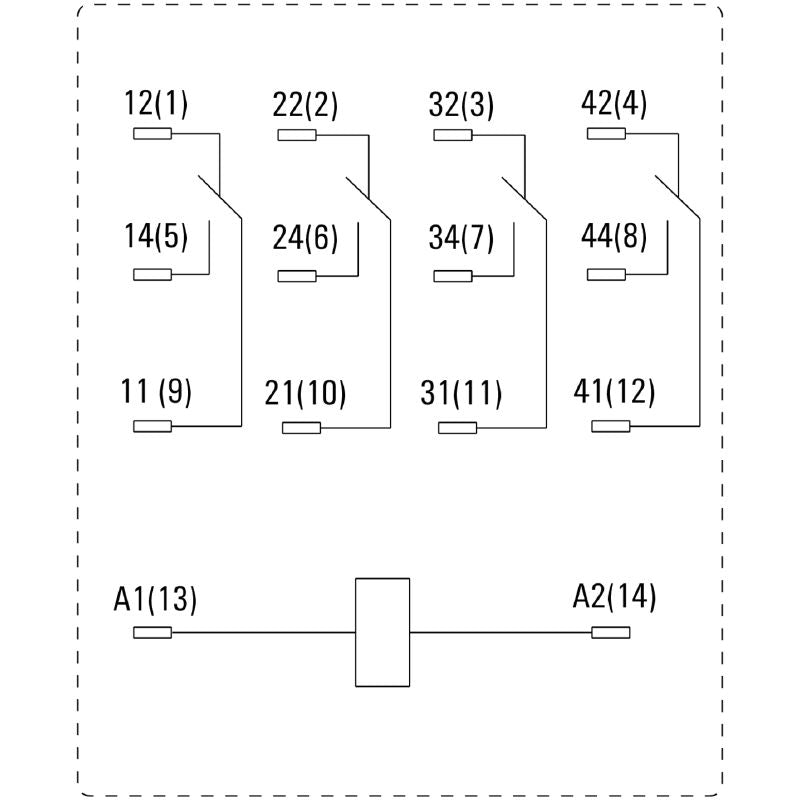

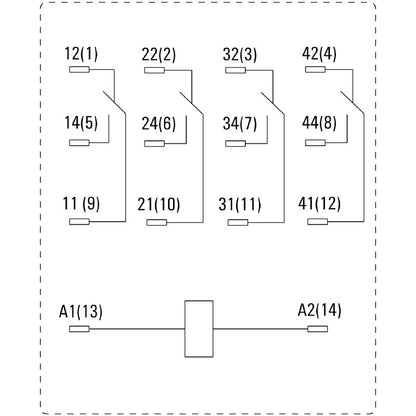

Contact type	4 CO contacts (AgNi flash gold-plated)

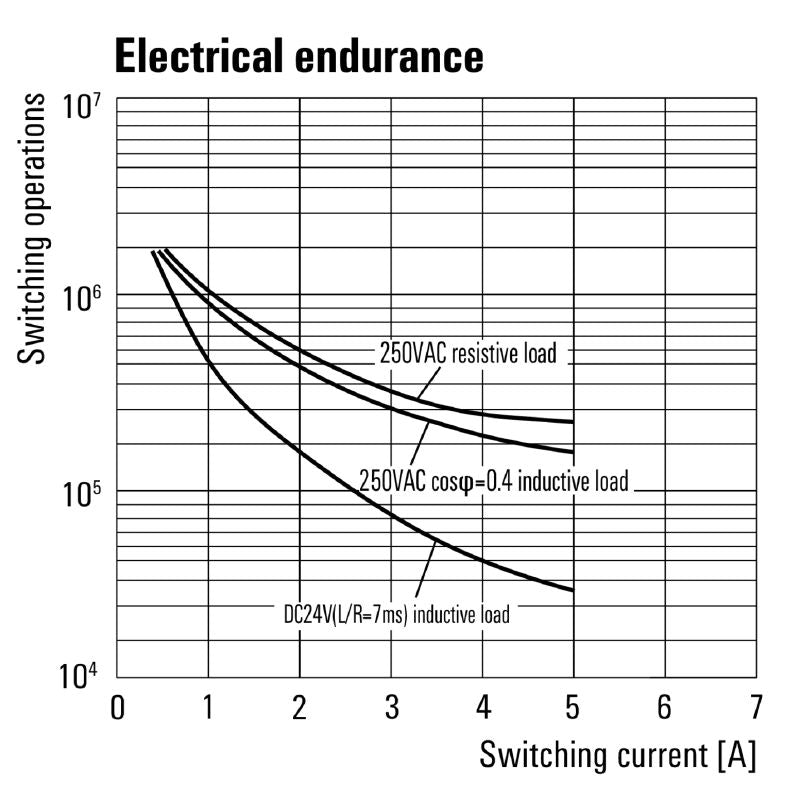

Mechanical service life	20 x 10^6 switching cycles
Storage temperature	-40 °C...70 °C
Ambient temperature	-40 °C…55 °C
Humidity	35...85 % relative humidity, no condensation
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Clearance and creepage distances for control side - load side': '≥ 5.5 mm', 'Dielectric strength for control side - load side': '1.8 kV eff /1 min.', 'Dielectric strength of neighboring contacts': '1 kV eff / 1 min.', 'Dielectric strength of open contact': '1 kV eff / 1 min.', 'Impulse withstand voltage': '6 kV (1.2/50 µs)'}
UL94 flammability rating component	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay status indicator': 'HB'}
