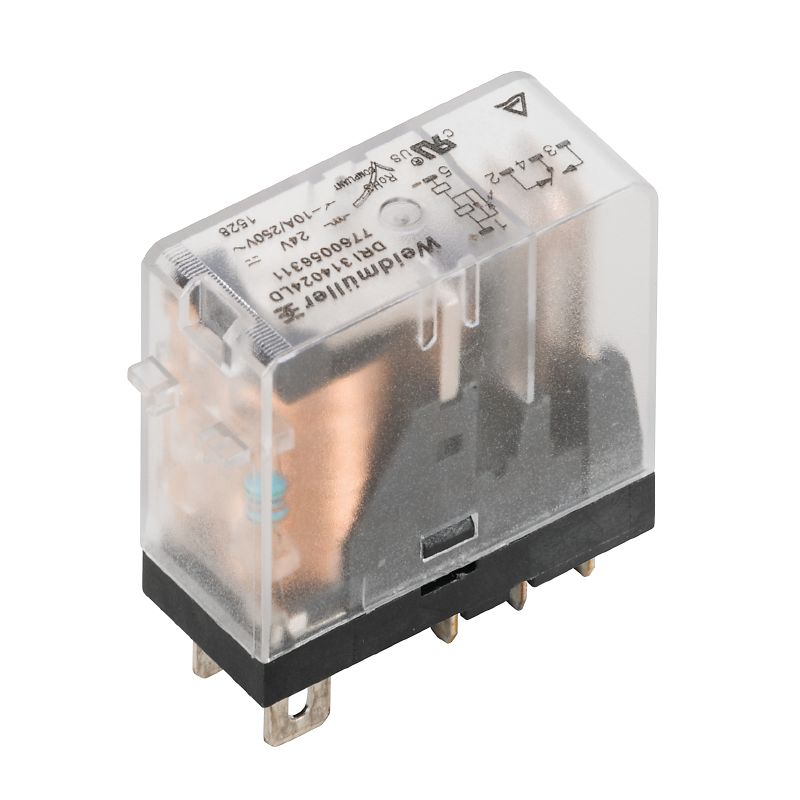

7760056298 - 48V DC DRI Relay with 10A Rating and Flat Blade Connections (Pack of 20)

7760056298 - 48V DC DRI Relay with 10A Rating and Flat Blade Connections (Pack of 20)

SKU: 7760056298   Download PDF

Select a Variant:
  • 7760056298 - 48V DC DRI Relay with 10A Rating and Flat Blade Connections (Pack of 20)
Qty:
Now $76.34   Web pricing policy
BEFORE   $0.00 Now $76.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

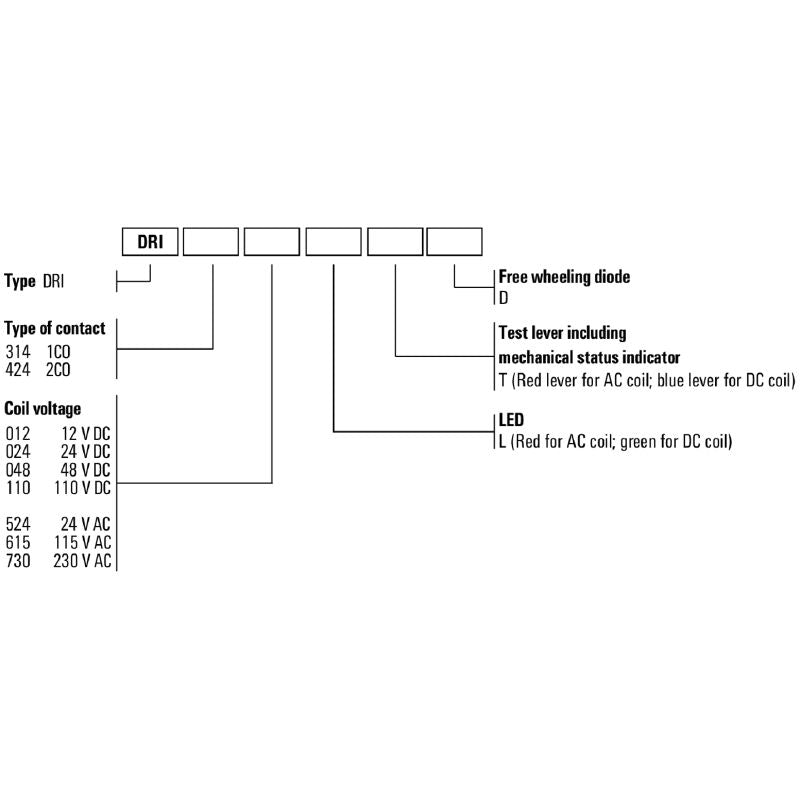

Introducing the D-SERIES DRI relay, a robust solution for your electrical needs This relay features a single changeover (CO) contact made from AgSnO, ensuring reliable performance It operates on a control voltage of 48 V DC and has a continuous current capacity of 10 A, making it suitable for various applications The relay is designed with flat blade connections measuring 47 mm x 05 mm, providing secure and efficient connectivity.

Please note that this model does not include a test button.

Features and Benefits:

    •RoHS compliant without exemption.

    •No SVHC above 0.1 wt%.

    •Transparent color.

    •IP20 protection degree.

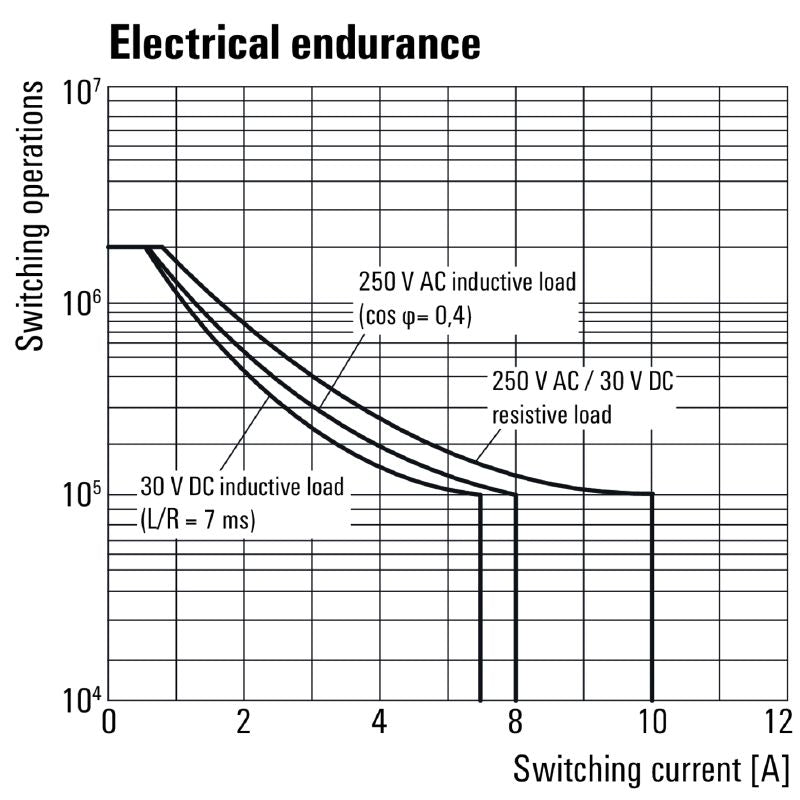

    •Mechanical service life rated at 10 million switching cycles.

    •UL94 flammability rating as V-2 for relay cover and V-0 for relay baseplate.

Specifications:

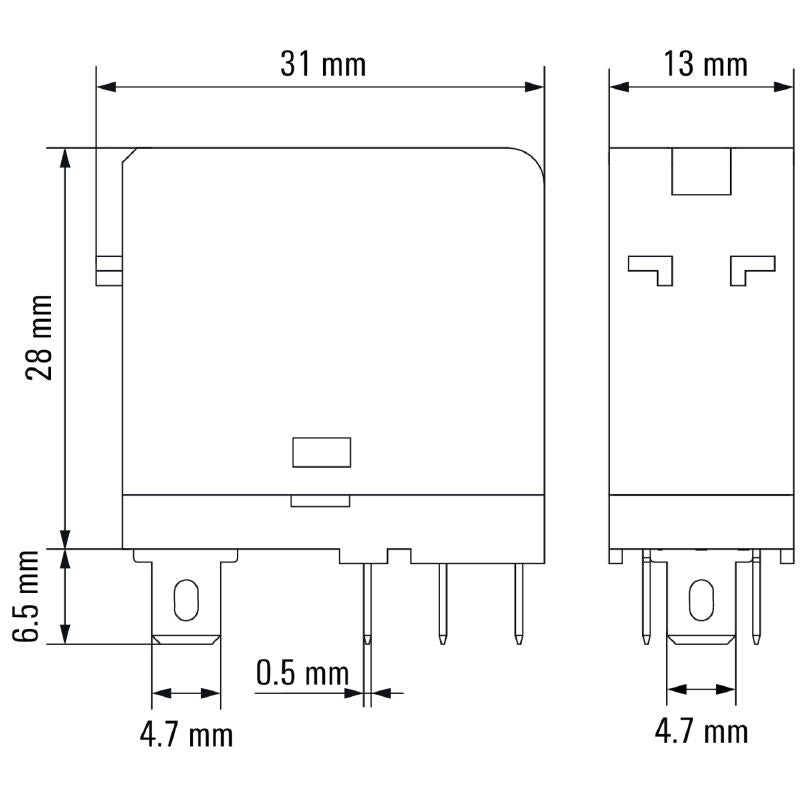

 Depth 28 mm
 Height 31 mm
 Width 13 mm
 Storage temperature -40 °C to 85 °C

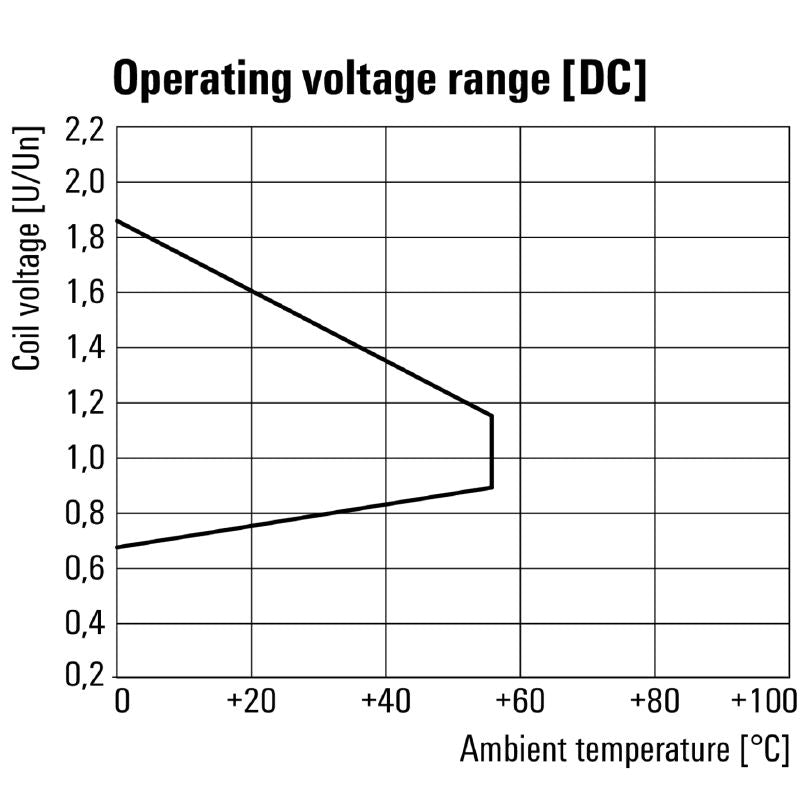

 Ambient temperature -40 °C to 55 °C
 Humidity 35% to 85% relative humidity, no condensation
 Rated control voltage 48 V DC
 Rated current DC 11.2 mA
 Power rating 530 mW
 Coil resistance 4300 Ω ± 10%
 Load side rated switching voltage 250 V AC
 Continuous current 10 A
 Max. switching frequency at rated load 0.1 Hz
 Max. switching voltage AC 250 V
 Max. switching voltage DC 250 V
 Min. switching power 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
 AC switching capacity (resistive), max. 2500 VA

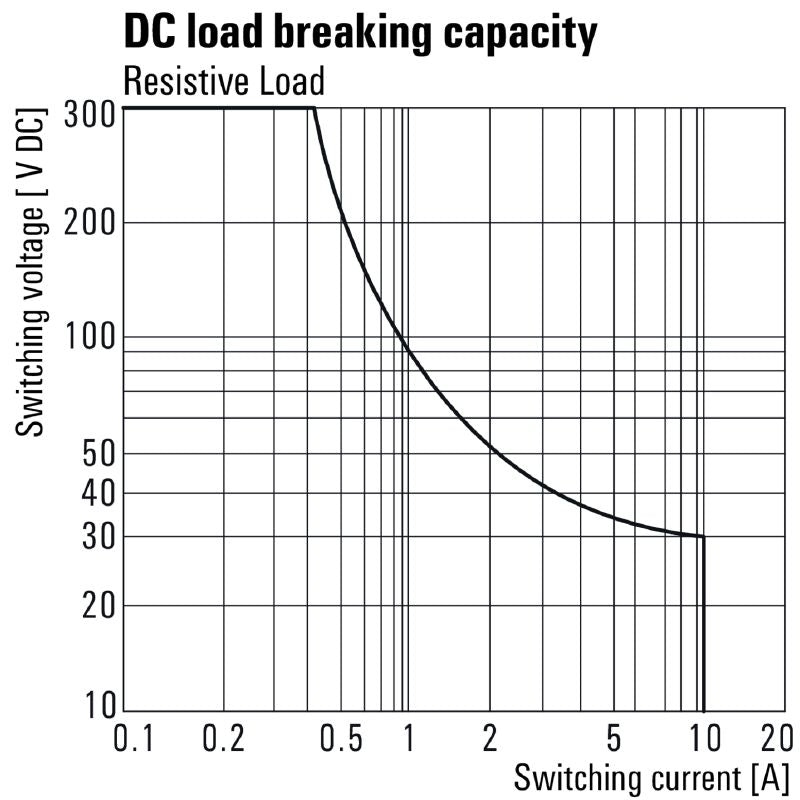

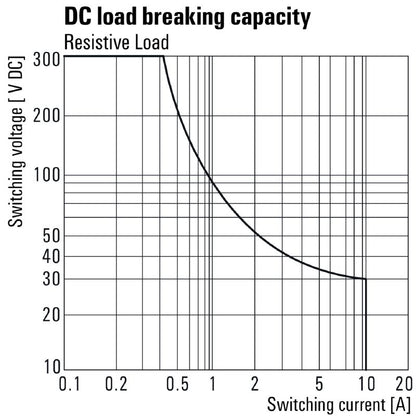

 DC switching capacity (resistive), max. 240 W @ 24 V
 Switch-on delay ≤ 15 ms
 Switch-off delay ≤ 10 ms

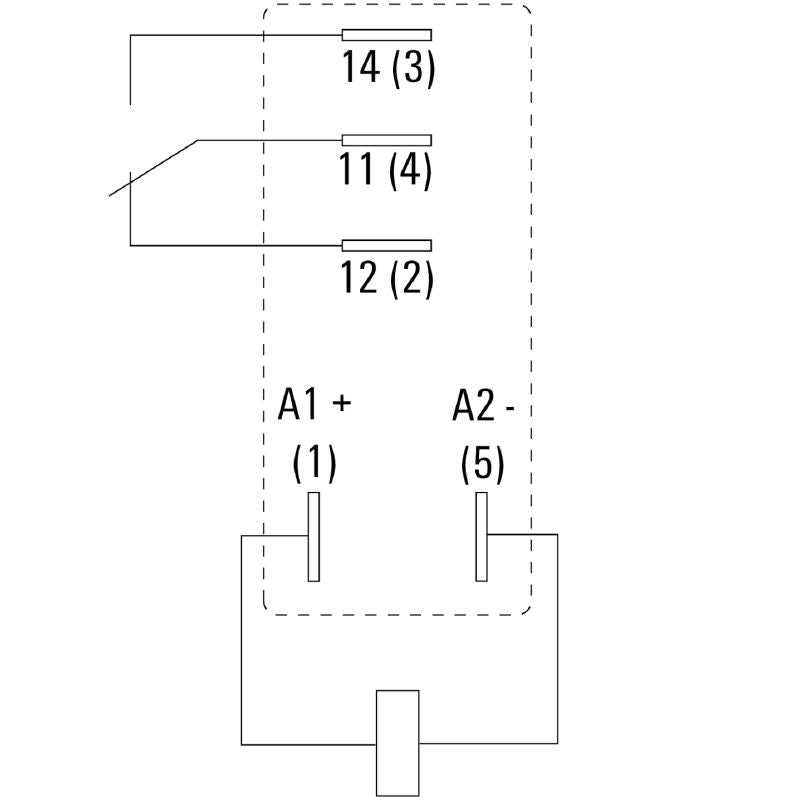

 Contact type 1 CO contact (AgSnO)
 Insulation coordination rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Insulating material group IIIa
 Clearance and creepage distances for control side - load side ≥ 4 mm
 Dielectric strength for control side - load side 5 kV eff / 1 min
 Dielectric strength of open contact 1 kV eff / 1 min
 Impulse withstand voltage 5 kV (1.2/50 µs)
 Wire connection method Flat blade connections (4.7 mm x 0.5 mm)
