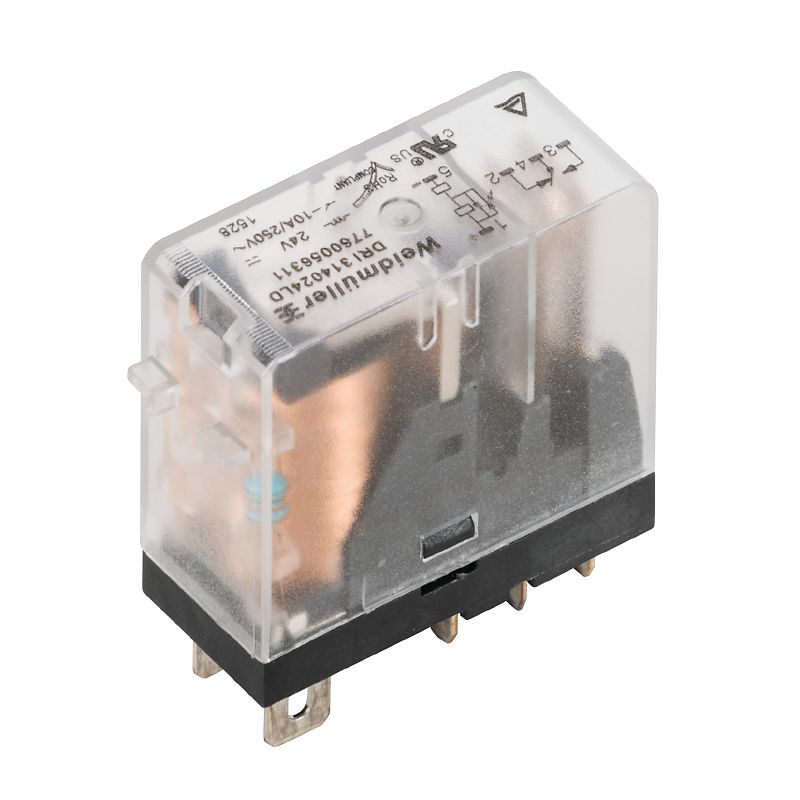

7760056300 - Compact 28mm D-SERIES Relay, 24V AC, 10A Capacity (Pack of 20)

7760056300 - Compact 28mm D-SERIES Relay, 24V AC, 10A Capacity (Pack of 20)

SKU: 7760056300 Download PDF

Variant:
  • 7760056300 - Compact 28mm D-SERIES Relay, 24V AC, 10A Capacity (Pack of 20)
Now $86.08
BEFORE   $0.00 Now $86.08
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

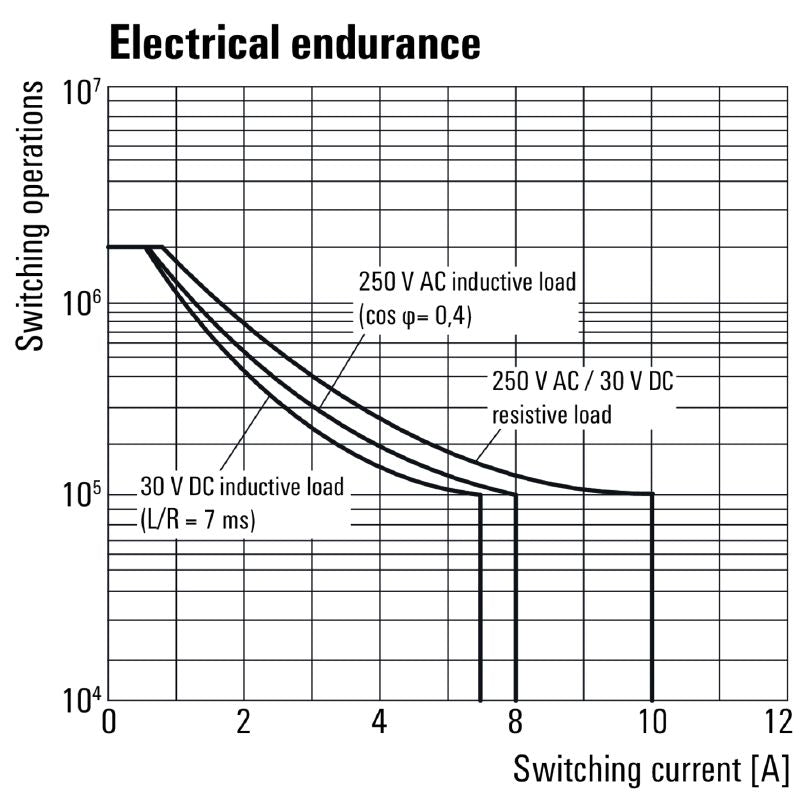

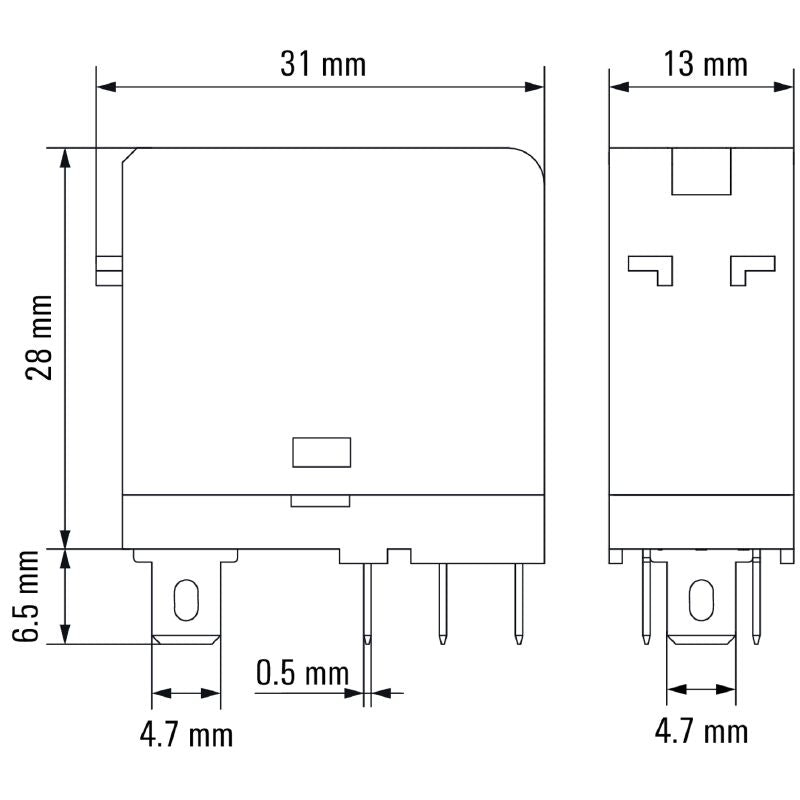

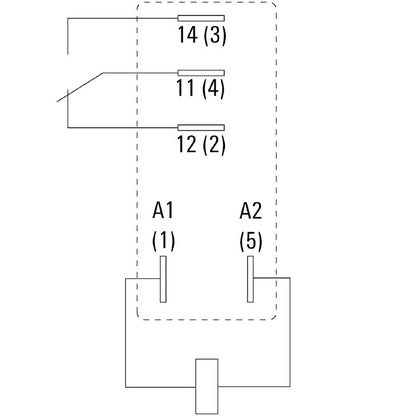

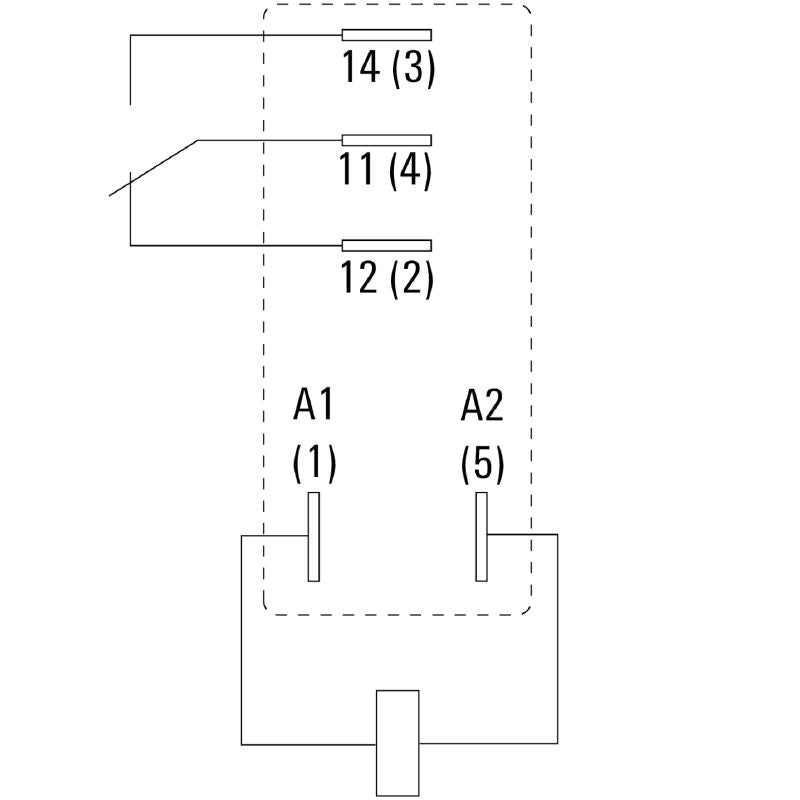

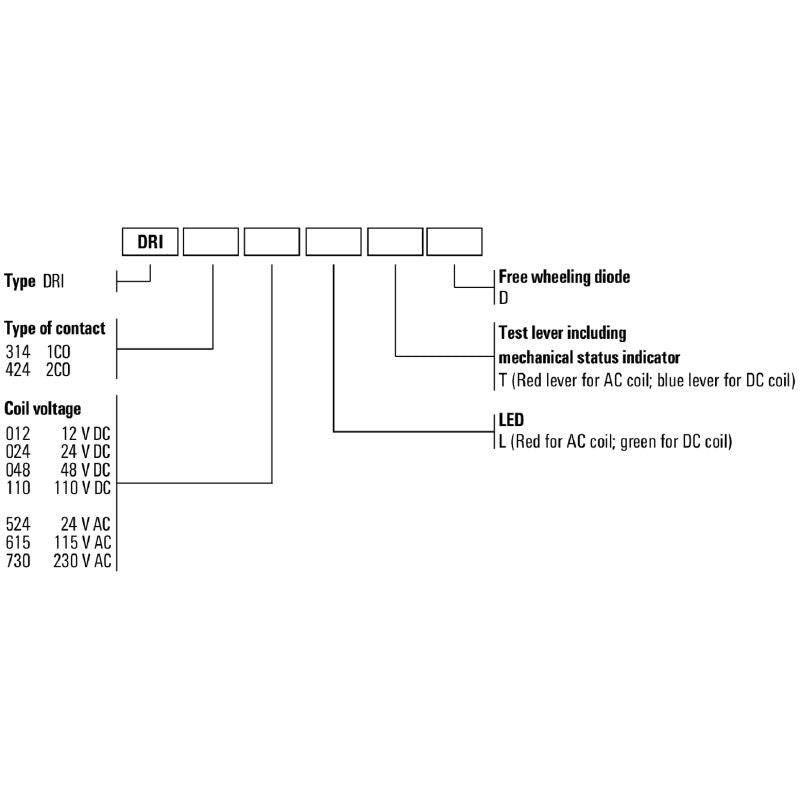

Introducing the D-SERIES DRI relay, engineered for efficiency with a single CO contact made from AgSnO This relay operates on a control voltage of 24 V AC and boasts a continuous current capacity of up to 10 A It is equipped with 47 mm x 05 mm flat blade connections, making installation straightforward Although it does not include a test button, its compact design ensures versatility with dimensions of 28 mm in depth, 31 mm in height, and 13 mm in width.

Features and Benefits:

    •Flat blade connections.

    •Coil resistance of 240 Ω ± 10 %.

    •Max. switching frequency at rated load is 0.1 Hz.

    •Load side continuous current capacity of 10 A.

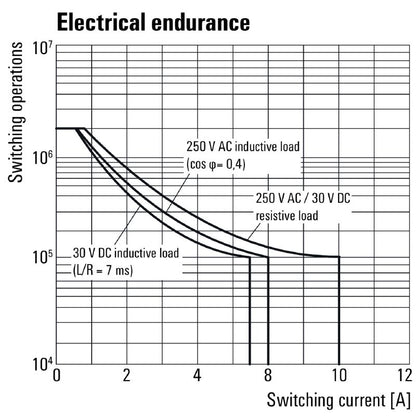

    •Mechanical service life of 10 million switching cycles.

    •Protection degree IP20.

    •RoHS compliant without exemption.

    •No SVHC above 0.1 wt%.

Specifications:

 Contact type 1 CO contact (AgSnO)

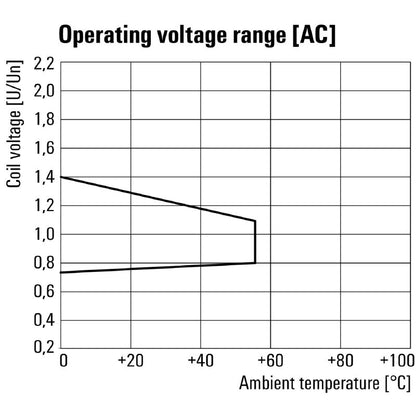

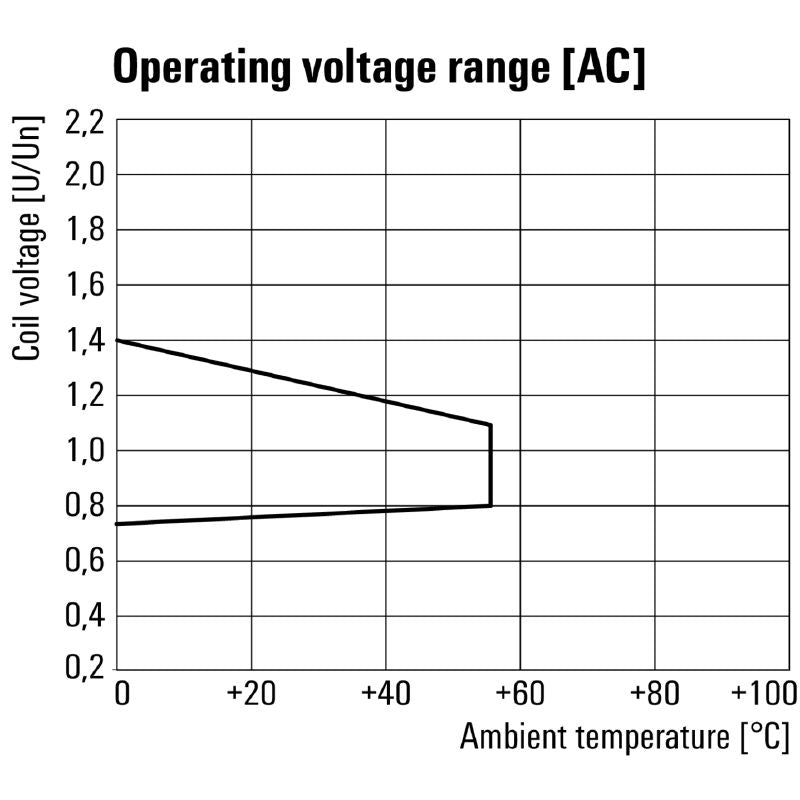

 Rated control voltage 24 V AC
 Rated current AC 50 mA
 Power rating 1.2 VA
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 250 V
 Min. switching power 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V

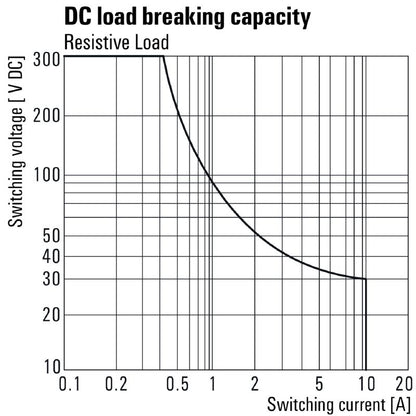

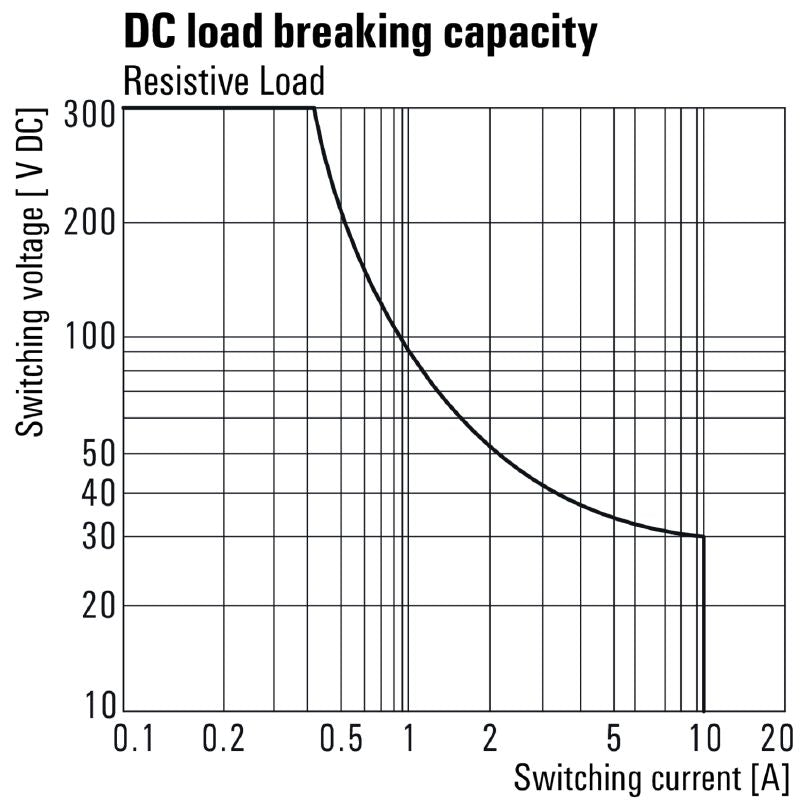

 AC switching capacity (resistive), max 2500 VA
 DC switching capacity (resistive), max 240 W @ 24 V
 Switch-on delay ≤ 15 ms
 Switch-off delay ≤ 10 ms
 Insulation coordination rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Clearance and creepage distances for control side - load side ≥ 4 mm
 Dielectric strength for control side - load side 5 kV eff / 1min
 Dielectric strength of open contact 1 kV eff / 1 min
 Impulse withstand voltage 5 kV (1.2/50 µs)
 UL94 flammability rating for relay cover V-2
 UL94 flammability rating for relay baseplate V-0
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C…55 °C
