7760056094 - 4 CO Contact Relay, 115V AC, 5A, RoHS Compliant (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

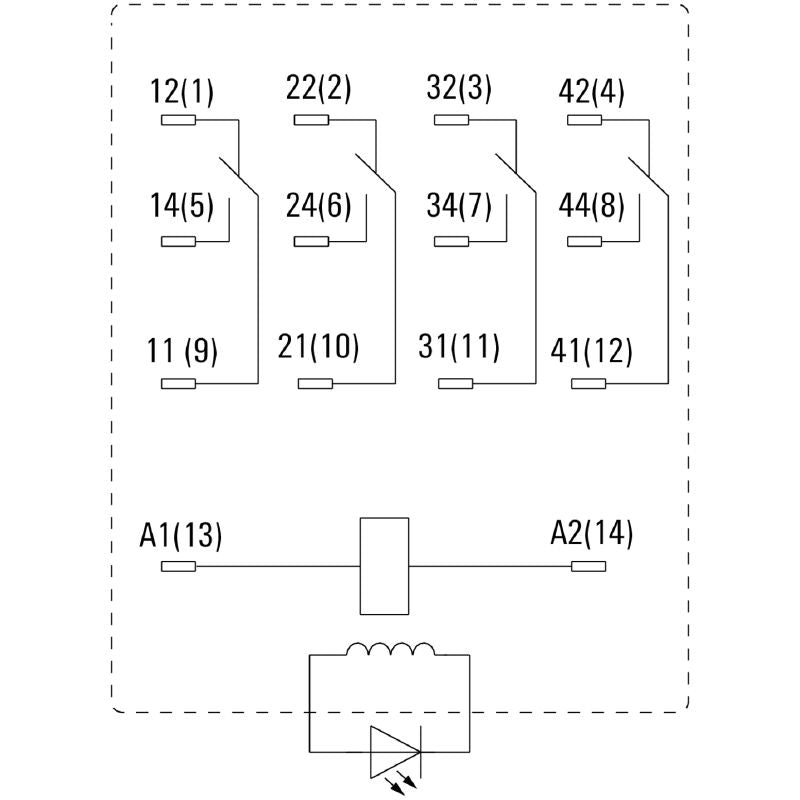

Introducing the D-SERIES DRM Relay, an efficient component equipped with four CO contacts enhanced with AgNi flash gold plating, ideal for a wide range of uses This relay operates at a control voltage of 115 V AC and can sustain a continuous current of 5 A Its design features a plug-in connection for easy installation and it adheres to RoHS compliance standards With a performance capability of handling 12.

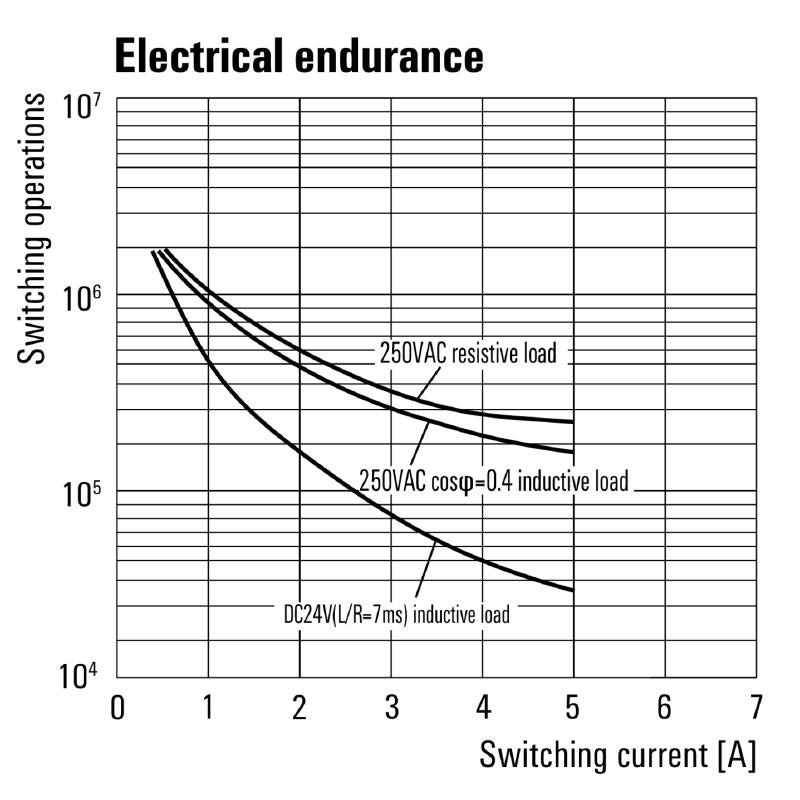

6 mA at 50 Hz and 108 mA at 60 Hz, this relay also has a power rating that ranges from 10 to 12VA at 60Hz Built to last, it boasts a remarkable mechanical lifespan of up to 20 million switching cycles while meeting stringent environmental standards.

Features and Benefits:

•Plug-in connection.

•RoHS compliant.

•Test button not available.

•Mechanical switch position indicator included.

•Transparent color for visibility.

Specifications:
