Description:

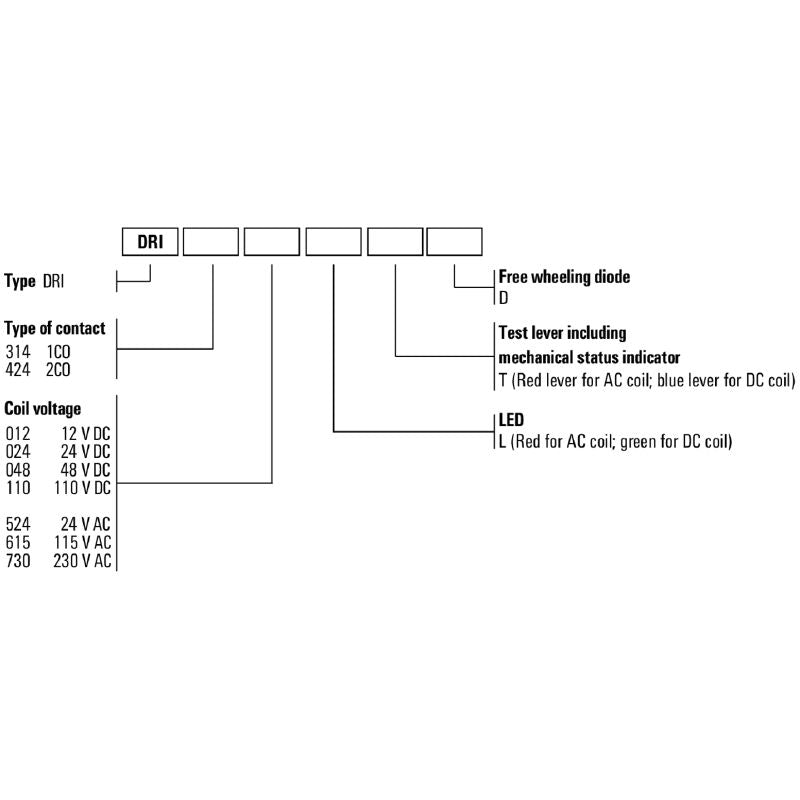

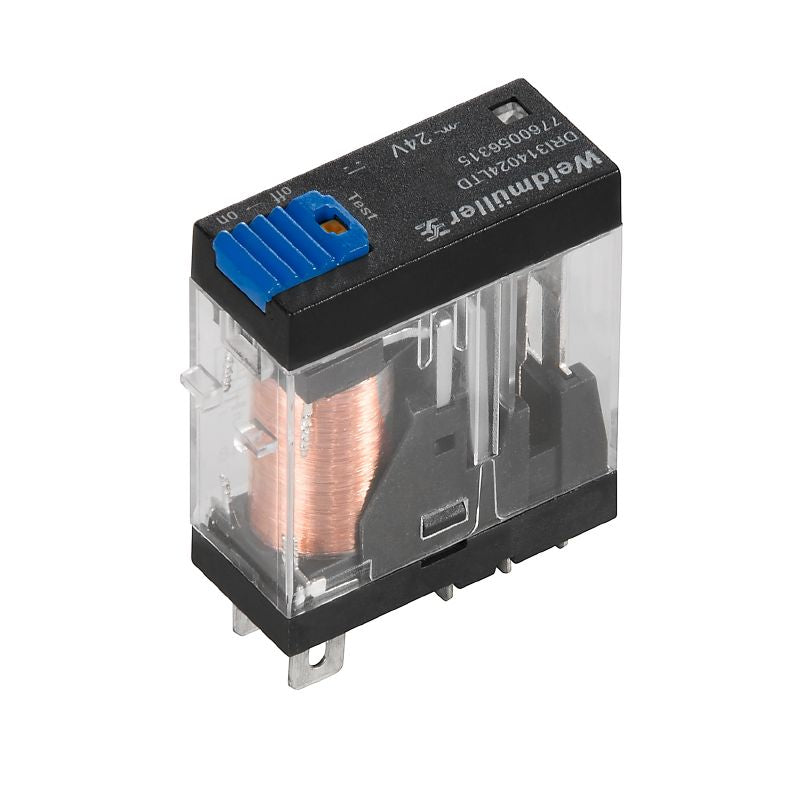

Introducing the D-SERIES DRI relay, a reliable component featuring a single Normally Open contact crafted from AgSnO With a control voltage rating of 110 V DC, this relay can handle continuous currents of up to 10 A It is designed with flat blade connections that measure 47 mm x 05 mm and includes a convenient test button for easy operational checks Complying with various industry standards, this relay is built for dependable performance in any setting.

Features and Benefits:

•Test button is available and can be locked.

•Green LED status indicator.

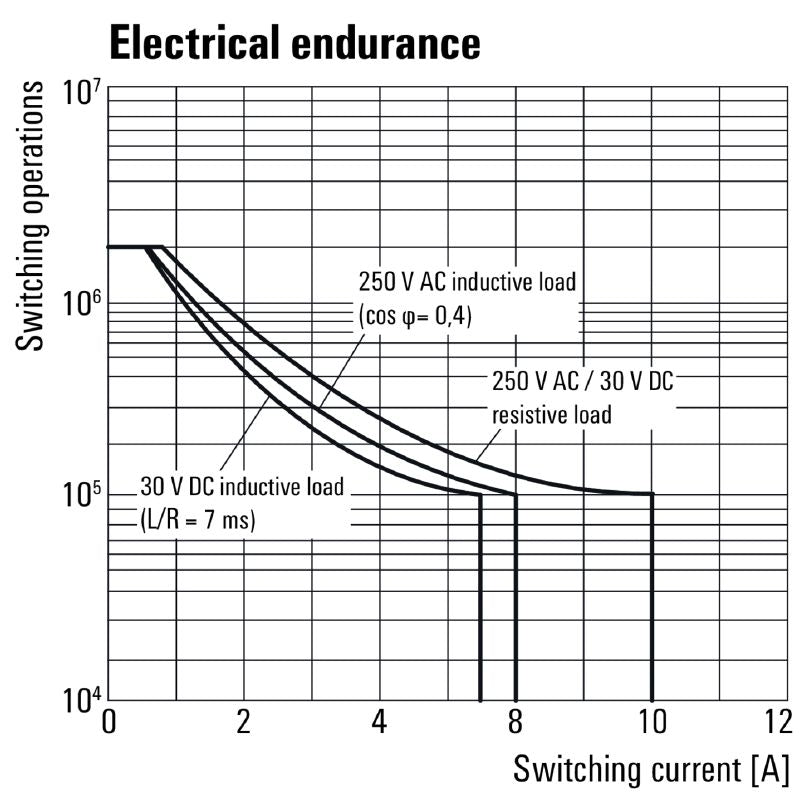

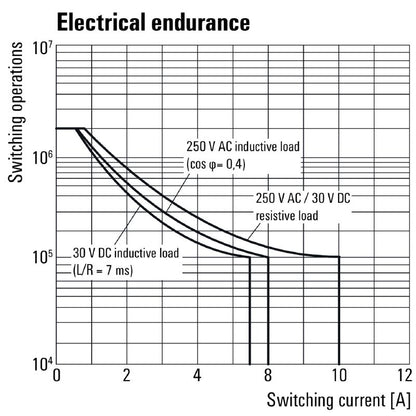

•Mechanical service life is rated at 10 million switching cycles.

Specifications:

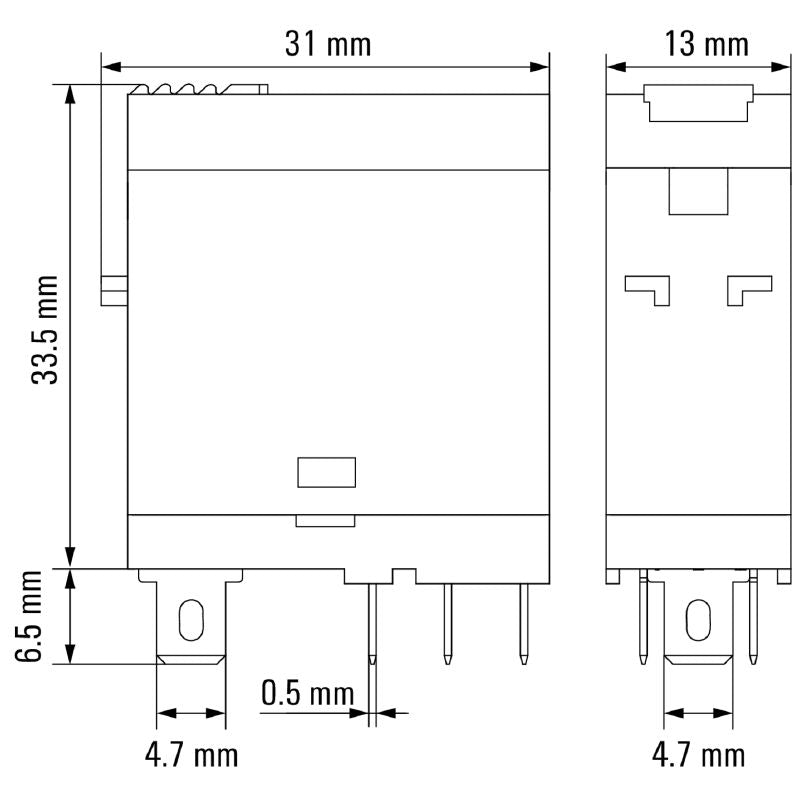

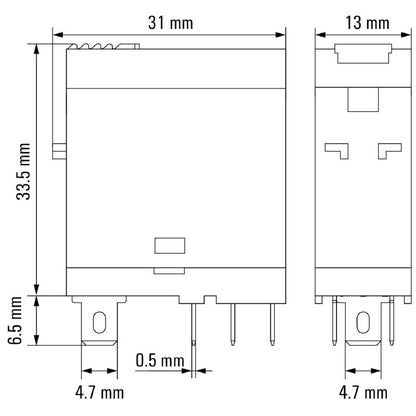

Depth	33.5 mm
Height	31 mm
Width	13 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…55 °C
Rated data UL	Certificate No. (cURus) E312083

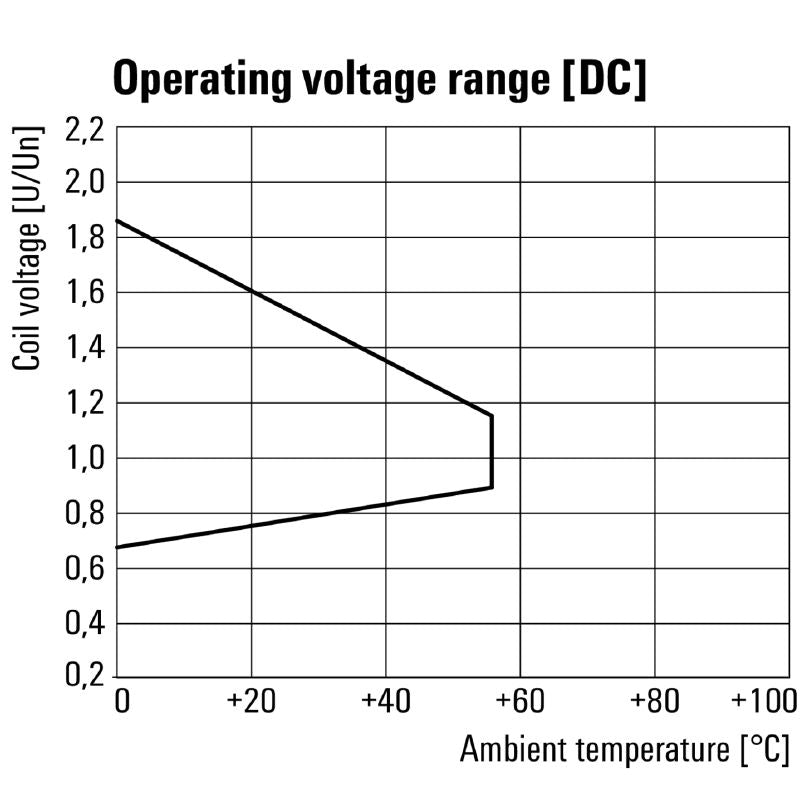

Rated control voltage	110 V DC
Rated current DC	4.8 mA
Power rating	530 mW
Coil resistance	22800 Ω ± 10 %
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage	250 V
Min. switching power	10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
AC switching capacity (resistive), max.	2500 VA

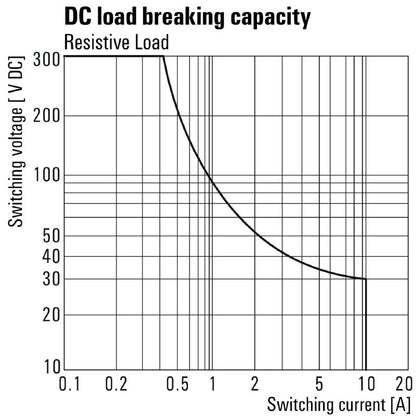

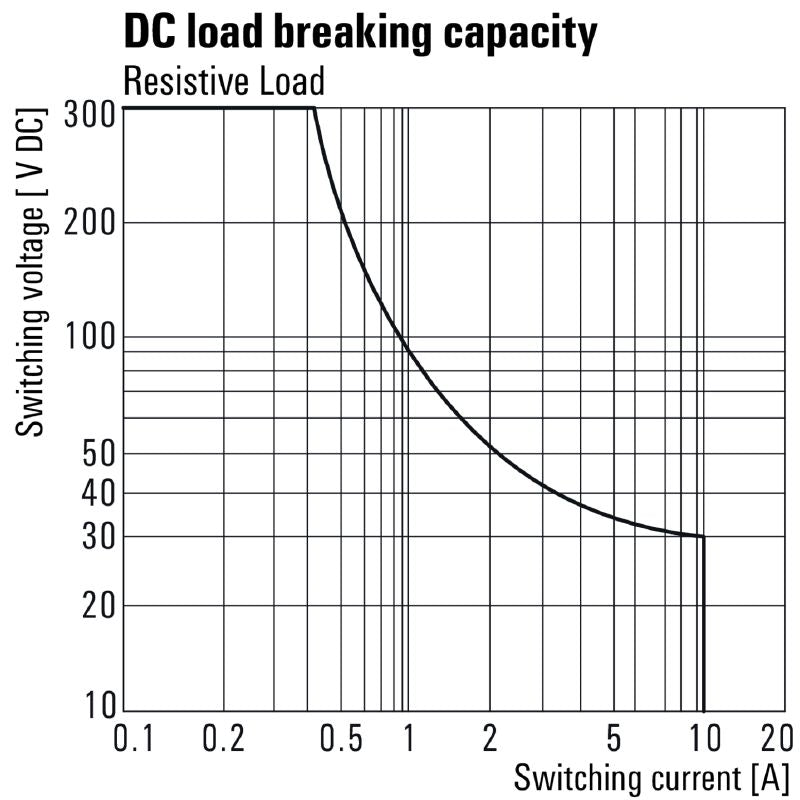

DC switching capacity (resistive), max.	240 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms

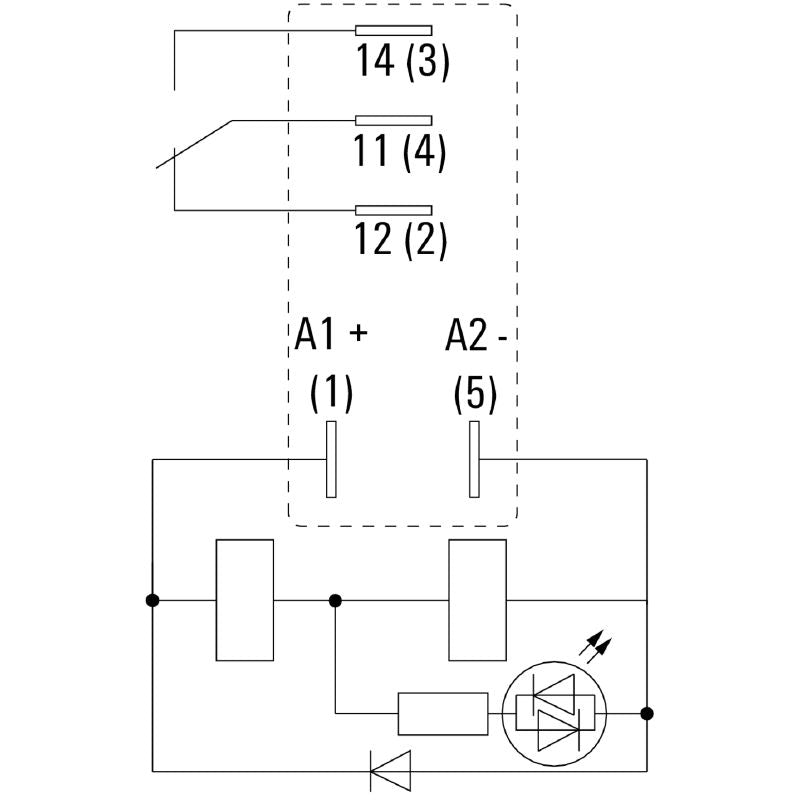

Contact type	1 CO contact (AgSnO)
Protection degree	IP20
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Dielectric strength for control side - load side': '5 kV eff / 1min', 'Dielectric strength of open contact': '1 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
UL94 flammability rating	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay test button': 'HB'}
