Description:

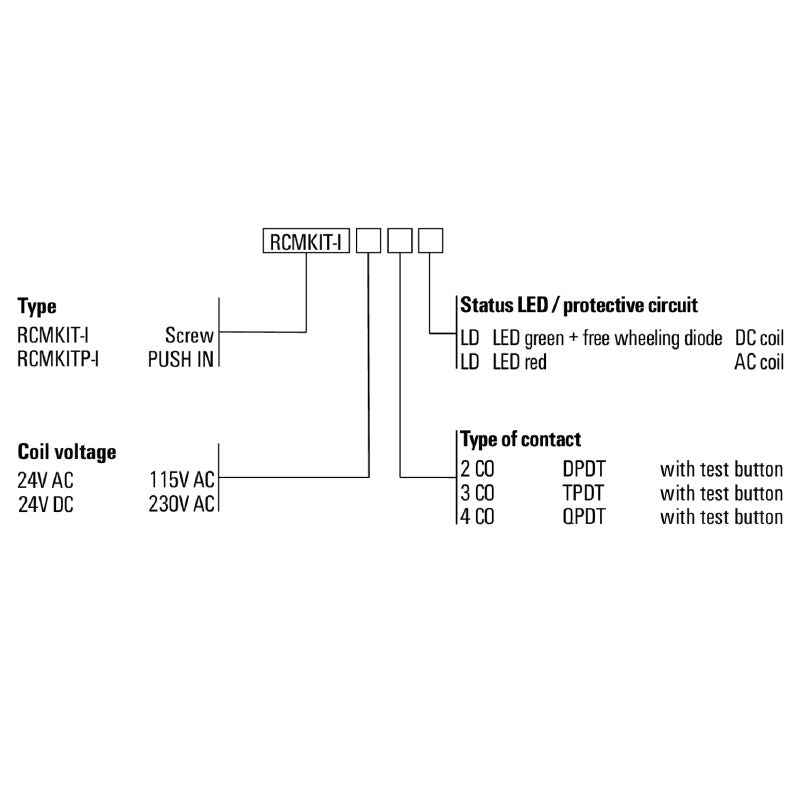

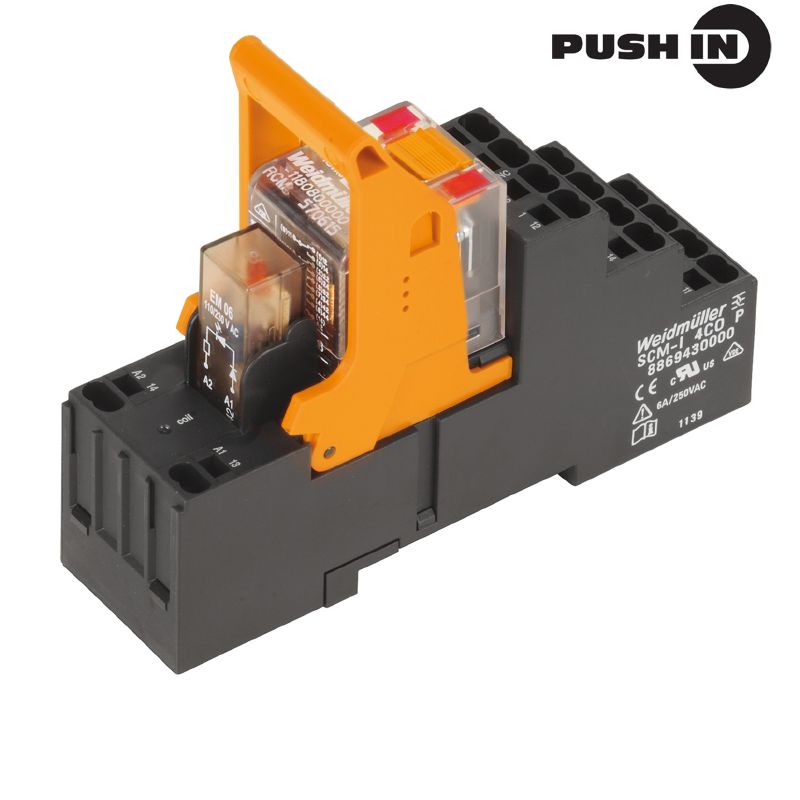

Introducing the RCMKITP-I relay module, a reliable component featuring two changeover (CO) contacts suited for a control voltage of 230 V AC This module supports a continuous current of up to 12 A and makes use of an easy-to-use push-in wire connection method Additionally, it comes with a convenient test button for functionality checks Part of the RIDERSERIES, please note that this model will be discontinued after December 31, 2025, and is compliant with ROHS standards for safety and environmental considerations.

Features and Benefits:

•Test button available.

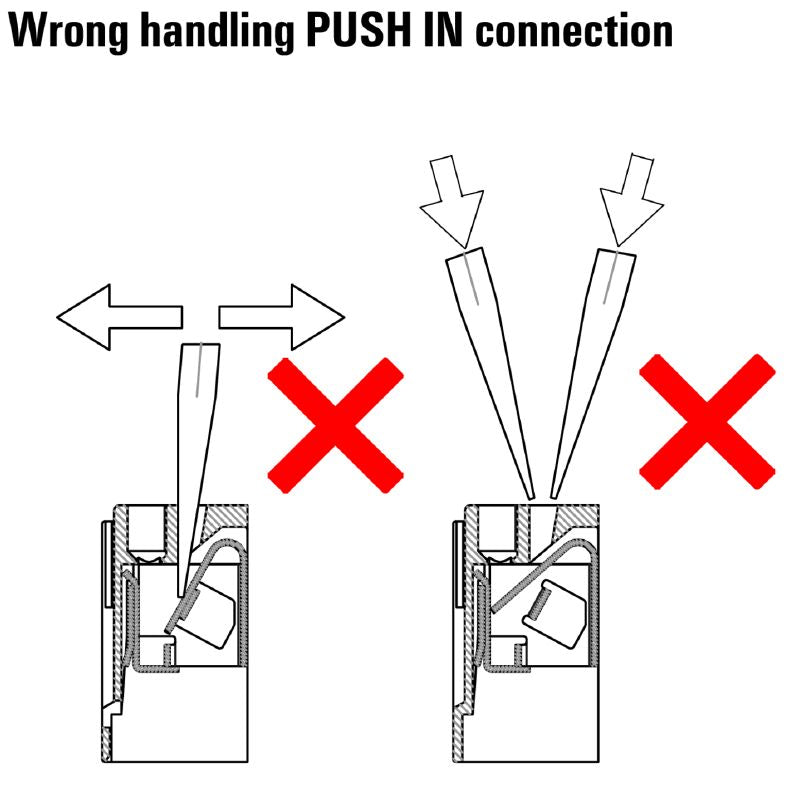

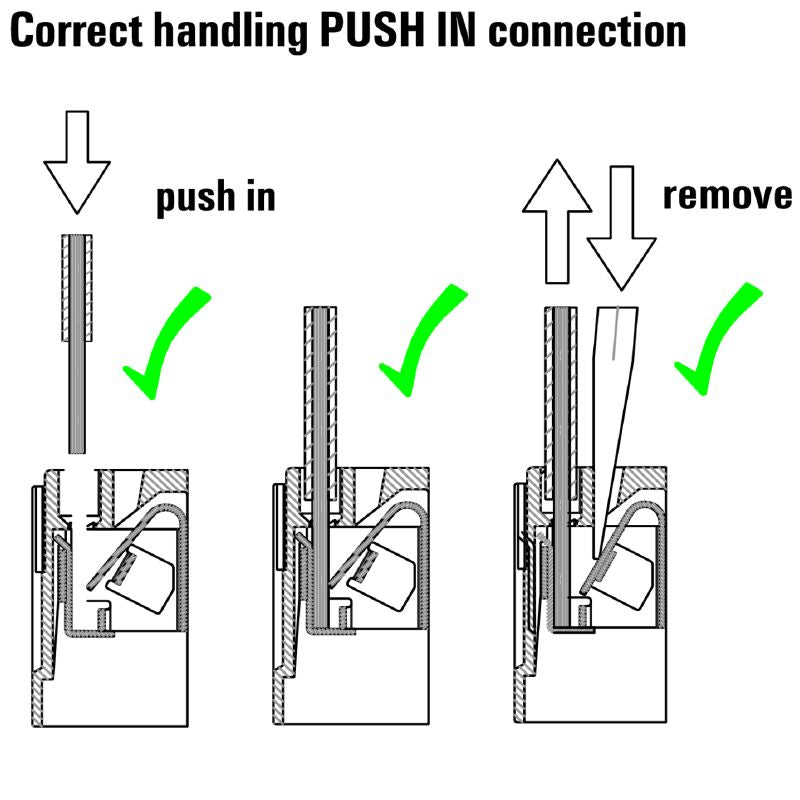

•Push-in wire connection method.

•Lockable test button.

•Momentary test button.

•Mechanical switch position indicator.

Specifications:

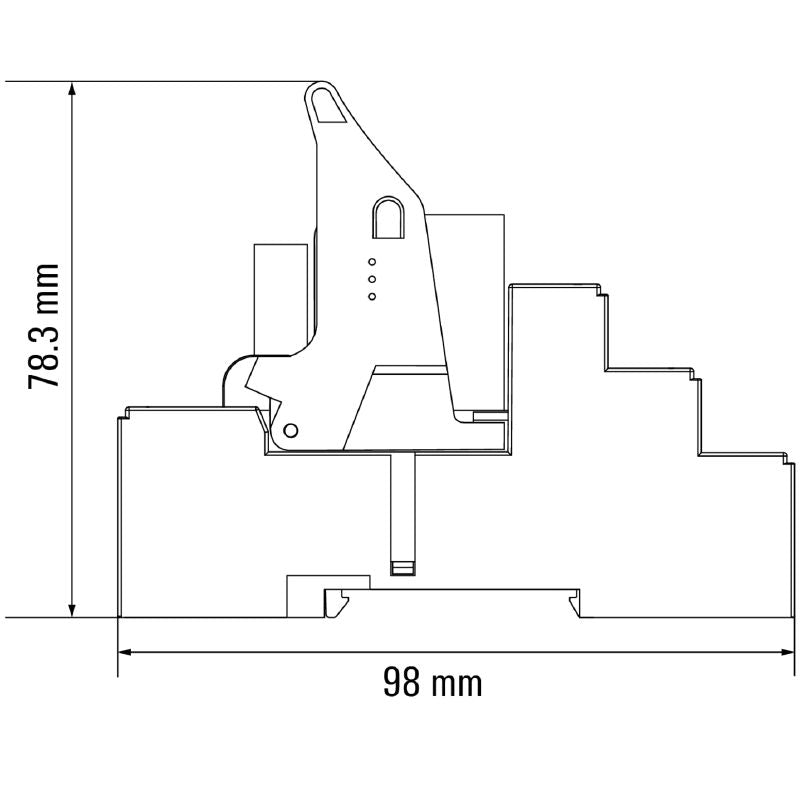

Depth	78.3 mm
Height	98 mm
Width	28 mm
Storage temperature	-40 °C...70 °C
Ambient temperature	-40 °C…70 °C

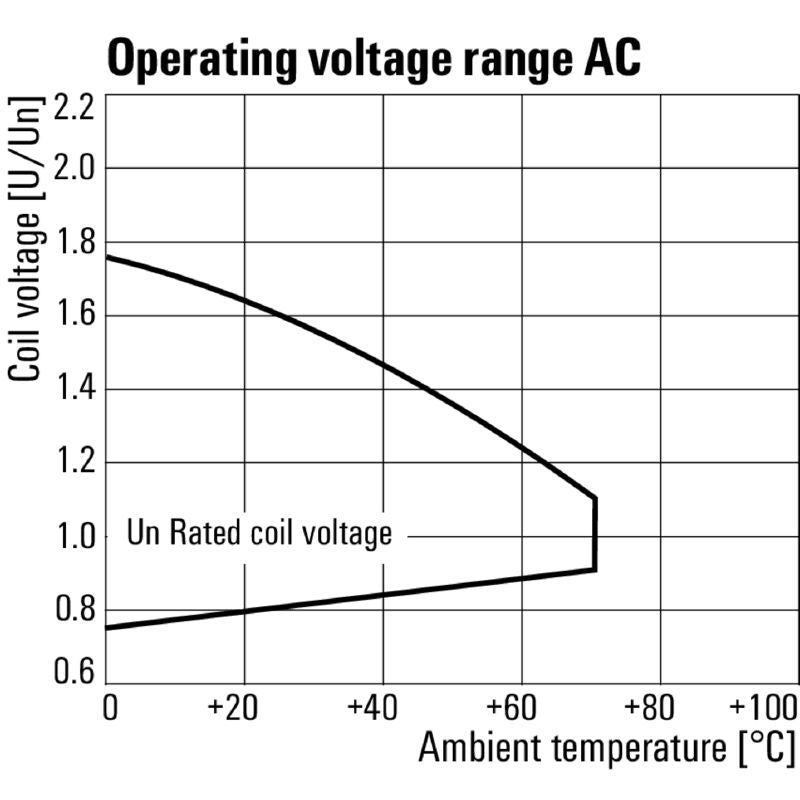

Rated control voltage	230 V AC
Rated current AC	5.7 mA
Power rating	1.31 VA
Coil resistance	19465 Ω ± 15 %
Status indicator	red LED
Rated switching voltage	240 V AC

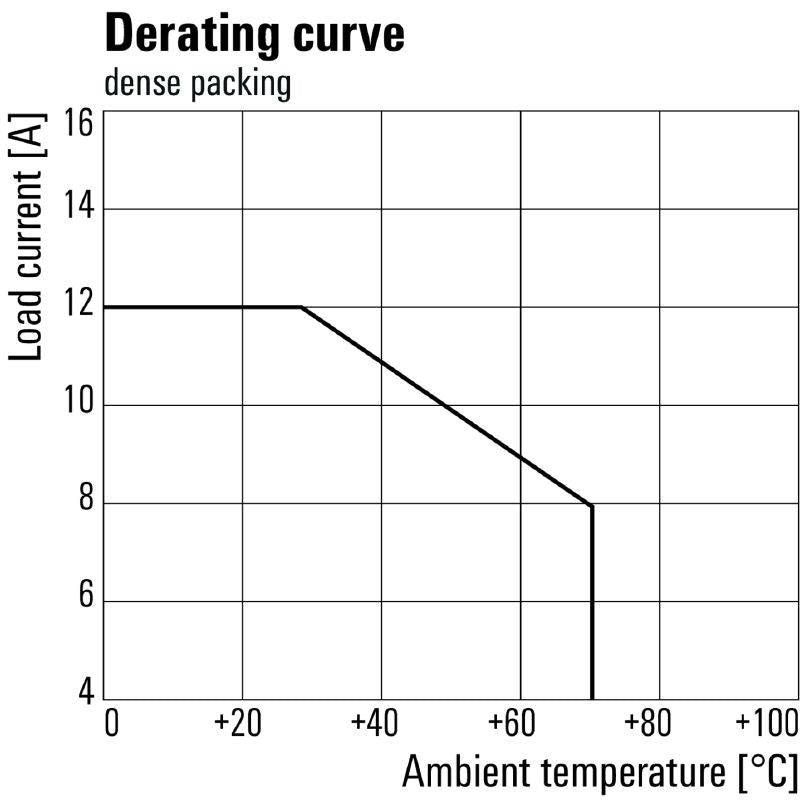

Continuous current	12 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Inrush current	24 A / 20 ms
AC switching capacity (resistive), max.	3000 VA

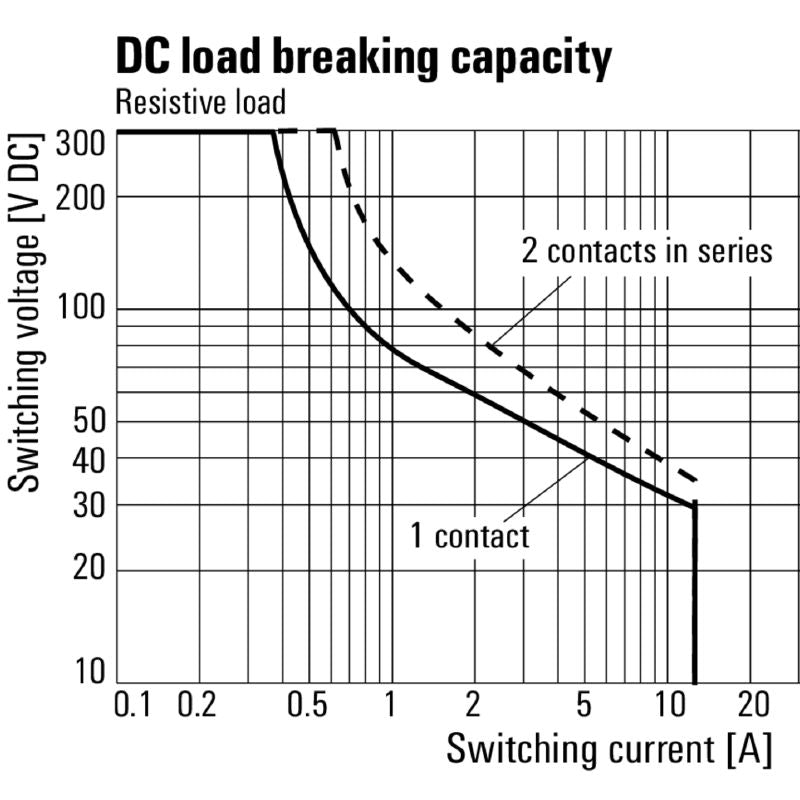

DC switching capacity (resistive), max.	288 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms

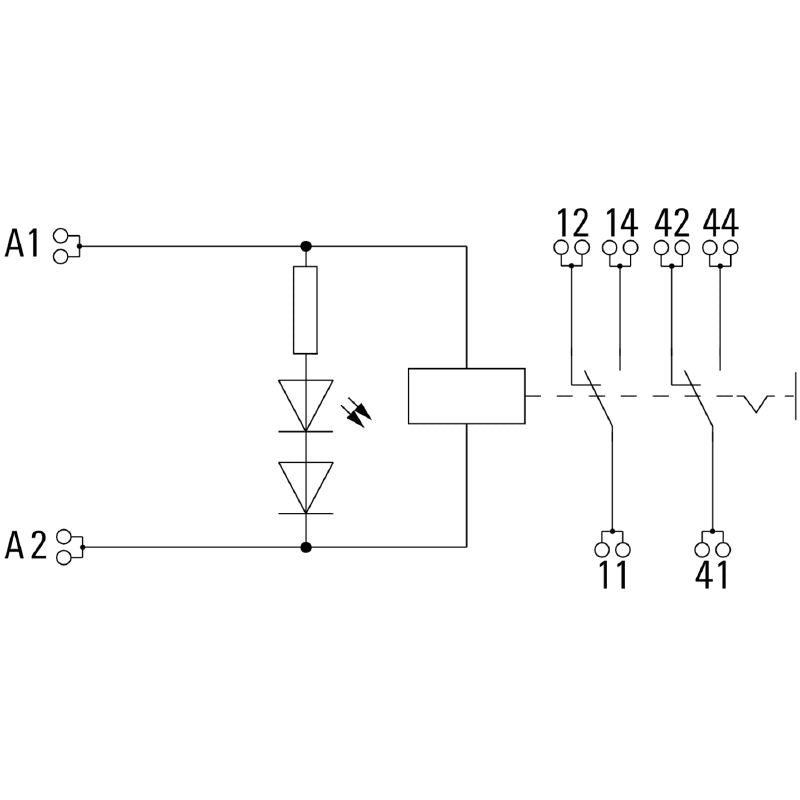

Contact type	2 CO contact (AgNi)

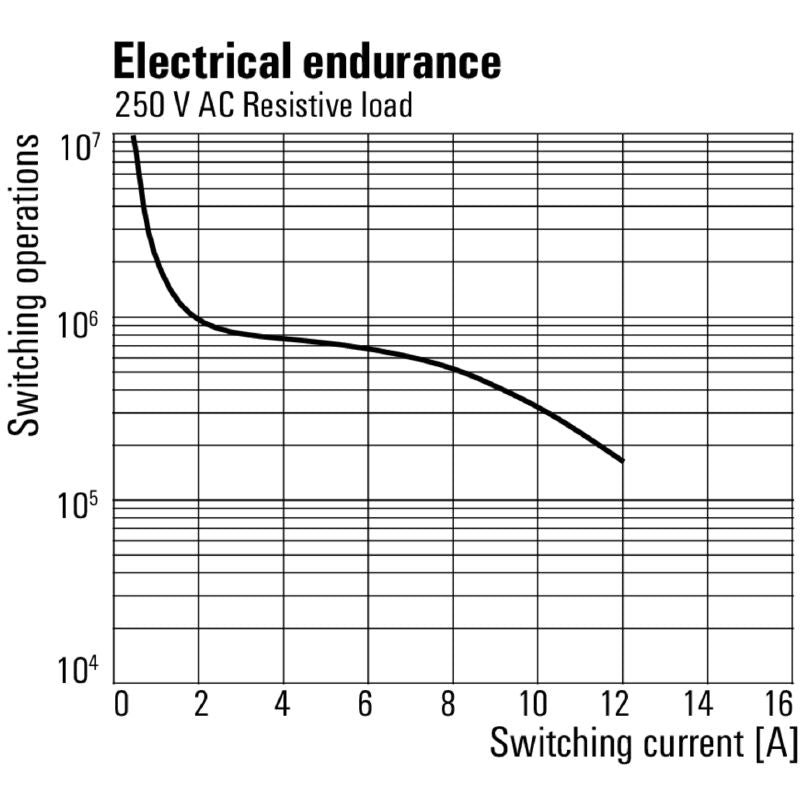

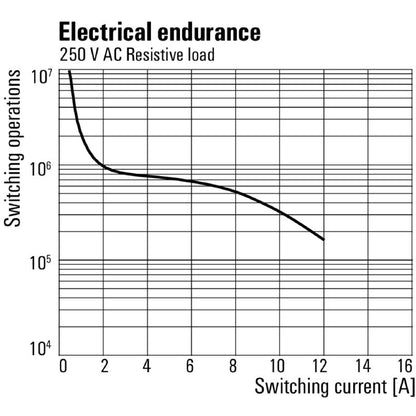

Mechanical service life	AC coil 20 x 10^6 switching cycles, DC coil 30 x 10^6 switching cycles
Mounting rail	TS 35
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '2.5 kV eff / 1 Min.', 'Dielectric strength of neighbouring contacts': '2.5 kV eff / 1 Min.', 'Dielectric strength of open contact': '1.2 kV eff /1 min.', 'Impulse withstand voltage': '5 kV (1.2/50 µs)', 'Protection degree': 'IP20'}
