7760056332 - 24V AC DRI Relay, 5A, Two CO Contacts, RoHS Compliant (Pack of 20)

7760056332 - 24V AC DRI Relay, 5A, Two CO Contacts, RoHS Compliant (Pack of 20)

SKU: 7760056332 Download PDF

Variant:
  • 7760056332 - 24V AC DRI Relay, 5A, Two CO Contacts, RoHS Compliant (Pack of 20)
Now $102.33
BEFORE   $0.00 Now $102.33
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

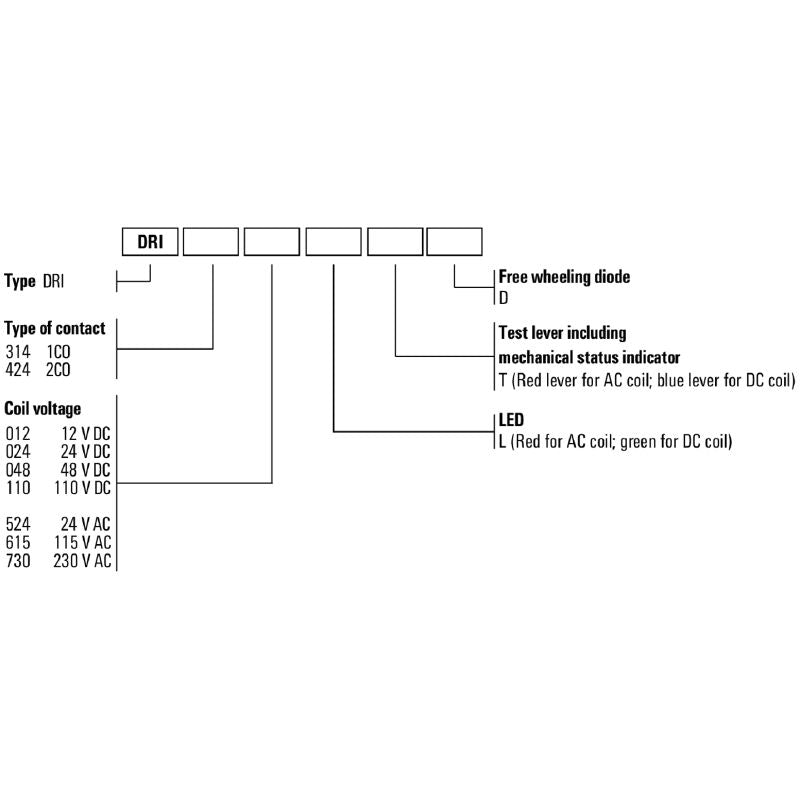

Description:

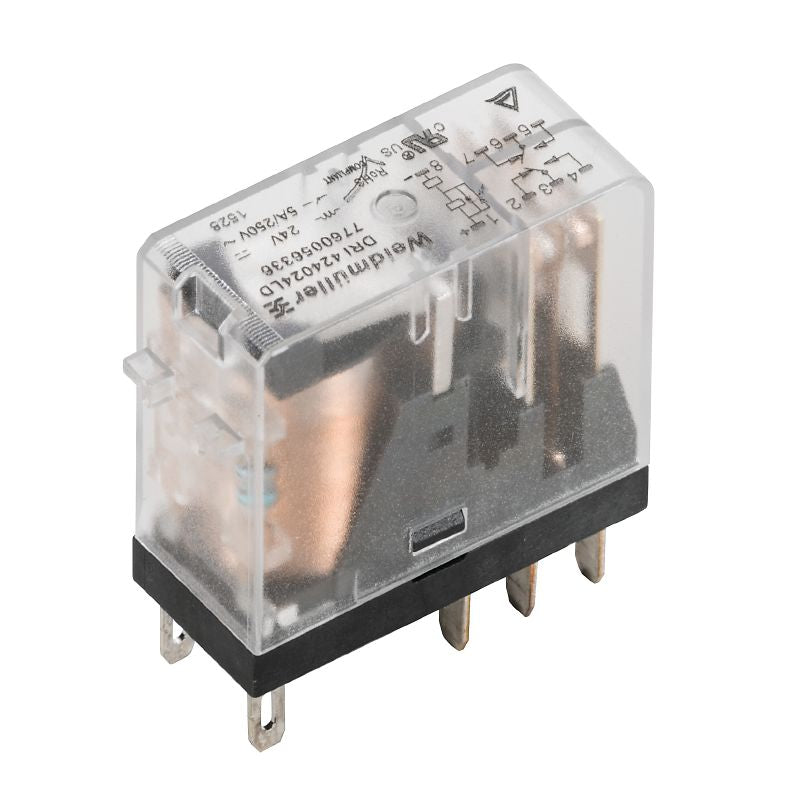

Introducing the D-SERIES DRI Relay—a reliable component featuring two CO contacts crafted from AgSnO This relay operates efficiently at a control voltage of 24 V AC and can handle a continuous current of up to 5 A It connects easily with flat blade terminals measuring 25 mm x 05 mm Note that it does not include a test button Meeting RoHS compliance standards, this relay is built to function under extreme temperatures, ranging from -40 °C to 55 °C, and comes in a transparent design for visibility.

Engineered to endure various environmental conditions, it's an ideal choice for your electrical applications.

Features and Benefits:

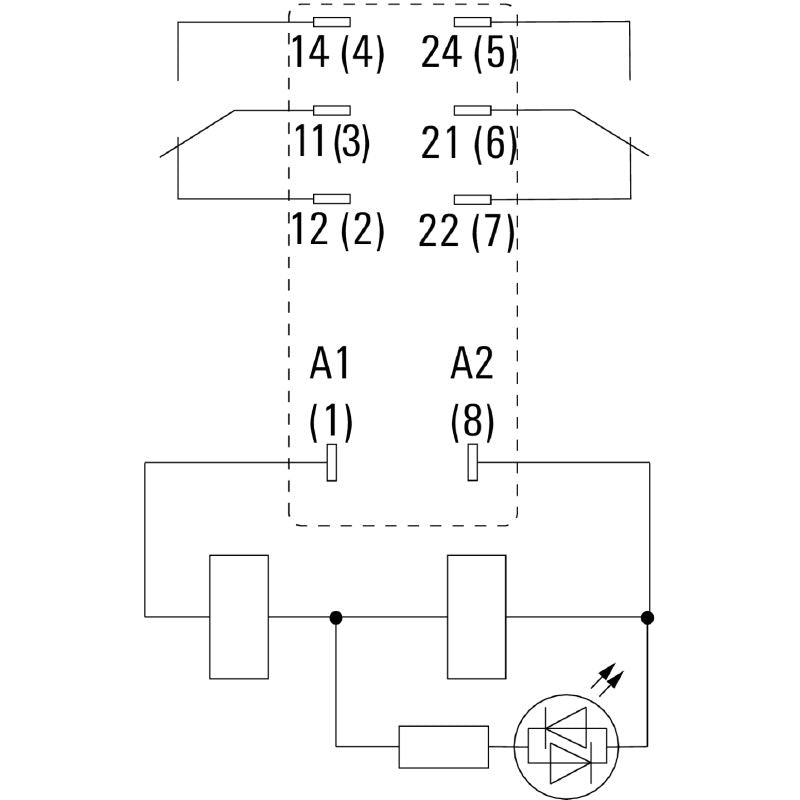

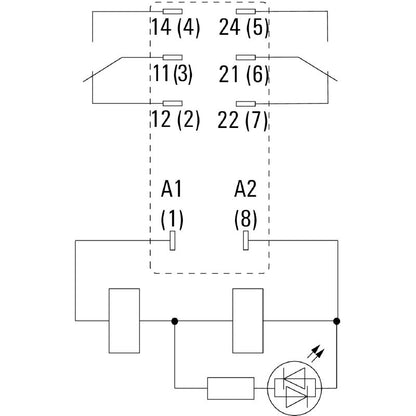

    •Contains 2 CO contacts.

    •Rated control voltage of 24 V AC.

    •Continuous current rating of 5 A.

    •Flat blade connections for easier installation.

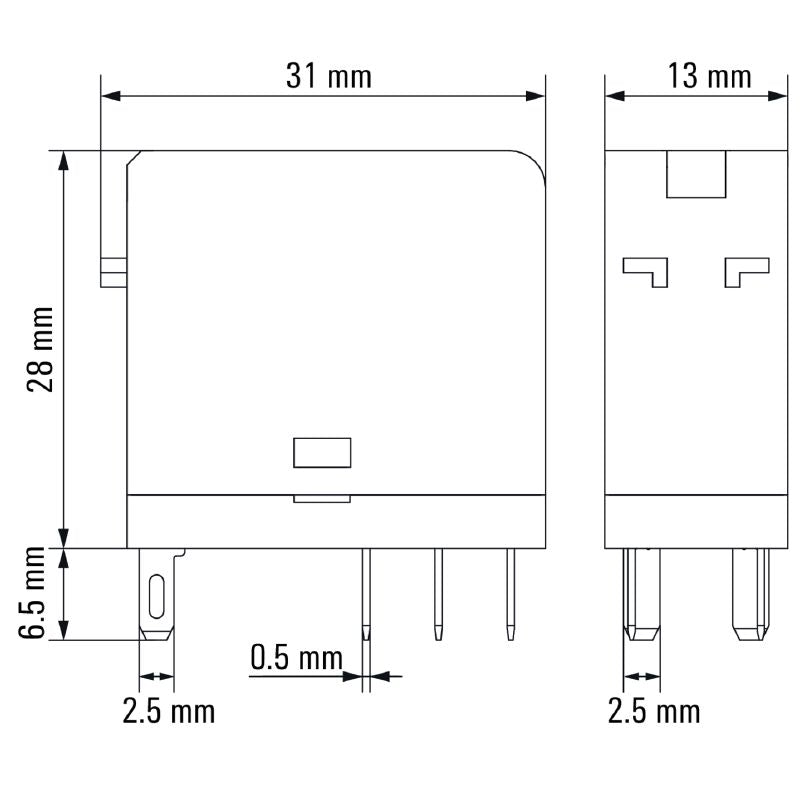

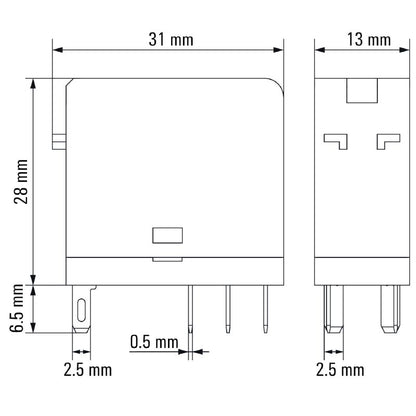

    •Compact dimensions: 28 mm depth, 31 mm height, 13 mm width.

    •Low switching frequency at 0.1 Hz.

    •Indicator for status with a red LED.

    •Protection degree of IP20.

Specifications:

 Depth 28 mm
 Width 13 mm
 Height 31 mm
 Net weight 18.947 g
 Storage temperature -40 °C...85 °C

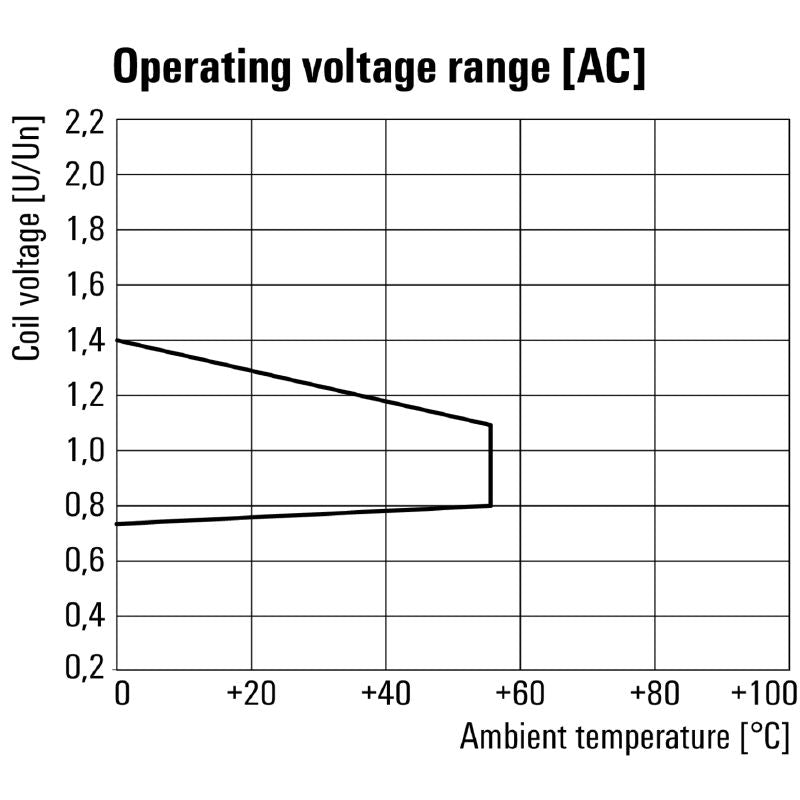

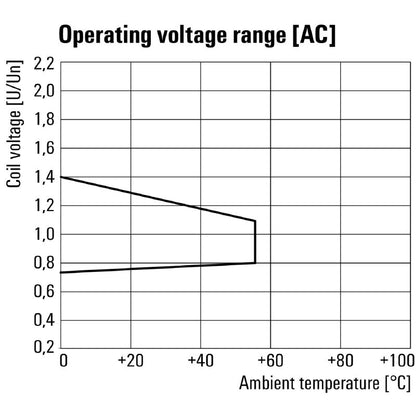

 Ambient temperature -40 °C…55 °C
 Rated current AC 50 mA
 Power rating 1.2 VA
 Coil resistance 240 Ω ± 10 %
 Rated switching voltage 250 V AC
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 250 V
 Min. switching power 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
 AC switching capacity (resistive), max. 1250 VA

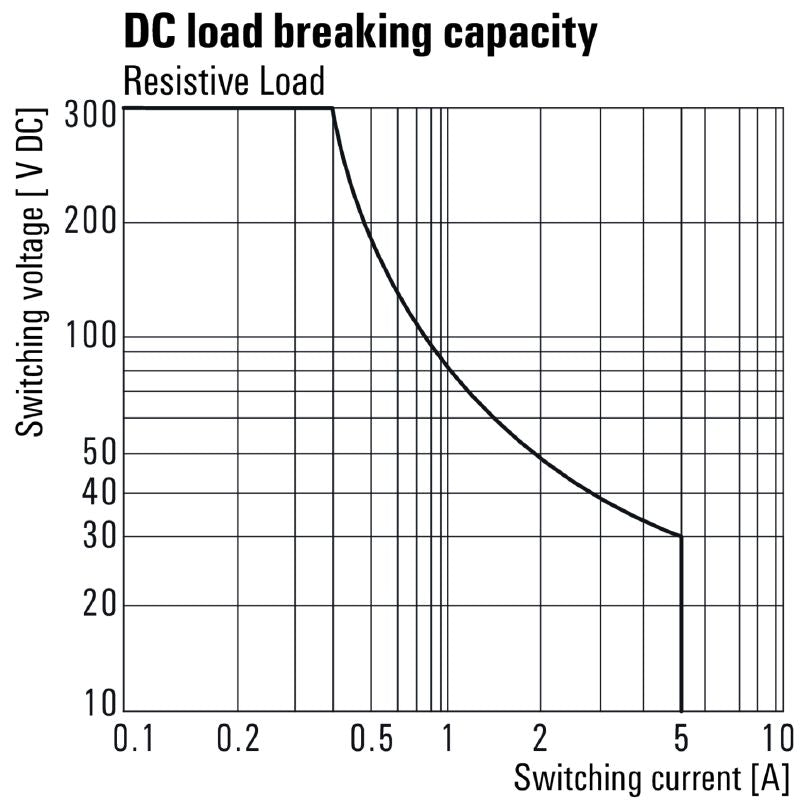

 DC switching capacity (resistive), max. 150 W @ 24 V
 Switch-on delay ≤ 15 ms
 Switch-off delay ≤ 10 ms

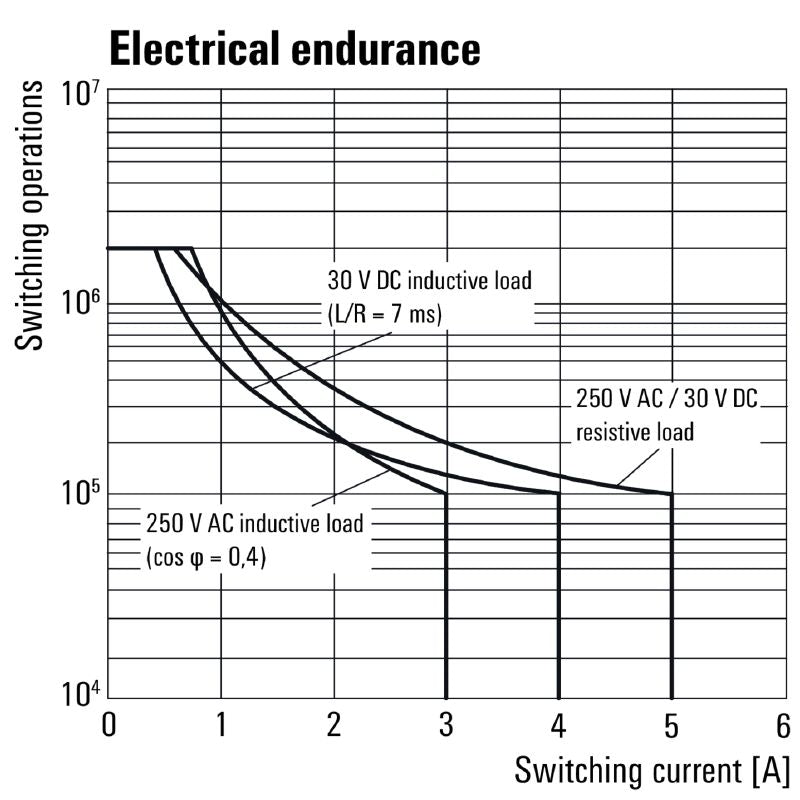

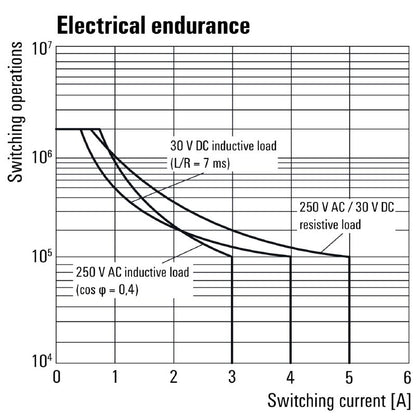

 Mechanical service life 10 x 10^6 switching cycles
 Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Insulation material group IIIa
 Dielectric strength for control side - load side 5 kV eff / 1 min
 Dielectric strength of neighbouring contacts 1.5 kV eff /1 min
 Dielectric strength of open contact 1 kV eff / 1 min
 Impulse withstand voltage 5 kV (1.2/50 µs)
 Wire connection method Flat blade connections (2.5 mm x 0.5 mm)
