Product Information

Description:

Take control of your electric devices seamlessly with this solid-state relay, designed for reliable operation It has a control voltage range of 48 to 60 V AC and supports a wide switching voltage from 24 to 230 V AC, all while managing a continuous current of 01 A Tailored for specific voltage tolerances, this relay ensures optimal performance and efficiency in its applications.

Features and Benefits:

•Green LED status indicator.

•PUSH IN wire connection method.

•IP20 protection degree.

•RoHS compliant with exemptions.

•The device can handle ambient temperatures from -20 °C to 60 °C.

Specifications:

Rated control voltage	48…60 V AC ±20 %
Rated switching voltage	24...230 V AC
Continuous current	0.1 A (AC1)
Power rating	≤ 0.3 VA

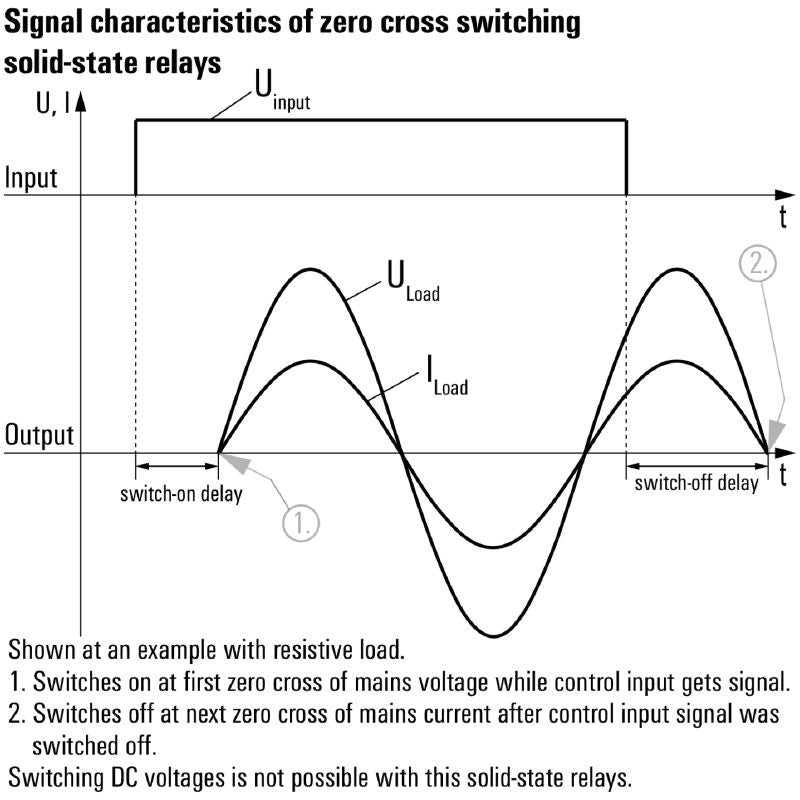

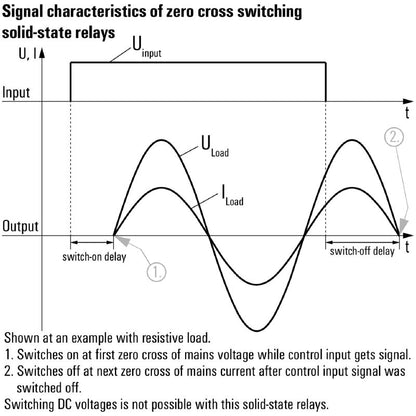

Switch-on delay	<14 ms
Switch-off delay	<16 ms
Voltage drop at max. load	<1.8 V
Leakage current	<1 mA
Min. switching current	2 mA
Max. switching voltage, AC	230 V
Short-circuit-proof	No
Connection data	{'Clamping range, rated connection': '1.5 mm²', 'Clamping range, min.': '0.5 mm²', 'Clamping range, max.': '2.5 mm²', 'Wire connection cross section AWG, min.': 'AWG 20', 'Wire connection cross section AWG, max.': 'AWG 14'}
Dimensions	{'Depth': '55 mm', 'Height': '79.4 mm', 'Width': '6.1 mm'}
Ambient temperature	-20 °C…60 °C
Storage temperature	-40 °C...80 °C
Approximate MTTF	2,500 a
Surge voltage category	III
Rated voltage	300 V
