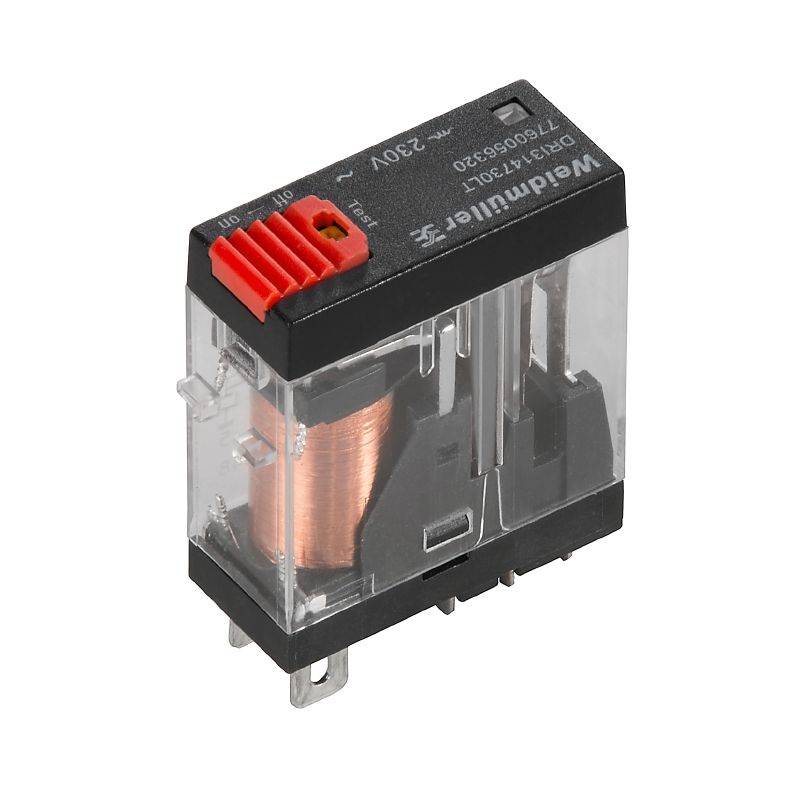

7760056318 - 24V AC DRI Relay, 10A, Test Button & CO Contact (Pack of 20)

SKU: SKU: 7760056318 Download PDF

Select a Variant:

7760056318 - 24V AC DRI Relay, 10A, Test Button & CO Contact (Pack of 20)

SET THE QTY:

Now $102.69 Web pricing policy

~~BEFORE $0.00~~ Now $102.69 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the D-SERIES DRI Relay, an exceptional component featuring a CO contact made from high-quality AgSnO Ideal for reliable performance, this relay operates on a control voltage of 24 V AC and is capable of managing a continuous current of 10 A It comes equipped with flat blade connections sized at 47 mm x 05 mm, along with a user-friendly test button for easy operation and functionality Perfect for various applications where dependable control is essential.

Features and Benefits:

•Test button is included and can be lockable.

•Mechanical service life of 10 million switching cycles.

•Transformer housing provides IP20 protection.

•Versatile for various applications due to multiple rated voltages and capacities.

Specifications:

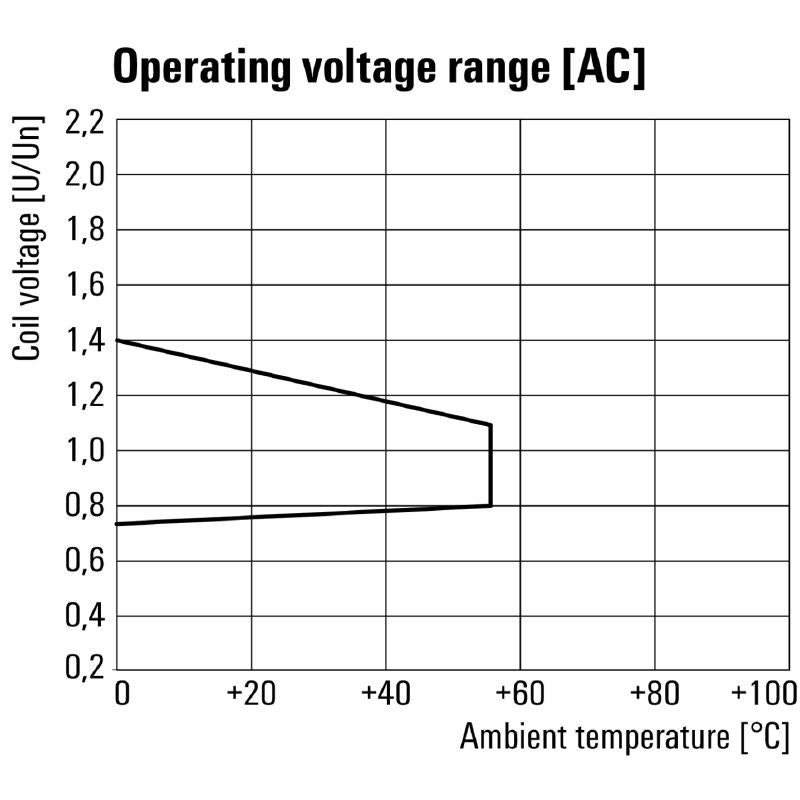

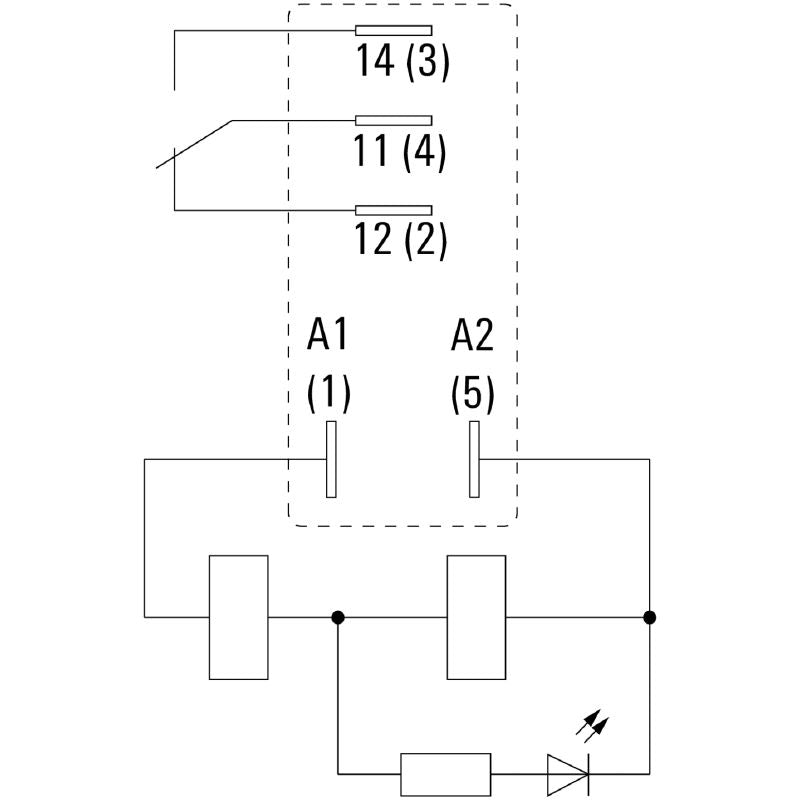

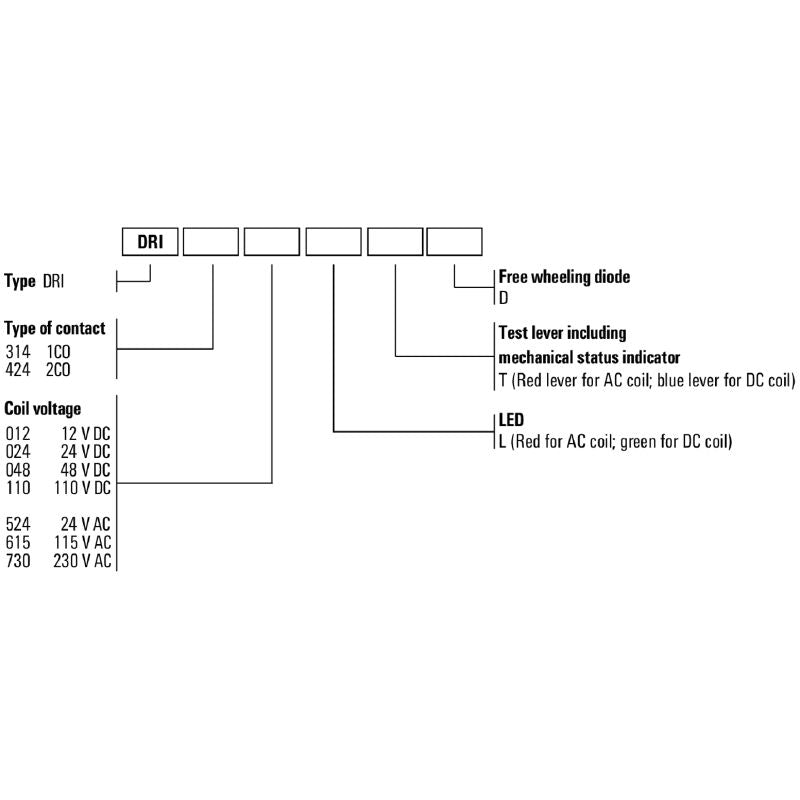

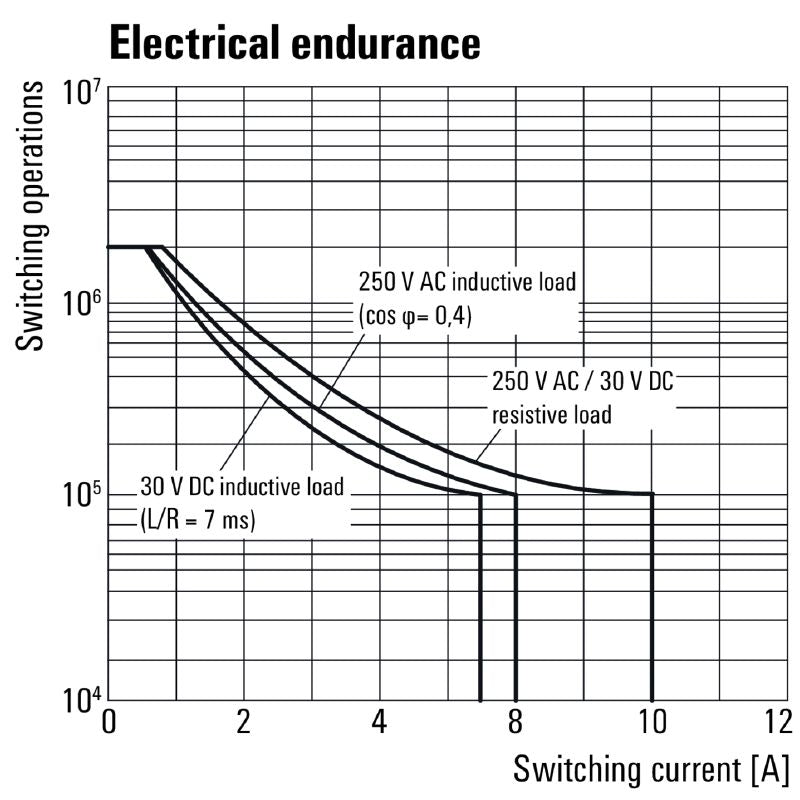

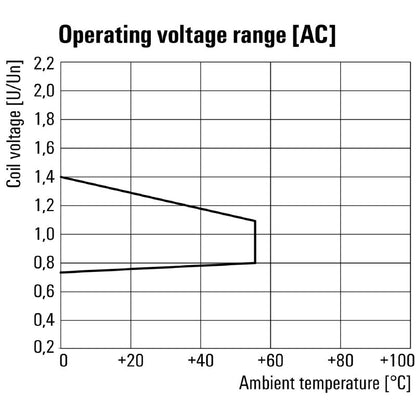

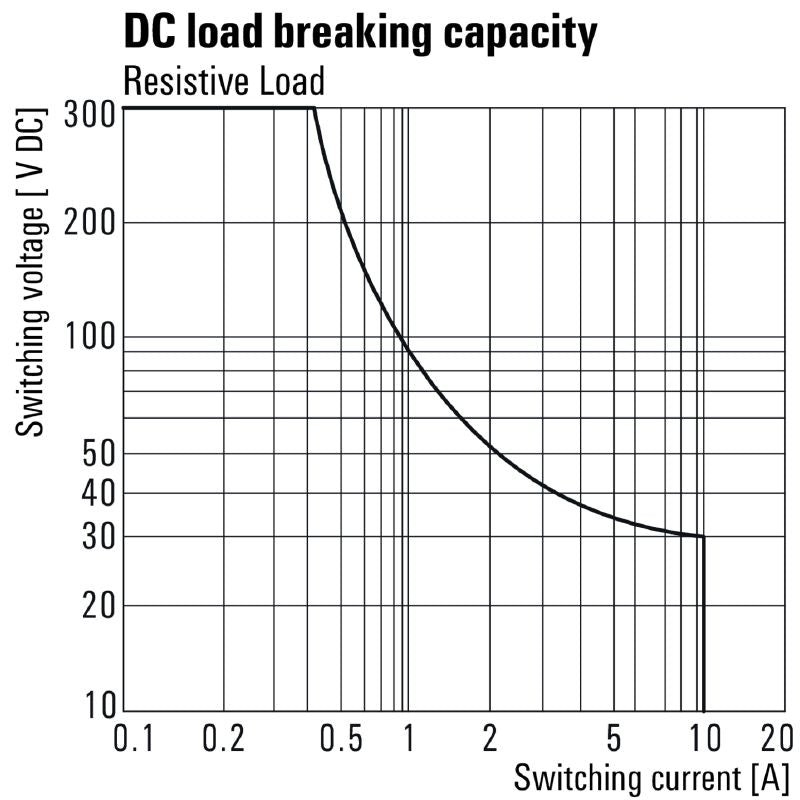

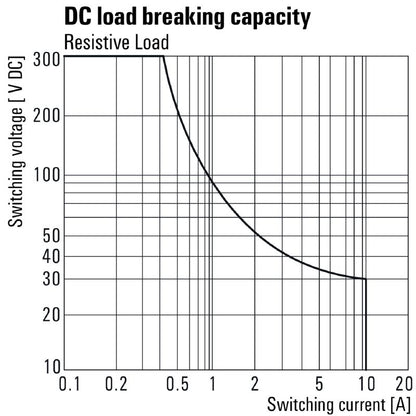

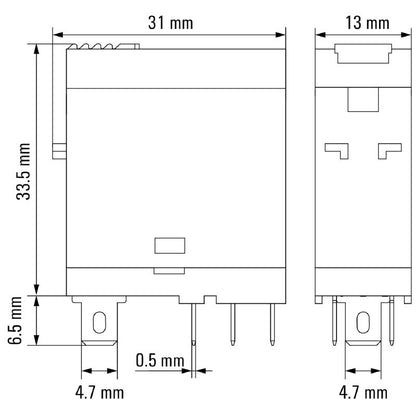

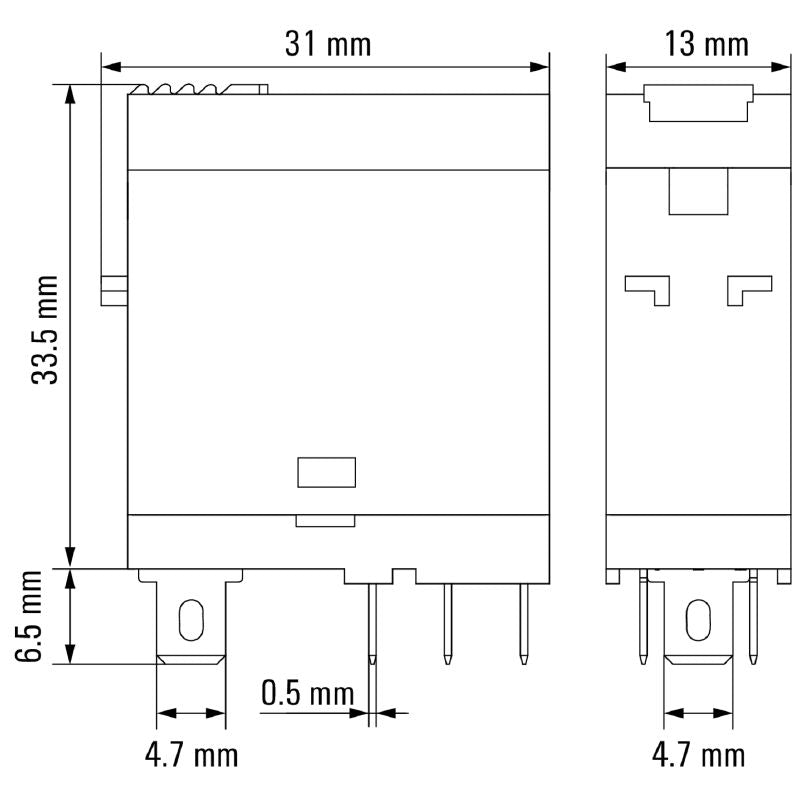

Depth	33.5 mm
Height	31 mm
Width	13 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C...55 °C
Humidity	35...85 % relative humidity, no condensation
Rated control voltage	24 V AC
Rated current AC	50 mA
Power rating	1.2 VA
Coil resistance	240 Ω ± 10 %
Status indicator	red LED
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Max. switching voltage, DC	250 V
Min. switching power	10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
AC switching capacity (resistive), max	2500 VA
DC switching capacity (resistive), max	240 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms
Contact type	1 CO contact (AgSnO)
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '5 kV eff / 1 min', 'Dielectric strength of open contact': '1 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
