8951220000 - Solid-State Relay 24V AC, 230V AC, 0.1A with LED Indicator (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TERMOPTO solid-state relay, engineered for efficient performance with a control voltage rating of 24 V AC ±20% It features a versatile switching voltage capacity that spans from 24 to 230 V AC With a continuous current rating of 01 A, this relay employs a reliable screw connection for easy wiring Designed to meet various environmental standards, the TERMOPTO is compliant with RoHS regulations, making it a dependable choice for modern applications.

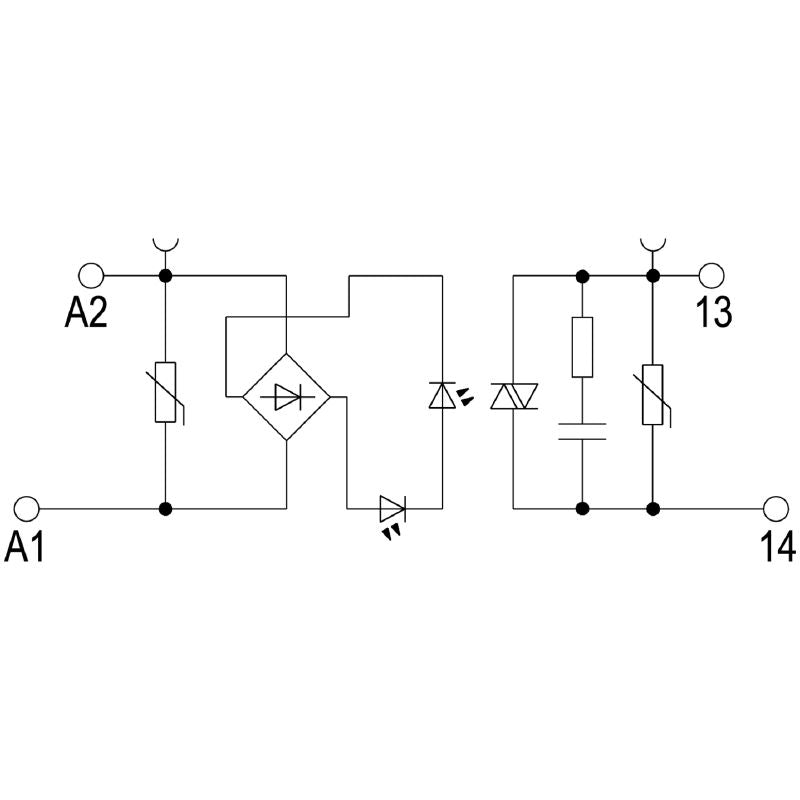

The control side showcases an 88 mA nominal current with a power rating of ≤ 02 VA A green LED indicates the status clearly, while the built-in protective circuit includes a varistor for added safety On the load side, this relay supports switching voltages of up to 230 V AC and can handle a maximum switching current of 100 mA, suitable for AC1 load categories Additional specifications highlight a switch-on delay of less than 14 ms and a voltage drop of less than 1.

8 V at peak load, ensuring swift and efficient operation.

Features and Benefits:

•Green LED status indication.

•Screw connection wire method.

•IP20 protection degree.

•Compact dimensions for installation.

Specifications:
