Description:

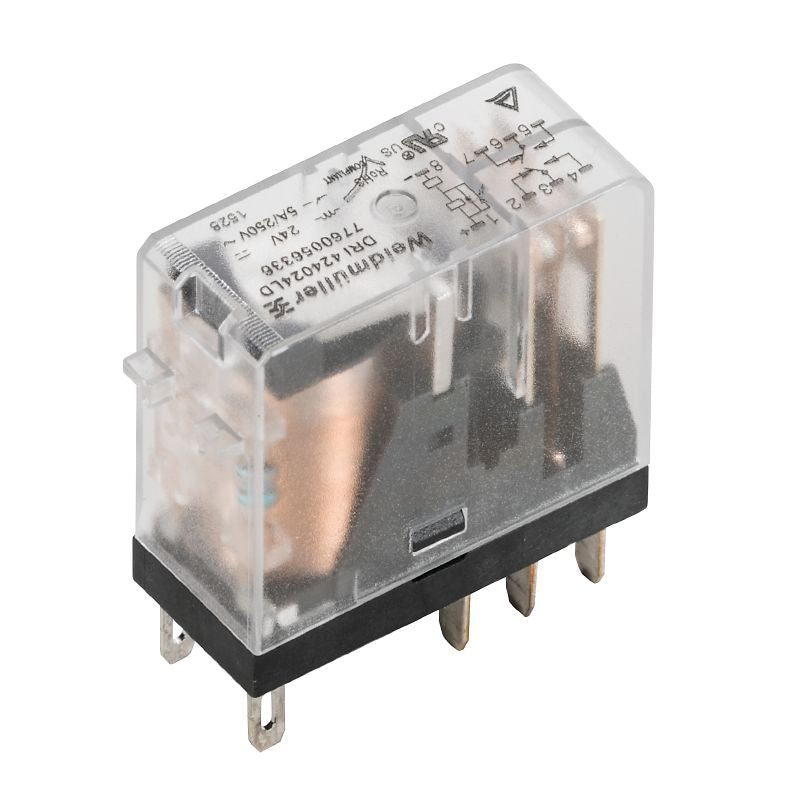

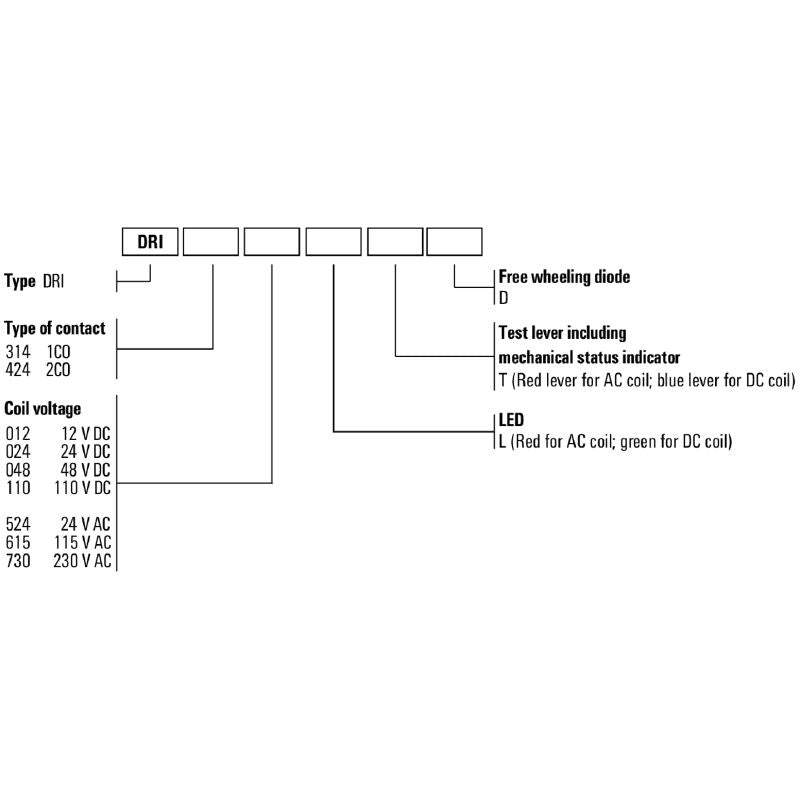

Introducing the D-SERIES DRI relay, featuring two CO contacts crafted from AgSnO material This relay is designed to operate on a control voltage of 24 V AC and can handle a continuous current of up to 5 A It accommodates flat blade connections measuring 25 mm x 05 mm Please note that this model does not include a test button feature, making it a reliable choice for various applications.

Features and Benefits:

•Compliant with RoHS requirements.

•No exemptions for REACH SVHC above 0.1 wt%.

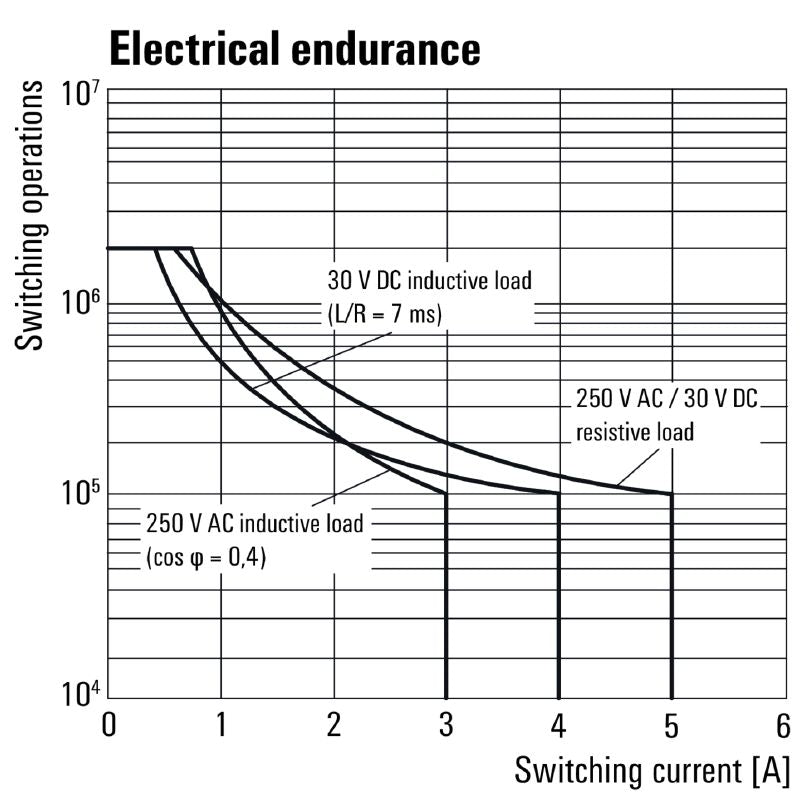

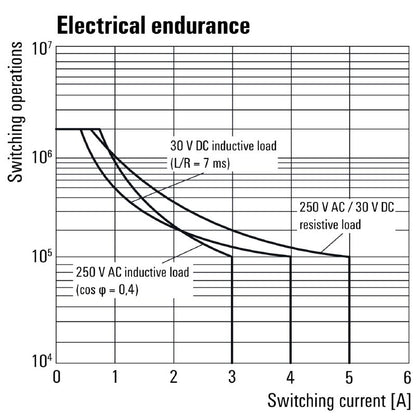

•Mechanical service life expectancy of 10 million switching cycles.

•Transparent color for easy visibility.

Specifications:

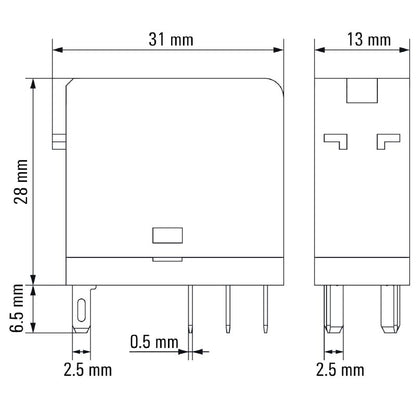

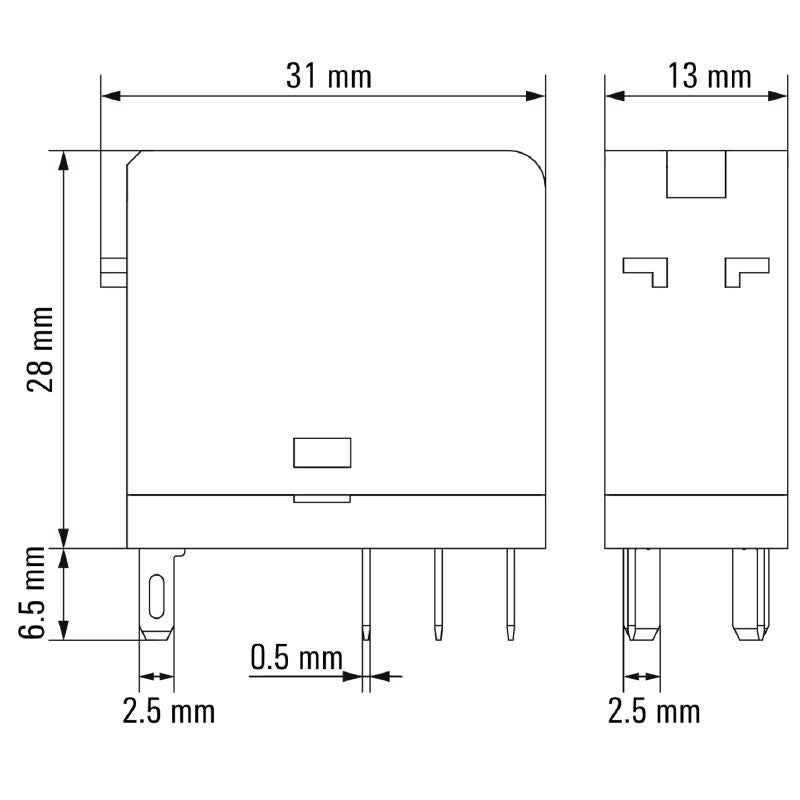

Depth	28 mm
Height	31 mm
Width	13 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…55 °C
Humidity	35...85 % relative humidity, no condensation

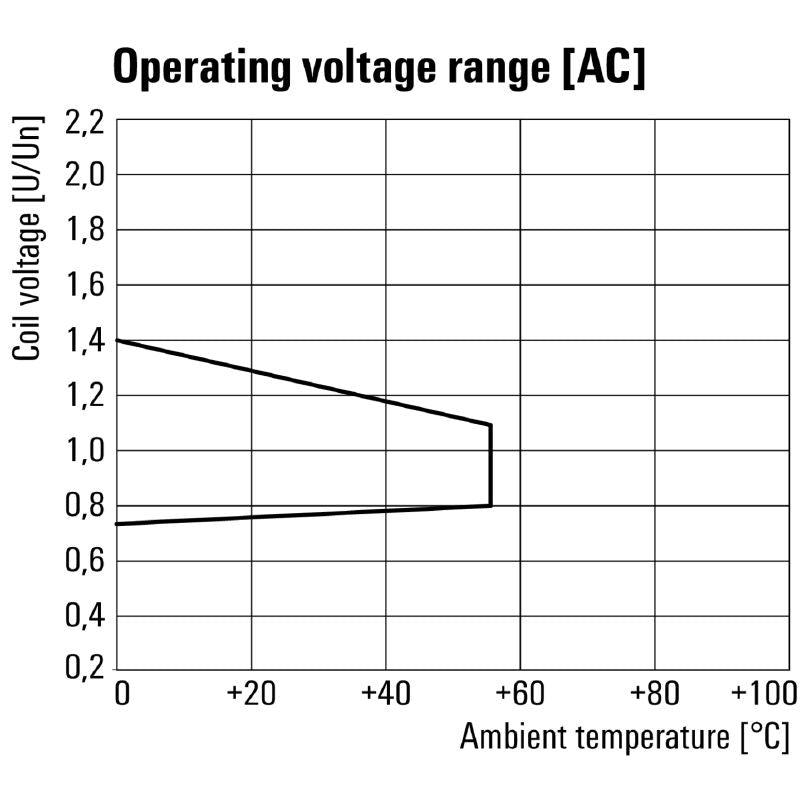

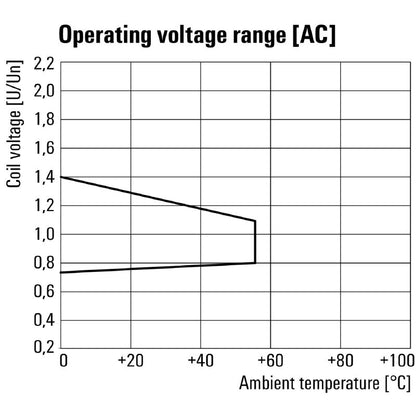

Rated control voltage	24 V AC
Rated current AC	50 mA
Power rating	1.2 VA
Coil resistance	240 Ω ± 10 %

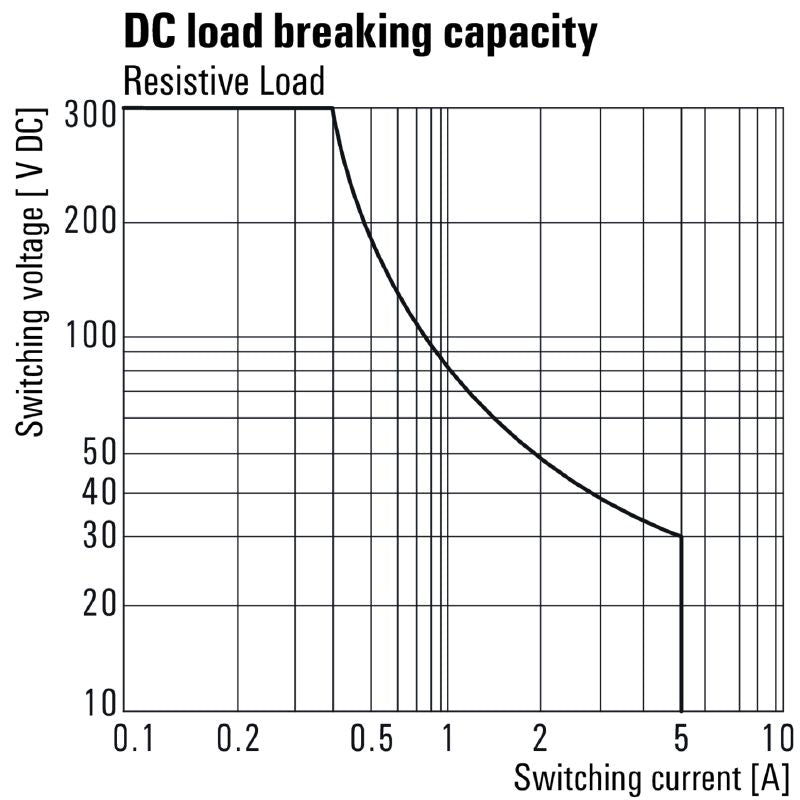

Rating for load side	{'Rated switching voltage': '250 V AC', 'Continuous current': '5 A', 'Max. switching frequency at rated load': '0.1 Hz', 'Max. switching voltage, AC': '250 V', 'Max. switching voltage, DC': '250 V', 'Min. switching power': '10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V', 'AC switching capacity (resistive), max.': '1250 VA', 'DC switching capacity (resistive), max.': '150 W @ 24 V', 'Switch-on delay': '≤ 15 ms', 'Switch-off delay': '≤ 10 ms'}
Contact type	2 CO contact (AgSnO)
UL94 flammability rating component	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0'}
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '5 kV eff / 1min', 'Dielectric strength of neighbouring contacts': '1.5 kV eff /1 min.', 'Dielectric strength of open contact': '1 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
Protection degree	IP20
Wire connection method	Flat blade connections (2.5 mm x 0.5 mm)
