7760056102 - Compact D-SERIES Relay with 4 Contacts, 48V AC, 5A (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

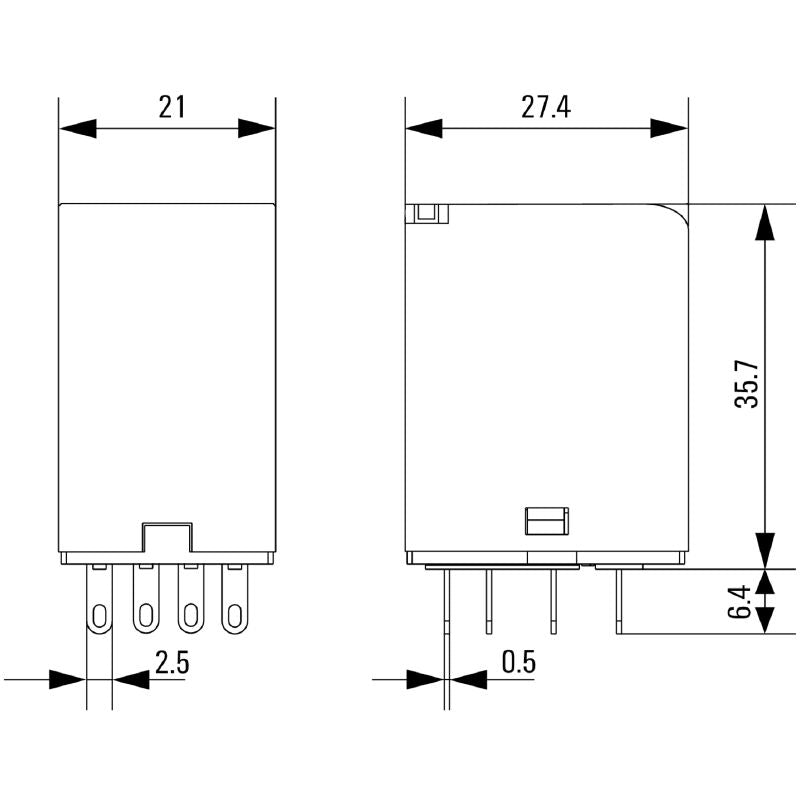

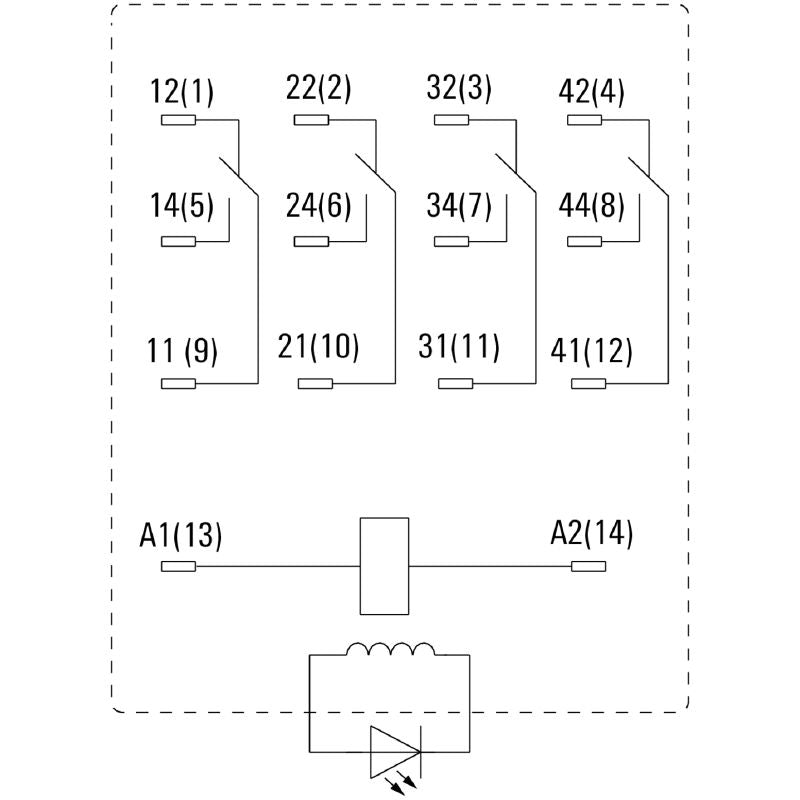

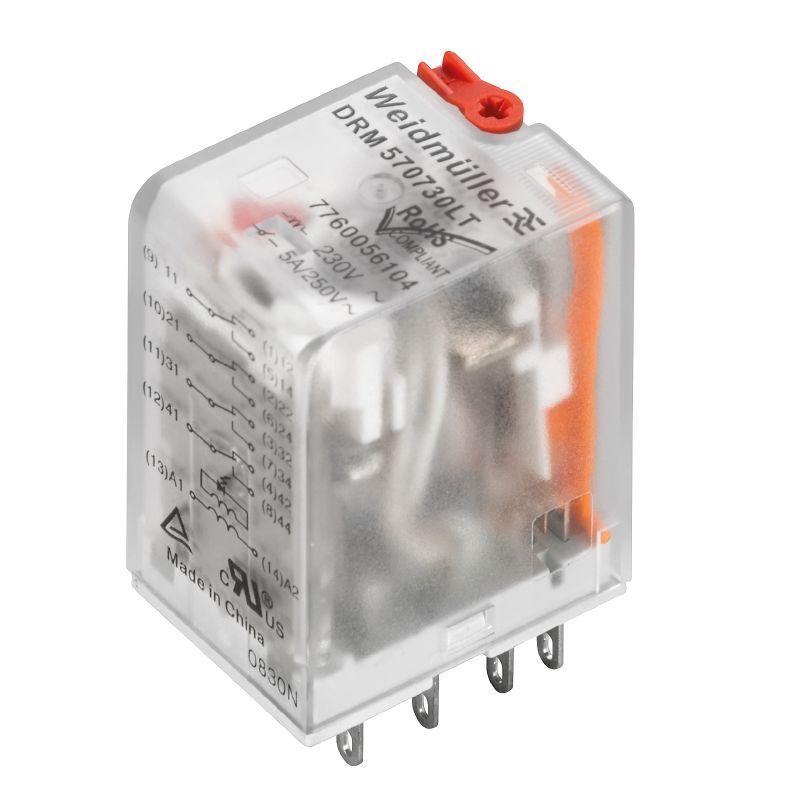

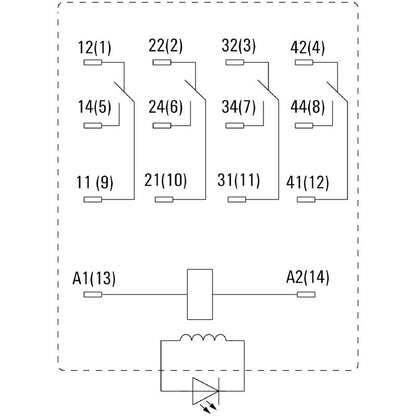

Introducing the D-SERIES DRM relay, a reliable component featuring four CO contacts constructed from AgNi and finished with a flash gold plating for enhanced conductivity This relay operates efficiently with a control voltage of 48 V AC and supports a continuous current rating of 5 A Designed for convenience, it includes a plug-in connection system, making installation straightforward Compact in size, this relay measures 35.

7 mm in depth, 274 mm in height, and 21 mm in width, making it suitable for various applications where space is a premium.

Features and Benefits:

•Test button included with lockable and momentary options.

•Status is indicated by a red LED.

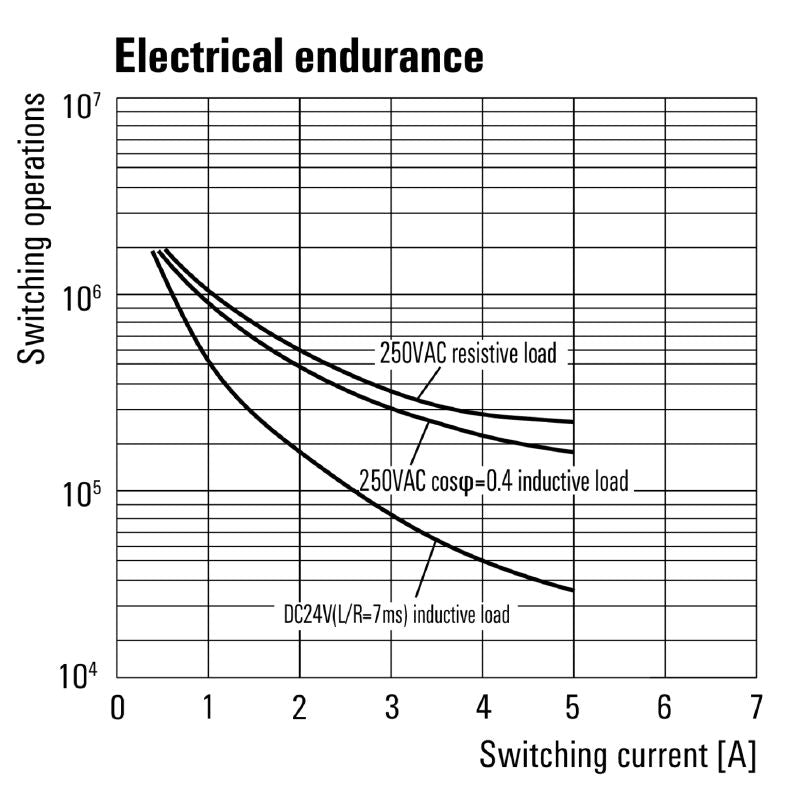

•High mechanical service life with 20 x 10^6 switching cycles.

•Compliant with RoHS and carries UL certification.

•Multiple temperature and humidity ratings suitable for diverse environments.

Specifications:
