7760056098 - D-Series Relay with 4 Contacts, 5A, 48V DC, RoHS Compliant (Pack of 20)

SKU: SKU: 7760056098 Download PDF

Select a Variant:

7760056098 - D-Series Relay with 4 Contacts, 5A, 48V DC, RoHS Compliant (Pack of 20)

SET THE QTY:

Now $153.04 Web pricing policy

~~BEFORE $0.00~~ Now $153.04 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

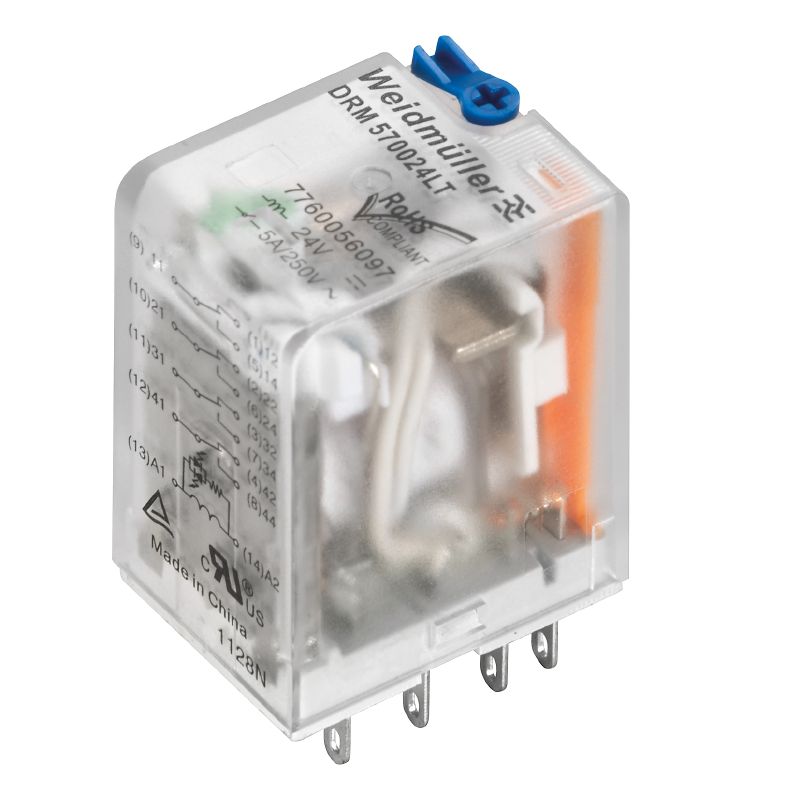

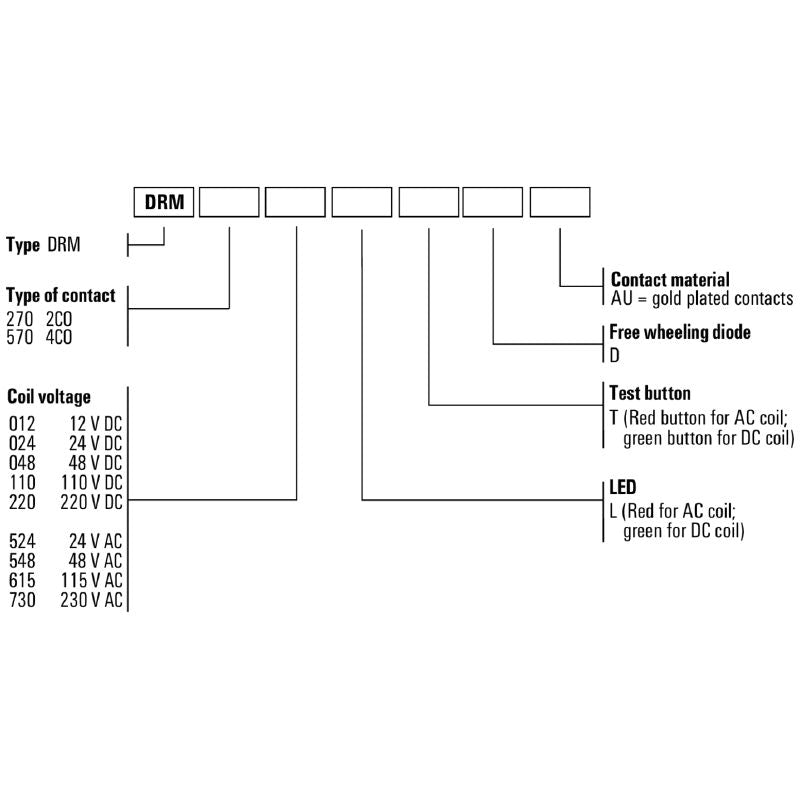

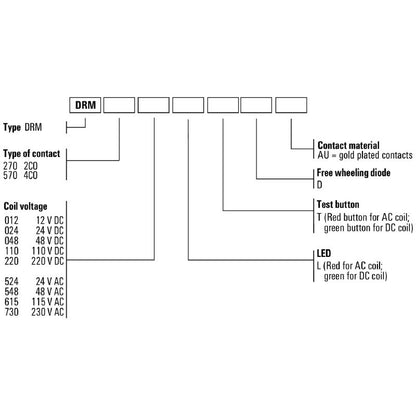

Introducing the D-Series DRM relay, featuring four changeover (CO) contacts with a durable AgNi flash gold plating for enhanced performance This relay is rated for a control voltage of 48 V DC and can handle a continuous current of up to 5 A Designed for easy installation, it utilizes a plug-in connection and fully complies with RoHS standards For procurement, use order number 7760056098, and reference UL file number E312083 for safety assurance.

Perfect for various applications where reliable switching is essential.

Features and Benefits:

•Plug-in connection method.

•Mechanical switch position indicator.

•Lockable test button available.

Specifications:

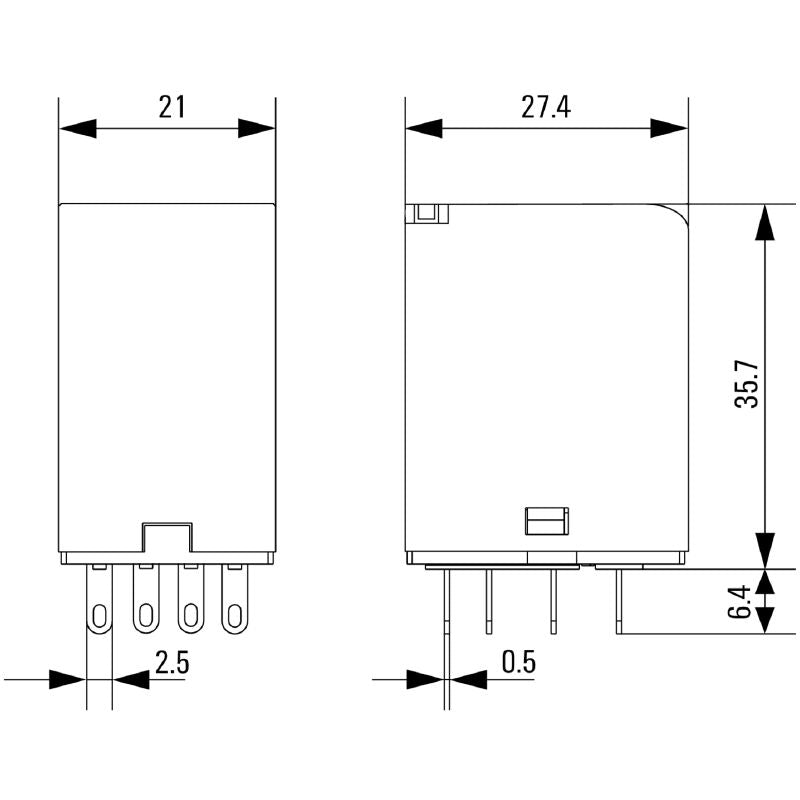

Depth	35.7 mm
Height	27.4 mm
Width	21 mm
Storage temperature	-40 °C...70 °C
Ambient temperature	-40 °C…60 °C
Humidity	35...85 % relative humidity, no condensation

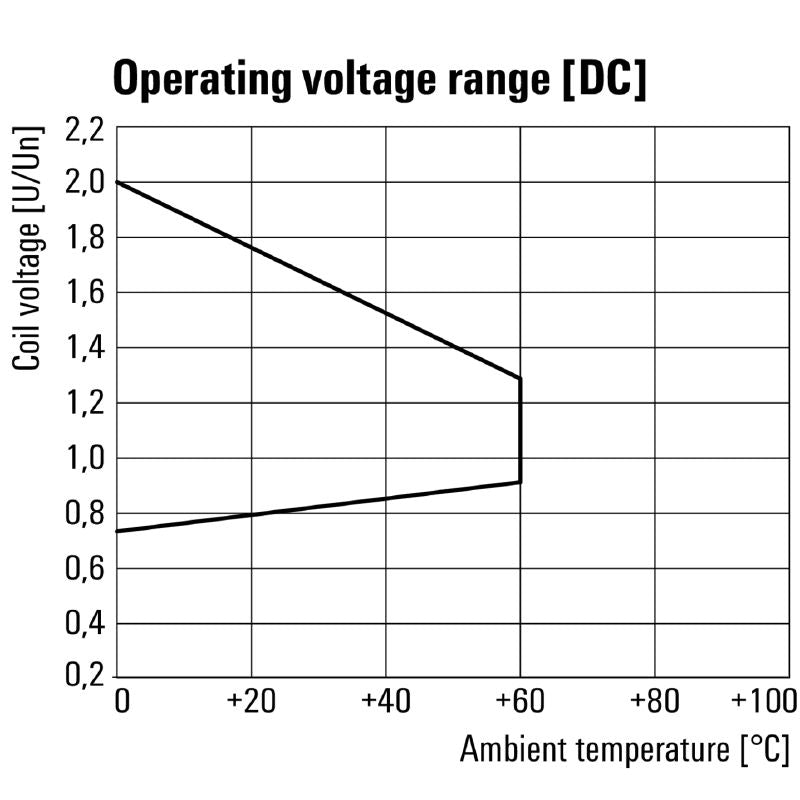

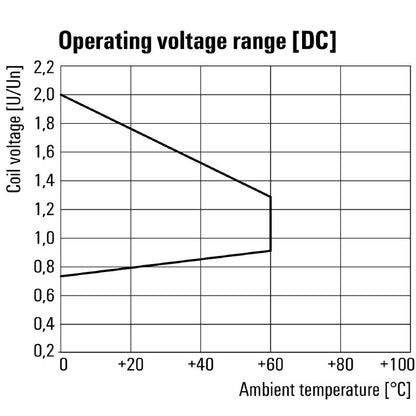

Rated control voltage	48 V DC
Rated current DC	18.5 mA
Power rating	0.9 W
Coil resistance	2600 Ω ± 10 %
Status indicator	Green LED
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Min. switching power	10 mA @ 12 V; 100 mA @ 5 V
Inrush current	10 A / 50 ms
AC switching capacity (resistive), max.	1250 VA

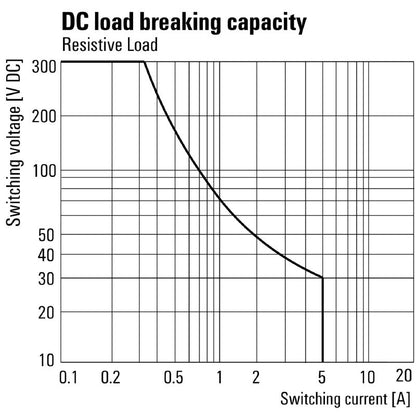

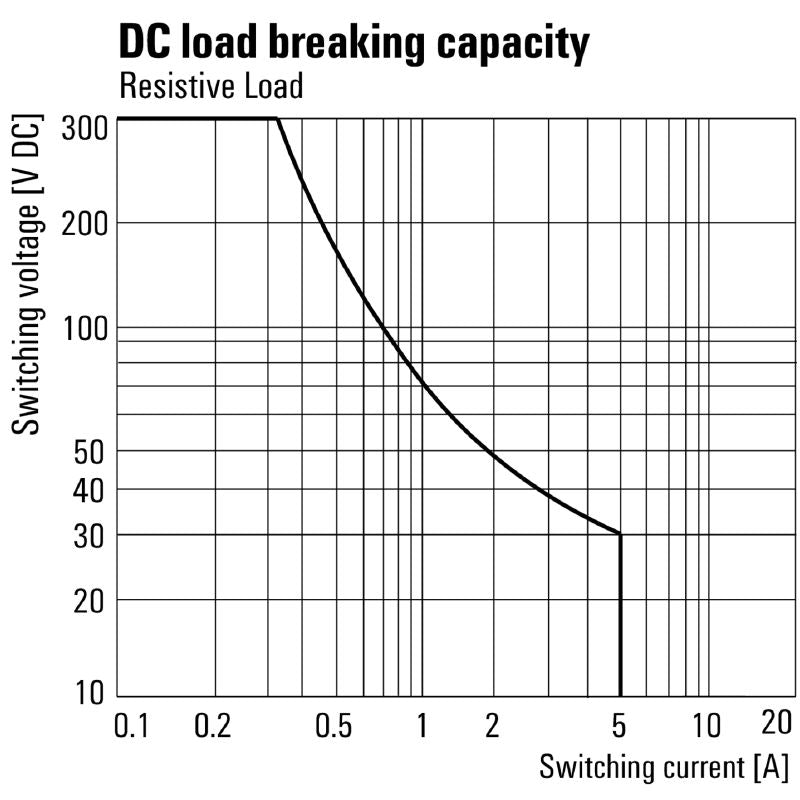

DC switching capacity (resistive), max.	120 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

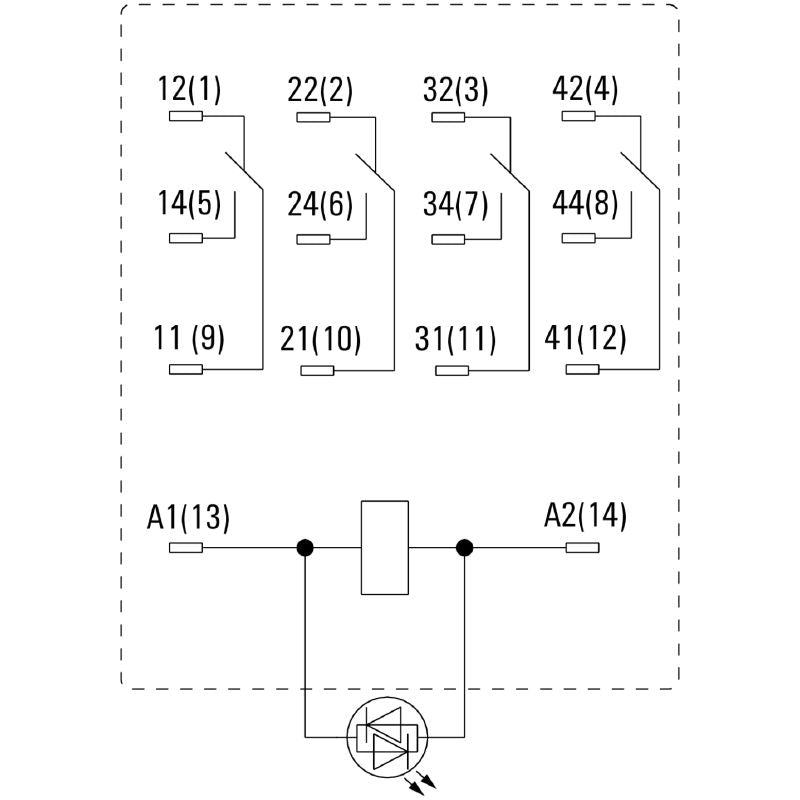

Contact type	4 CO contact (AgNi flash gold-plated)

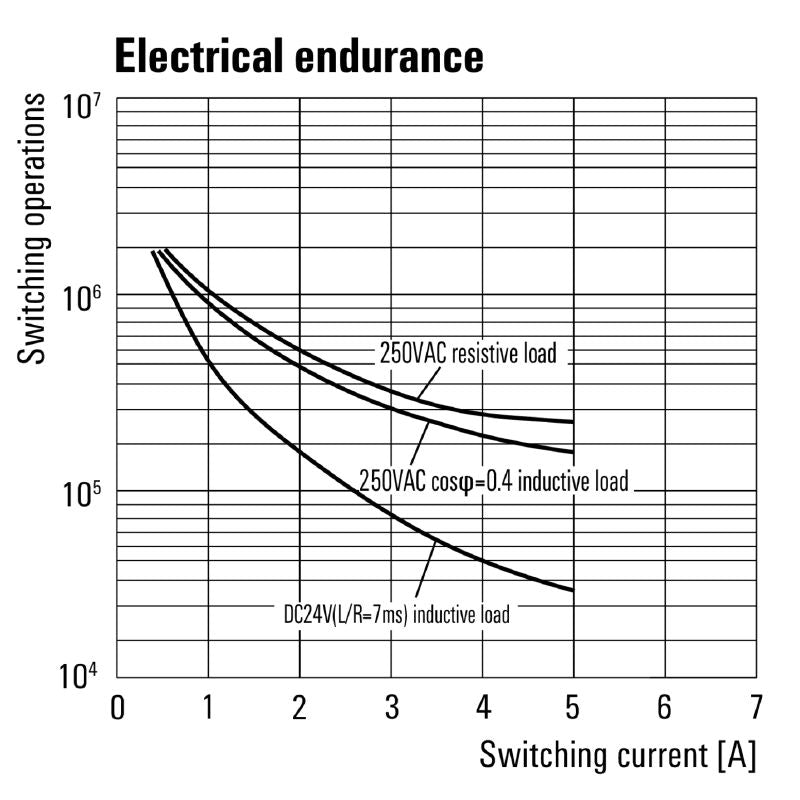

Mechanical service life	20 x 10^6 switching cycles
UL94 flammability rating component	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay status indicator': 'HB', 'Relay test button': 'HB'}
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Clearance and creepage distances for control side - load side': '≥ 5.5 mm', 'Dielectric strength for control side - load side': '1.8 kV eff /1 min.', 'Dielectric strength of neighbouring contacts': '1 kV eff / 1 min.', 'Dielectric strength of open contact': '1 kV eff / 1 min.', 'Impulse withstand voltage': '6 kV (1.2/50 µs)', 'Protection degree': 'IP20'}
