8951130000 - Solid-State Relay 48-60V DC, 24-230V AC, 100mA (Pack of 10)

8951130000 - Solid-State Relay 48-60V DC, 24-230V AC, 100mA (Pack of 10)

SKU: 8951130000 Download PDF

Variant:
  • 8951130000 - Solid-State Relay 48-60V DC, 24-230V AC, 100mA (Pack of 10)
Now $198.90
BEFORE   $0.00 Now $198.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable performance with the TERMOPTO solid-state relay, designed for efficient operation with a control voltage range of 48 to 60 V DC, allowing for a tolerance of ±20% This versatile relay can handle AC voltage switching from 24 to 230 V and boasts a continuous current rating of 100 mA For secure installation, it utilizes a screw connection for wiring Perfect for various applications requiring dependable control and switching capabilities.

Features and Benefits:

    •Rated control voltage ranges from 48 to 60 V DC ±20%.

    •Nominal control current of 3.7 mA DC.

    •Power rating is less than or equal to 170 mW.

    •Includes a green LED status indicator.

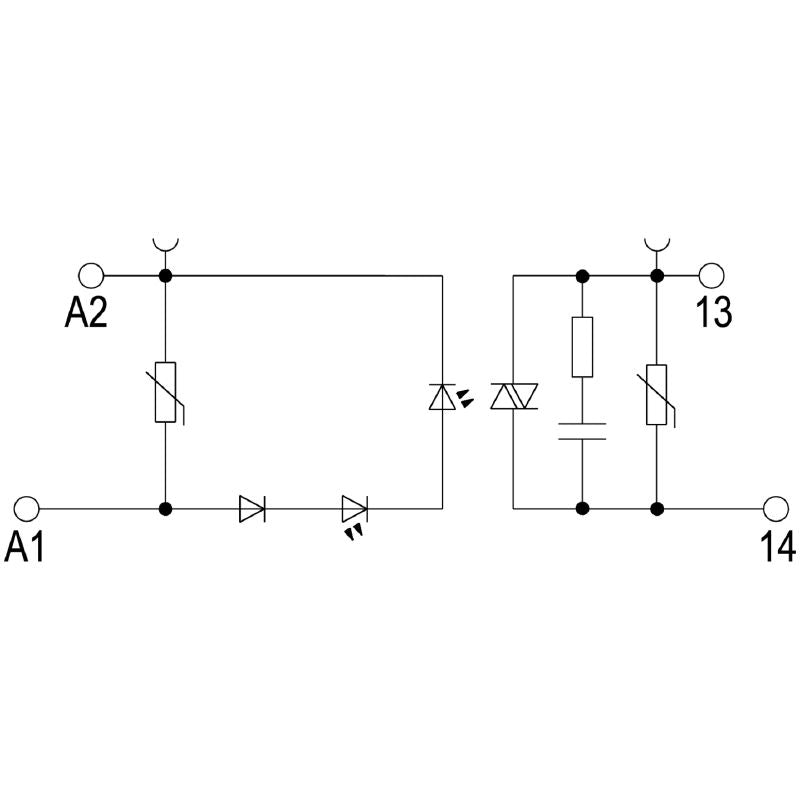

    •Equipped with varistor protective circuits.

    •Offers reverse polarity protection.

    •Switch-on delay is ≤ 10 ms.

    •Switch-off delay is less than 12 ms.

    •Rated switching current is 100 mA.

    •Load category is AC1.

    •Maximum switching voltage is 230 V.

    •Leakage current is less than 1 mA.

    •Minimum switching current is 2 mA.

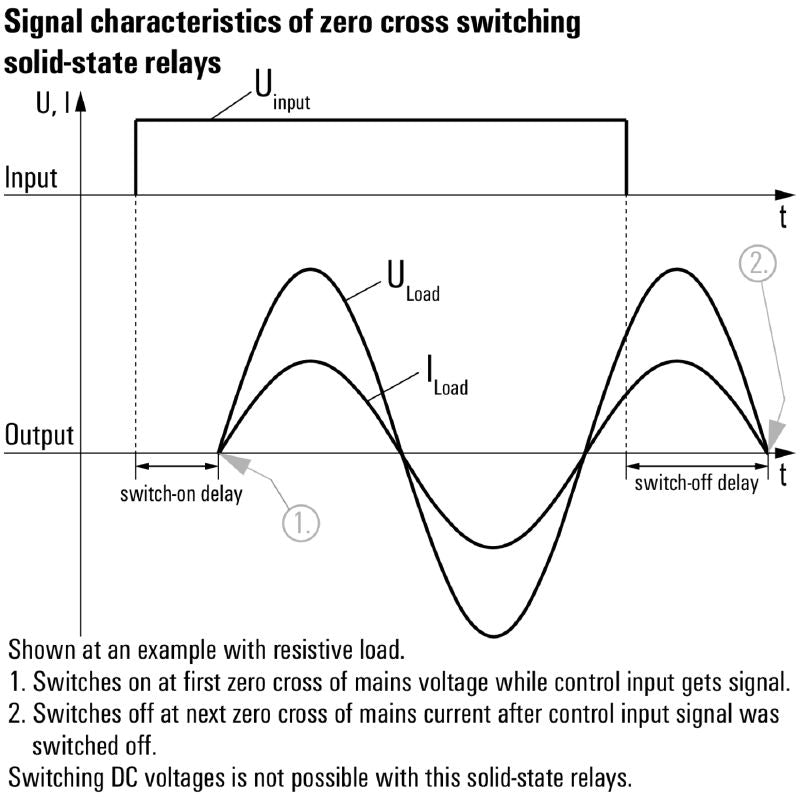

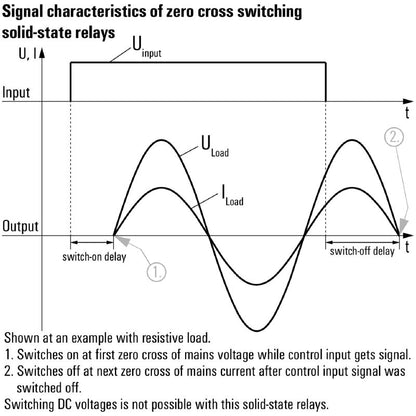

    •Has 1 NO contact (Triac, zero-cross switch).

    •Mounts on TS 35 rail.

    •Connection method is screw connection.

Specifications:

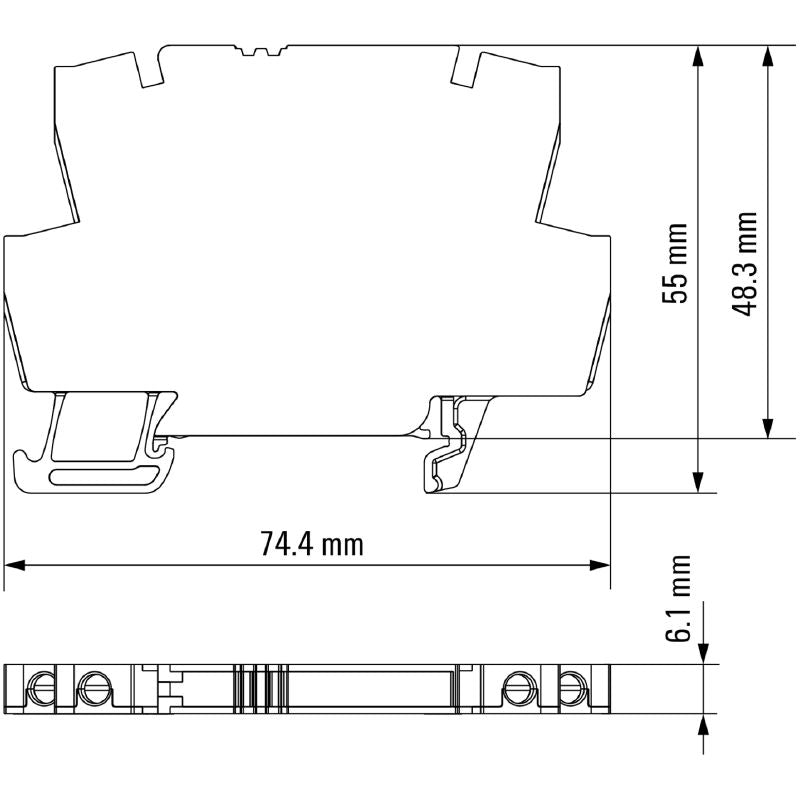

 Depth 55 mm
 Height 74.4 mm
 Width 6.1 mm
 Storage temperature -40 °C to 80 °C
 Ambient temperature -20 °C to 60 °C
 Humidity 5-95% relative humidity, T u = 40°C, without condensation
 MTTF 2,500 a
 Rated voltage 300 V
 Pollution severity 2
 Surge voltage category III
 Clearance and creepage distances for control side - load side > 3 mm
 Dielectric strength for control side - load side 1.2 kV eff / 1 min.
 Impulse withstand voltage 4 kV (1.2/50 µs)
 Protection degree IP20
 Wire connection method Screw connection
 Stripping length, rated connection 9 mm
 Tightening torque, min 0.4 Nm
 Tightening torque, max 0.6 Nm
 Clamping range, rated connection 2.5 mm²
 Clamping range, min 0.5 mm²
 Clamping range, max 4 mm²
 Wire connection cross section AWG, min AWG 20
 Wire connection cross section AWG, max AWG 12
 Colour black
 UL94 flammability rating component V-0
 Certificate no. (cULus) E223474
