Product Information

Description:

Introducing the RCMKIT 24VDC 2CO LED GN relay module, an essential component for your electrical projects This module features two changeover (CO) contacts crafted from AgNi material, ensuring reliability and efficiency With a control voltage of 24 V DC, it supports a maximum continuous current of 12 A, making it suitable for various applications Installation is straightforward, thanks to the screw terminal connections, and a built-in test button enhances functionality.

Please note, this product will be available for purchase until September 30, 2025 Don't miss your chance to add this versatile relay module to your toolkit!.

Features and Benefits:

•Includes test button.

•Screw connection.

•Green LED status indicator.

•Lockable test button version.

•Mechanical switch position indicator.

Specifications:

Number of contacts	2 CO
Rated control voltage	24 V DC
Continuous current	12 A
Depth	79 mm
Height	82 mm
Width	27 mm
Storage temperature	-40 °C...70 °C
Ambient temperature	-40 °C…70 °C
Rated current DC	31.3 mA
Power rating	750 mW
Coil resistance	777 Ω ± 10 %
Rated switching voltage	240 V AC
Inrush current	24 A / 20 ms
AC switching capacity (resistive), max.	3000 VA

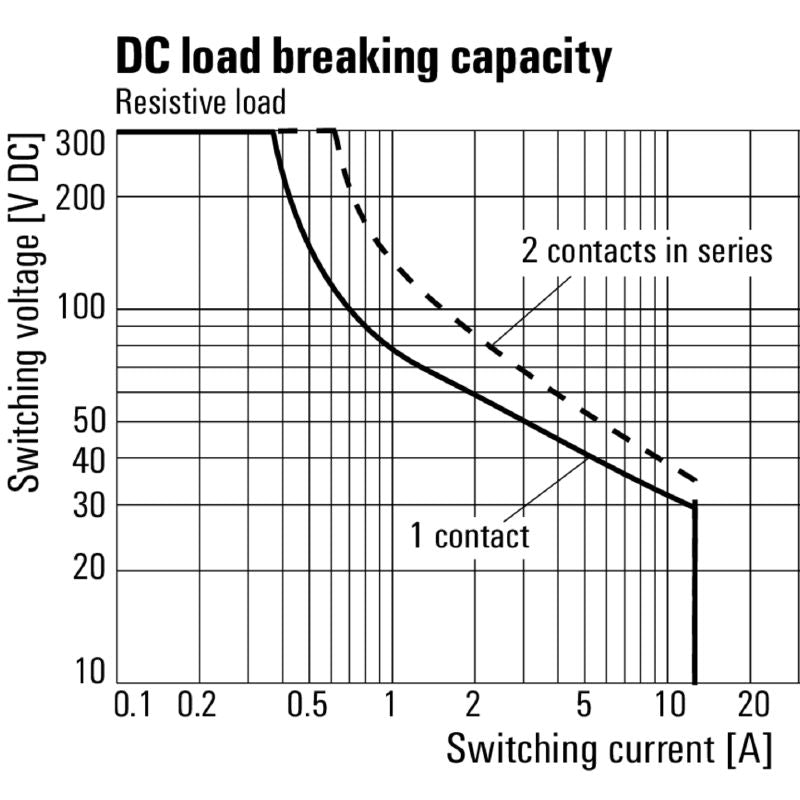

DC switching capacity (resistive), max.	288 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms
Mechanical service life	AC coil 20 x 10^6 switching cycles, DC coil 30 x 10^6 switching cycles
Protection degree	IP20
Wire connection method	Screw connection
Clamping range, rated connection	2.5 mm²
Clamping range, min.	0.5 mm²
Clamping range, max.	2.5 mm²
Blade size	size PH1
UL 94 flammability rating	V-2
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Creepage and clearance distance input – output': '≥ 4 mm', 'Dielectric strength, Input/Output': '2.5 kV eff / 1 Min.', 'Dielectric strength of open contact': '1.2 kV eff /1 min.', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
