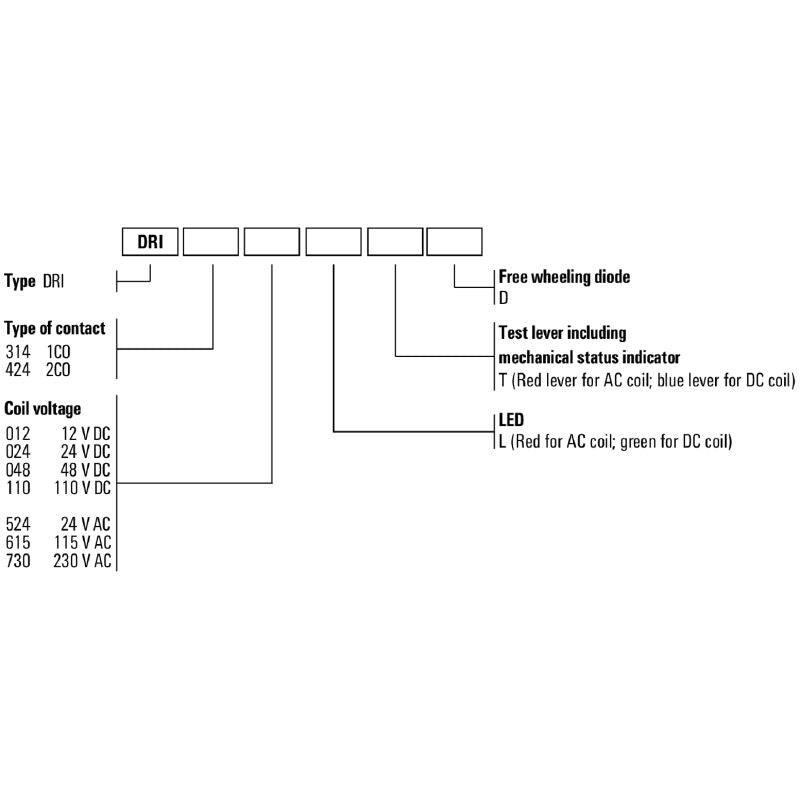

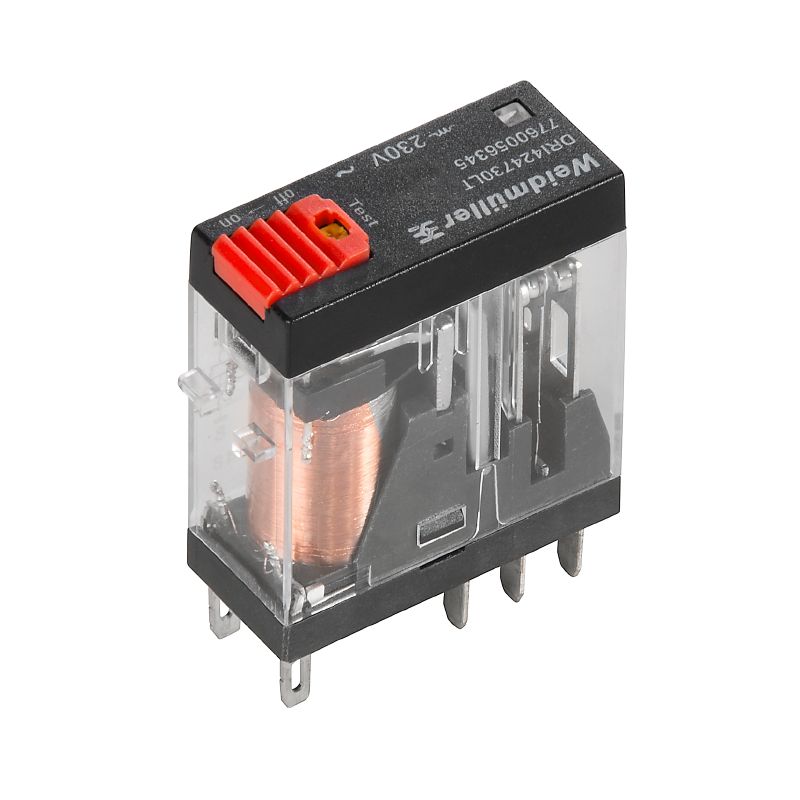

7760056344 - 115V AC D-SERIES DRI Relay with Test Button (Pack of 20)

SKU: SKU: 7760056344 Download PDF

Select a Variant:

7760056344 - 115V AC D-SERIES DRI Relay with Test Button (Pack of 20)

SET THE QTY:

Now $119.29 Web pricing policy

~~BEFORE $0.00~~ Now $119.29 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

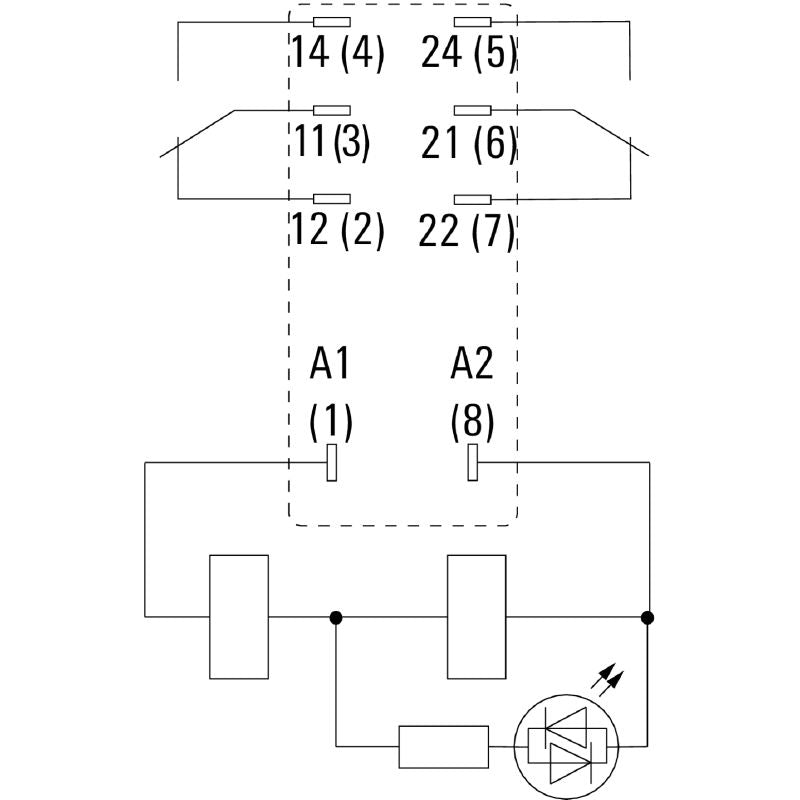

Introducing the D-SERIES DRI Relay, boasting two CO contacts crafted from high-quality AgSnO This reliable relay operates efficiently at a control voltage of 115 V AC and is rated for a continuous current of 5 A It features flat blade connections measuring 25 mm x 05 mm and is equipped with a convenient test button Additionally, it meets RoHS compliance standards and carries certification number E312083, assuring you of its quality and safety.

Features and Benefits:

•Test button available.

•Compliant with RoHS.

Specifications:

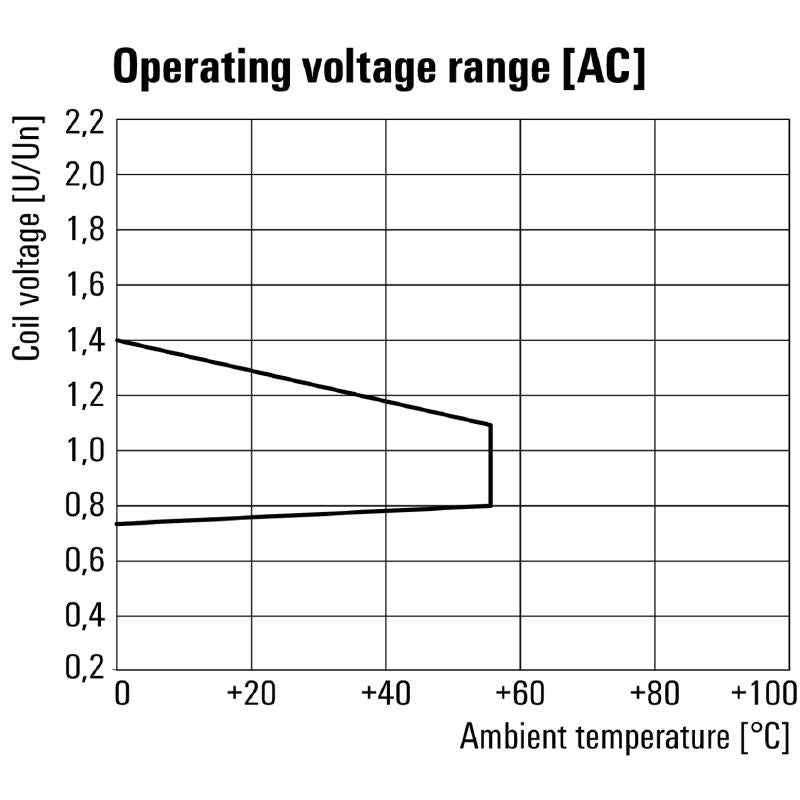

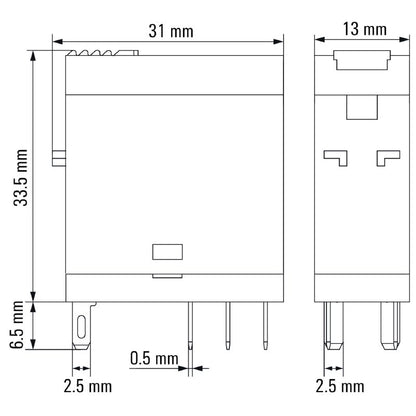

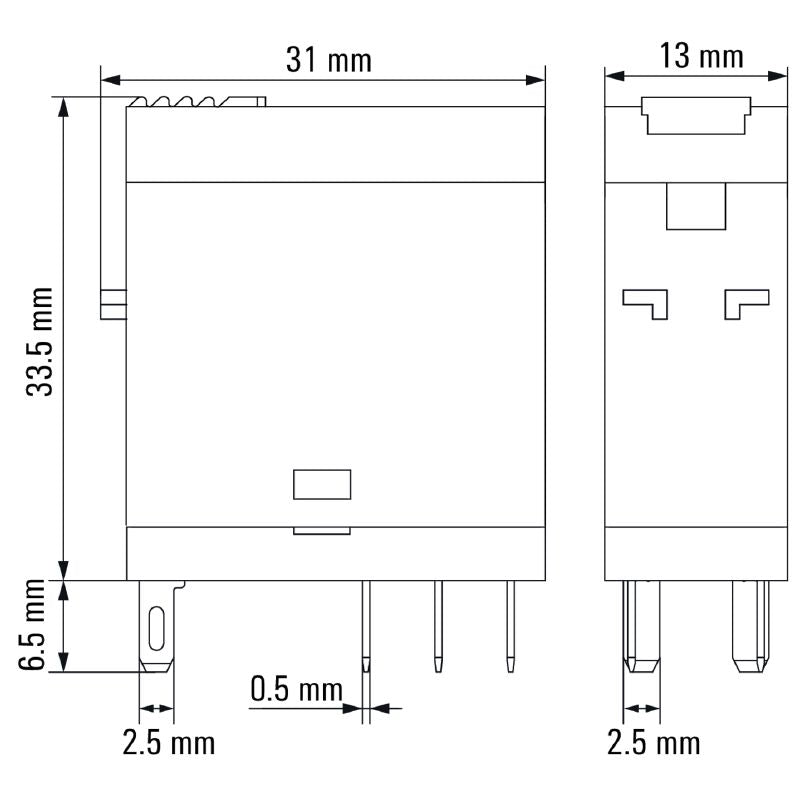

Depth	33.5 mm
Height	31 mm
Width	13 mm
Storage temperature	-40 °C to 85 °C

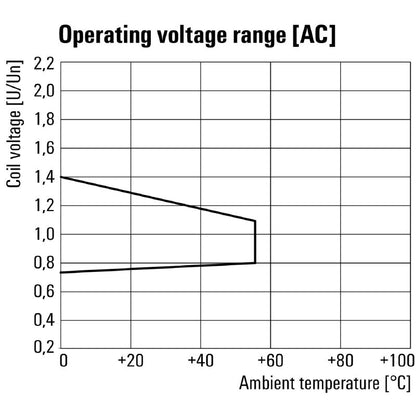

Ambient temperature	-40 °C to 55 °C
Humidity	35 to 85 % relative humidity, no condensation
Rated current AC	9.3 mA
Power rating	1.1 VA
Coil resistance	6200 Ω ± 10 %
Status indicator	red LED
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Min. switching power	10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
AC switching capacity (resistive), max.	1250 VA

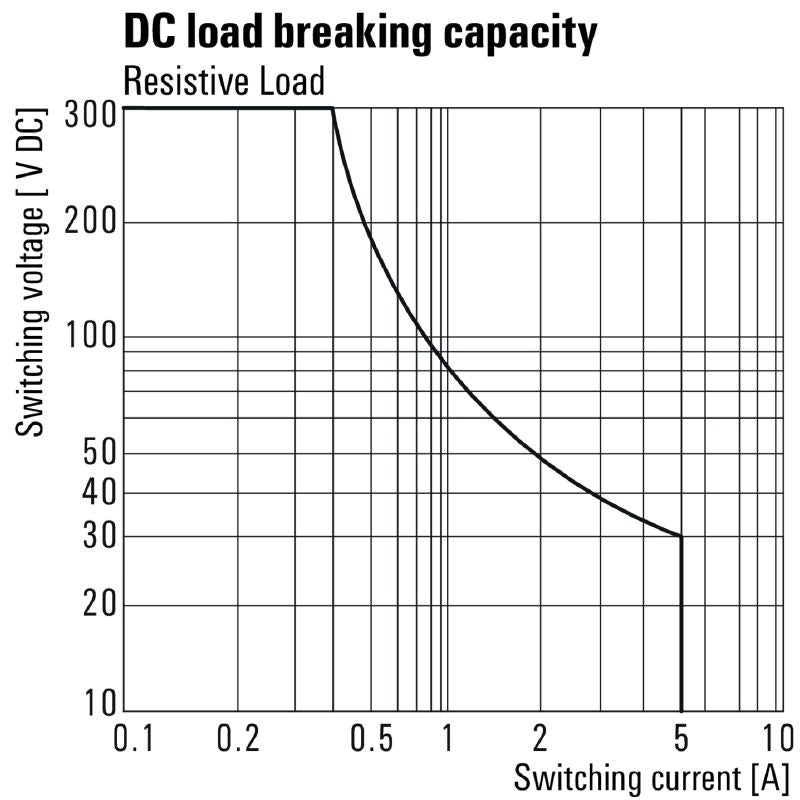

DC switching capacity (resistive), max.	150 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms

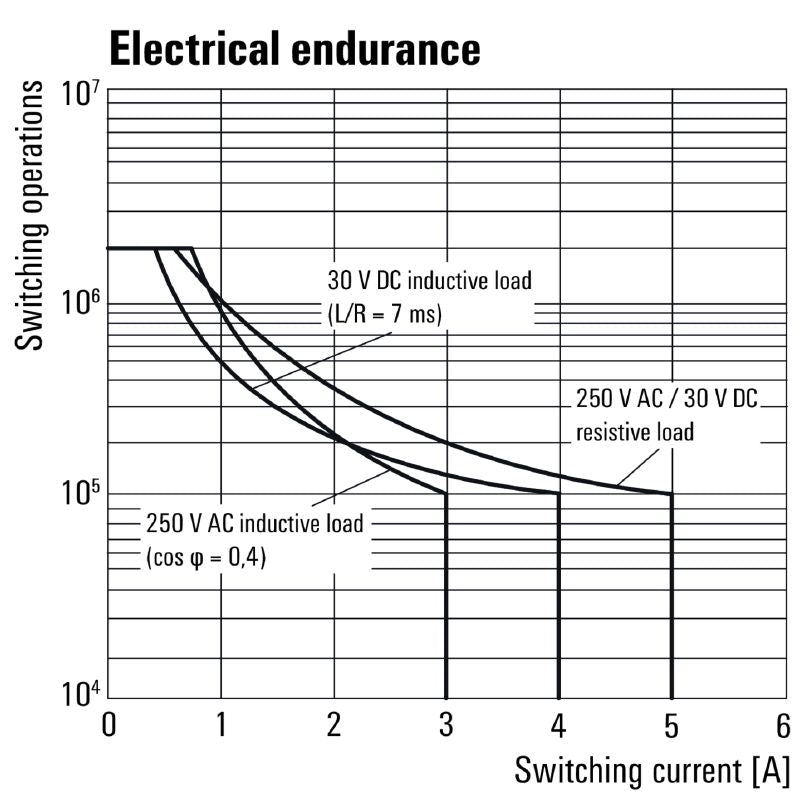

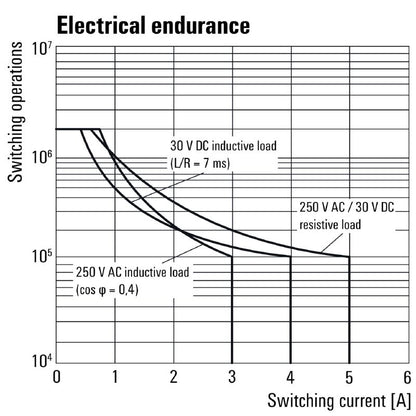

Mechanical service life	10 x 10^6 switching cycles
Protection degree	IP20
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '5 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '1.5 kV eff / 1 min', 'Dielectric strength of open contact': '1 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
UL94 flammability rating component	{'Relay cover': 'V-2', 'Relay baseplate': 'V-0', 'Relay test button': 'HB'}
