8693170000 - RIDERSERIES RCL Relay, 12V DC, 12A, Compact 12x15.7x29mm (Pack of 20)

SKU: SKU: 8693170000 Download PDF

Select a Variant:

8693170000 - RIDERSERIES RCL Relay, 12V DC, 12A, Compact 12x15.7x29mm (Pack of 20)

SET THE QTY:

Now $83.82 Web pricing policy

~~BEFORE $0.00~~ Now $83.82 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

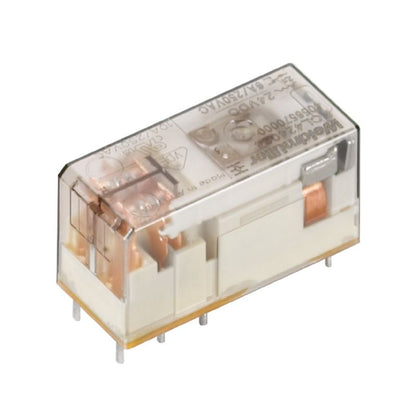

Introducing the RIDERSERIES RCL relay, engineered for efficiency and performance This relay features a single CO contact made from high-quality AgNi With a rated control voltage of 12 V DC, it can manage a continuous current of up to 12 A The device connects conveniently through a plug-in method, although it does not include a test button There are 20 units available for this purchase, but do note that availability will cease after June 30, 2025.

Features and Benefits:

•Plug-in connection.

•No test button.

•Transparent color.

•RoHS compliant without exemption.

•No SVHC above 0.1 wt%.

Specifications:

Depth	15.7 mm
Height	29 mm
Width	12.7 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…70 °C
Rated control voltage	12 V DC
Rated current DC	33.3 mA
Power rating	400 mW
Coil resistance	360 Ω ± 10 %
Rated switching voltage	250 V AC
Continuous current	12 A
Max. switching frequency at rated load	0.1 Hz
Min. switching power	1 mA @ 24 V; 10 mA @ 12 V; 100 mA @ 5 V
Inrush current	25 A / 4 s
AC switching capacity (resistive), max.	3000 VA
DC switching capacity (resistive), max.	288 W @ 24 V
Switch-on delay	≤ 8 ms
Switch-off delay	≤ 6 ms
Contact type	1 CO contact (AgNi)
Mechanical service life	AC coil 10 x 10^6 switching cycles; DC coil 30 x 10^6 switching cycles
Protection degree	IP20
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Creepage and clearance distance input – output': '≥ 10 mm', 'Dielectric strength, Input/Output': '5 kV eff / 1min', 'Dielectric strength of open contact': '1 kV eff / 1 min'}
Approvals	['IEC 61810-1', 'UL508', 'Certificate No. (CSA): 249409-2426937', 'Certificate No. (VDE): 40020589', 'Certificate No. (cURus): E522350']
