8690160000 - 230V AC Relay with 4 CO Contacts and Test Button (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

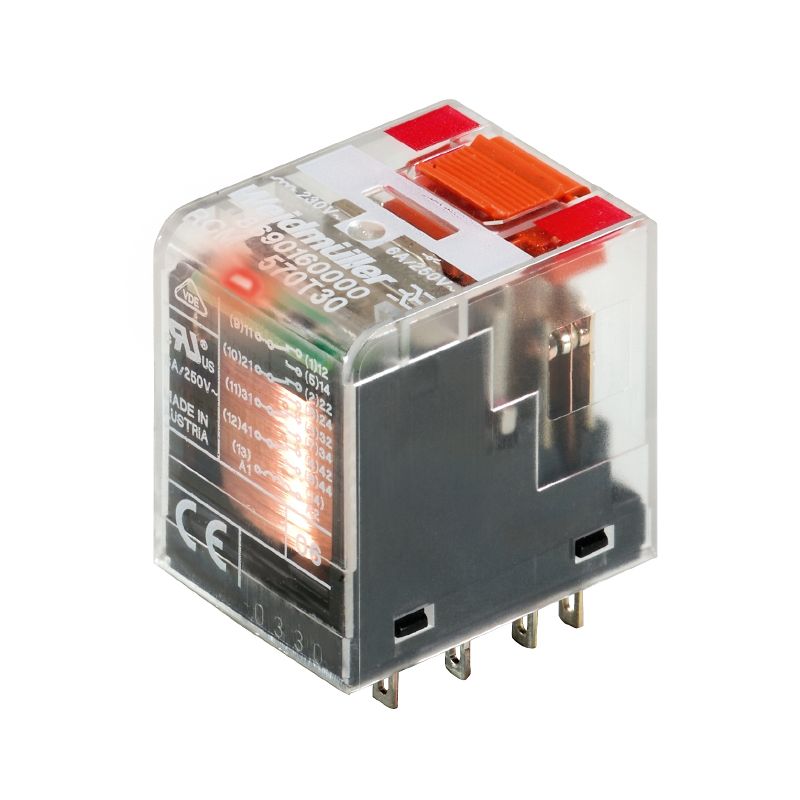

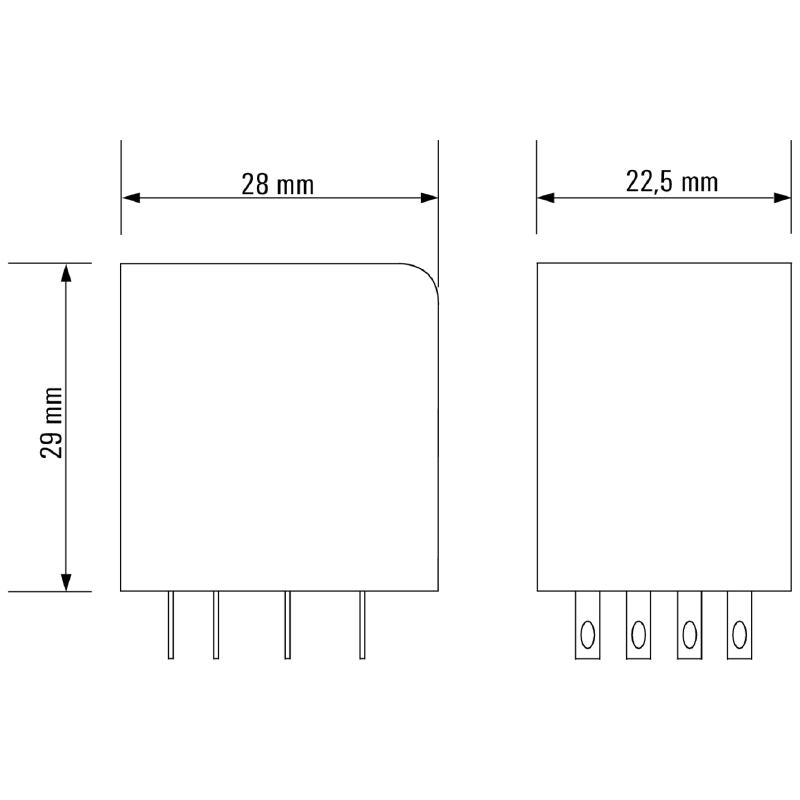

Introducing the RIDERSERIES RCM570T30 relay, designed with four CO contacts crafted from AgNi This relay operates at a control voltage of 230 V AC and supports a continuous current of up to 6 A Featuring a convenient plug-in connector, it also includes an easy-to-use test button Safety and compliance are prioritized, as this product meets RoHS standards and is free from any SVHC above 01 wt% It boasts compact dimensions of 29 mm in depth, 28 mm in height, and 22.

5 mm in width, all while weighing just 285 g, making it a functional and reliable addition to your setup.

Features and Benefits:

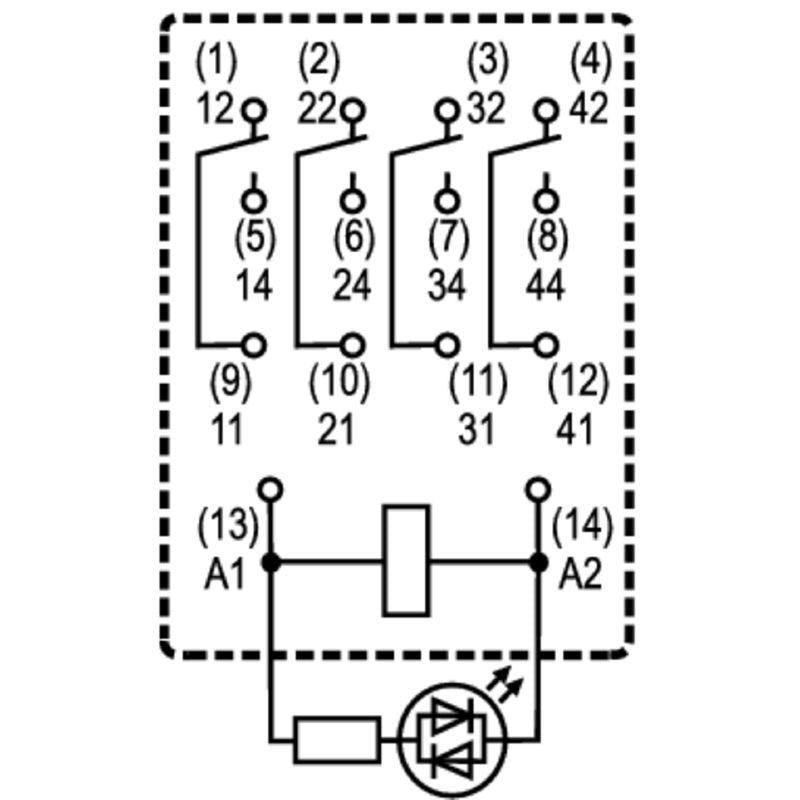

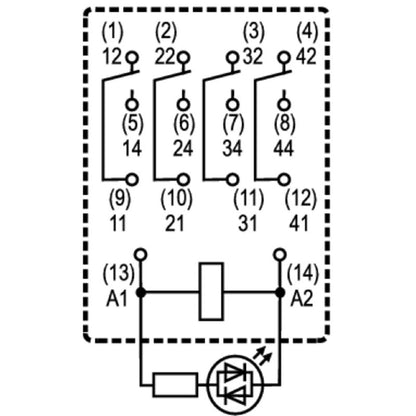

•Four CO contacts made of AgNi.

•Plug-in connection.

•Available with a lockable and momentary test button.

•Mechanical service life of AC coil rated at 20 x 10^6 switching cycles.

•Mechanical service life of DC coil rated at 30 x 10^6 switching cycles.

•Transparent color.

•IP20 protection degree.

Specifications:
