8690050000 - 3-Contact Relay, 24V DC, 10A, Plug-In, Compact Design (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

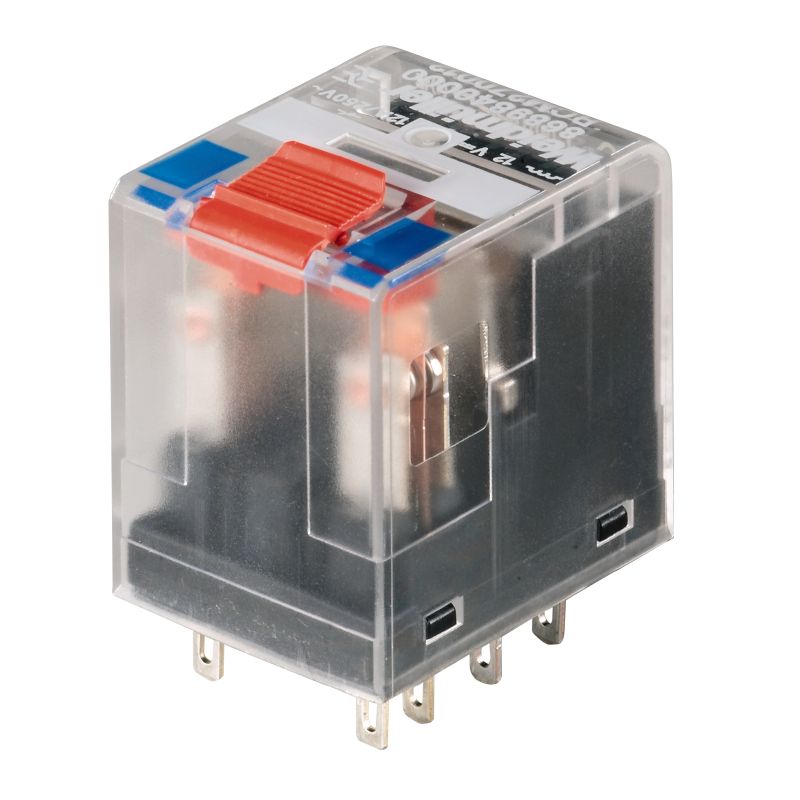

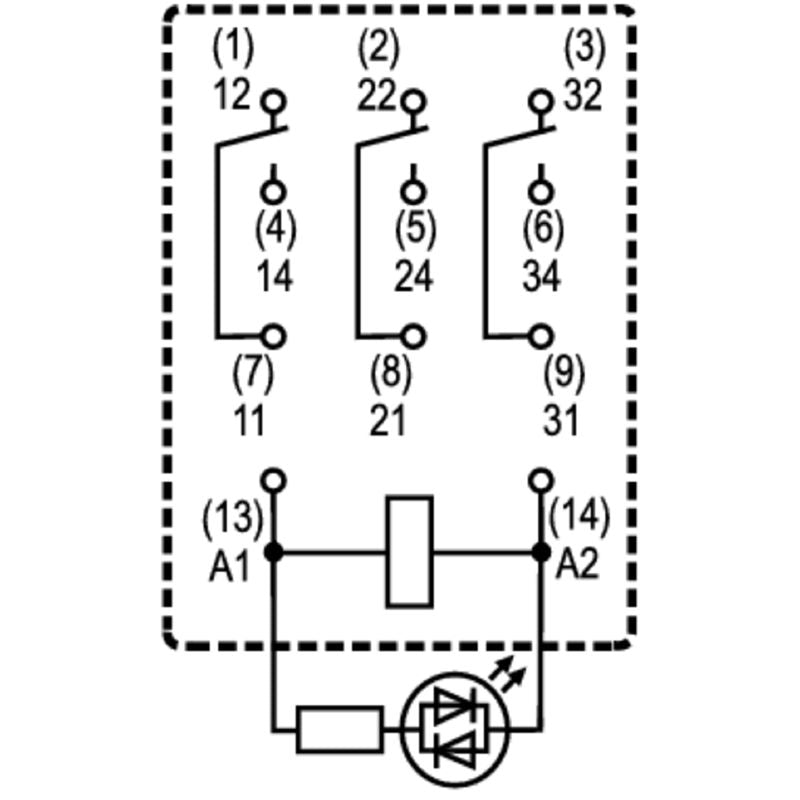

Introducing the RCM370L24 relay, a reliable component featuring three changeover (CO) contacts constructed from AgNi This relay is designed to operate at a control voltage of 24 V DC and supports a continuous current of up to 10 A Its plug-in connection simplifies installation, and it comes equipped with a convenient test button for ease of use Fully compliant with RoHS standards, this relay also holds a UL certification (E522350).

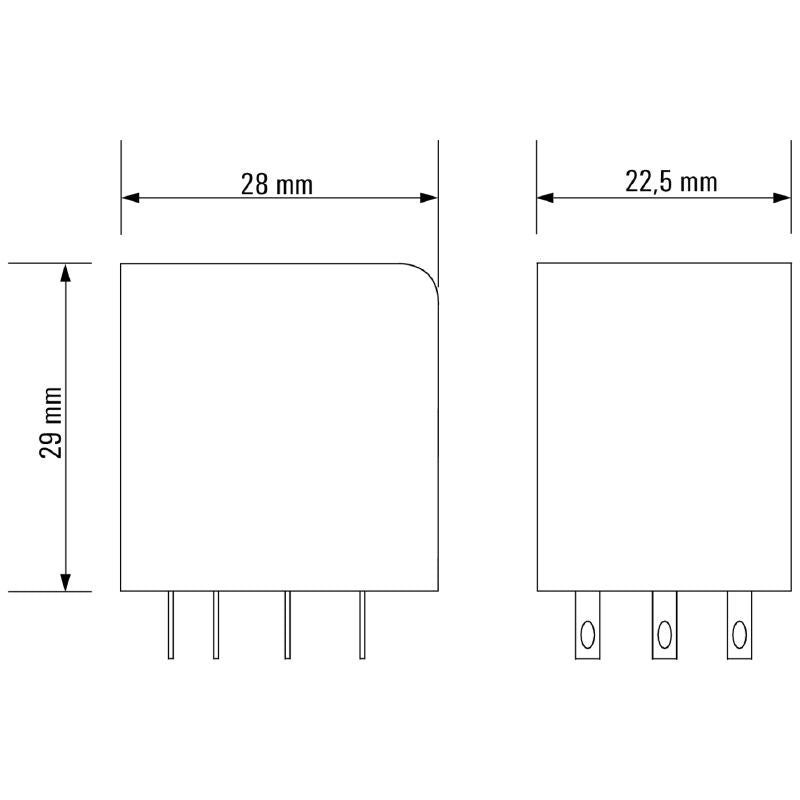

Please note that it will remain available until June 30, 2026, after which it will be discontinued The dimensions of this compact relay are 225 mm in width, 28 mm in height, and 29 mm in depth, with a lightweight of 26224 g.

Features and Benefits:

•Plug-in connection.

•Test button available.

•Transparent color.

•Lockable and momentary test button.

•Mechanical switch position indicator.

•Compliant with RoHS.

•Standard UL 94 flammability rating V-2.

Specifications:
