8689810000 - 115V AC Dual Contact Relay with Test Button (Pack of 10)

SKU: SKU: 8689810000 Download PDF

Variant:

8689810000 - 115V AC Dual Contact Relay with Test Button (Pack of 10)

Now $148.79

~~BEFORE $0.00~~ Now $148.79

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

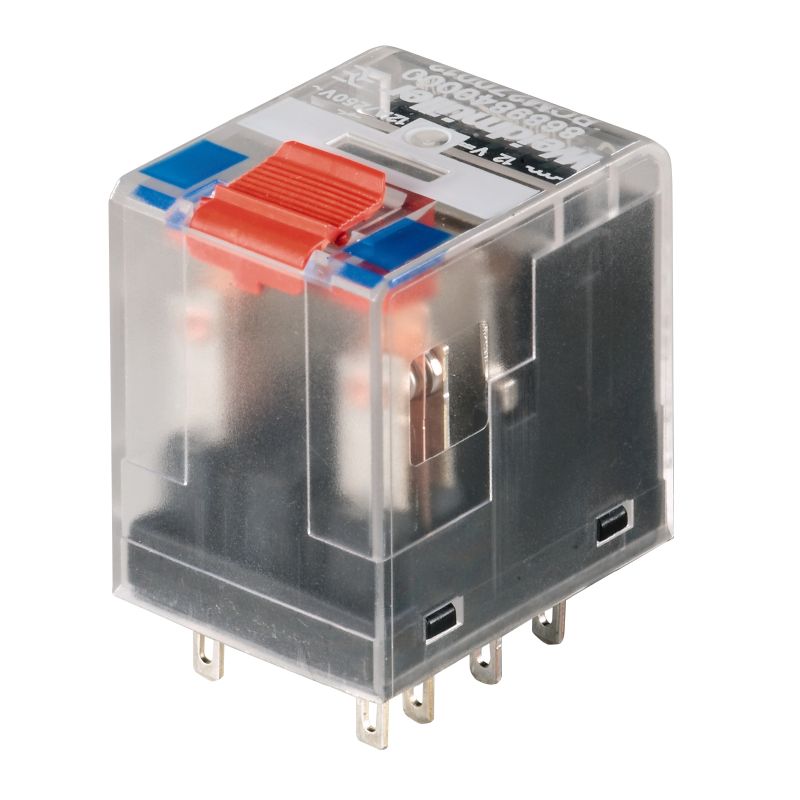

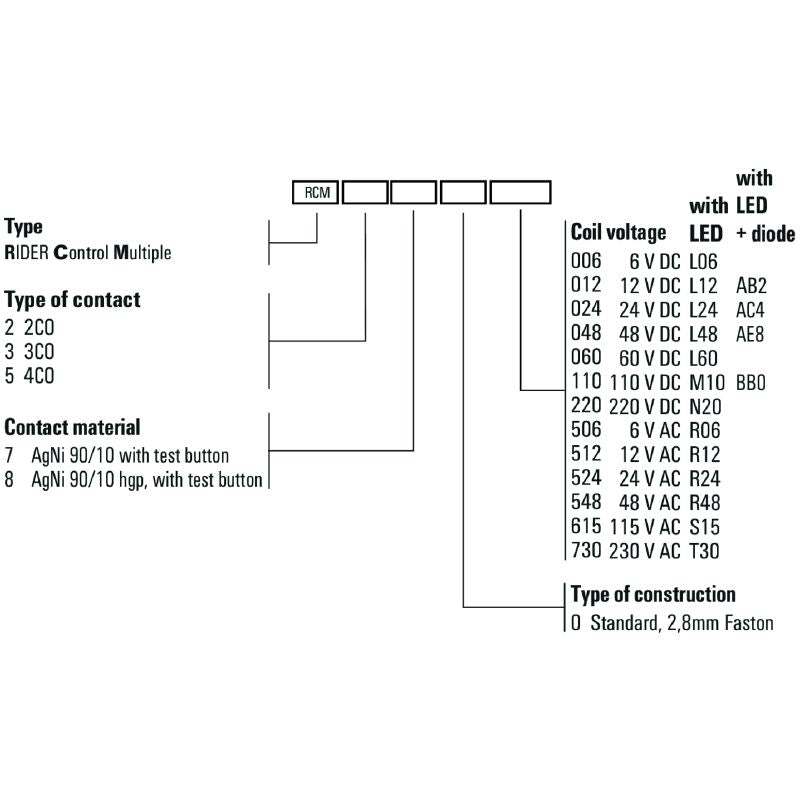

Introducing the RCM270S15 relay, a reliable component featuring two AgNi contacts and compliant with RoHS standards With a control voltage rating of 115 V AC, it can handle a continuous current of up to 12 A This model offers a convenient plug-in connection and includes a test button for easy functionality Note that this item will be phased out after June 30, 2026, so be sure to secure yours while supplies last.

Features and Benefits:

•Test button available.

•Lockable test button.

•Momentary test button.

•Mechanical switch position indicator.

Specifications:

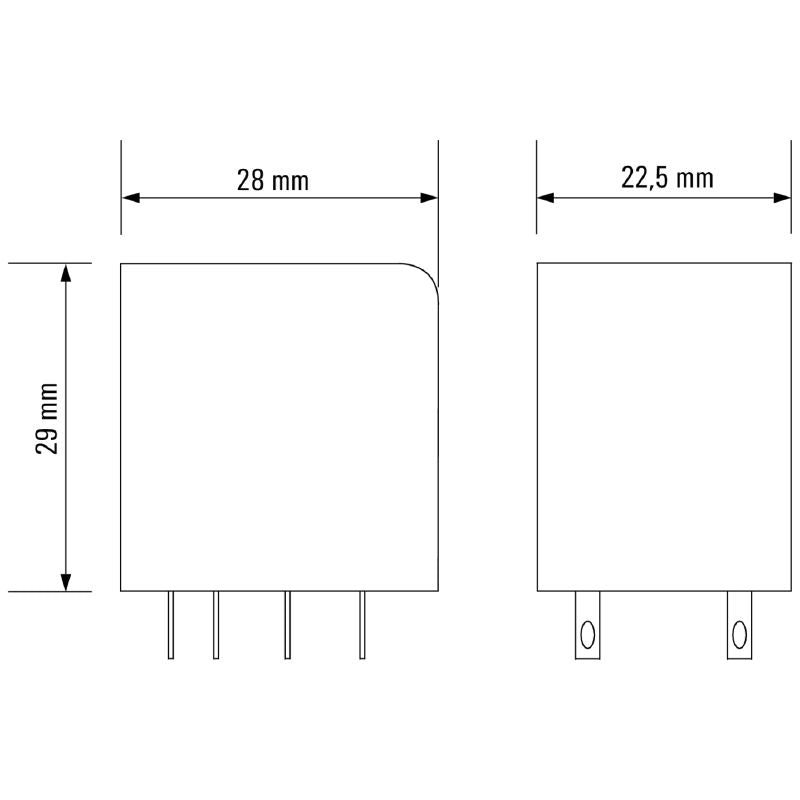

Depth	29 mm
Height	28 mm
Width	22.5 mm
Storage temperature	-40 °C...85 °C
Ambient temperature	-40 °C…70 °C

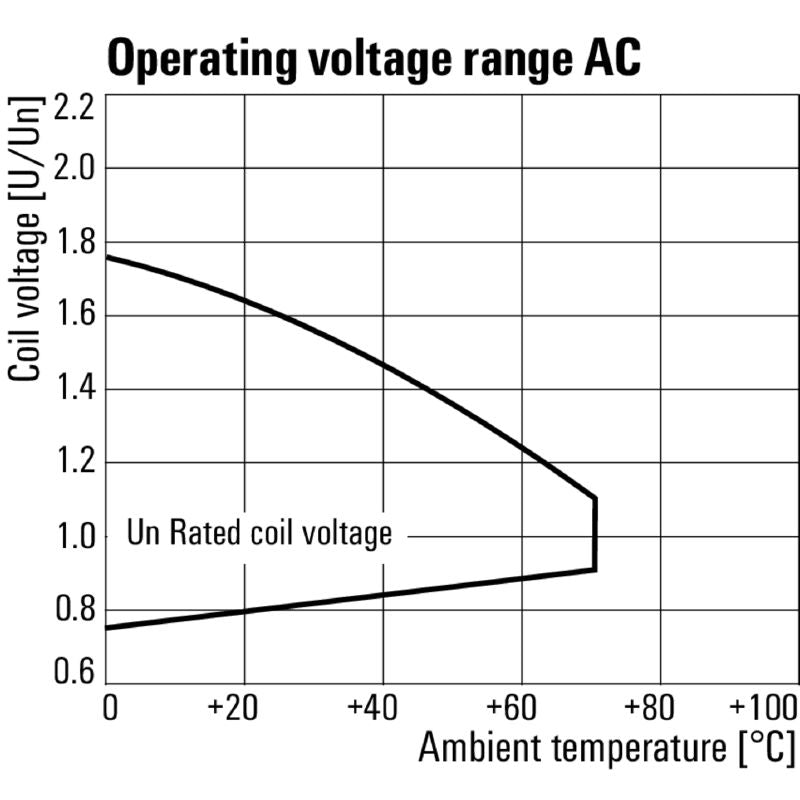

Rated control voltage	115 V AC
Rated current AC	9.2 mA
Power rating	1058 mVA
Coil resistance	4845 Ω ± 12 %
Rated switching voltage	240 V AC

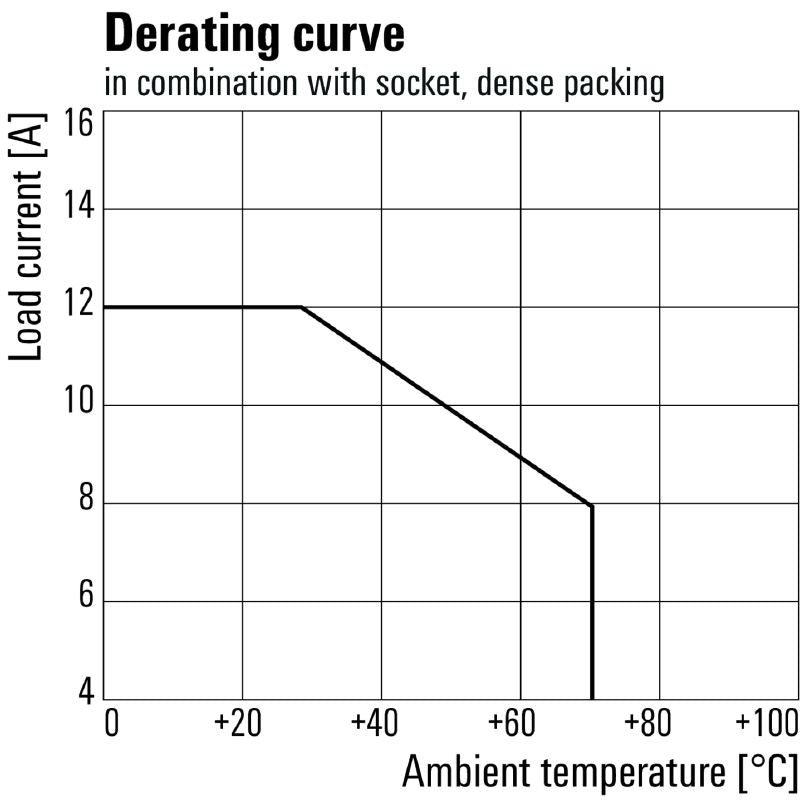

Continuous current	12 A
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Inrush current	24 A / 20 ms
AC switching capacity (resistive), max.	3000 VA

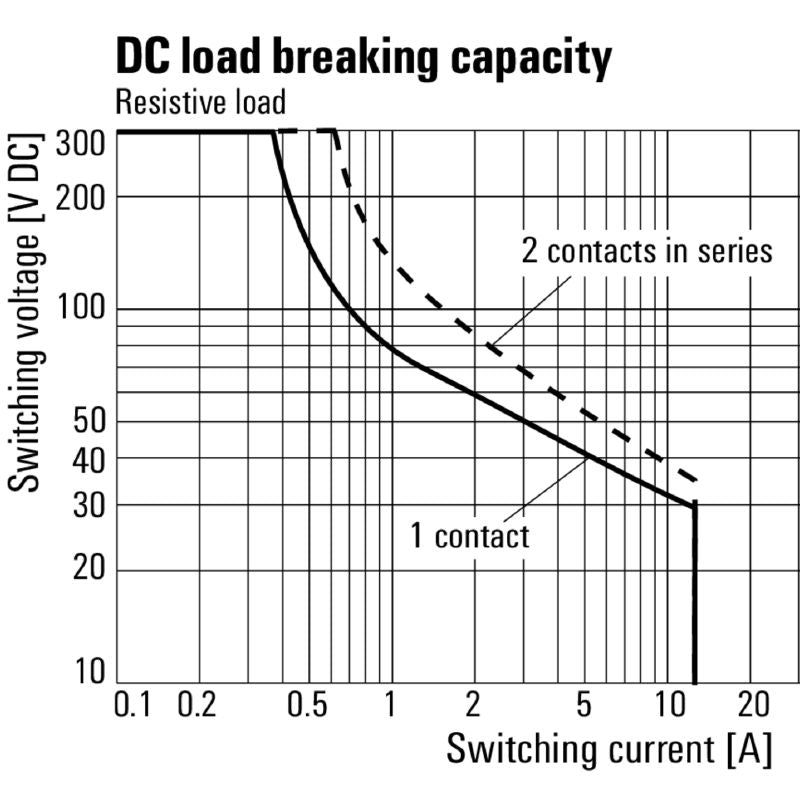

DC switching capacity (resistive), max.	288 W @ 24 V
Switch-on delay	≤ 15 ms
Switch-off delay	≤ 10 ms

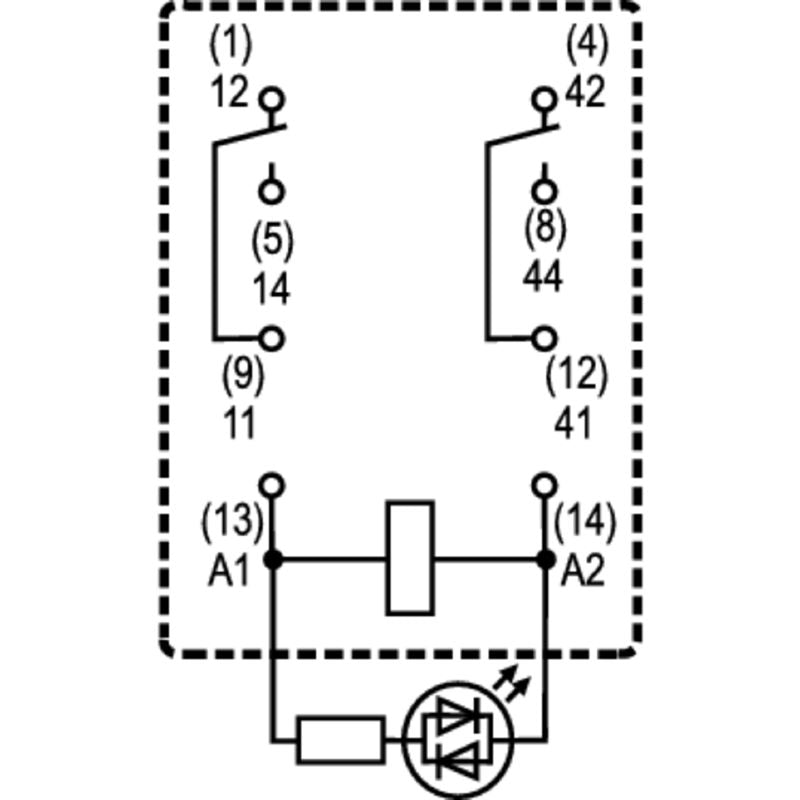

Contact type	2 CO contact (AgNi)

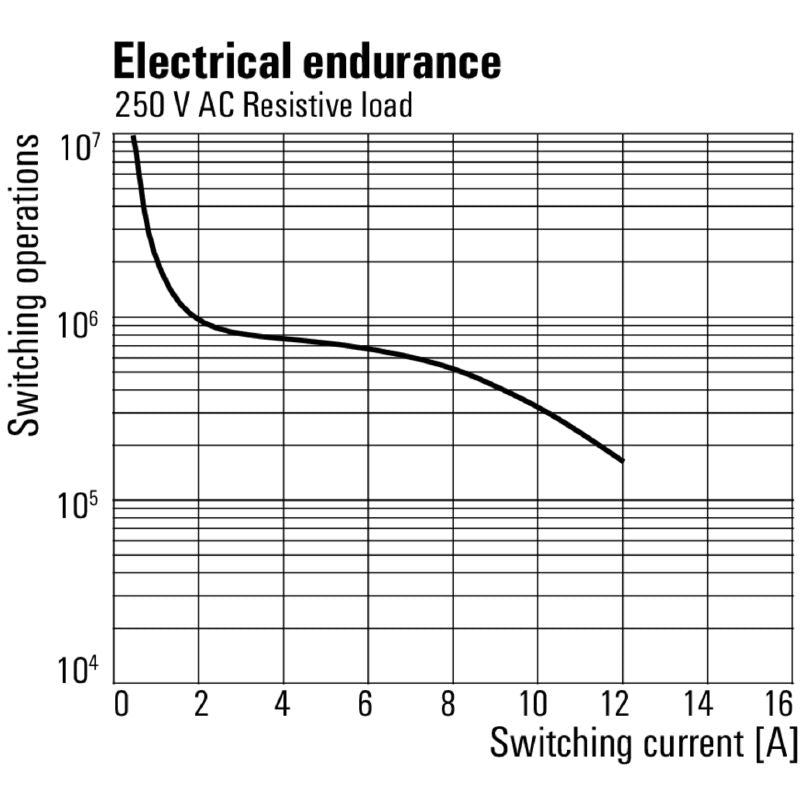

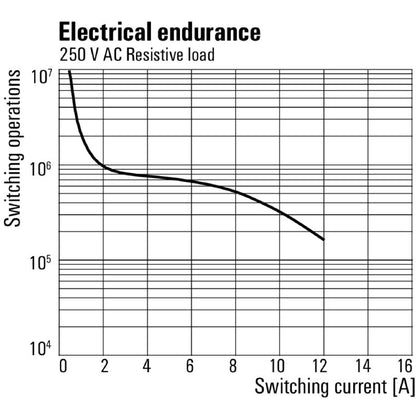

Mechanical service life	AC coil 20 x 10^6 switching cycles, DC coil 30 x 10^6 switching cycles
UL 94 flammability rating	V-2
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '2.5 kV eff / 1 Min.', 'Dielectric strength of neighbouring contacts': '2.5 kV eff / 1 Min.', 'Dielectric strength of open contact': '1.2 kV eff / 1 min.', 'Impulse withstand voltage': '5 kV (1.2/50 µs)', 'Protection degree': 'IP20'}
