8287730000 - 24V Solid-State Relay, 2A, Compact Design 63.2mm Depth (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

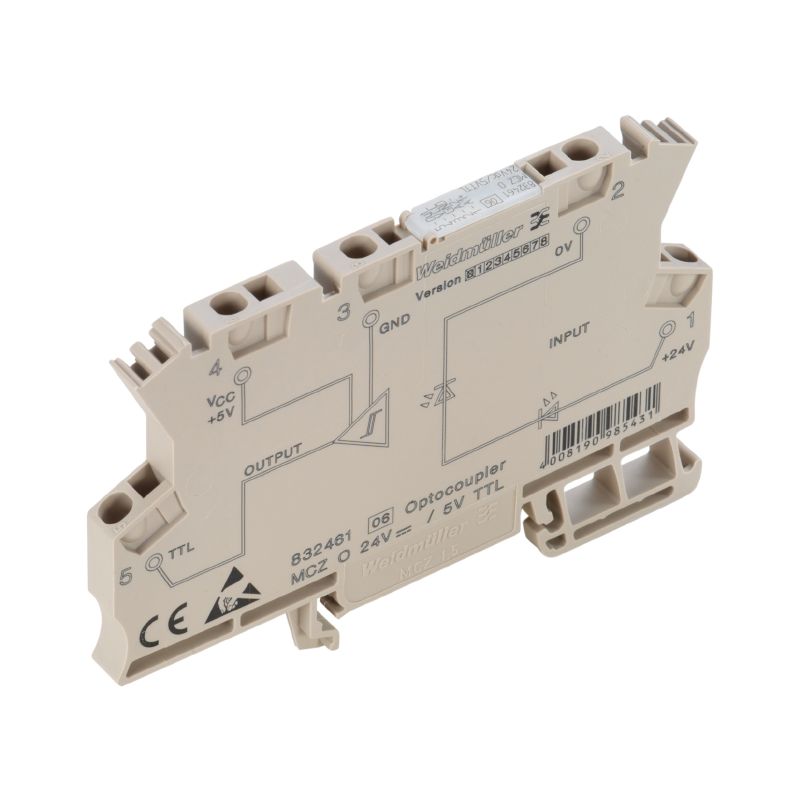

Introducing the MCZ series solid-state relay, expertly crafted for precise control with a rated voltage of 24 V UC ±20% and a switching voltage of 24 VDC ±20% This robust relay can handle a continuous current of 2 A, featuring a user-friendly tension-clamp connection for easy wire attachment It is UL certified and complies with RoHS standards, ensuring high-quality performance With dimensions of 63.

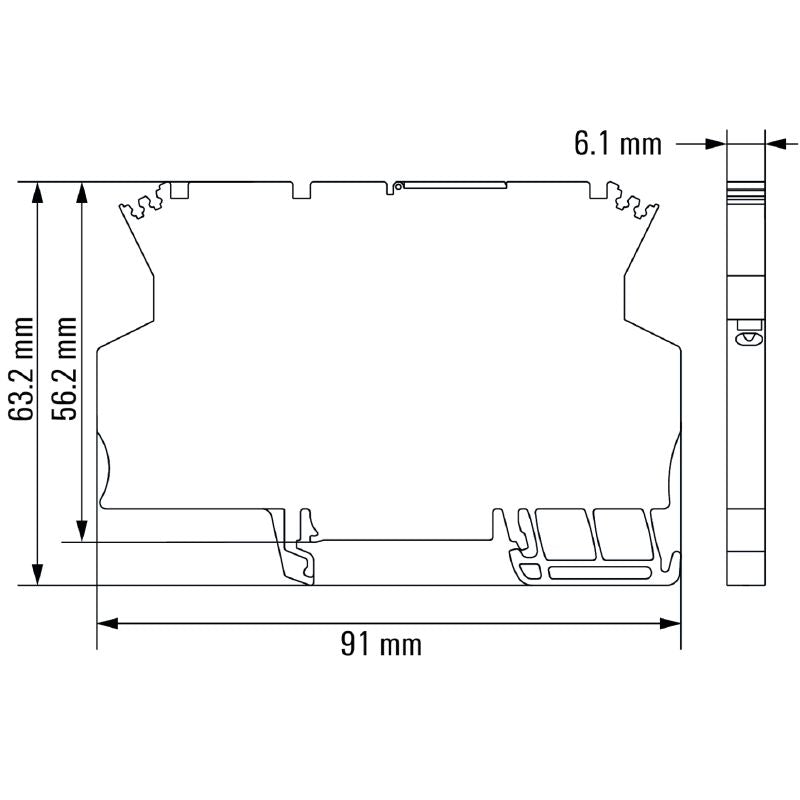

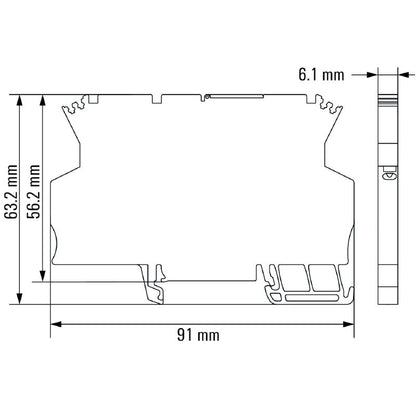

2 mm in depth, 91 mm in height, and a width of 61 mm, it is compact and lightweight at just 226 g The relay is capable of operating in a wide temperature range, from -40 °C to 60 °C for storage and -25 °C to 40 °C under ambient conditions To enhance safety, it is equipped with short circuit protection and incorporates a varistor on the load side, making it a reliable choice for various applications.

Features and Benefits:

•Tension-clamp connection for easy installation.

•LED status indicator.

•Short-circuit-proof design.

•Rectifier protective circuit.

Specifications:
