4058630000 - 230V AC Relay with 2 CO Contacts, 8A Continuous Current (Pack of 20)

4058630000 - 230V AC Relay with 2 CO Contacts, 8A Continuous Current (Pack of 20)

SKU: 4058630000 Download PDF

Variant:
  • 4058630000 - 230V AC Relay with 2 CO Contacts, 8A Continuous Current (Pack of 20)
Now $166.00
BEFORE   $0.00 Now $166.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RCL424730 relay, featuring two CO contacts crafted from high-quality AgNi material This reliable relay operates effectively at a rated control voltage of 230 V AC and supports a continuous current of up to 8 A Designed for easy integration, it boasts a plug-in connection, though please note that a test button is not included Compliant with RoHS standards, this product will be available for purchase until March 31, 2026, and is offered in packs of 20 units per order.

Features and Benefits:

    •Plug-in connection.

    •RoHS compliant without exemption.

    •Available until 31.03.2026.

Specifications:

 Depth 15.7 mm
 Height 29 mm
 Width 12.7 mm
 Net weight 12.744 g
 Storage temperature -40 °C...85 °C
 Ambient temperature -40 °C...70 °C
 Rated control voltage 230 V AC
 Rated current AC 3.2 mA
 Power rating 0.75 VA
 Coil resistance 32500 Ω ± 15 %
 Rated switching voltage 250 V AC
 Continuous current 8 A
 Max. switching frequency at rated load 0.1 Hz
 Inrush current 15 A / 4 s
 AC switching capacity (resistive), max. 2000 VA
 DC switching capacity (resistive), max. 192 W @ 24 V
 Switch-on delay ≤ 8 ms
 Switch-off delay ≤ 6 ms

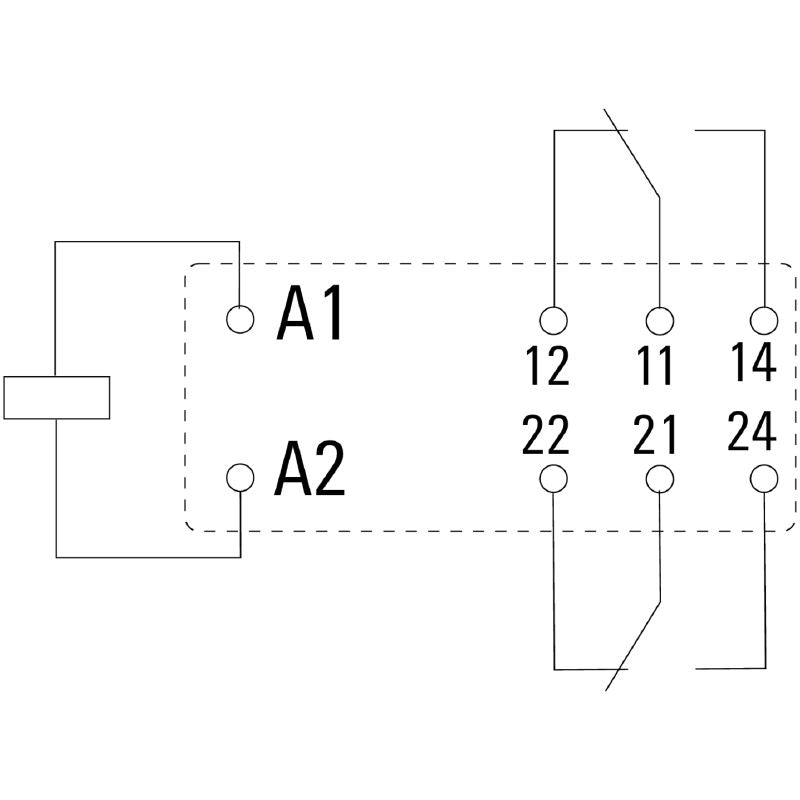

 Contact type 2 CO contact (AgNi)
 Mechanical service life 5 x 10^6 switching cycles
 Protection degree IP20
 UL 94 flammability rating V-2
 Insulation coordination {'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Creepage and clearance distance input – output': '≥ 10 mm', 'Dielectric strength, Input/Output': '5 kV eff / 1min', 'Dielectric strength of neighbouring contacts': '2.5 kV eff / 1 Min.', 'Dielectric strength of open contact': '1 kV eff / 1 min.'}
 Standards ['IEC 61810-1', 'UL508']
 Wire connection method Plug-in connection
 Pitch in mm (P) 5 mm
