2991920000 - RoHS Compliant PA 66 Connector, -40°C to 125°C, 10mm Diameter (Pack of 5)
2991920000 - RoHS Compliant PA 66 Connector, -40°C to 125°C, 10mm Diameter (Pack of 5)
SKU: SKU: 2991920000 Download PDF
- 2991920000 - RoHS Compliant PA 66 Connector, -40°C to 125°C, 10mm Diameter (Pack of 5)
- 2991920000 - RoHS Compliant PA 66 Connector, -40°C to 125°C, 10mm Diameter (Pack of 5)
Couldn't load pickup availability
Description:

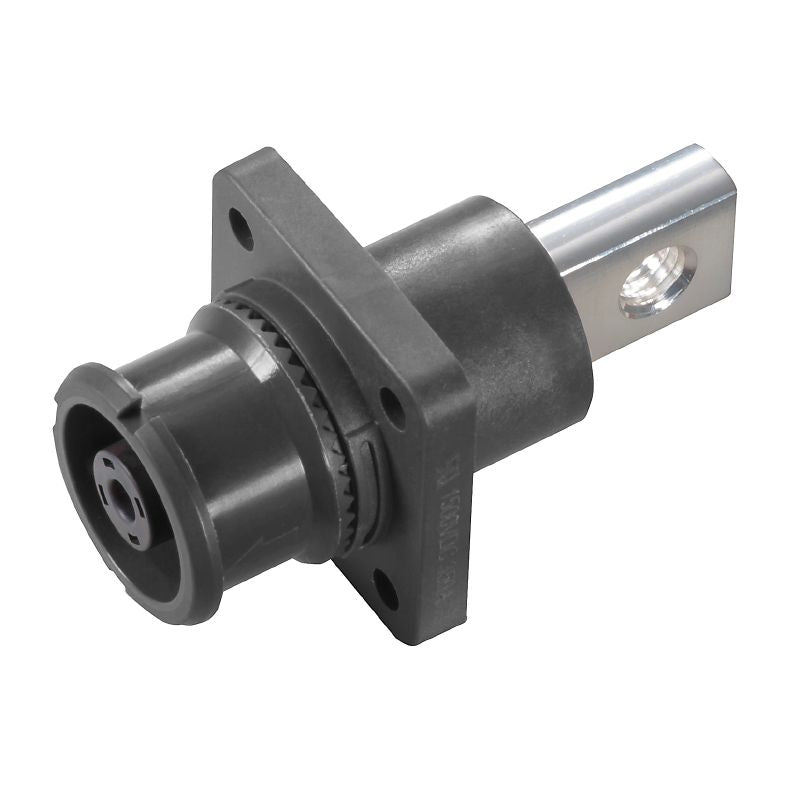

Discover the WBC-S-10BK-M8, a robust component that adheres to RoHS guidelines and boasts UL approval under UL 4128 This product is engineered to endure continuous temperatures between -40 °C and 125 °C, accommodating humidity levels up to 85% RH Crafted from durable PA 66 material, it features a sleek black exterior The design includes a screw connection type specifically for male connections, supporting conductor cross-sections of up to 95 mm² with a contact diameter of 10 mm.
Enhanced with a silver surface finish, it ensures optimal conductivity for your applications.
Features and Benefits:
•RoHS compliant without exemption.
•Operating altitude up to 2000 m.
•Can withstand up to 350 A nominal current and 1,500 V nominal voltage.
•Plugging cycles rated at 100 or more.
•IP67 protection degree when plugged.
•V2 shock resistance and 30g vibration resistance.
•Rated V-0 for UL 94 flammability.
Specifications:
| continuous operating temperature, min. | -40 °C |
| continuous operating temperature, max. | 125 °C |
| humidity | ≤85% RH |
| basic material | PA 66 |
| conductor cross-section, max. | 95 mm² |
| contact diameter, male Ø | 10 mm |
| nominal current | 350 A |
| nominal voltage | 1,500 V |
| plugging cycles | ≥ 100 |
| protection degree | IP67 plugged |
| shock resistance | V2 |
| surge voltage category | II |
| volume resistance | ≥ 5000 MΩ |
