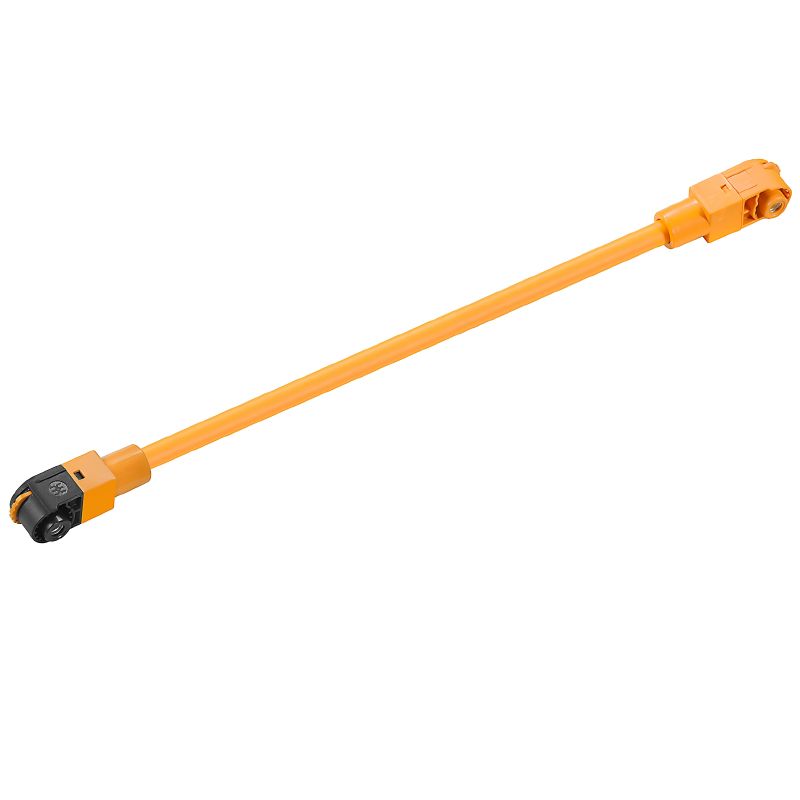

2938270000 - RoHS Compliant PA 66 Connector, 324mm, IP67, 120A

Description:

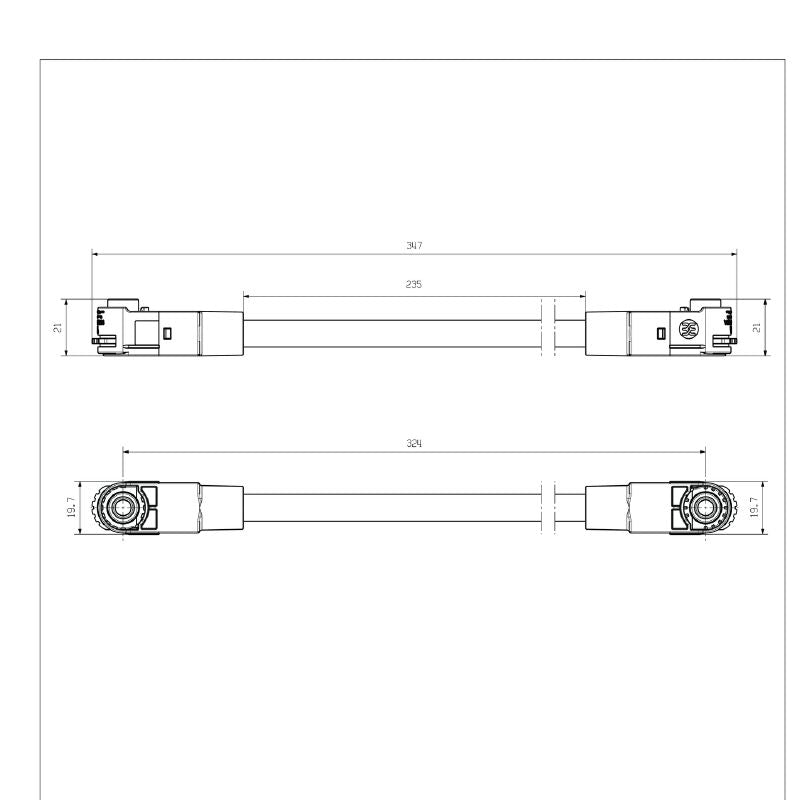

Introducing ordering number 2938270000, a high-performance product that meets RoHS regulations and adheres to industry standards Measuring 324 mm (12756 inches) in length and weighing 120 g, this device is built to endure a continuous operating temperature from -40 °C to 125 °C With no SVHC content exceeding 01 wt%, it’s an environmentally-friendly option Crafted from PA 66 material, this female connector features a crimp connection with an outer cable diameter of 6 mm.

It accommodates a maximum conductor cross-section of 25 mm² and has a contact diameter of 6 mm, finished with a silver surface for enhanced conductivity Rated for a nominal current of 120 A and capable of handling voltages up to 1,500 V, it ensures reliability with a minimum of 100 plugging cycles Additionally, it boasts an IP67 protection rating when connected, while the UL 94 flammability classification is V-0, promising safety and durability for various applications.

Features and Benefits:

•RoHS compliant.

•Continuous operating temperature range from -40 °C to 125 °C.

•Material made from PA 66.

•Female type with crimp connection.

•Maximum conductor cross-section of 25 mm².

•Silver surface finish.

•Protection degree of IP67 when plugged.

•UL 94 flammability rating of V-0.

Specifications:
