2905300000 - IP67 Female Crimp Connector, PA 66, 25 mm², -40°C to 125°C (Pack of 5)
2905300000 - IP67 Female Crimp Connector, PA 66, 25 mm², -40°C to 125°C (Pack of 5)
SKU: SKU: 2905300000 Download PDF
- 2905300000 - IP67 Female Crimp Connector, PA 66, 25 mm², -40°C to 125°C (Pack of 5)
- 2905300000 - IP67 Female Crimp Connector, PA 66, 25 mm², -40°C to 125°C (Pack of 5)
Couldn't load pickup availability
Description:

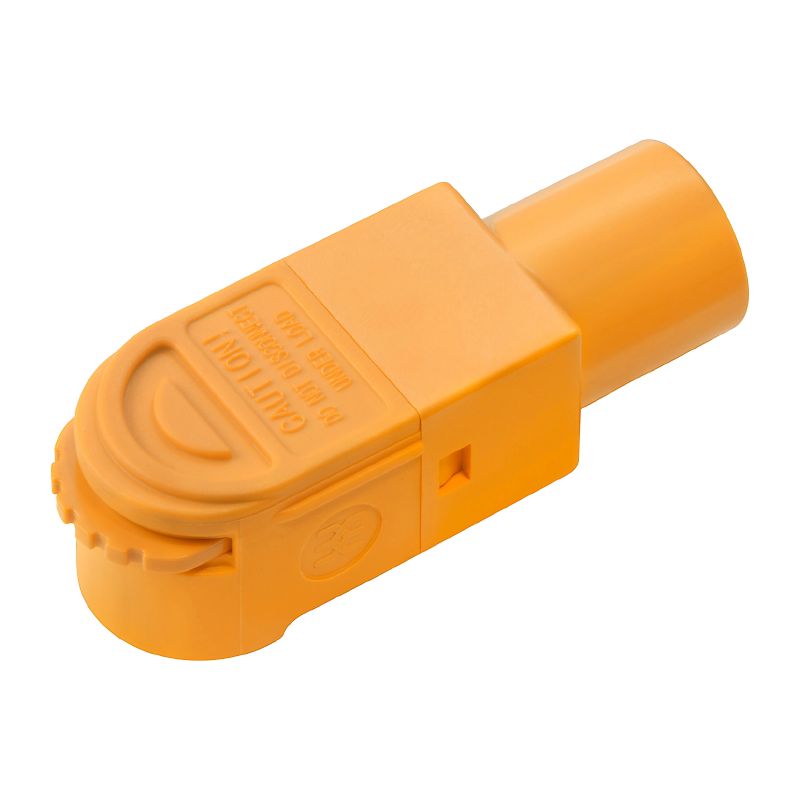

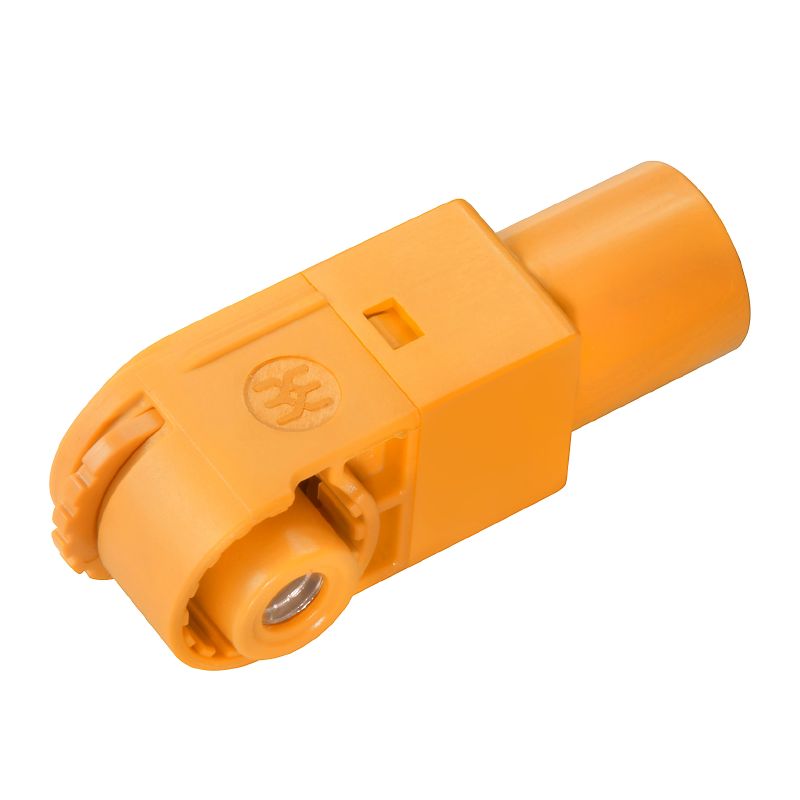

Introducing the WBC-P-6OR-25 female connector, specifically engineered for crimp connections Constructed from PA 66, this durable connector can handle temperatures ranging from -40 °C to 125 °C It accommodates a maximum conductor cross-section of 25 mm² and features a silver surface finish With an IP67 rating when connected, it is perfectly suited for use in rigorous environments where reliability is essential.
Features and Benefits:
•RoHS compliant without exemption.
•UL 4128 approved.
•Plugging cycles of at least 100.
•Shock resistance rated at V2.
•Vibration resistance of 30g.
Specifications:

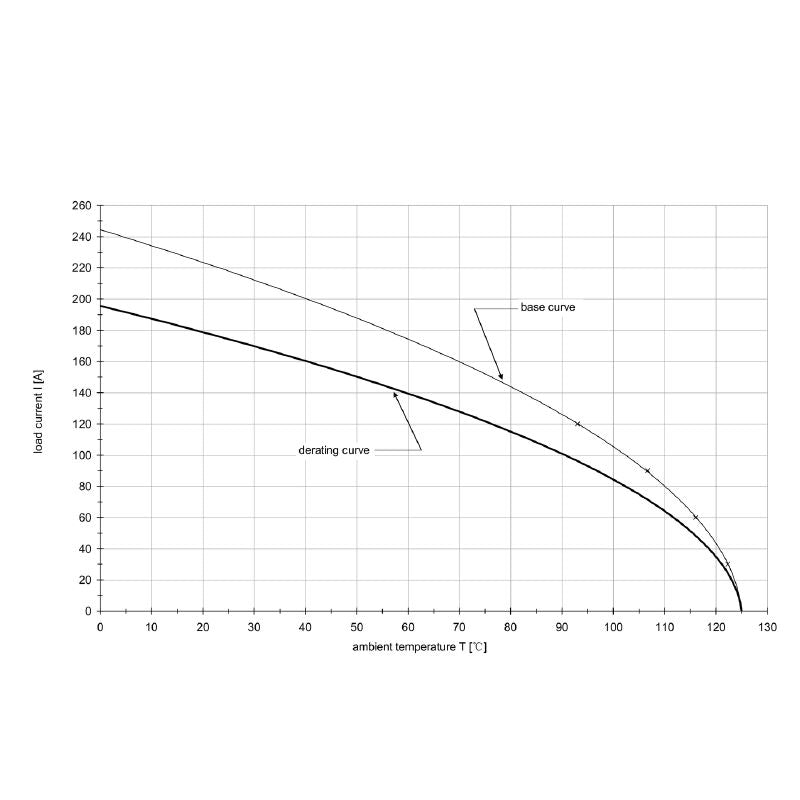

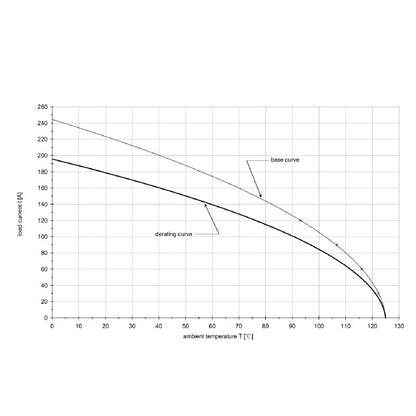

| Nominal current | 120 A |
| Nominal voltage | 1,500 V |
| Operating altitude | ≤ 2000 m |
| Protection degree | IP67 plugged |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≥ 5000 MΩ |

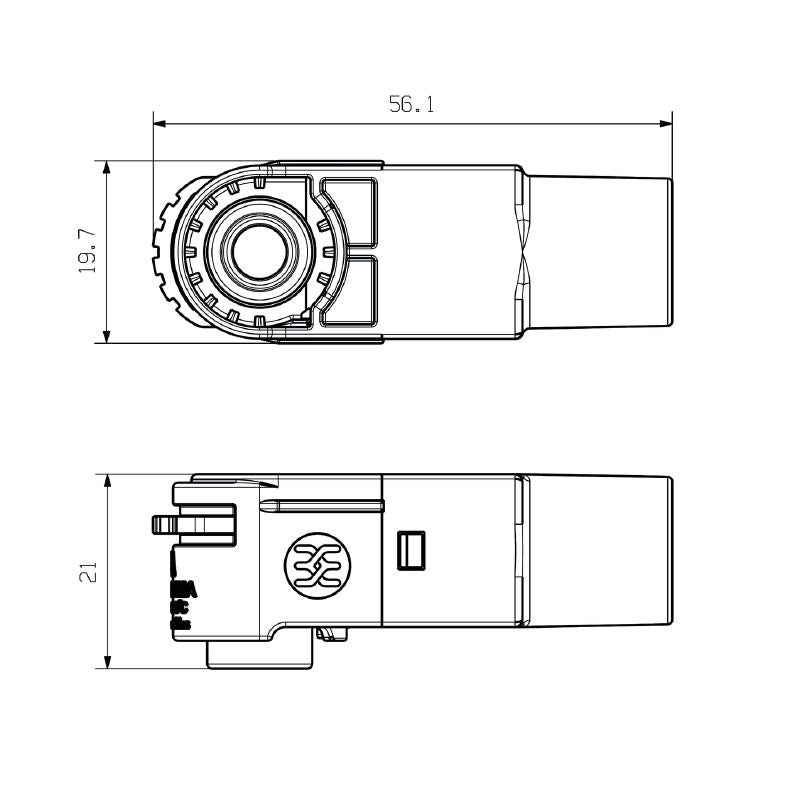

| Outer cable diameter, max | 9.8 mm |
| Outer cable diameter, min | 10.5 mm |
| Humidity | ≤85% RH |
