2905290000 - 25mm² IP67 Connector with 6mm Male Contact for Reliable Connections (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

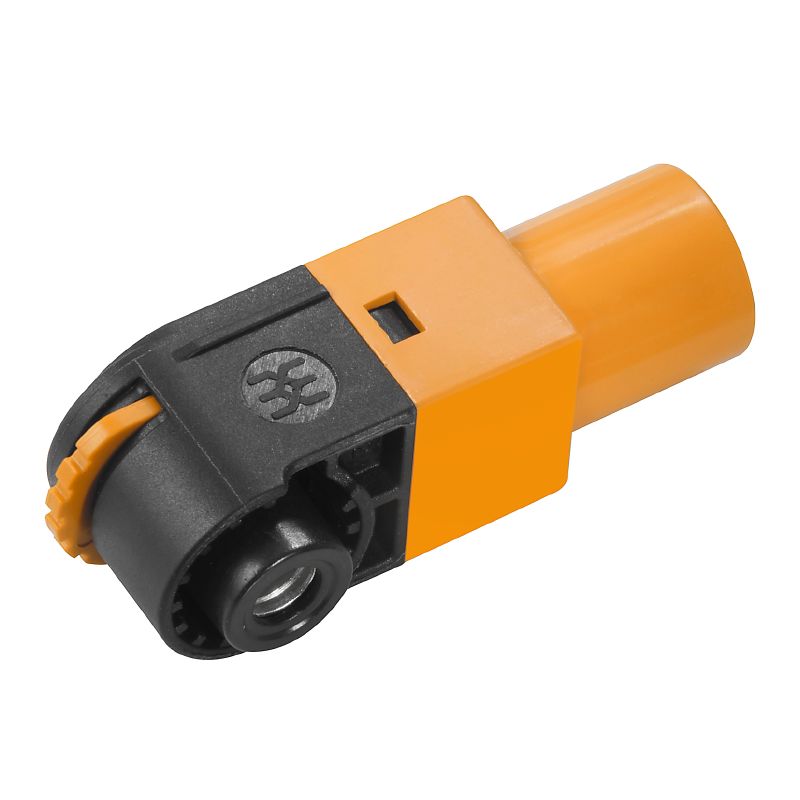

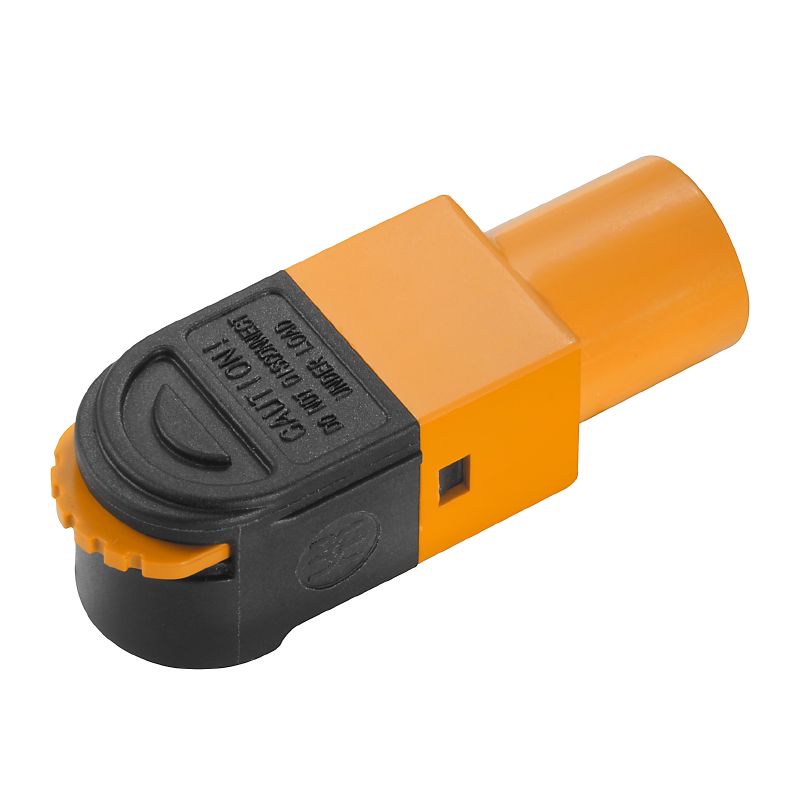

Introducing the WBC-P-6BK-25 connector, a robust solution for secure connections Capable of accommodating conductor cross-sections up to 25 mm², this connector is specifically designed for female connections with a male contact diameter of 6 mm It operates within a wide temperature range of -40 °C to 125 °C, making it suitable for various environments, including those with humidity levels reaching 85% RH.

The construction complies with RoHS standards, ensuring no harmful substances are present, while also meeting UL standards (file number E529699) With an impressive IP67 rating when connected, this component guarantees exceptional durability, enhanced by its silver surface finish that boosts conductivity.

Features and Benefits:

•Crimp connection type.

•Constructed from PA 66 material.

•Nominal current rating of 120 A.

•Nominal voltage rating of 1,500 V.

•Shock resistance rated as V2.

•Rated for plugging cycles of ≥ 100.

•Vibration resistance of 30g.

•Volume resistance of ≥ 5000 MΩ.

Specifications:
