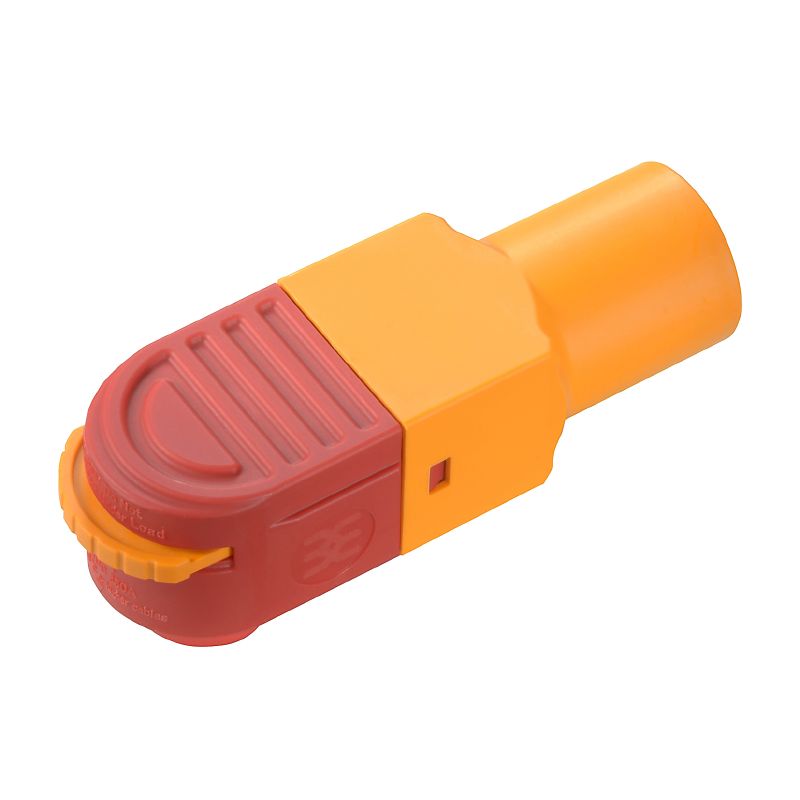

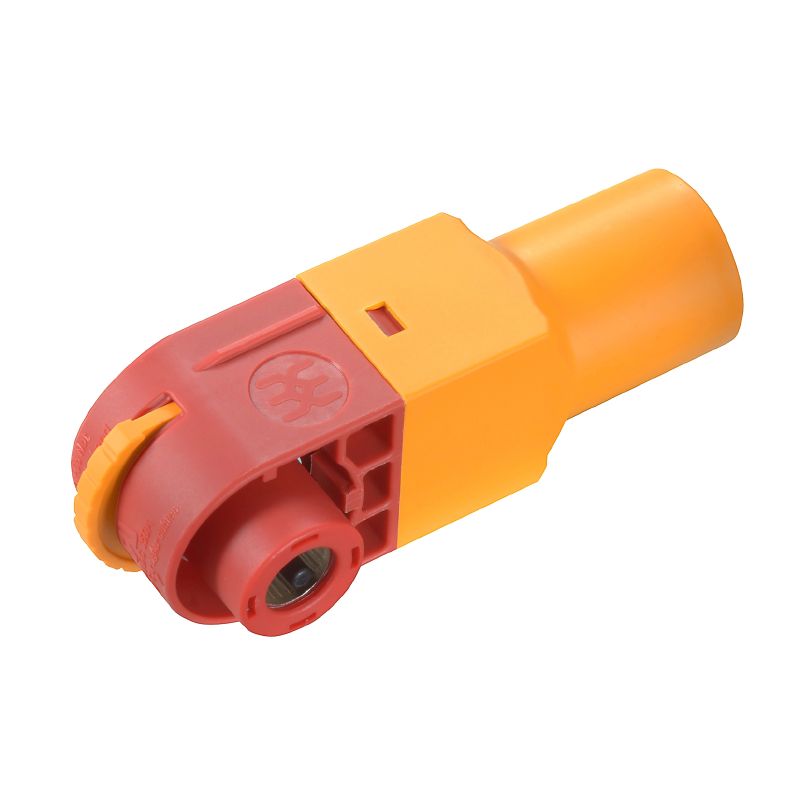

2991910000 - RoHS Compliant PA 66 Female Connector, 70 mm², 250 A Capacity (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting the WBC-P-10RE-70, a RoHS-compliant and UL-approved product, certified under E529699 This versatile unit operates efficiently in a temperature range of -40 °C to 125 °C and is designed to function optimally at humidity levels of up to 85% RH Each package contains five units, with each individual unit weighing 725 grams and crafted from durable PA 66 material Equipped with a female connection type, the product supports crimp connections, accommodating a maximum conductor cross-section of 70 mm².

The male contact diameter is 10 mm, and it suits cable outer diameters between 15 mm and 16 mm Featuring a silver surface finish, this component can handle a nominal current of 250 A and operates at voltages up to 1,500 V Built for longevity, it is rated to withstand up to 100 plugging cycles.

Features and Benefits:

•Compliant with RoHS standards.

•UL approved with certificate number E529699.

•Operating temperature range from -40 °C to 125 °C.

•Weight of each item is 72.5 grams.

•Made from durable PA 66 material.

•Cable diameter ranges from 15 mm to 16 mm.

•Female type with crimp connection.

•Maximum conductor cross-section of 70 mm².

•Shock resistance rating of V2.

•Protection degree of IP67 when plugged.

Specifications:
