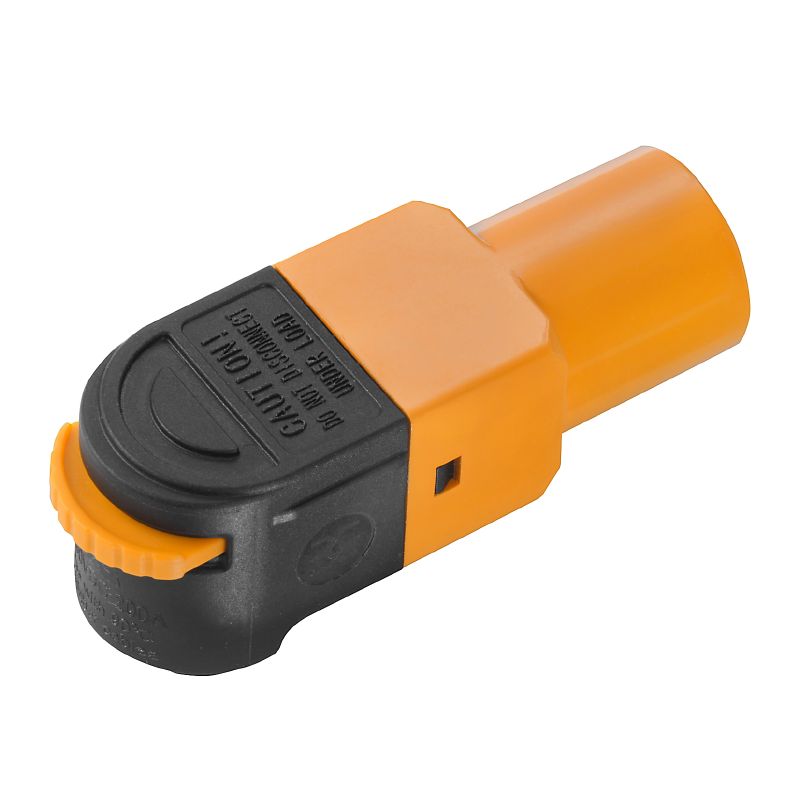

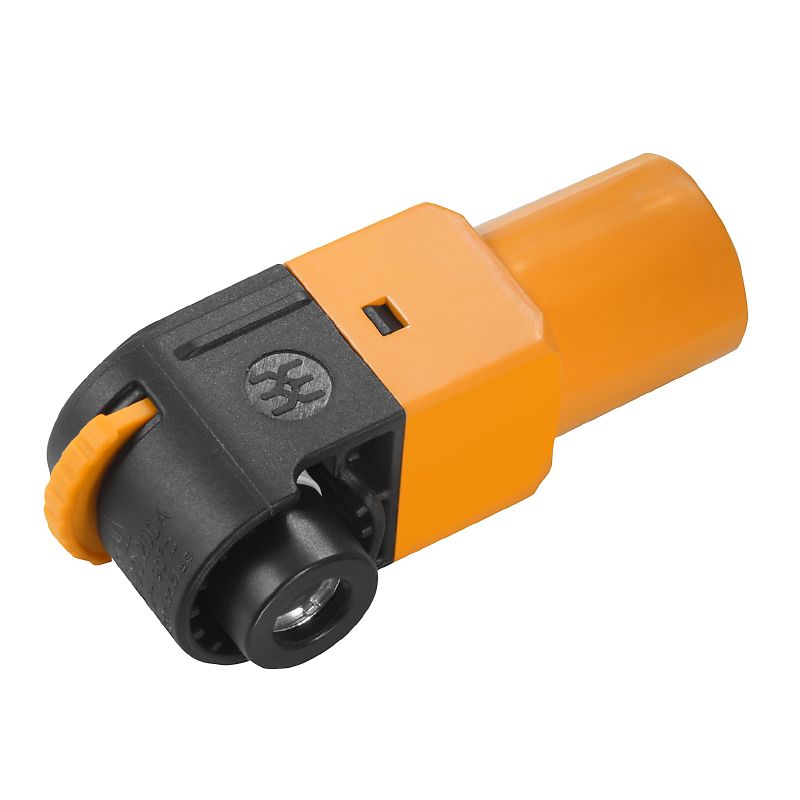

2905350000 - Certified Crimp Connector, 150A, -40°C to 125°C, IP67 Rated (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WBC-P-8BK-35 connector, a reliable choice for various electrical applications This connector is crafted from durable PA 66 and delivers a robust crimp connection It boasts an impressive nominal current of 150A and supports a high voltage rating of 1,500V Designed to withstand extreme temperatures, it operates efficiently in conditions ranging from -40°C to 125°C Compact and sleek in black, the connector accommodates conductor cross-sections of up to 35 mm², with an outer cable diameter that ranges between 10.

6 mm and 113 mm Rated IP67 when connected, it promises excellent protection against dust and water Additionally, the WBC-P-8BK-35 is engineered to resist shocks with a V2 rating, ensuring reliability and longevity wherever you need it.

Features and Benefits:

•RoHS compliant without exemption.

•Meets UL 4128 approvals.

•Resilient against temperatures from -40°C to 125°C.

•IP67 rated when plugged.

•Designed for crimp connection.

•Supports a nominal current of 150A.

•Rated for a voltage of 1,500V.

Specifications:
