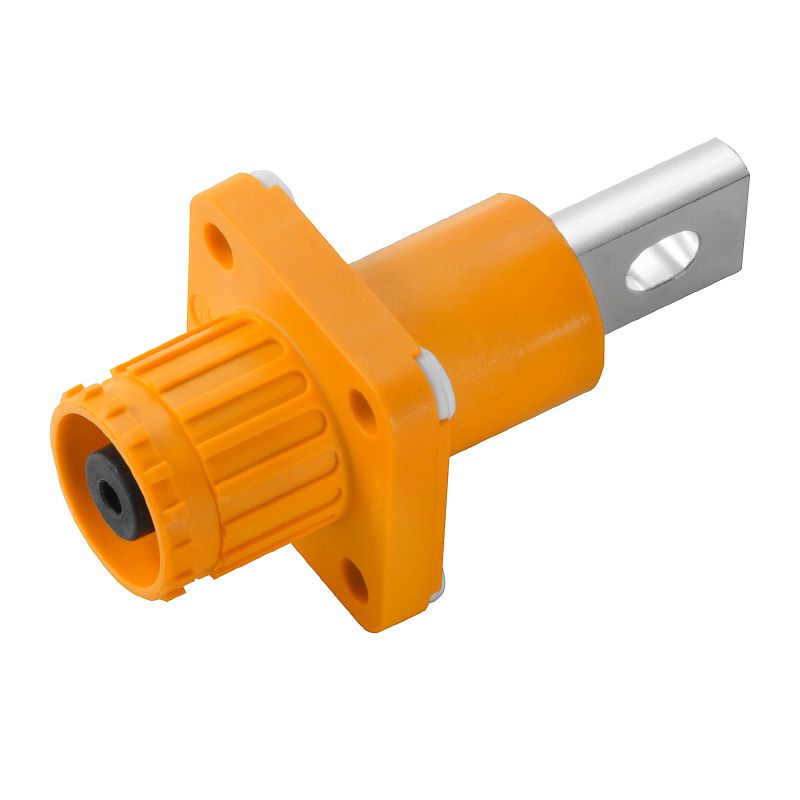

2905320000 - Durable Orange Male Connector, 50 mm², IP67 Rated (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WBC-S-8OR-B, your go-to solution for dependable connections This male-type connector features a secure screw connection and is made from durable PA 66 material, showcasing a striking orange hue With a maximum conductor cross-section of 50 mm² and a male contact diameter of 8 mm, it is engineered for high-performance tasks, handling a nominal current of 250 A and a voltage rating of up to 1,500 V.

Built to withstand the elements, this connector operates effectively in temperature ranges from -40 °C to 125 °C and is rated with an IP67 protection level when connected It is RoHS compliant, ensuring safety by being free from SVHC above 01 wt% Ideal for high altitudes, it can function up to 2,000 m and is designed for longevity, supporting more than 100 plugging cycles for enhanced durability and reliability.

Features and Benefits:

•Constructed from durable PA 66 material.

•Vibrant orange coloring for easy identification.

•Male type connection with screw connection method.

•Max conductor cross-section of 50 mm² for robust performance.

•IP67 protection rating for use in challenging environments.

Specifications:
