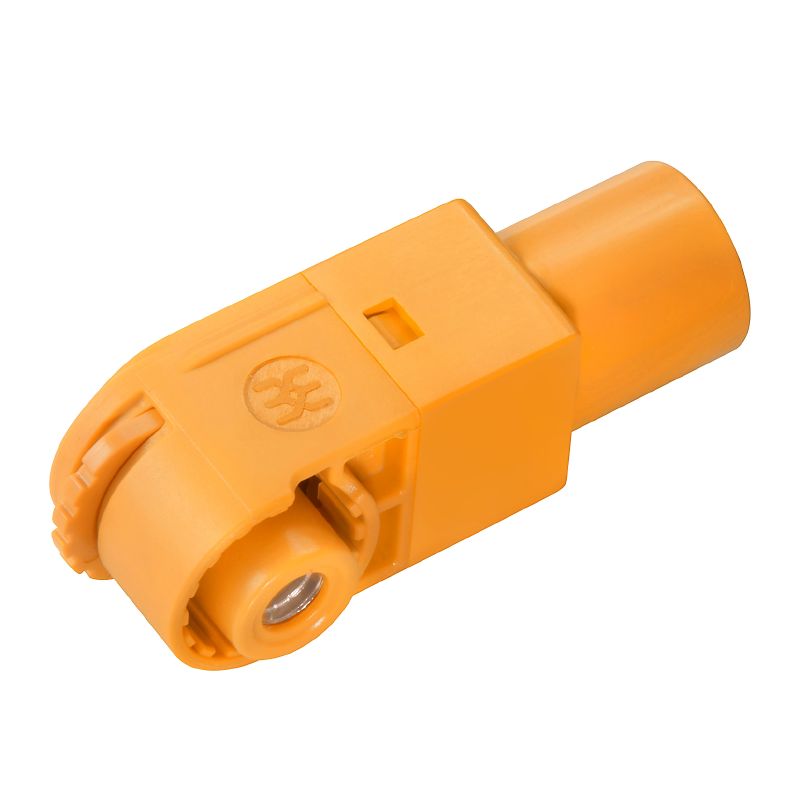

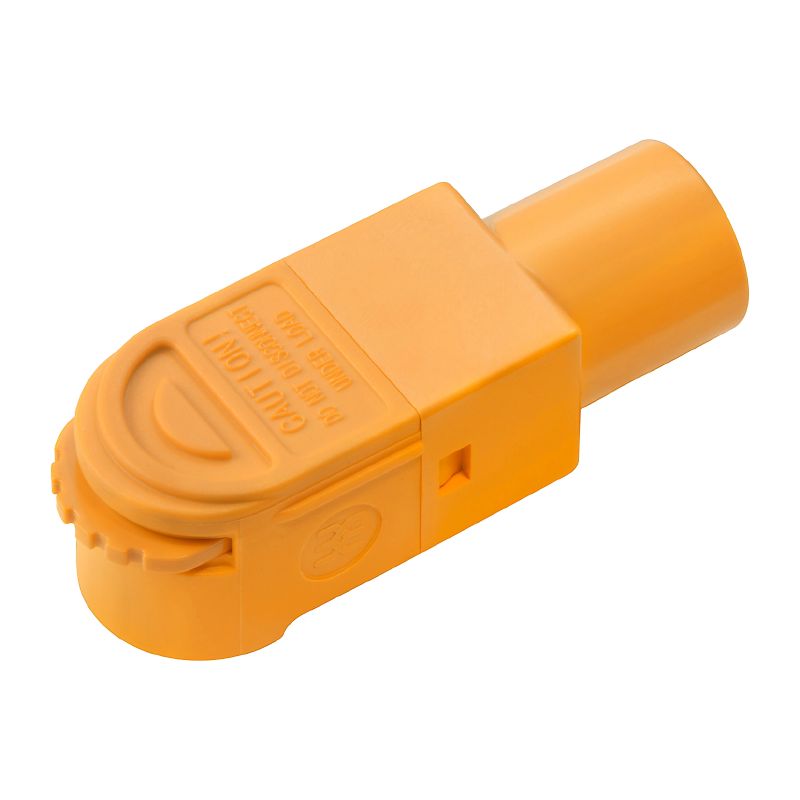

2905280000 - RoHS & UL Certified 6mm Male Connector, 100A, Orange, IP67 (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the WBC-P-6OR-16, a reliable component that meets rigorous industry standards with RoHS compliance and UL certification (file number E529699) This product is offered in sets of 5, each unit weighing 232 grams It operates effectively across a temperature spectrum of -40 °C to 125 °C and can withstand humidity levels of up to 85% RH Crafted from high-quality PA 66, this vibrant orange item supports a maximum conductor cross-section of 16 mm², featuring a male contact diameter of 6 mm.

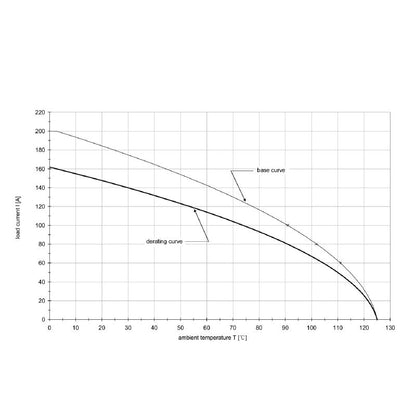

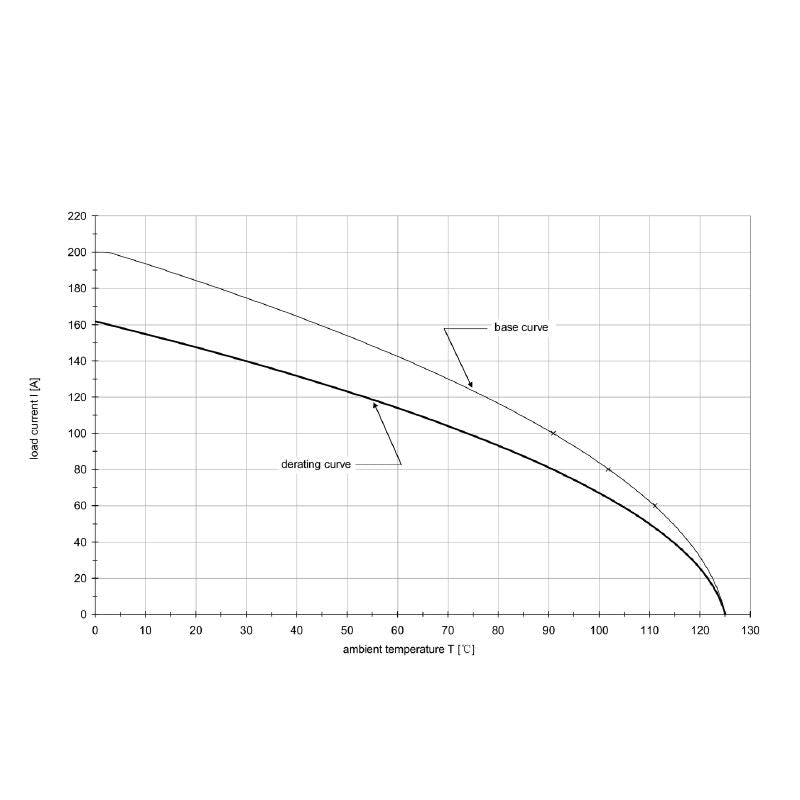

The crimp connection type ensures a secure fit, with an outer cable diameter between 78 mm and 86 mm The surface boasts a silver finish, rated for a nominal current capacity of 100 A and a voltage tolerance of up to 1,500 V This versatile product can function at altitudes of up to 2000 m and is engineered to handle at least 100 plugging cycles With an IP67 protection degree when connected, it also offers robust shock resistance rated at V2 and falls under surge voltage category II.

Additionally, it has a UL 94 flammability rating of V-0, is resistant to vibrations of up to 30g, and maintains a volume resistance of at least 5000 MΩ, making it an excellent choice for demanding applications.

Features and Benefits:

•RoHS compliant without exemption.

•Available in orange color.

•Material constructed from PA 66.

•Features silver surface finish.

•Maximum conductor cross-section of 16 mm².

•IP67 protection degree.

•Shock resistance rated at V2.

•Can handle at least 100 plugging cycles.

•Vibration resistance of 30g.

Specifications:
