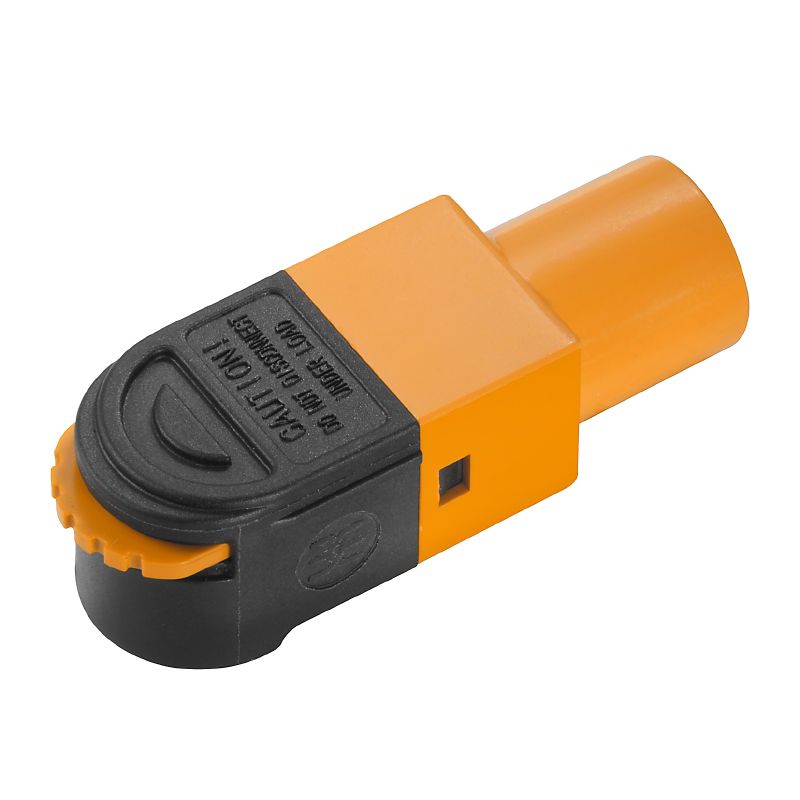

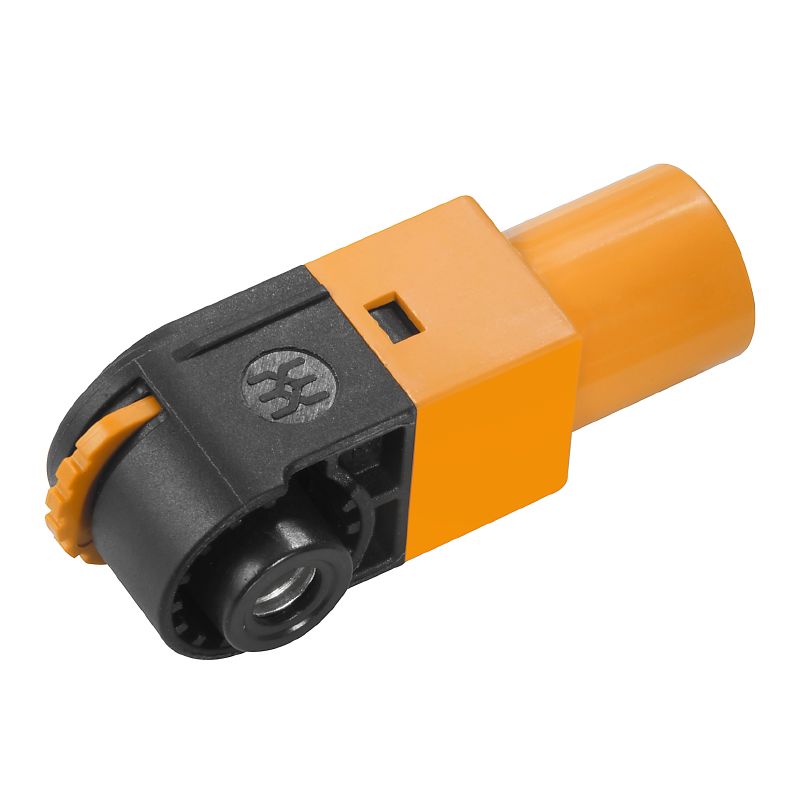

2905250000 - RoHS Black Crimp Connection for 10 mm² Conductors, 80A, 1,500V (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure safety and compatibility with this high-performance component, which meets RoHS compliance standards and is free of exemptions Made from durable PA 66, it holds UL 4128 recognition and comes in a sophisticated black color This item can handle a maximum conductor cross-section of 10 mm², with an outer cable diameter and male contact diameter both measuring 6 mm Featuring a reliable crimp connection type, it is designed for nominal current ratings of 80 A and a nominal voltage of 1,500 V.

This product operates efficiently within a continuous temperature range of -40 °C to 125 °C and is suitable for environments with humidity levels reaching up to 85% RH.

Features and Benefits:

•RoHS compliant without exemptions.

•Constructed from durable PA 66 material.

•Black color for aesthetic integration.

•Crimp connection type for secure fastening.

•Rated for extended temperature range.

•UL approved under UL 4128.

•High nominal current capacity of 80 A.

•Vibration resistance rated at 30g.

Specifications:
