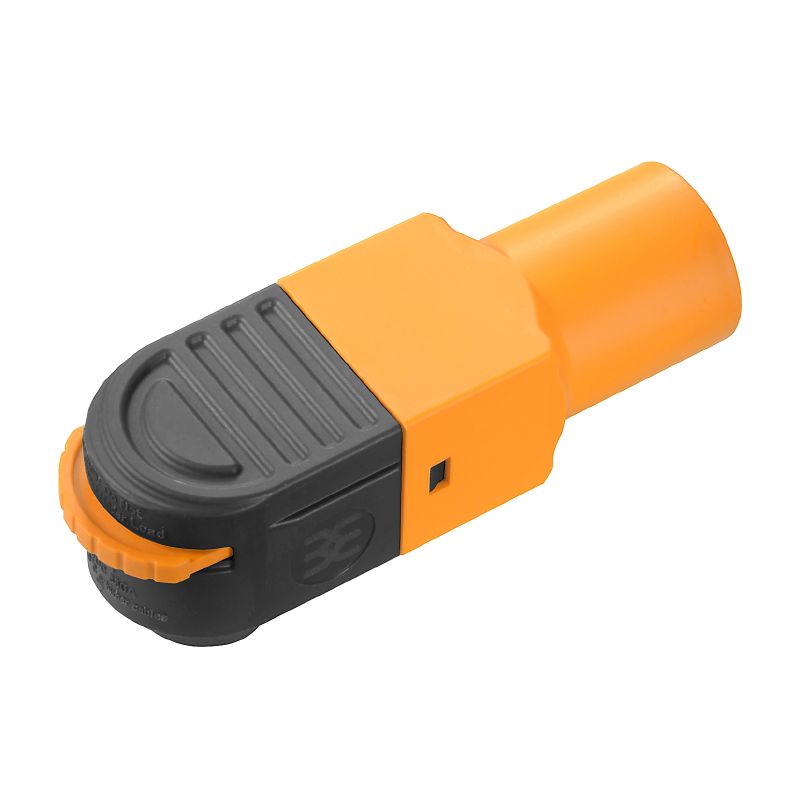

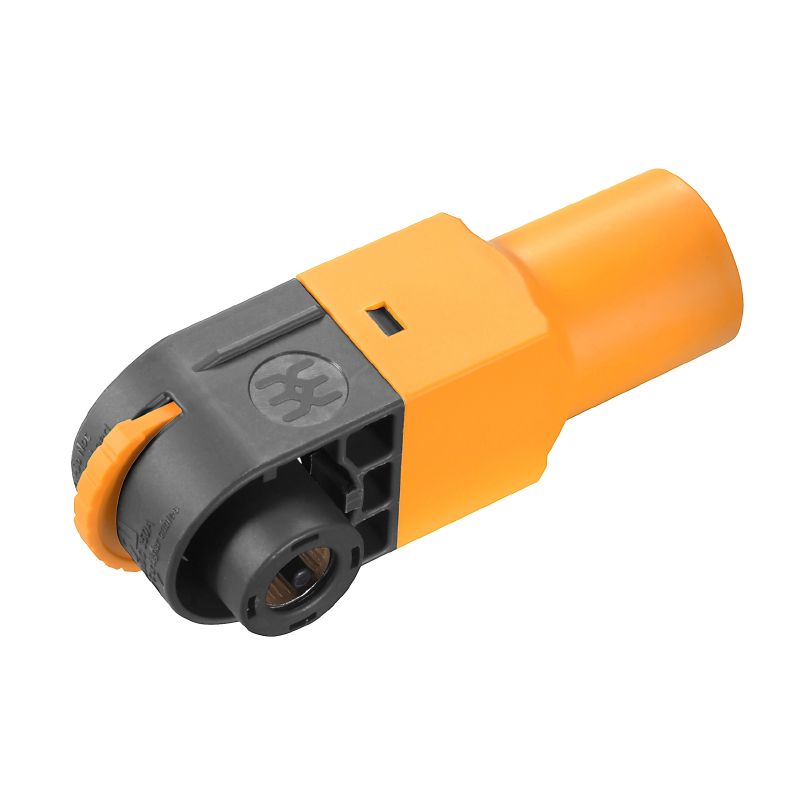

2991900000 - Durable Female Crimp Connection for 70 mm² Conductors (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience outstanding performance with the WBC-P-10BK-70 female crimp connection, expertly engineered for versatility With the ability to accommodate a conductor cross-section of up to 70 mm² and an adjustable outer cable diameter of 15 to 16 mm, this component is both adaptable and efficient It functions optimally in temperatures ranging from -40 °C to 125 °C, making it suitable for a variety of environments.

Crafted from durable PA 66 material, it adheres to RoHS regulations fully Finished in black with a sleek silver surface, the connection combines reliability with lasting toughness for your electrical projects.

Features and Benefits:

•Rated for a nominal current of 250 A and a nominal voltage of 1,500 V.

•Plugging cycles of at least 100.

•IP67 protection when plugged.

•Shock resistance rated at V2.

•Surge voltage category II.

•Vibration resistance of 30g.

•Volume resistance of at least 5000 MΩ.

Specifications:
