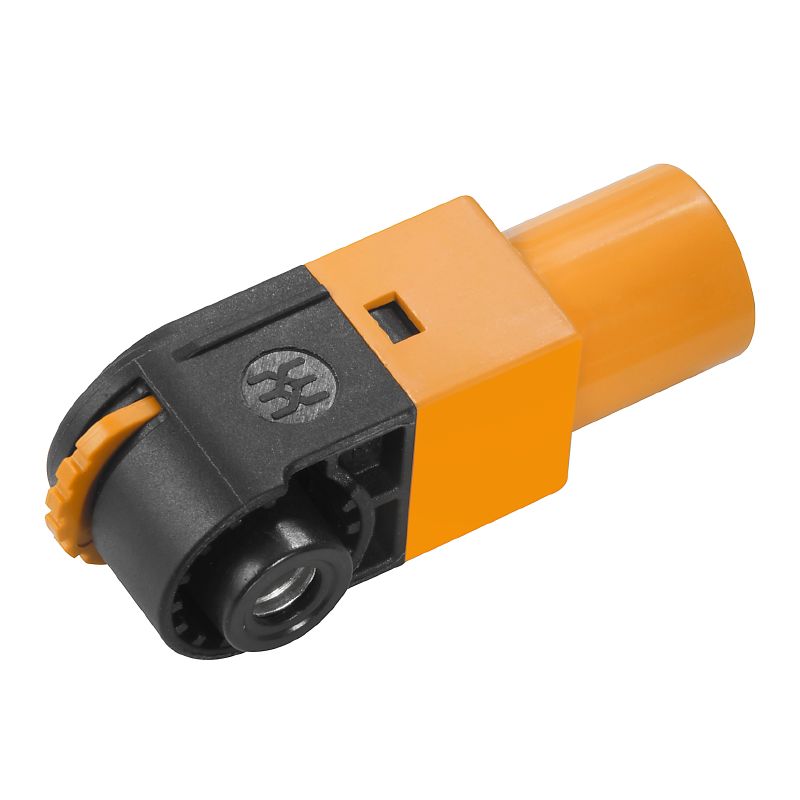

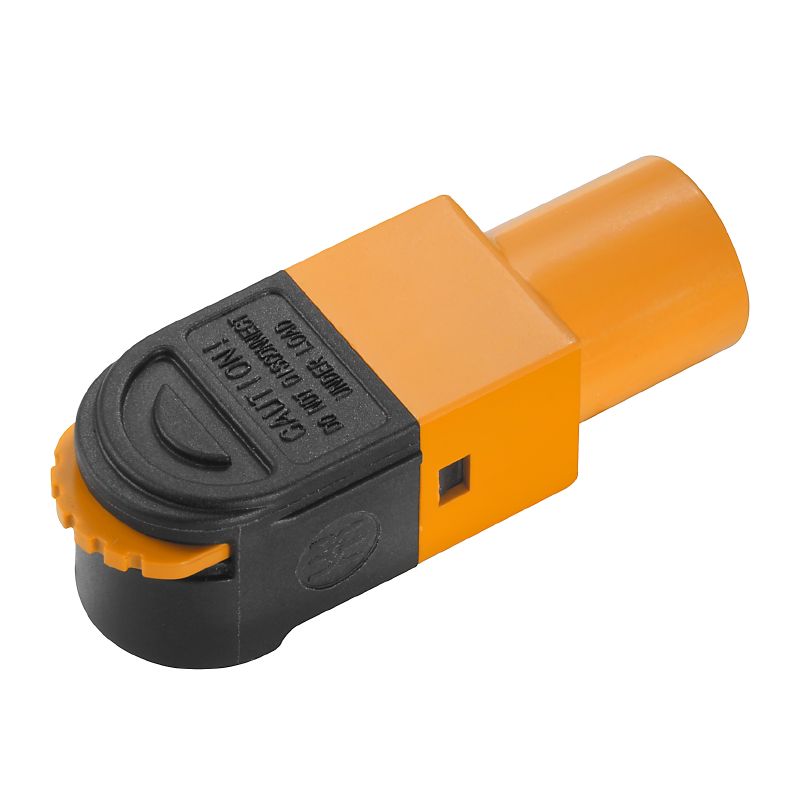

2905270000 - IP67 RoHS Connector, 16mm² Capacity, Black PA 66 (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this high-performance connector designed for reliability and compliance with RoHS standards, including UL 4128 certification With a maximum conductor cross-section of 16 mm² and a contact diameter of 6 mm, it accommodates various wiring needs The outer cable diameter measures between 78 mm and 86 mm, making it versatile for different applications Crafted from durable PA 66 material, this connector is available in a sleek black hue.

Engineered for extreme conditions, it operates efficiently within a temperature range of -40 °C to 125 °C, and can handle humidity levels of up to 85% RH It boasts impressive specifications, including a nominal current capacity of 100 A and a nominal voltage rating of 1,500 V, suitable for elevations up to 2000 m Designed for crimp connections, this connector also offers robust protection with an IP67 rating when fully engaged.

Features and Benefits:

•RoHS compliant without exemption.

•Shock resistance rating of V2.

•Operating altitude of up to 2000 m.

•Plugging cycles of at least 100.

•Vibration resistance of 30g.

•UL 94 flammability rating of V-0.

Specifications:
