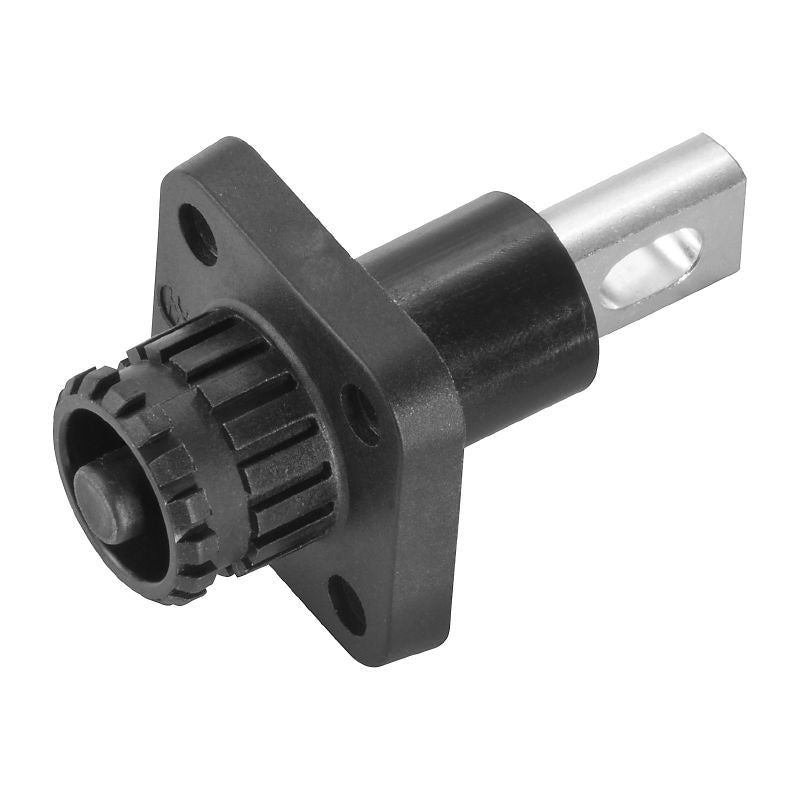

2905330000 - Heavy-Duty Black Connector, 120A, IP67, RoHS Compliant (Pack of 5)

Description:

Introducing the WBC-S-6BK-B connector, a robust solution built to meet RoHS regulations and proudly carries UL certification (file number E529699) This male connector utilizes a reliable screw connection and accommodates conductor cross-sections of up to 25 mm² Engineered for heavy-duty use, it boasts an impressive nominal current rating of 120 A and can handle voltages up to 1,500 V Designed to perform under extreme conditions, this connector operates effectively in temperature ranges from -40 °C to 125 °C and can endure relative humidity levels of up to 85%.

Crafted from durable PA 66 material, it features a sleek black finish and is rated with protection level IP67 when connected, making it ideal for challenging environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•No SVHC above 0.1 wt%.

•Plugging cycles of at least 100.

•Shock resistance rated V2.

•Vibration resistance of 30g.

•UL 94 flammability rating of V-0.

Specifications:
