2991930000 - RoHS Compliant Male Connector, -40°C to 125°C, Silver Finish (Pack of 5)
2991930000 - RoHS Compliant Male Connector, -40°C to 125°C, Silver Finish (Pack of 5)
SKU: SKU: 2991930000 Download PDF
- 2991930000 - RoHS Compliant Male Connector, -40°C to 125°C, Silver Finish (Pack of 5)
- 2991930000 - RoHS Compliant Male Connector, -40°C to 125°C, Silver Finish (Pack of 5)
Couldn't load pickup availability
Description:

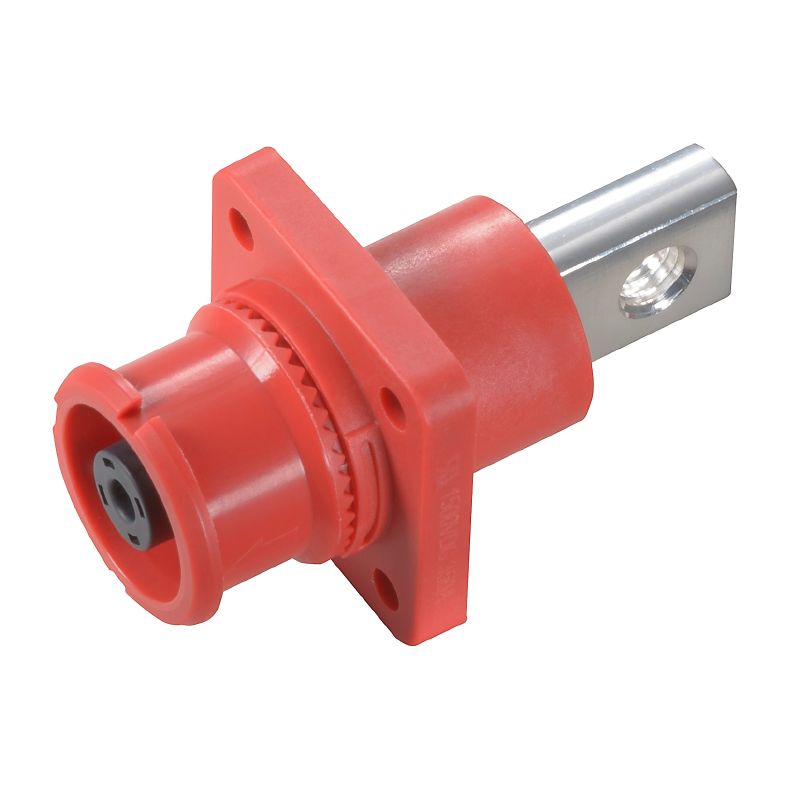

Featuring the WBC-S-10RE-M8 connector, your projects will benefit from reliable and high-performance connectivity This connector adheres to RoHS standards with no exceptions, making it an eco-friendly choice With an operational temperature range of -40 °C to 125 °C, it is built to withstand extreme conditions It accommodates a maximum conductor cross-section of 95 mm², ensuring robust electrical connections.
The male type connector is designed with a screw mechanism that provides a secure and stable attachment, making it an essential component for various applications.
Features and Benefits:
•Compliant with RoHS regulations.
•UL approved under file number E529699.
•IP67 protection degree when plugged.
•Rated for a nominal current of 350 A.
•Operates safely at a nominal voltage of 1,500 V.
•Capable of withstanding plugging cycles of at least 100.
Specifications:

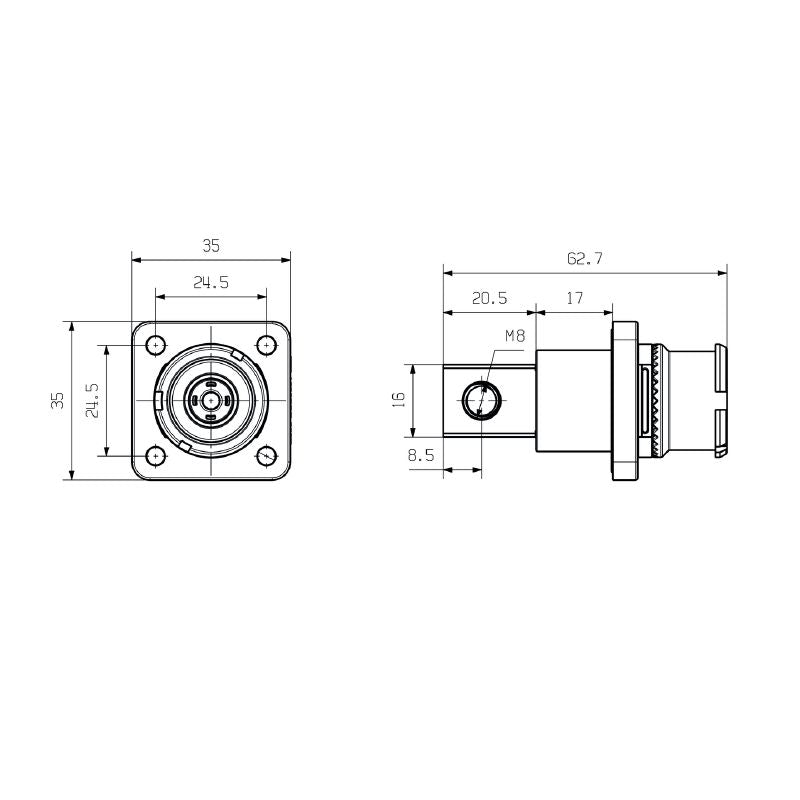

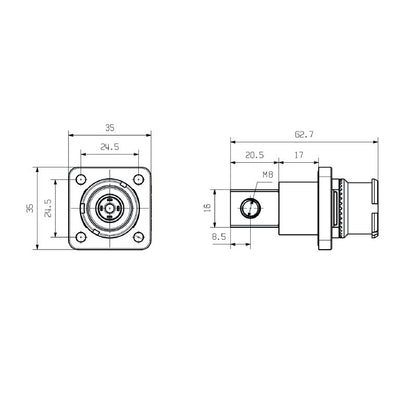

| Conductor cross-section, max. | 95 mm² |
| Contact diameter, male Ø | 10 mm |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 125 °C |
| Operating altitude | ≤ 2000 m |
| Humidty | ≤85% RH |
| Surge voltage category | II |
| Shock resistance | V2 |
| Vibration resistance | 30g |
| Volume resistance | ≥ 5000 MΩ |
| UL 94 flammability rating | V-0 |
| Basic material | PA 66 |
| Plugging cycles | ≥ 100 |
