Description:

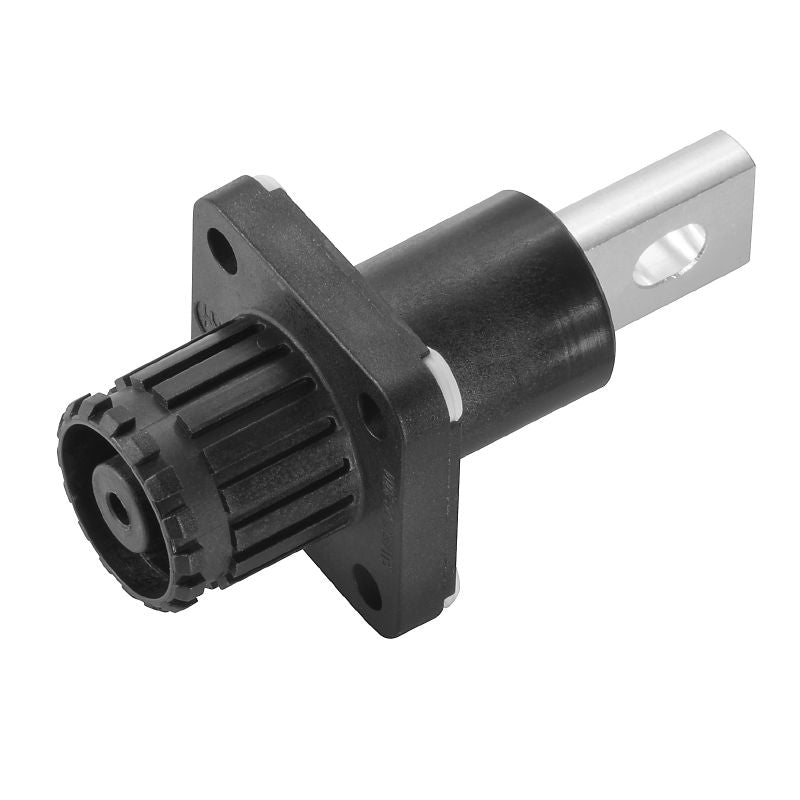

Discover the reliability of the WBC-S-8BK-B, a product thoroughly tested and compliant with RoHS regulations, ensuring a safe and eco-friendly choice It carries UL certification (file number E529699), confirming adherence to stringent safety standards Each package contains five units, making it perfect for bulk needs Weighing just 46 grams, this part is designed to be lightweight and easy to handle.
It can operate continuously within a temperature range of -40°C to 125°C and endures humidity levels up to 85% RH, making it suitable for a variety of applications.
Features and Benefits:
•RoHS compliant.
•UL approved.
•Lightweight at 46 grams.
•Durable with a maximum operating temperature of 125 °C.
•Humidity tolerance up to 85% RH.
Specifications:
| Approvals | UL 4128 |
| Basic material | PA 66 |
| Colour | black |
| Conductor cross-section, max. | 50 mm² |
| Contact diameter, male Ø | 8 mm |
| Surface finish | silver |
| Type | Male |
| Type of connection | Screw connection |
| Nominal current | 250 A |
| Nominal voltage | 1,500 V |
| Operating altitude | ≤ 2000 m |
| Plugging cycles | ≥ 100 |
| Protection degree | IP67 plugged |
| Shock resistance | V2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Vibration resistance | 30g |
| Volume resistance | ≥ 5000 MΩ |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ETIM 10.0 | EC001121 |
| ECLASS 10.0 | 27-44-03-12 |
| ECLASS 11.0 | 27-44-03-12 |
| ECLASS 12.0 | 27-44-03-12 |
| ECLASS 13.0 | 27-44-03-12 |
| ECLASS 14.0 | 27-44-03-12 |
| ECLASS 15.0 | 27-44-03-12 |
