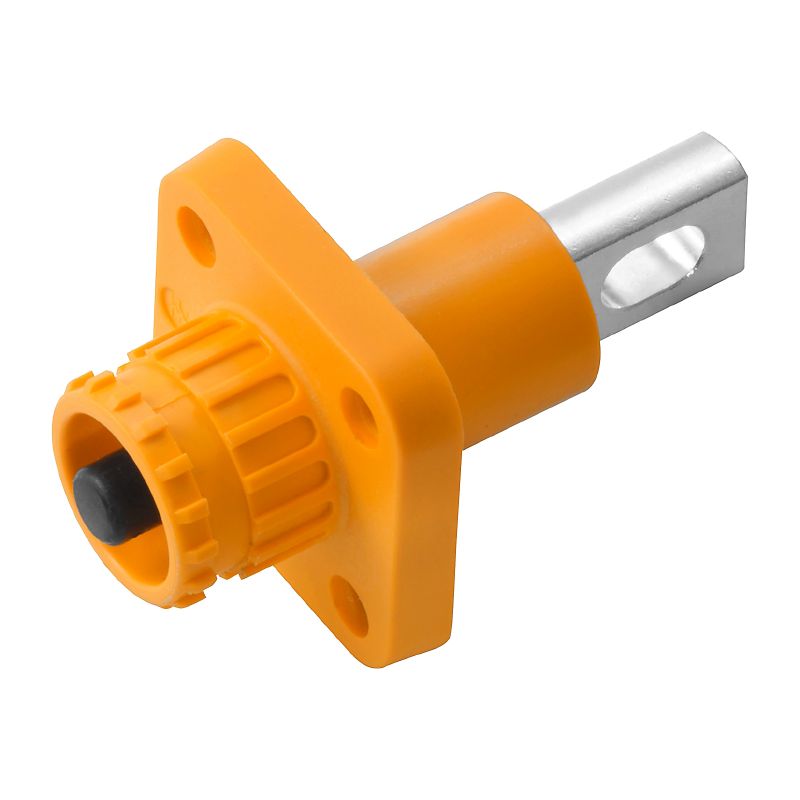

2905340000 - Orange Male Connector, Screw Type, 25 mm², RoHS Compliant (Pack of 5)
2905340000 - Orange Male Connector, Screw Type, 25 mm², RoHS Compliant (Pack of 5)
SKU: SKU: 2905340000 Download PDF
- 2905340000 - Orange Male Connector, Screw Type, 25 mm², RoHS Compliant (Pack of 5)
- 2905340000 - Orange Male Connector, Screw Type, 25 mm², RoHS Compliant (Pack of 5)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the WBC-S-6OR-B connector, expertly crafted for specialized applications while adhering to industry regulations, including RoHS and UL 4128 This male connector features a reliable screw connection and accommodates a maximum conductor cross-section of 25 mm² With a striking orange hue and a polished silver finish, this product not only stands out but also guarantees robust performance.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Suitable for continuous operating temperatures ranging from -40 °C to 125 °C.
•IP67 protection degree when plugged.
•High shock resistance rated at V2.
•Rated for 120 A nominal current and 1,500 V nominal voltage.
Specifications:
| Approvals | UL 4128 |
| Basic material | PA 66 |
| Contact diameter, male Ø | 6 mm |
| Plugging cycles | ≥ 100 |
| Operating altitude | ≤ 2000 m |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Vibration resistance | 30g |
| Volume resistance | ≥ 5000 MΩ |
| Humidity | ≤85% RH |
