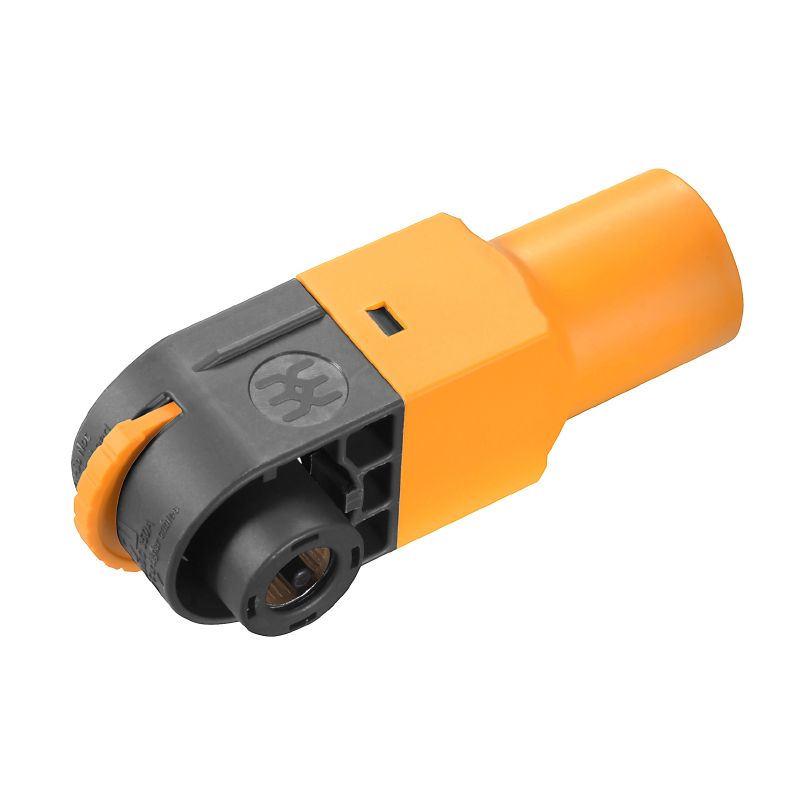

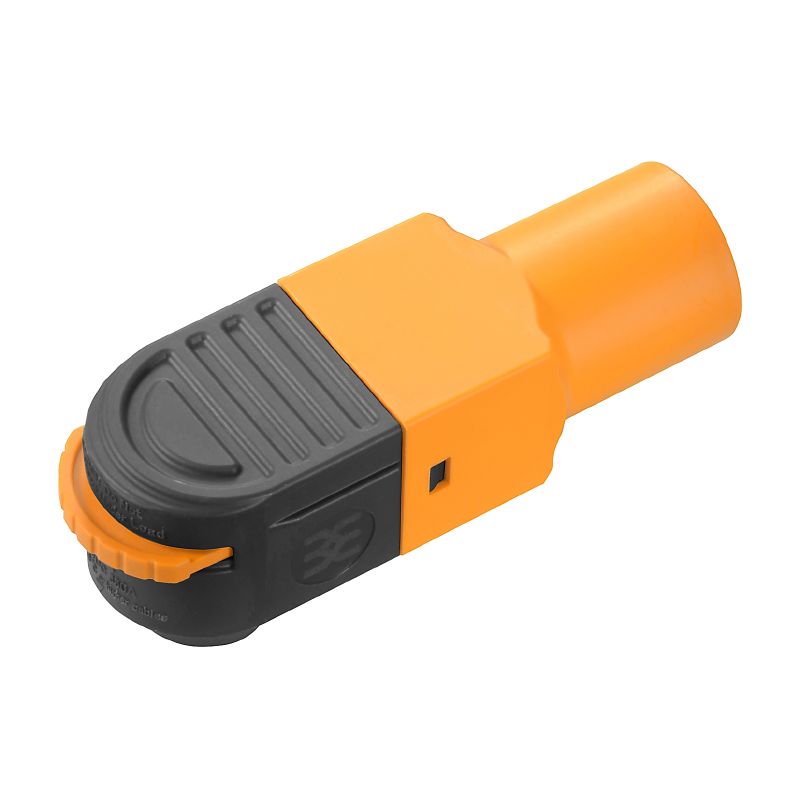

2991940000 - PA 66 10mm Cable, 17.7-18.8mm, 125°C Rating (Pack of 5)

Description:

Experience reliability with the WBC-P-10BK-95, a premium product that boasts a range of certifications, including RoHS compliance and UL approval (Certificate No E529699) Engineered to withstand extreme temperatures, it operates efficiently from -40 °C to a maximum of 125 °C This robust design features an outer cable diameter range of 177 mm to 188 mm and is constructed from PA 66 material, offered in a sophisticated black color.

It accommodates a conductor cross-section up to 95 mm² and includes a contact diameter of 10 mm Additionally, it meets environmental standards with no SVHC present over 01 weight percent, ensuring safety and compliance.

Features and Benefits:

•RoHS compliant without exemptions.

•UL approved with file number E529699.

•High temperature resilience from -40 °C to 125 °C.

•IP67 rated when plugged.

•V2 shock resistance.

•Nominal current capacity of 350 A.

•Nominal voltage capacity of 1,500 V.

•Plugging cycles rated for 100 or more.

•Vibration resistant up to 30g.

Specifications:
