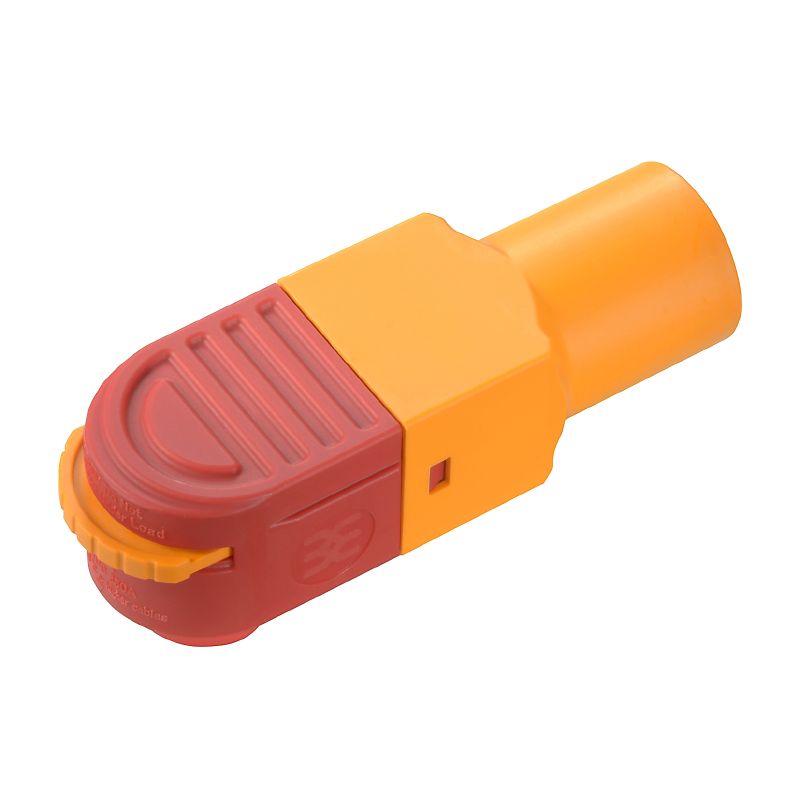

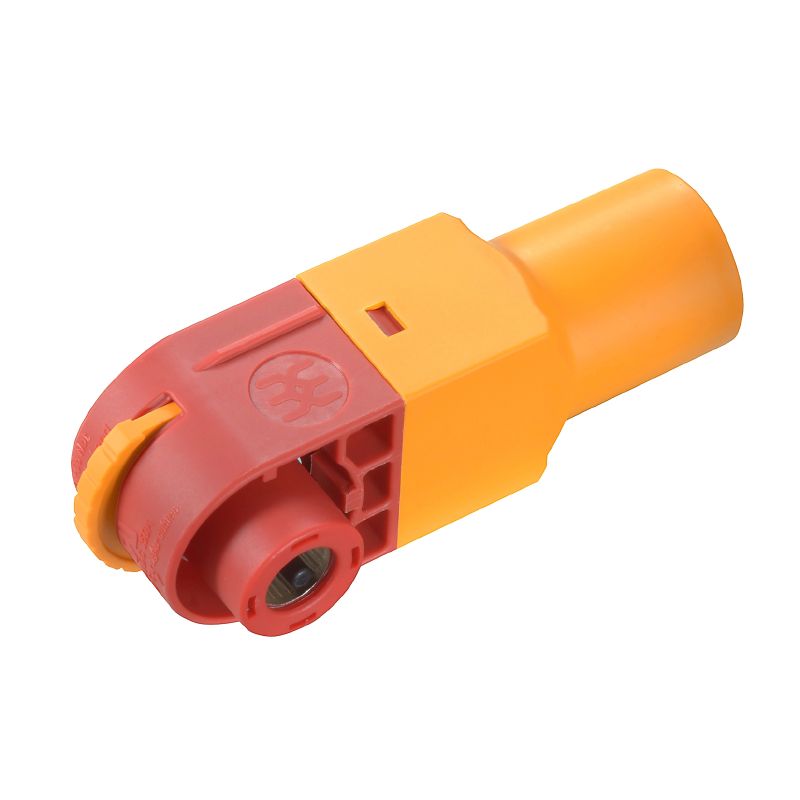

2991950000 - 10mm Male Connector, 350A, IP67 Rated, -40 to 125°C (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting the WBC-P-10RE-95 connector, engineered for exceptional performance in extreme temperatures ranging from -40 °C to 125 °C This environmentally friendly component is compliant with the RoHS directive without exemptions It accommodates a maximum conductor size of 95 mm² and utilizes a reliable crimp connection for a robust fit The connector is designed to accommodate cables with an outer diameter between 17.

7 mm and 188 mm and a male contact measuring 10 mm in diameter It efficiently handles a nominal current of 350 A and a voltage of 1,500 V, making it ideal for high-demand applications Furthermore, it boasts an impressive IP67 rating when connected, ensuring protection against dust and water ingress Crafted from durable PA 66 material and featuring a silver finish, this connector promotes superior conductivity and longevity.

Features and Benefits:

•Suitable for high-power applications with a nominal current of 350 A.

•High operational temperature range of -40 °C to 125 °C.

•IP67 protection degree when connected.

•Shock resistance up to V2 rating.

•Durable with a minimum of 100 plugging cycles.

•V-0 flammability rating according to UL 94.

Specifications:
