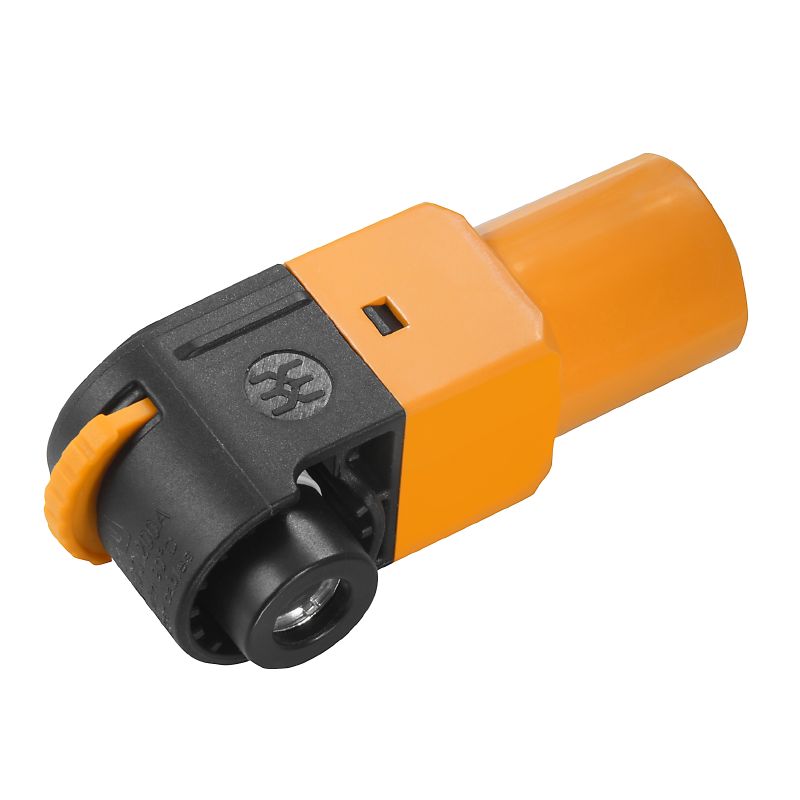

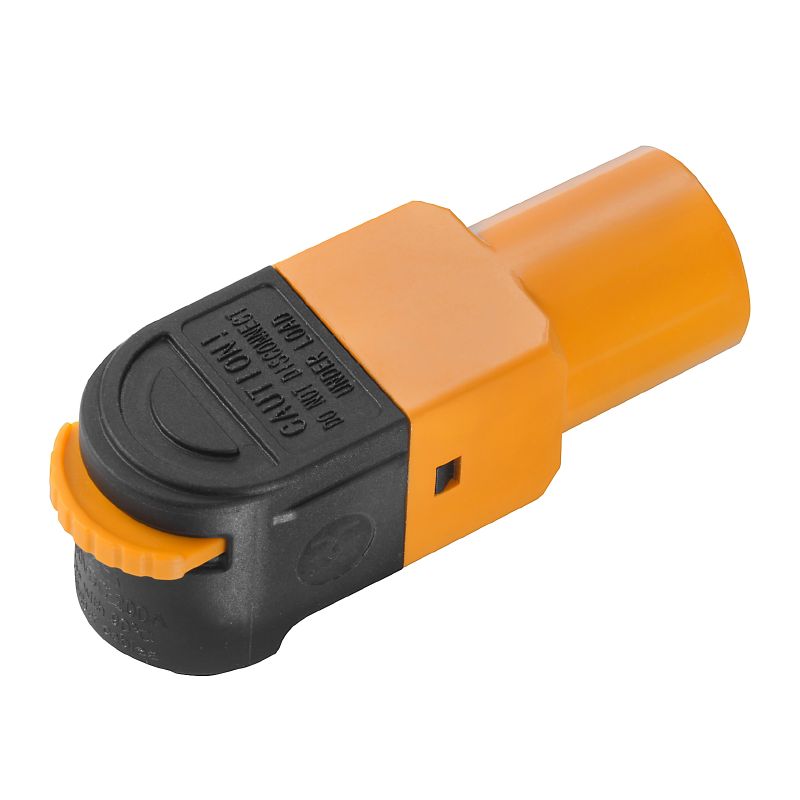

2905370000 - RoHS Compliant PA 66 Female Connector, 8mm Contacts, 50mm² Rating (Pack of 5)
2905370000 - RoHS Compliant PA 66 Female Connector, 8mm Contacts, 50mm² Rating (Pack of 5)
SKU: SKU: 2905370000 Download PDF
- 2905370000 - RoHS Compliant PA 66 Female Connector, 8mm Contacts, 50mm² Rating (Pack of 5)
- 2905370000 - RoHS Compliant PA 66 Female Connector, 8mm Contacts, 50mm² Rating (Pack of 5)
Couldn't load pickup availability
Description:
Introducing the WBC-P-8BK-50 product, expertly crafted to meet RoHS and UL standards, ensuring quality and safety It comes with the UL File Number E529699 Each pack includes five units, with each enjoying a lightweight of 45 grams This item operates effectively in a temperature range from -40 °C to 125 °C and can withstand humidity levels up to 85% RH Constructed from durable PA 66 material, it features a convenient female configuration with crimp connections.
Its maximum conductor cross-section accommodates 50 mm², with a contact diameter of 8 mm The cable's outer diameter measures between 125 mm and 132 mm, and it boasts an elegant silver surface finish.
Features and Benefits:
•Compliant with RoHS without exemption.
•Rated for continuous operating temperatures from -40 °C to 125 °C.
•Capable of a nominal current of 200 A and nominal voltage of 1,500 V.
•IP67 protection when plugged.
•Provides shock resistance rated at V2.
•Vibration resistance up to 30g.
Specifications:
| Operating altitude | ≤ 2000 m |
| Plugging cycles | ≥ 100 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≥ 5000 MΩ |

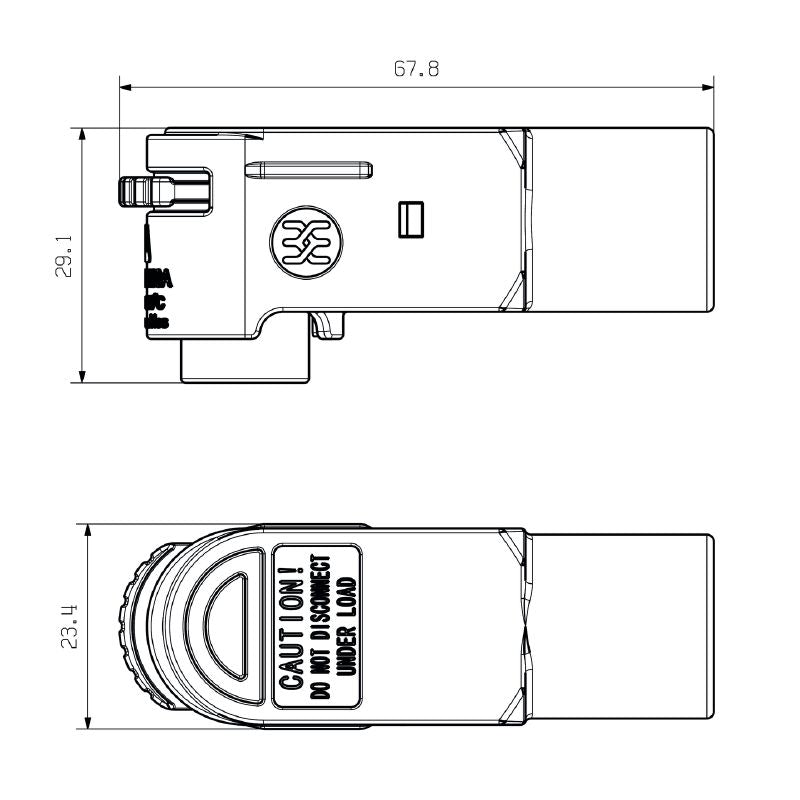

| Dimensions | Standard dimensions provided in specification |
