2905380000 - ROHS Compliant Orange 8mm Crimp Female Connector, 50 mm² (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

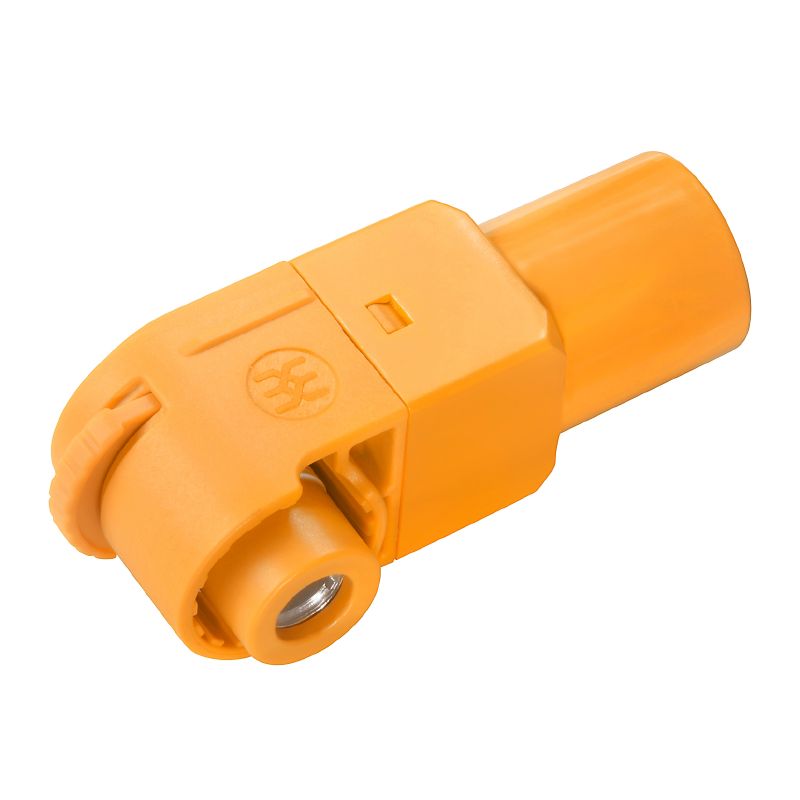

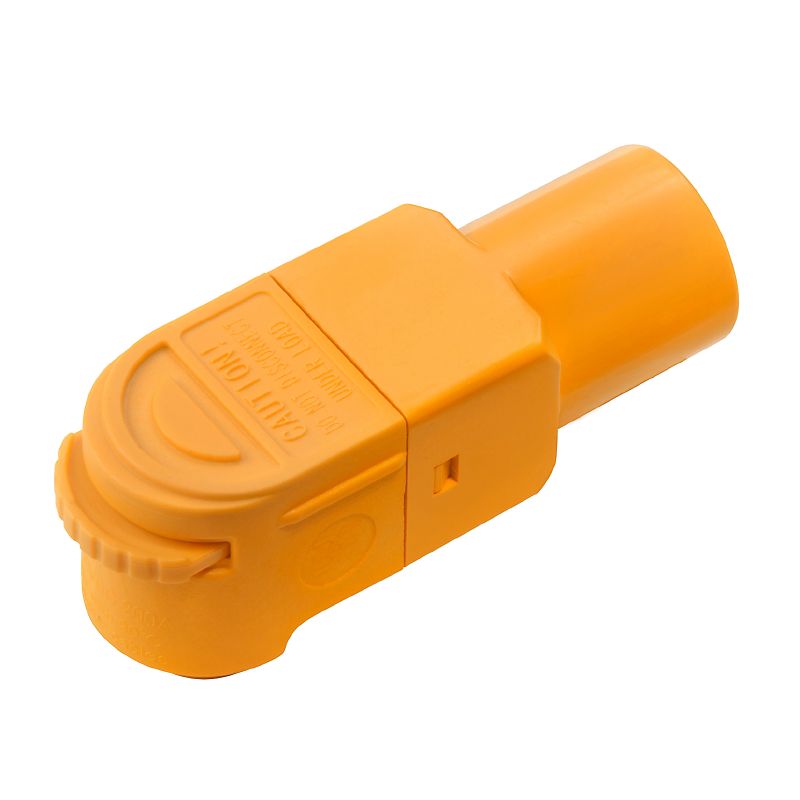

Introducing the WBC-P-8OR-50 female connector, crafted for reliable crimp connections This connector is compliant with RoHS and boasts a UL certification (E529699) Made from durable PA 66, it comes in a vibrant orange hue It can accommodate conductors with a maximum cross-section of 50 mm² and features a contact diameter of 8 mm The outer cable diameter ranges from 125 mm to 132 mm With full RoHS compliance and no SVHC present above 0.

1 wt%, this component is both safe and environmentally friendly It operates efficiently in a temperature range of -40 °C to 125 °C and tolerates up to 85% relative humidity, making it ideal for various applications.

Features and Benefits:

•Compliant with RoHS and REACH.

•Suitable for a nominal current of 200 A.

•Rated for a nominal voltage of 1,500 V.

•Designed to operate at altitudes up to 2000 m.

•Capable of handling at least 100 plugging cycles.

•Incorporates IP67 protection when plugged.

•Rated shock resistance as V2.

•Surge voltage category II.

•UL 94 flammability rating of V-0.

•Resistant to vibrations up to 30g.

•Volume resistance of at least 5000 MΩ.

Specifications:
