2765560000 - 3 CO AgSnO Relay, 115V AC, 16A with Test Button (Pack of 10)

SKU: SKU: 2765560000 Download PDF

Variant:

2765560000 - 3 CO AgSnO Relay, 115V AC, 16A with Test Button (Pack of 10)

Now $222.52

~~BEFORE $0.00~~ Now $222.52

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

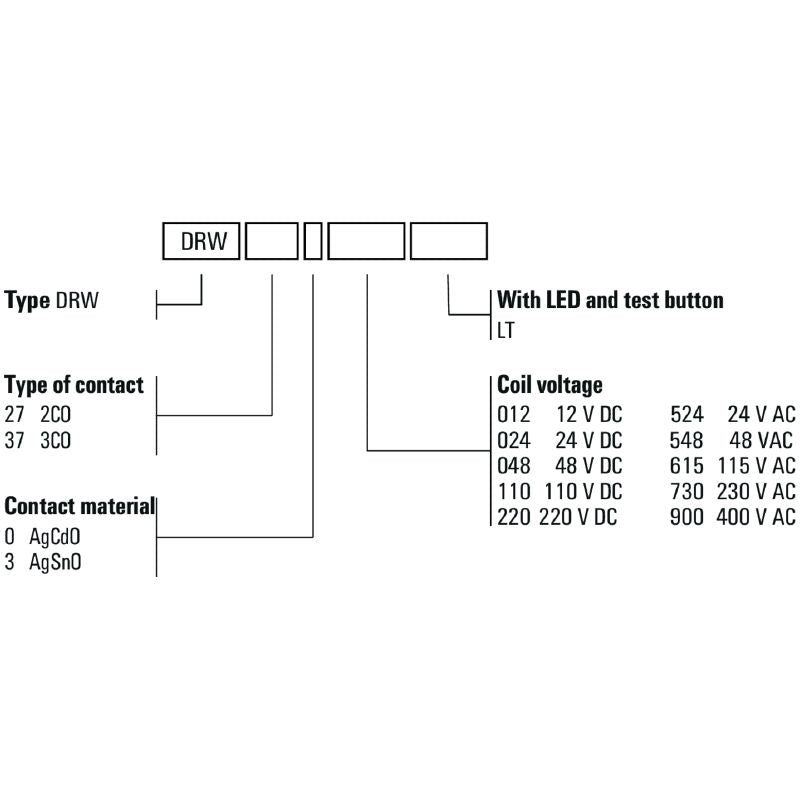

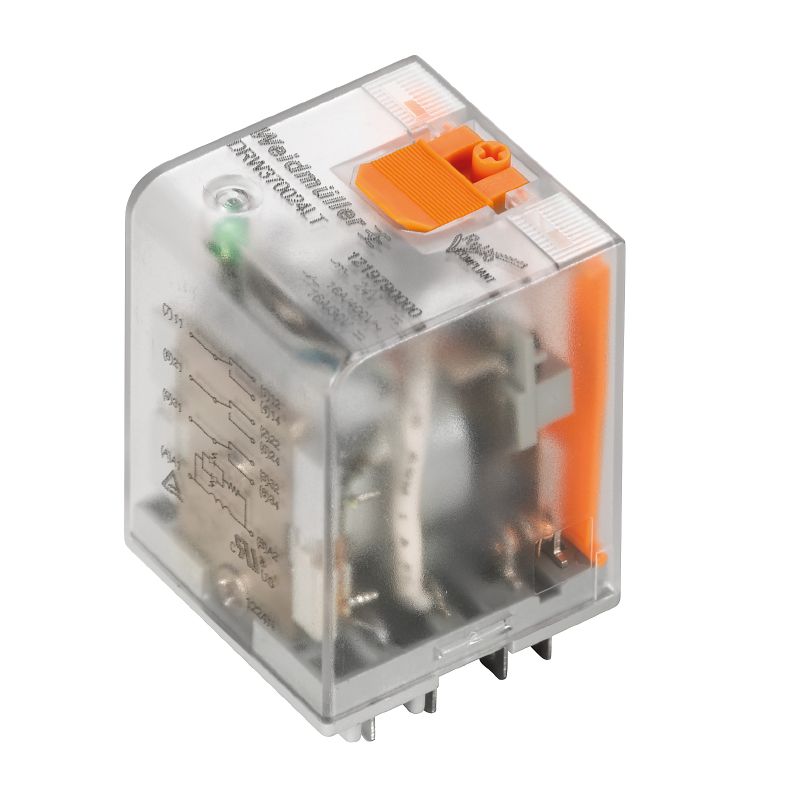

The Relay DRW373615LT is a robust relay featuring three CO contacts made from AgSnO material It operates efficiently at a control voltage of 115 V AC with a continuous current capability of 16 A This model comes equipped with flat blade connections sized at 48 mm x 05 mm, and it offers a practical test button available in both lockable and momentary styles, enhancing its versatility for various applications.

Features and Benefits:

•Includes a test button that is lockable or momentary.

•Mechanical switch position indicator available.

•LED status indicator in red.

•Enhanced durability with a mechanical service life of 20 million switching cycles.

Specifications:

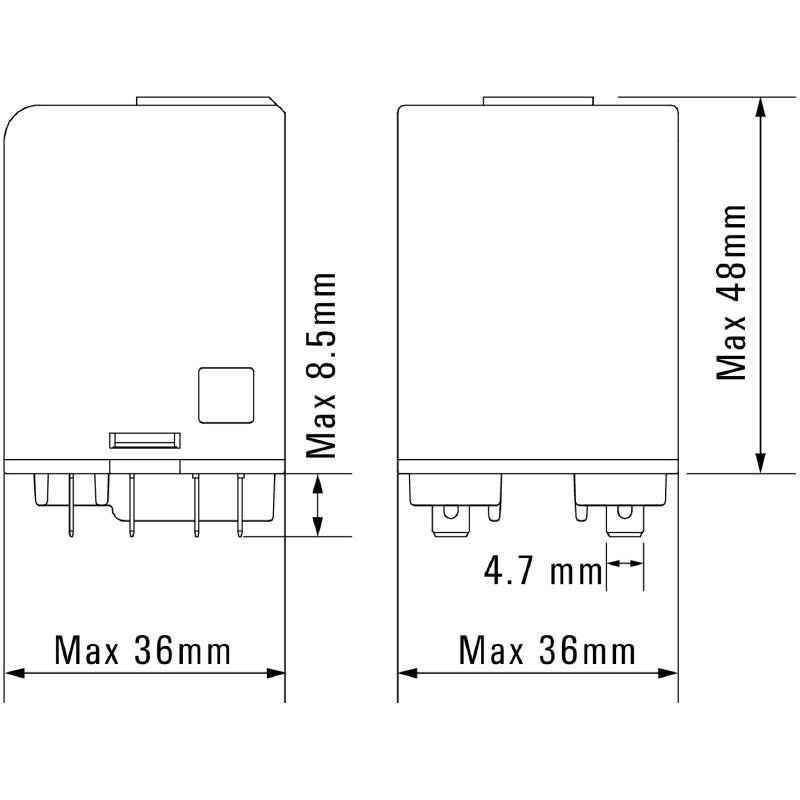

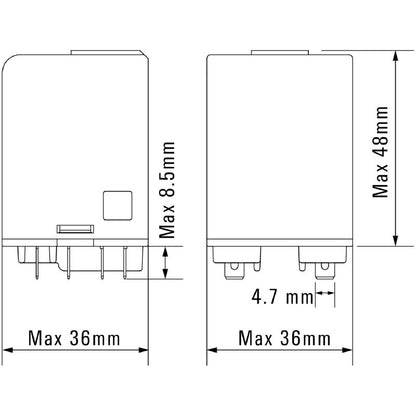

Depth	48 mm
Height	36 mm
Width	36 mm
Storage temperature	-40 °C to 60 °C
Ambient temperature	-40 °C to 60 °C
Humidity	5 to 85 % relative humidity, no condensation

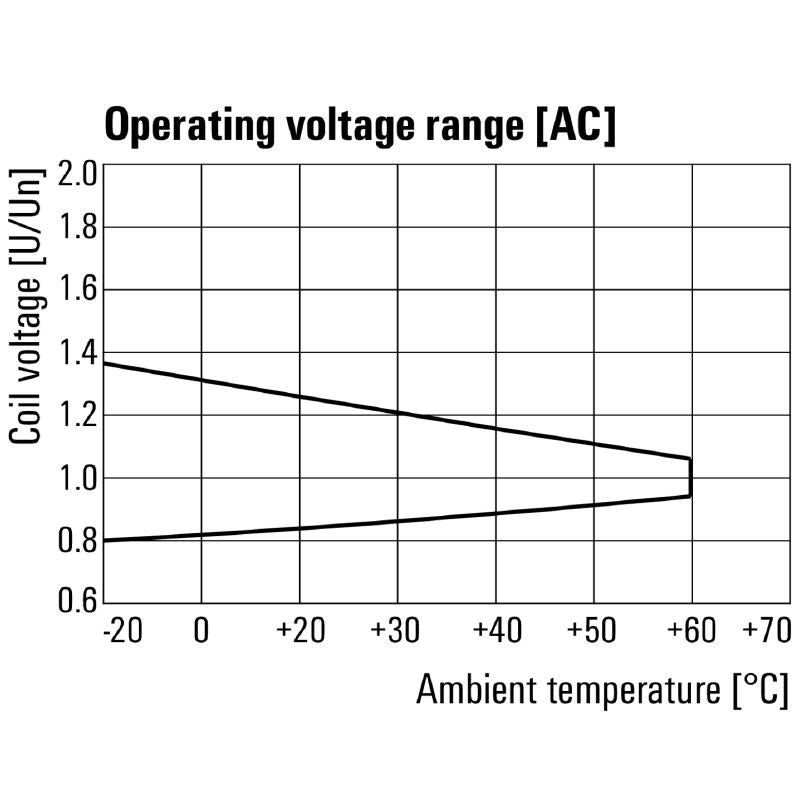

Rated control voltage	115 V AC
Rated current AC	21 mA
Power rating	2.5 VA
Coil resistance	2200 Ω ± 10 %
Rated switching voltage	400 VAC
Max. switching voltage, AC	400 V
Max. switching voltage, DC	250 V
Min. switching power	100 mA @ 12 V
Inrush current	80 A / 50 ms
AC switching capacity (resistive), max.	6400 VA

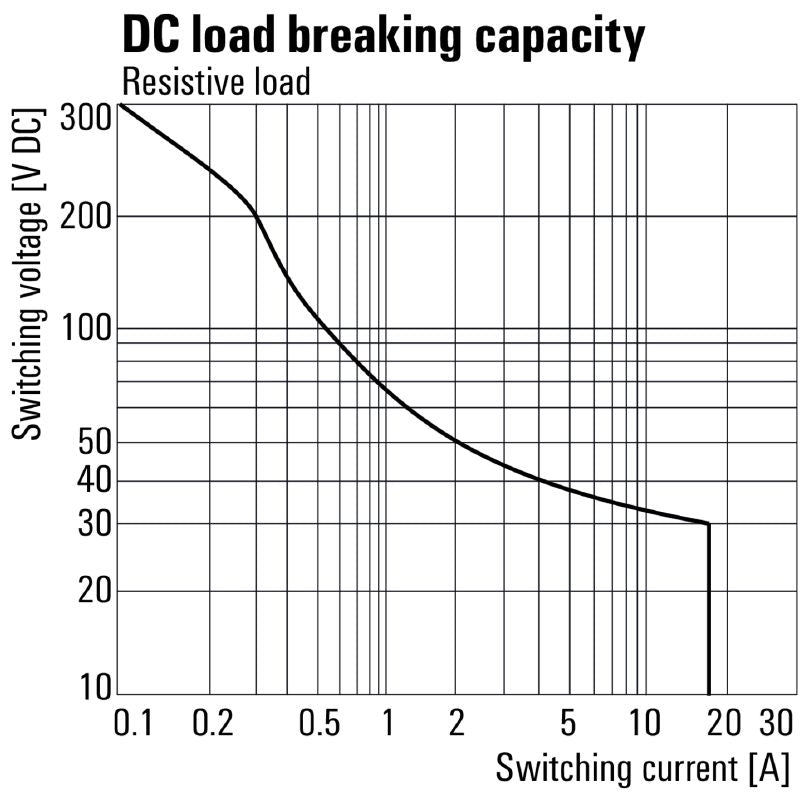

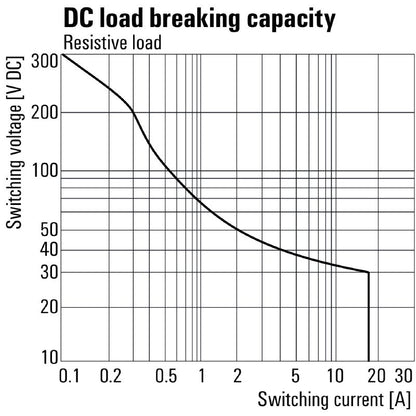

DC switching capacity (resistive), max.	384 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

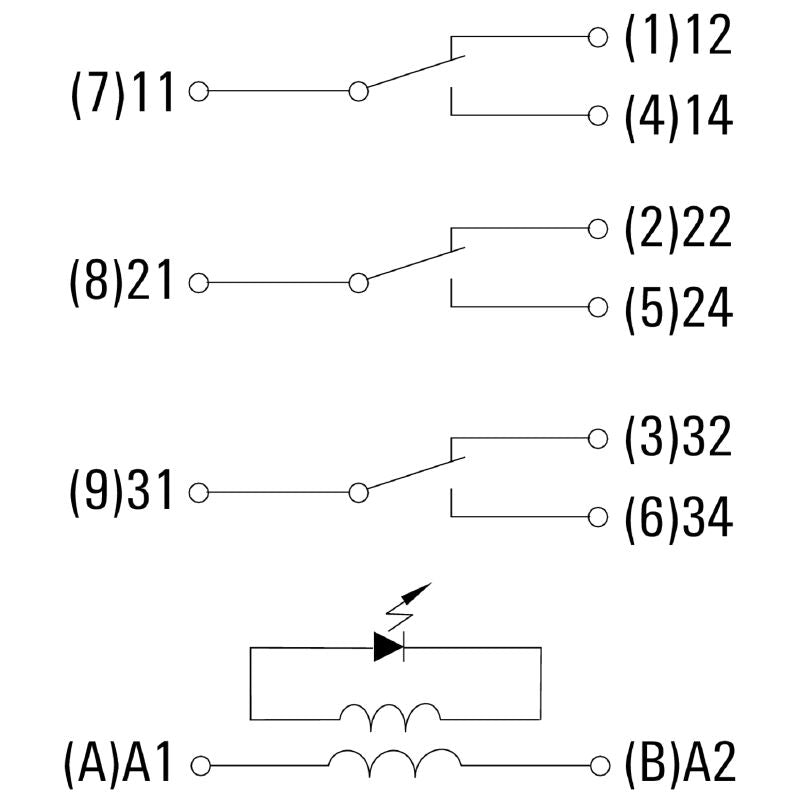

Contact type	3 CO contact (AgSnO)
UL94 flammability rating component	{'Relay test button': 'HB', 'Relay status indicator': 'HB', 'Relay baseplate': 'V-0', 'Relay cover': 'V-2'}
Insulation coordination	{'Rated voltage': '400 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 6.3 mm', 'Dielectric strength for control side - load side': '4 kV eff / 1 Min.', 'Dielectric strength of neighbouring contacts': '4 kV eff / 1 Min.', 'Dielectric strength of open contact': '2.5 kV eff / 1 Min.', 'Protection degree': 'IP20'}
