2765290000 - D-Series Relay with 4 Contacts, 110V DC, 10A Continuous Current (Pack of 10)

2765290000 - D-Series Relay with 4 Contacts, 110V DC, 10A Continuous Current (Pack of 10)

SKU: 2765290000 Download PDF

Variant:
  • 2765290000 - D-Series Relay with 4 Contacts, 110V DC, 10A Continuous Current (Pack of 10)
Now $249.14
BEFORE   $0.00 Now $249.14
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

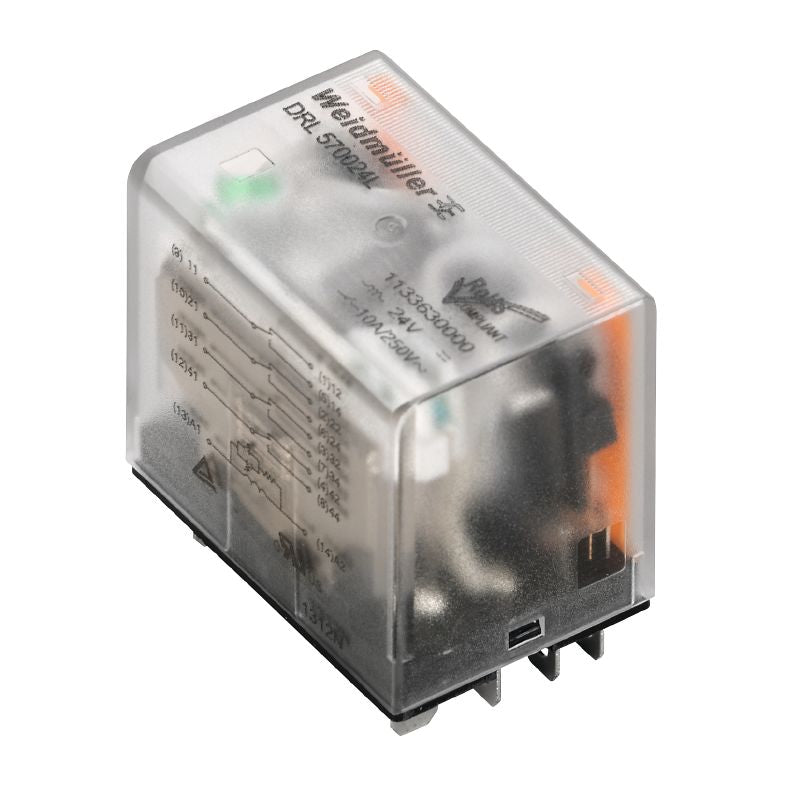

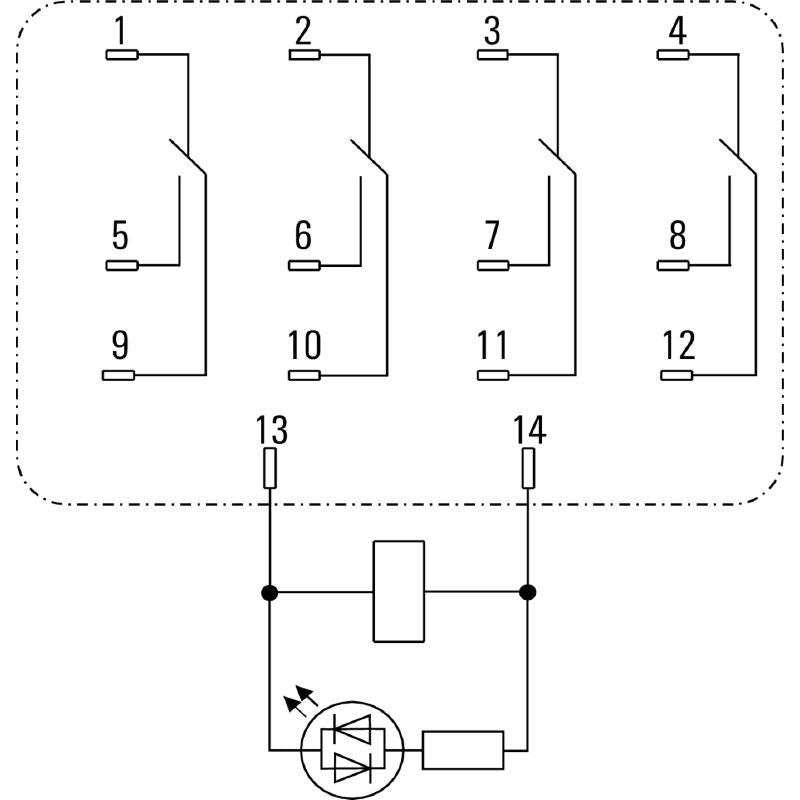

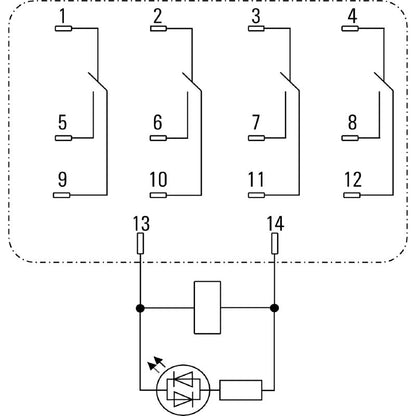

Introducing the D-Series relay designed for reliability and efficiency This relay is equipped with four normally open contacts and is constructed using durable AgSnO material It operates at a control voltage of 110 V DC and can handle a continuous current of 10 A The relay features convenient flat blade connections measuring 48 mm x 05 mm, although it does not come with a test button Perfect for various applications, this relay combines performance with robust build quality.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Mechanical switch position indicator present.

    •Transparent color.

    •Max switching frequency at rated load is 0.1 Hz.

Specifications:

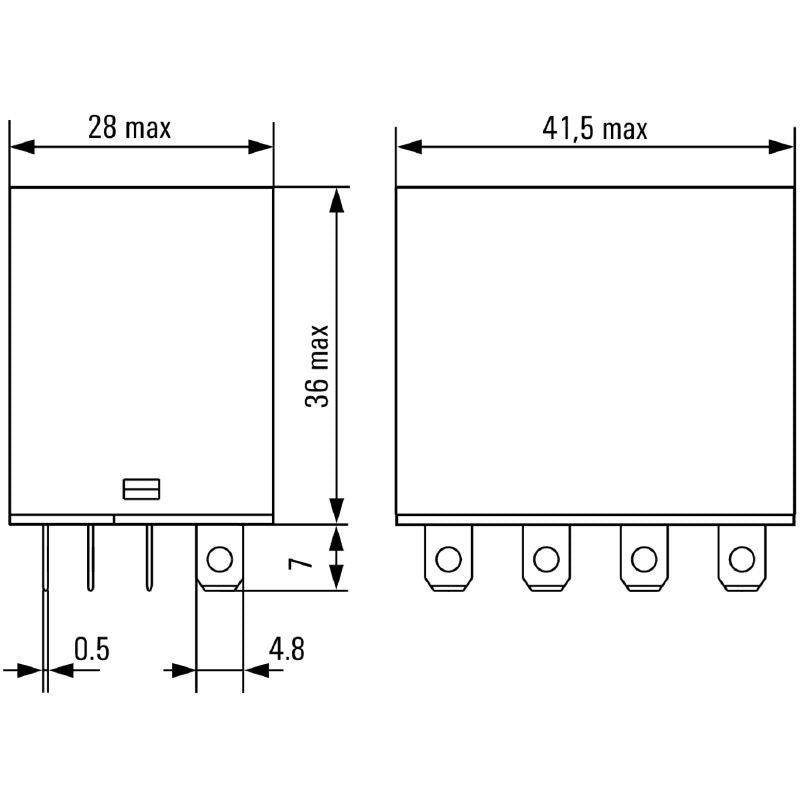

 Depth 36 mm
 Height 28 mm
 Width 41.5 mm
 Storage temperature -25 °C to 55 °C
 Ambient temperature -25 °C to 55 °C
 Humidity 35% to 85% relative humidity level

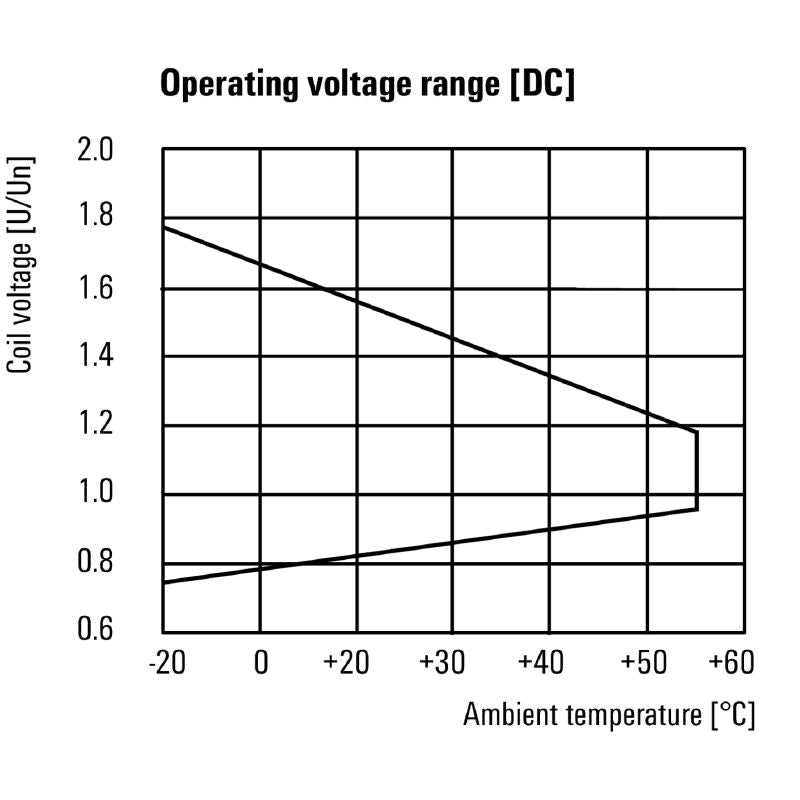

 Rated control voltage 110 V DC
 Rated current DC 16.2 mA
 Power rating 1.5 W
 Coil resistance 6800 Ω ± 10%
 Status indicator Green LED
 Rated switching voltage 250 V AC
 Max switching voltage, AC 250 V
 Min switching power 10 mA @ 12 V
 Inrush current 50 A / 50 ms
 AC switching capacity (resistive), max 2500 VA

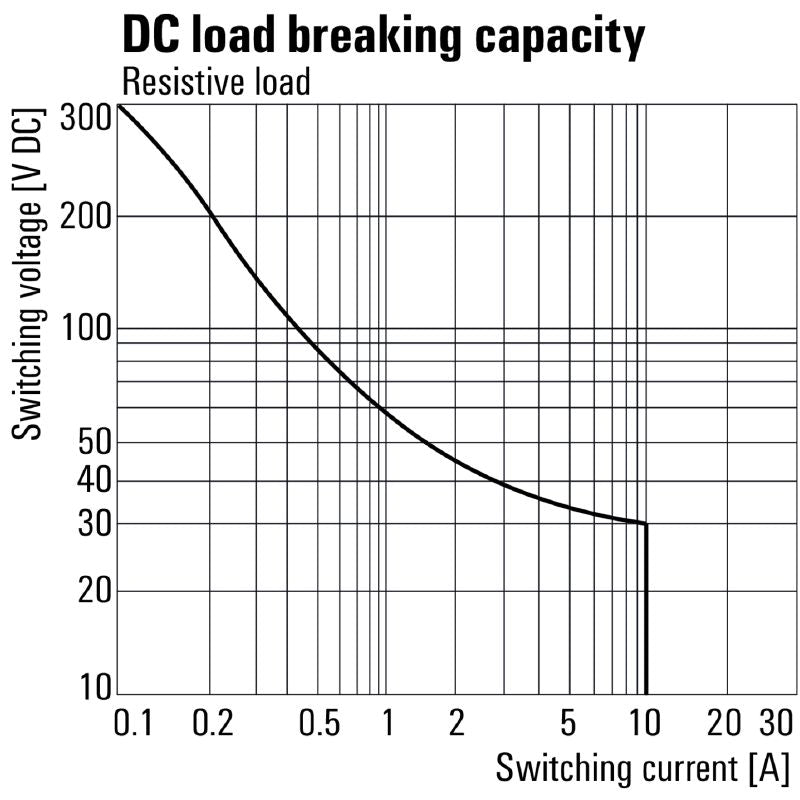

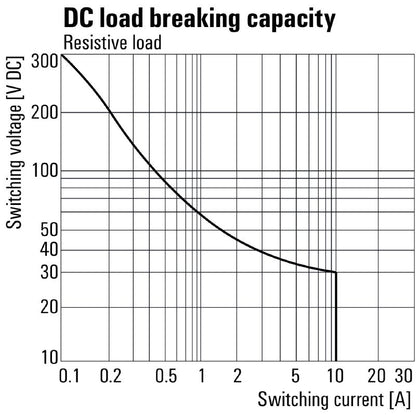

 DC switching capacity (resistive), max 300 W @ 24 V
 Switch-on delay <20 ms
 Switch-off delay <20 ms

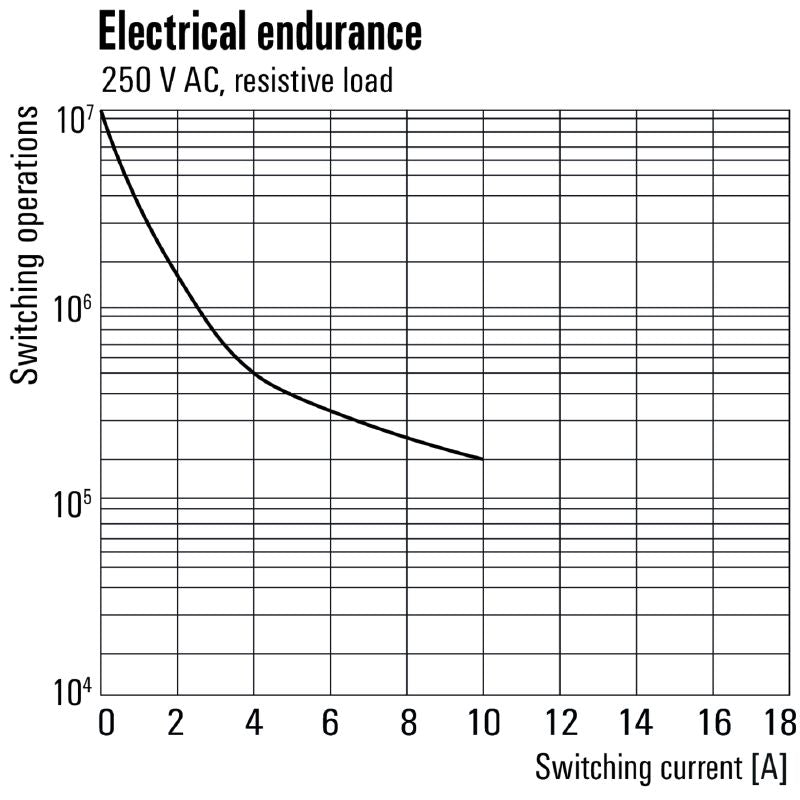

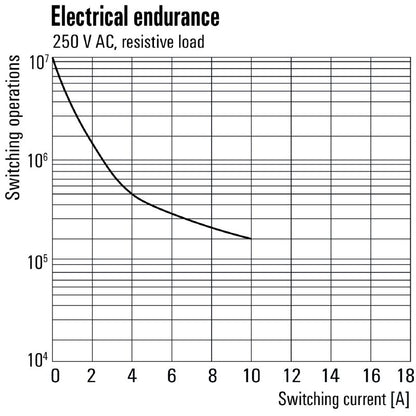

 Mechanical service life 10 x 10^6 switching cycles
 Insulation coordination {'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances for control side - load side': '≥ 4 mm', 'Dielectric strength for control side - load side': '2.5 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '2 kV eff / 1 min', 'Dielectric strength of open contact': '1.2 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)'}
 Protection degree IP20
