2765270000 - 24V DC DRL Relay with 4 AgSnO Contacts, 10A Capacity (Pack of 10)

SKU: SKU: 2765270000 Download PDF

Variant:

2765270000 - 24V DC DRL Relay with 4 AgSnO Contacts, 10A Capacity (Pack of 10)

Now $217.20

~~BEFORE $0.00~~ Now $217.20

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

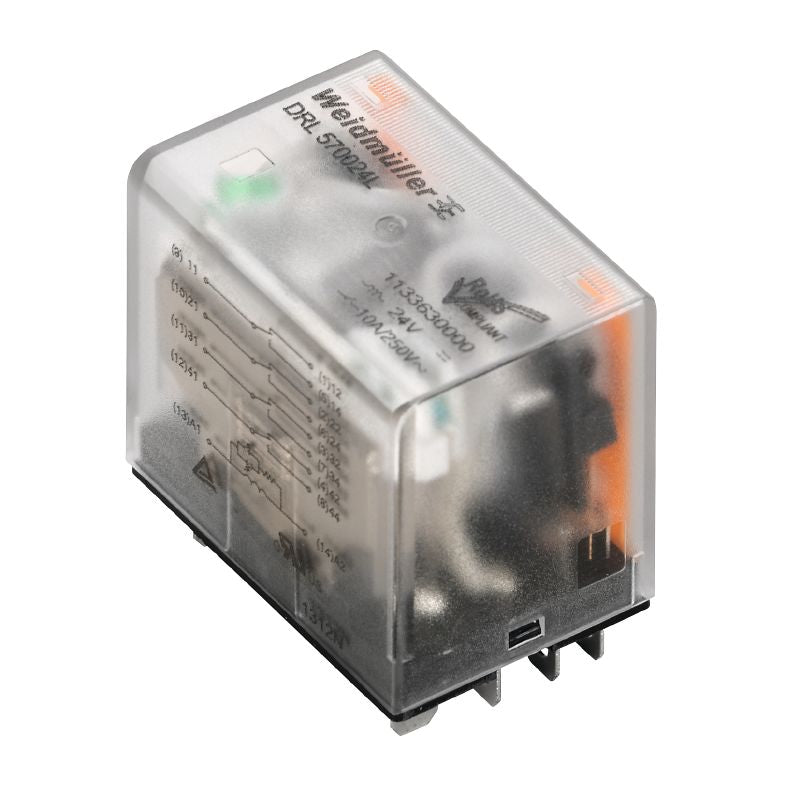

Introducing the D-SERIES DRL Relay, engineered for reliability with its four changeover contacts crafted from AgSnO material Designed to operate at a control voltage of 24 V DC, this relay is capable of handling a continuous current of up to 10 A For easy setup, it includes flat blade connections that measure 48 mm x 05 mm Please note, this model does not come with a test button, ensuring a streamlined and straightforward performance.

Perfect for a variety of applications, this relay combines functionality and quality.

Features and Benefits:

•No test button available.

•Mechanical switch position indicator included.

•Transparent color.

Specifications:

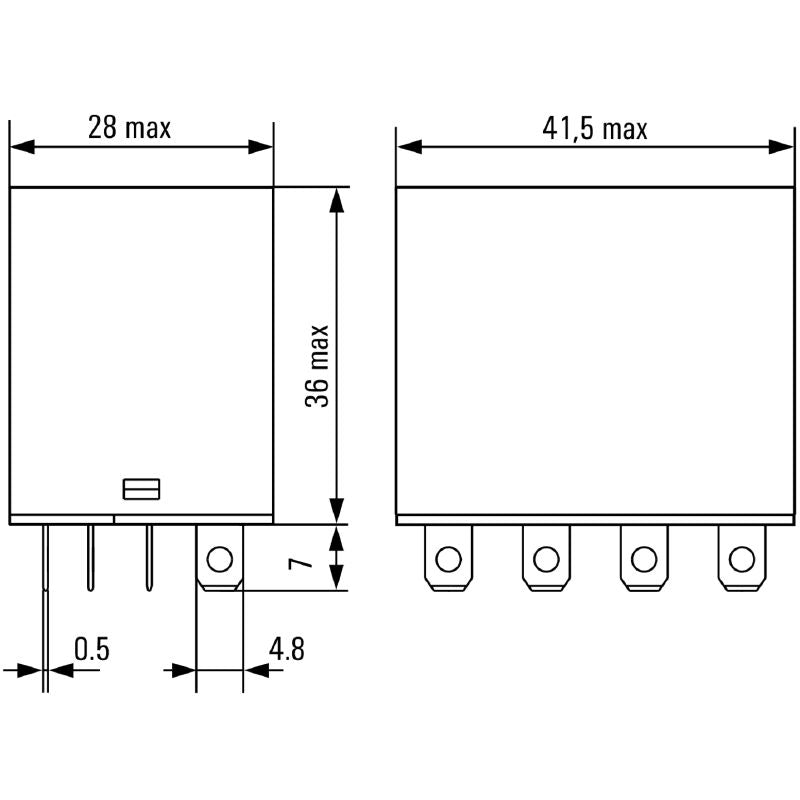

Depth	36 mm
Height	28 mm
Width	41.5 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-25 °C…55 °C
Humidity	35 % to 85 % relative humidity
Rated data UL	Certificate No. (cURus) E312083
Rated current DC	66.7 mA
Power rating	1.5 W
Coil resistance	360 Ω ± 10 %
Status indicator	Green LED
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	10 mA @ 12 V
Inrush current	50 A / 50 ms
AC switching capacity (resistive), max.	2500 VA

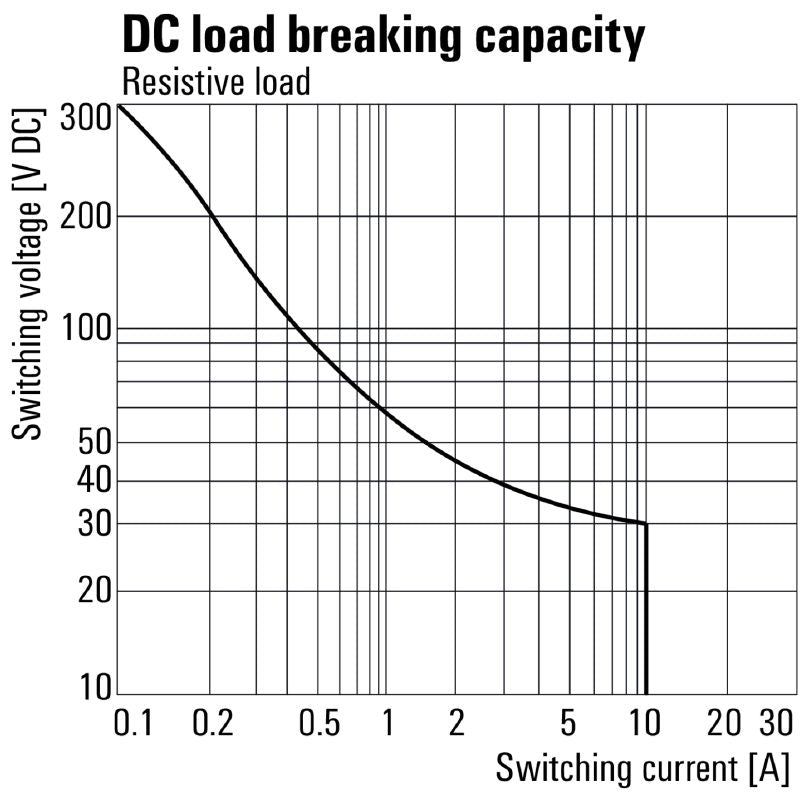

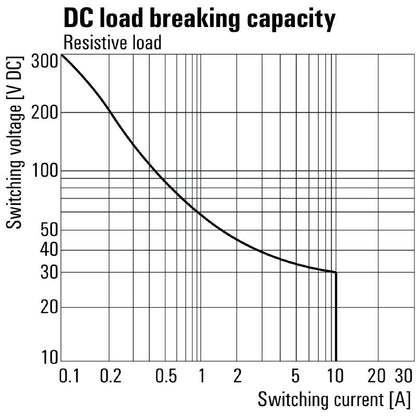

DC switching capacity (resistive), max.	300 W @ 24 V
Switch-on delay	<20 ms
Switch-off delay	<20 ms

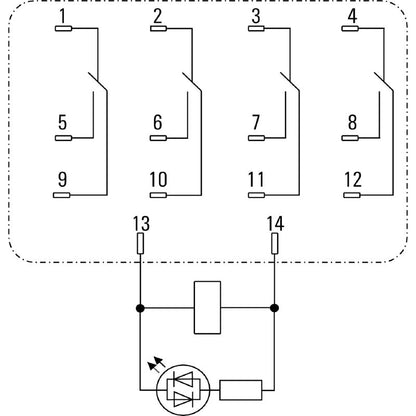

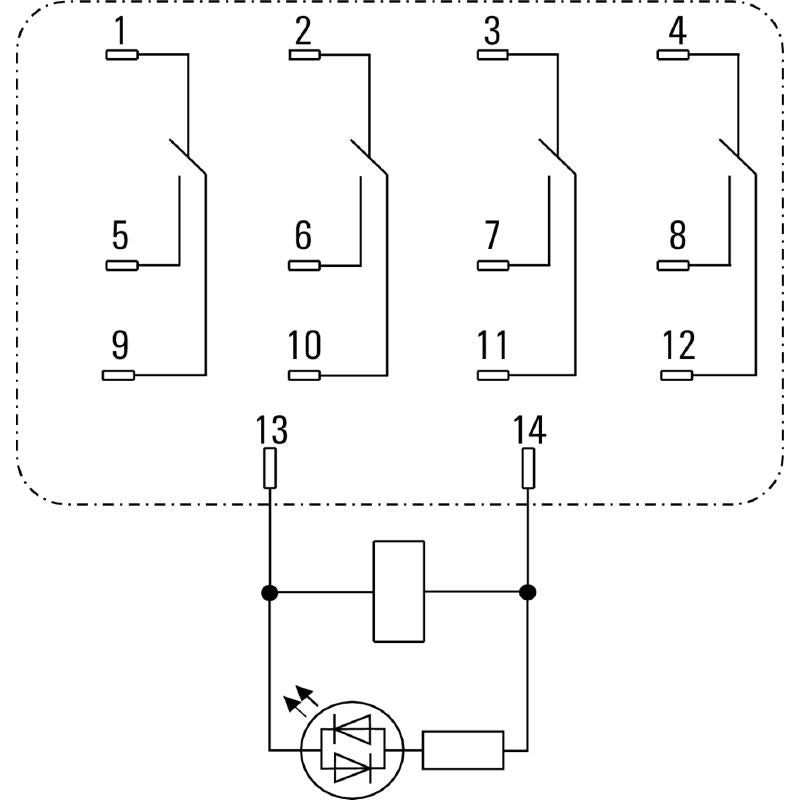

Contact type	4 CO contact (AgSnO)

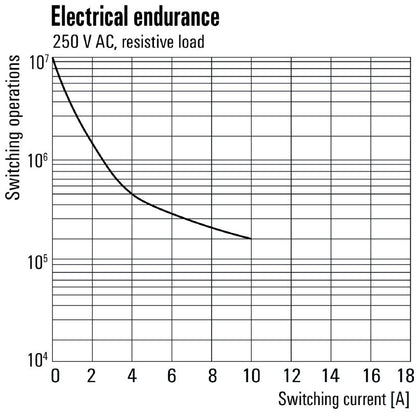

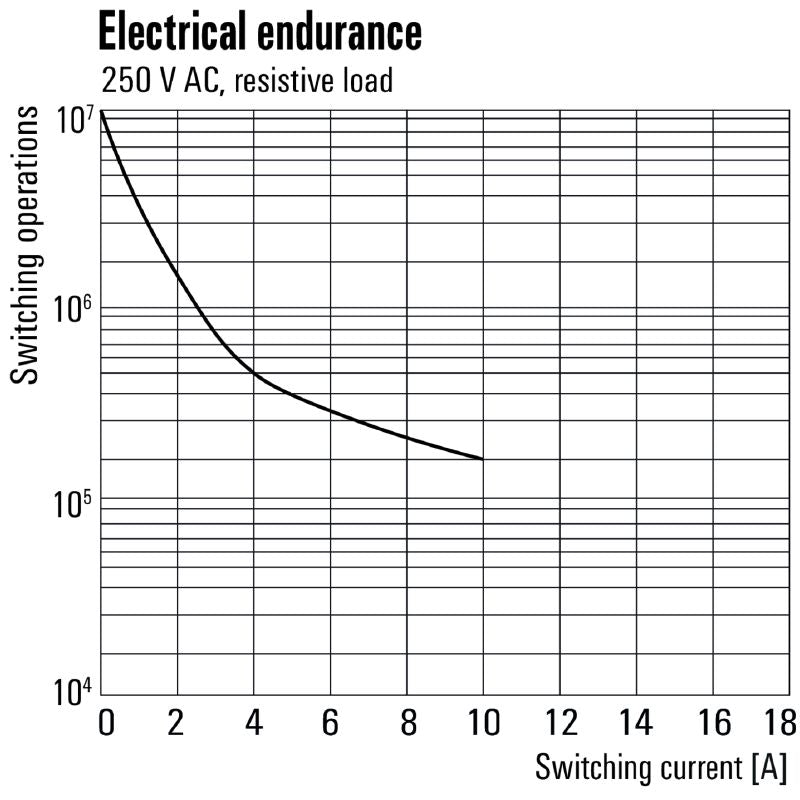

Mechanical service life	10 x 10^6 switching cycles
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa', 'Clearance and creepage distances': '≥ 4 mm', 'Dielectric strength for control side - load side': '2.5 kV eff / 1 min', 'Dielectric strength of neighbouring contacts': '2 kV eff / 1 min', 'Dielectric strength of open contact': '1.2 kV eff / 1 min', 'Impulse withstand voltage': '5 kV (1.2/50 µs)', 'Protection degree': 'IP20'}
