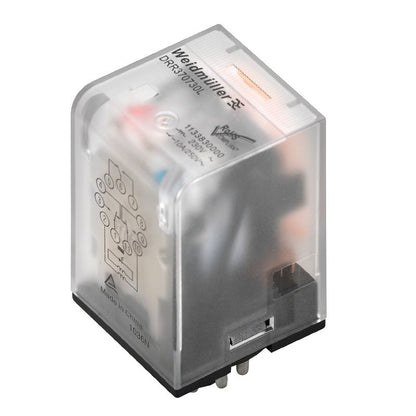

2765070000 - 3-Contact 10A 24V DC D-SERIES DRR Relay for Plug-In Use (Pack of 10)

SKU: SKU: 2765070000 Download PDF

Select a Variant:

2765070000 - 3-Contact 10A 24V DC D-SERIES DRR Relay for Plug-In Use (Pack of 10)

SET THE QTY:

Now $99.98 Web pricing policy

~~BEFORE $0.00~~ Now $99.98 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the D-SERIES DRR Relay, an efficient solution equipped with three CO contacts made from AgSnO This relay operates at a control voltage of 24 V DC and supports a continuous current of 10 A Crafted for easy plug-in connectivity, it’s a reliable choice for various applications, though it does not feature a test button.

Features and Benefits:

•Plug-in connection.

•Mechanical switch position indicator.

•No test button available.

Specifications:

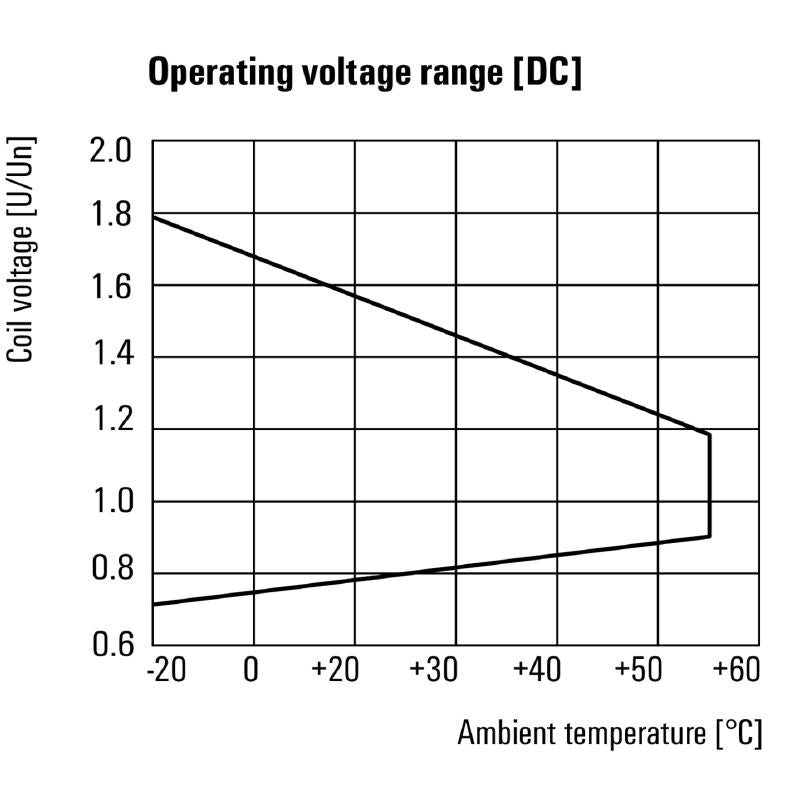

Rated control voltage	24 V DC
Continuous current	10 A

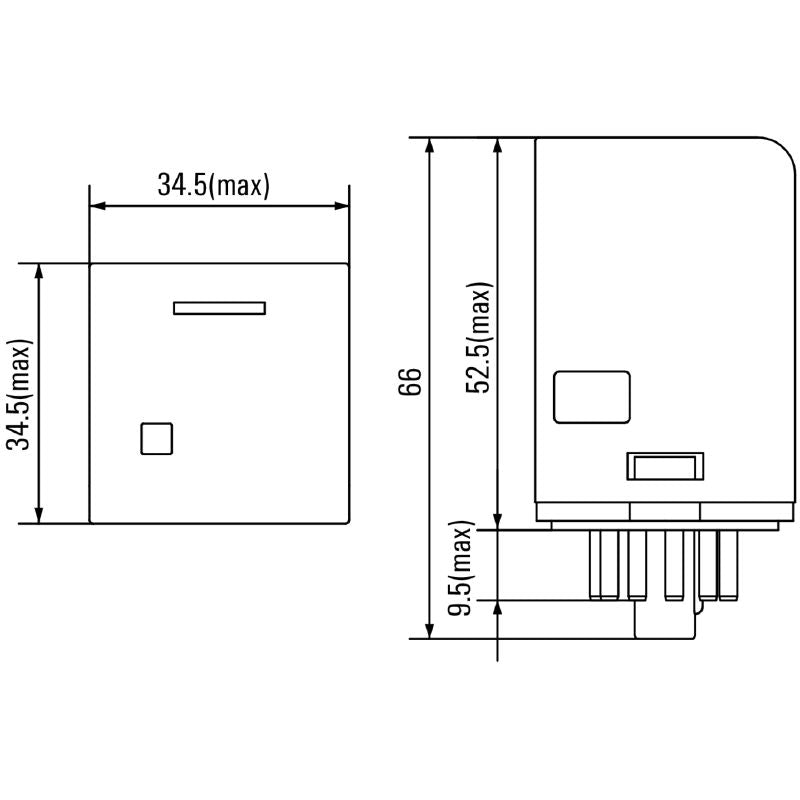

Depth	66 mm
Height	34.5 mm
Width	34.5 mm
Ambient temperature	-25 °C…55 °C
Storage temperature	-25 °C...55 °C
Rated current DC	55.8 mA
Power rating	1.5 W
Coil resistance	430 Ω ± 10 %
Green LED	Status indicator
Rated switching voltage	250 V AC
Max. switching frequency at rated load	0.1 Hz
Max. switching voltage, AC	250 V
Min. switching power	10 mA @ 12 V
Inrush current	50 A / 50 ms
AC switching capacity (resistive), max.	2500 VA
DC switching capacity (resistive), max.	240 W @ 24 V
Switch-on delay	<30 ms
Switch-off delay	<20 ms

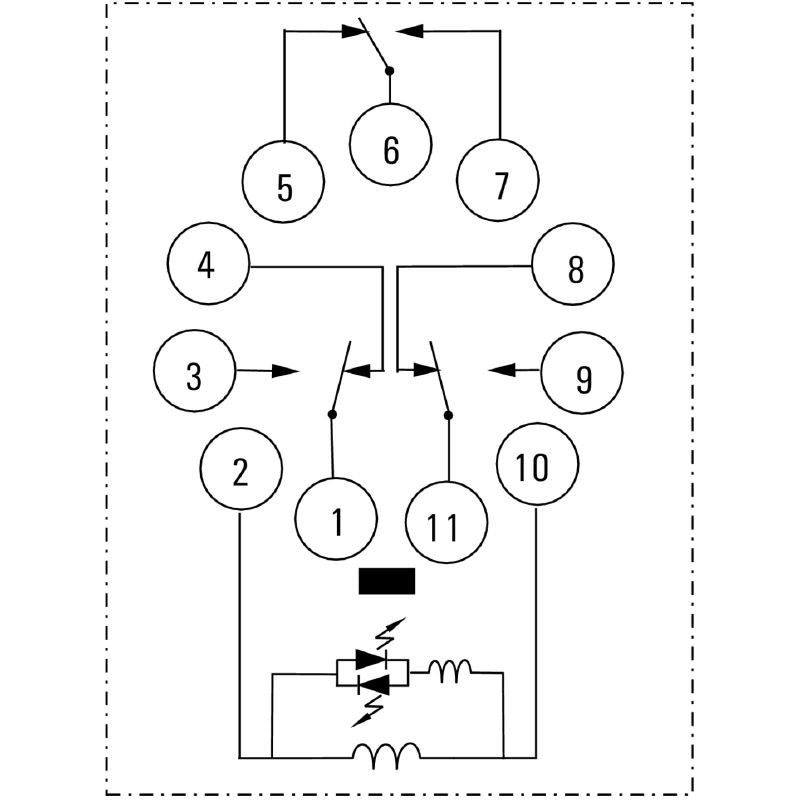

Contact type	3 CO contact (AgSnO)

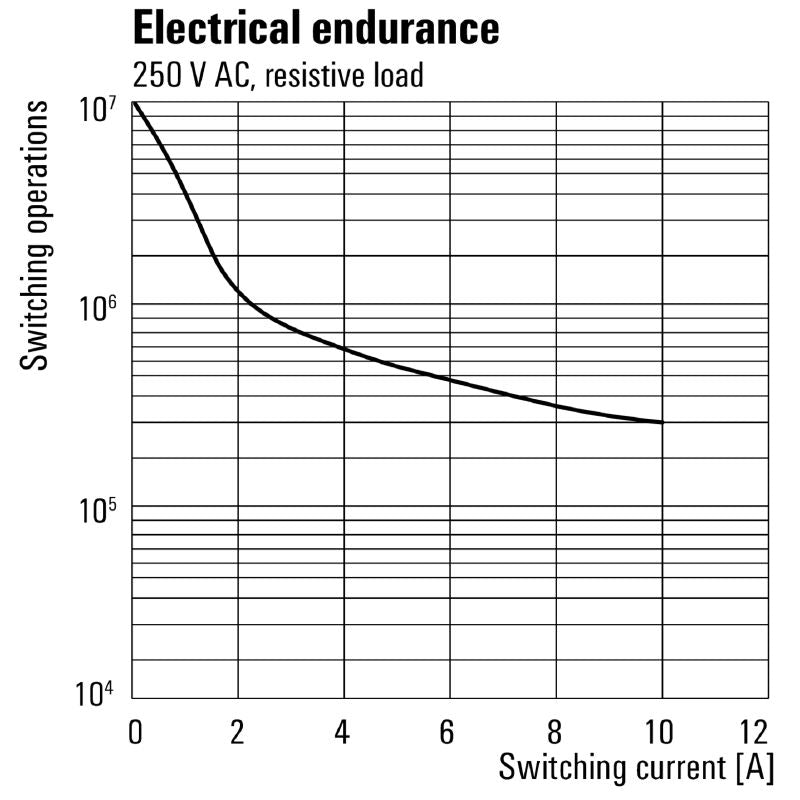

Mechanical service life	10 x 10^6 switching cycles
Protection degree	IP20
Dielectric strength for control side - load side	2.5 kV eff / 1 Min.
Insulation coordination	{'Rated voltage': '250 V', 'Pollution severity': '3', 'Surge voltage category': 'III', 'Insulating material group': 'IIIa'}
