2680980000 - 24V Relay Socket with Dual Contacts, 87.8mm Depth (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

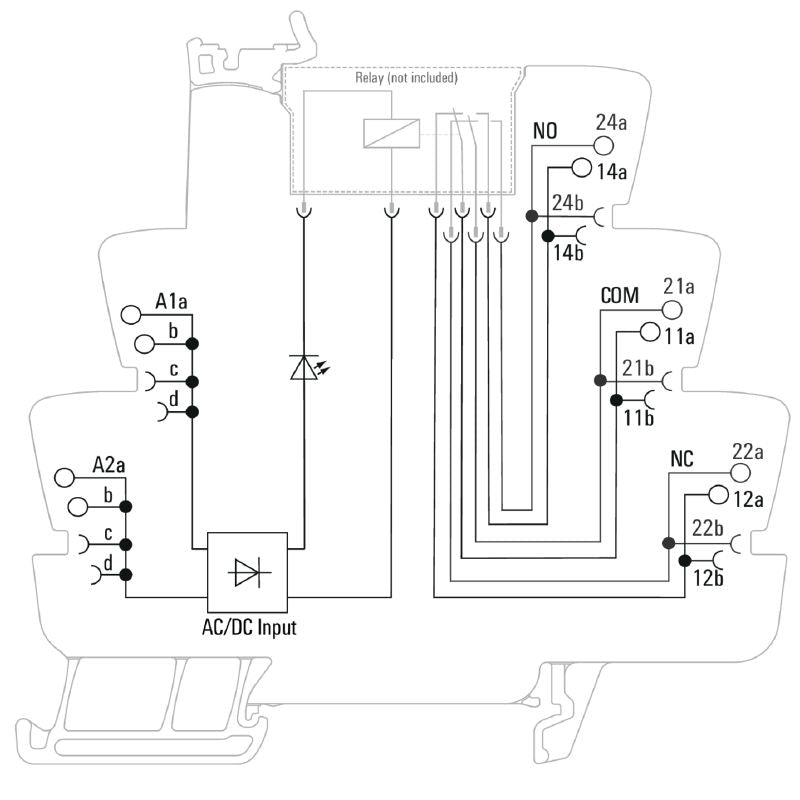

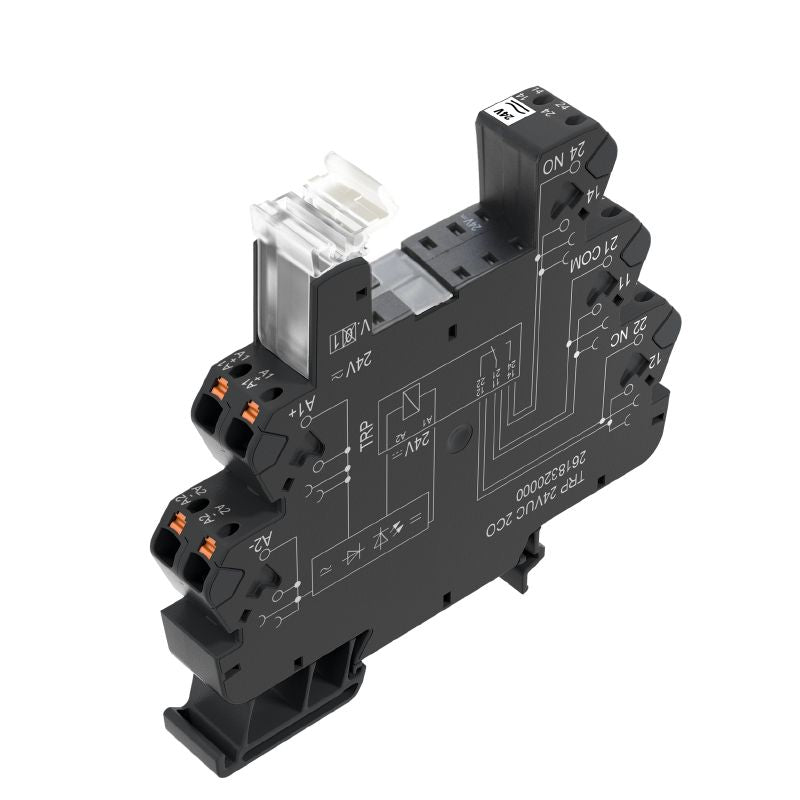

Introducing the TRP 24VUC 2CO EMPTY relay socket, expertly engineered with a dual changeover contact design This reliable component is optimized for a nominal control voltage of 24 V UC ±10 % and supports a maximum continuous current of 10 A Featuring a user-friendly PUSH IN connection method, this relay adheres to RoHS regulations and comes with UL certification (File Number E223759) With convenient dimensions of 87.

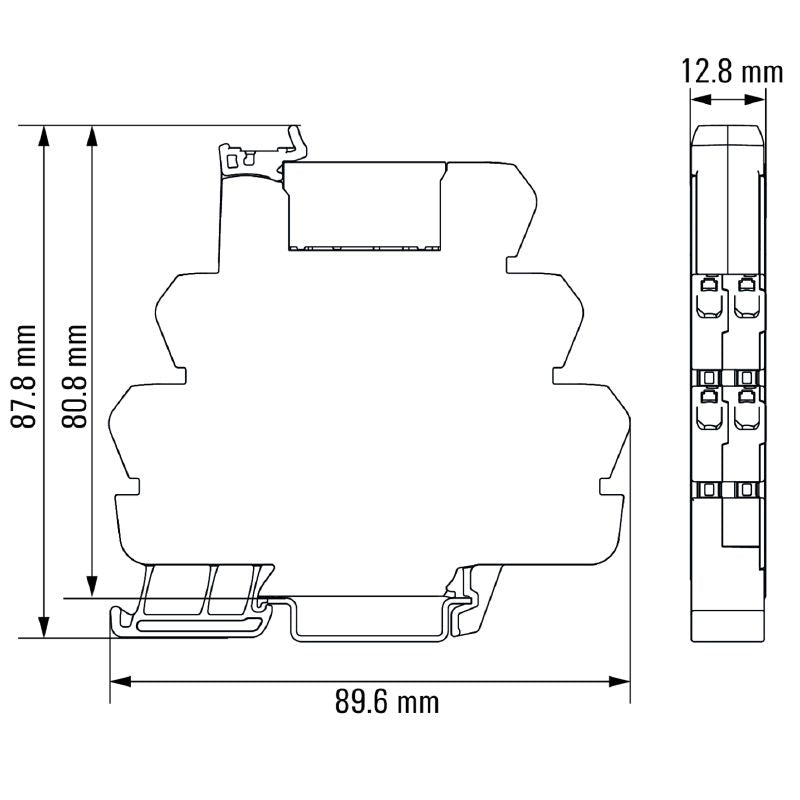

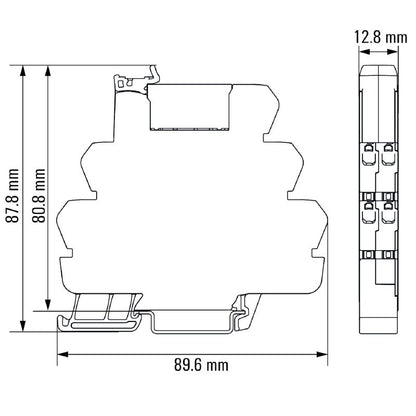

8 mm in depth, 894 mm in height, and 128 mm in width, it is compact yet powerful, weighing only 445 g Designed for versatility, the relay operates effectively in ambient temperatures up to 60 °C, while its robust storage temperature range spans from -40 °C to 85 °C, ensuring its reliability in various conditions.

Features and Benefits:

•Equipped with green LED status indicator.

•Utilizes a rectifier for protective circuitry.

•Operational altitude up to 2000 m above sea level.

•Mounts onto TS 35 mounting rails.

•Has a pollution severity rating of 2.

Specifications:
