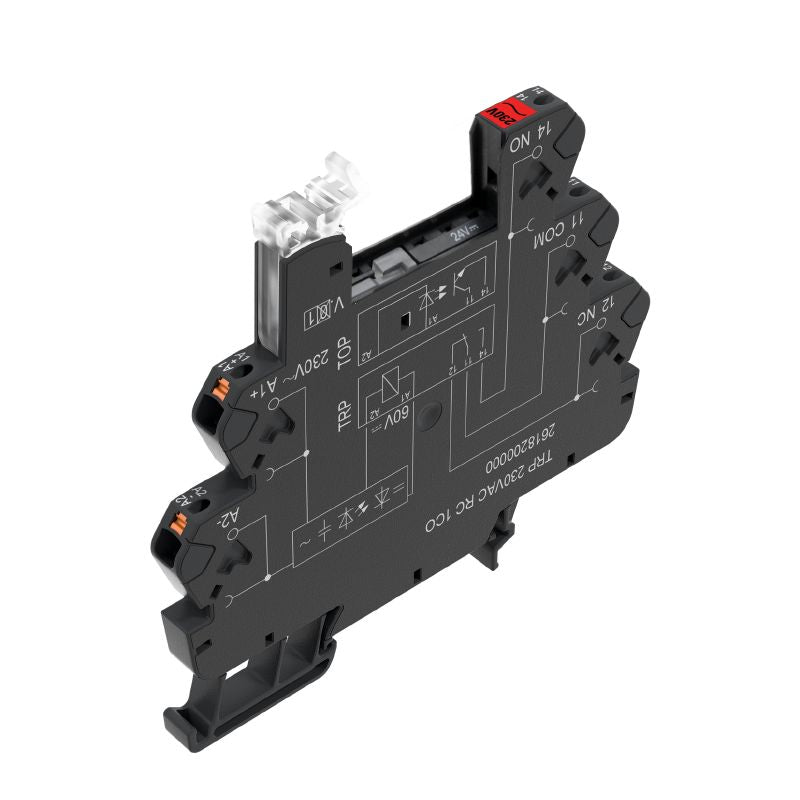

2618890000 - 230V AC Relay Socket with LED Indicator, 87.8mm Depth (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable performance with the TRP relay socket, designed for a control voltage of 230 V AC ±10% This socket accommodates a continuous current of up to 10 A and features an easy-to-use PUSH IN connection method Meeting RoHS compliance standards, it's versatile for various uses Measuring 878 mm in depth, 894 mm in height, and 64 mm in width, this lightweight socket weighs just 25 g It's engineered to operate effectively in storage conditions ranging from -40 °C to 85 °C and can withstand ambient temperatures from -40 °C to 60 °C.

With humidity tolerance between 5% and 95% (non-condensing), it adapts to different environments effortlessly A built-in green LED status indicator provides clear operational feedback, while the socket is designed for standard mounting rails It also includes a change-over contact configuration (1 CO contact), ensuring reliable switching and control capabilities.

Features and Benefits:

•PUSH IN connection method.

•Green LED status indicator.

•Compliant with RoHS regulations.

•Suitable for ambient temperatures up to 60 °C.

•Designed for standard mounting rails.

Specifications:
