2576290000 - D-SERIES 115V AC Relay Module with Dual CO Contacts (Pack of 10)

2576290000 - D-SERIES 115V AC Relay Module with Dual CO Contacts (Pack of 10)

SKU: 2576290000 Download PDF

Variant:
  • 2576290000 - D-SERIES 115V AC Relay Module with Dual CO Contacts (Pack of 10)
Now $100.61
BEFORE   $0.00 Now $100.61
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

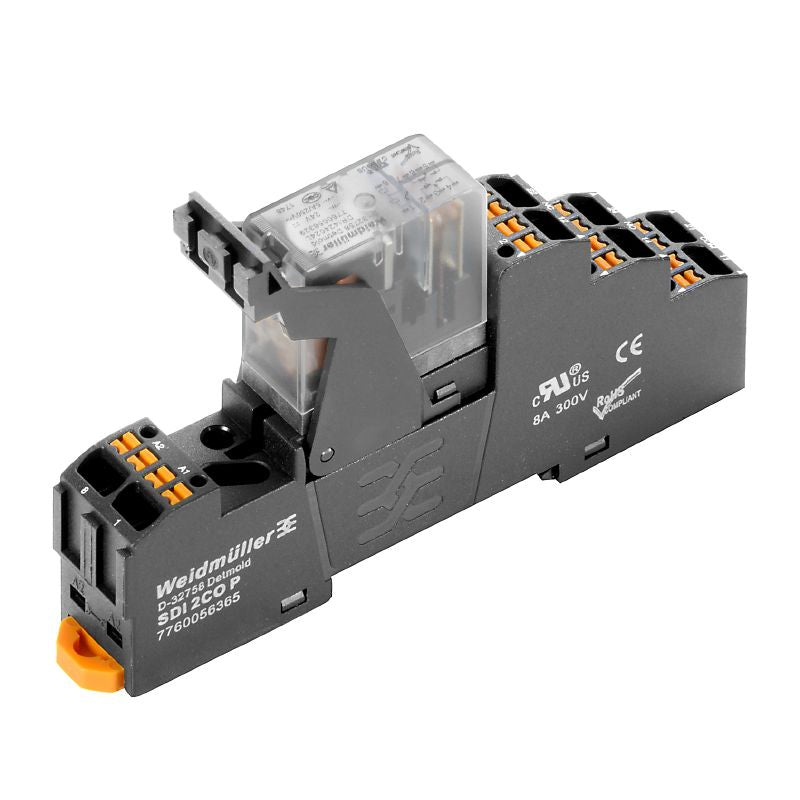

Introducing the D-SERIES DRI relay module, featuring dual CO contacts made from high-quality AgSnO material This module operates efficiently on a control voltage of 115 V AC and is capable of handling a continuous current of up to 5 A Designed with a push-in connection system for ease of use, it meets RoHS standards without any exemptions, ensuring it's environmentally compliant Please note that this module does not include a test button.

Features and Benefits:

    •Mountable on TS 35 rail.

    •No test button available.

    •Mechanical switch position indicator is absent.

    •Black color.

Specifications:

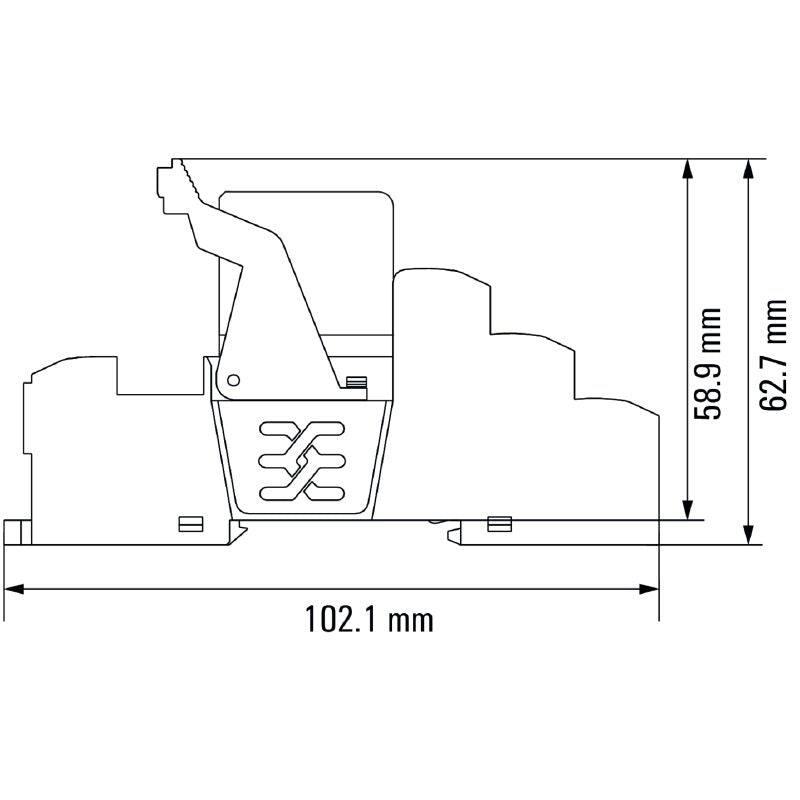

 Depth 63 mm
 Height 102.1 mm
 Width 15.9 mm
 Storage temperature -40 °C to 85 °C
 Ambient temperature -40 °C to 55 °C
 Humidity 35 to 85% relative humidity, no condensation
 Rated current AC 9.3 mA
 Power rating 1.1 VA
 Coil resistance 6200 Ω ± 10 %
 Rated switching voltage 250 V AC
 Max. switching frequency at rated load 0.1 Hz
 Max. switching voltage, AC 250 V
 Max. switching voltage, DC 250 V
 Min. switching power 10 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
 AC switching capacity (resistive), max. 1250 VA

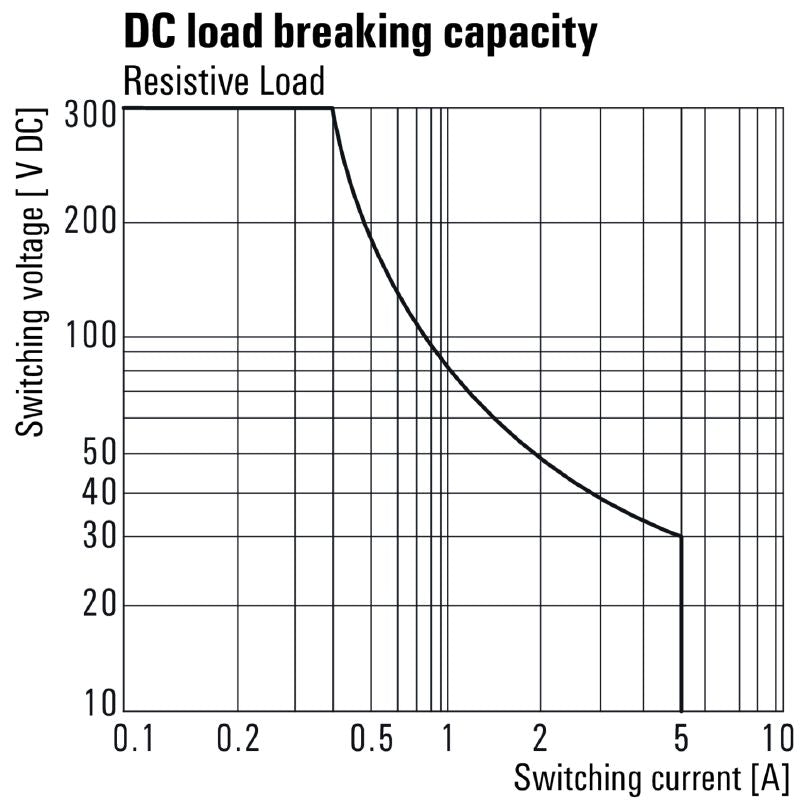

 DC switching capacity (resistive), max. 150 W @ 24 V
 Switch-on delay ≤ 15 ms
 Switch-off delay ≤ 10 ms

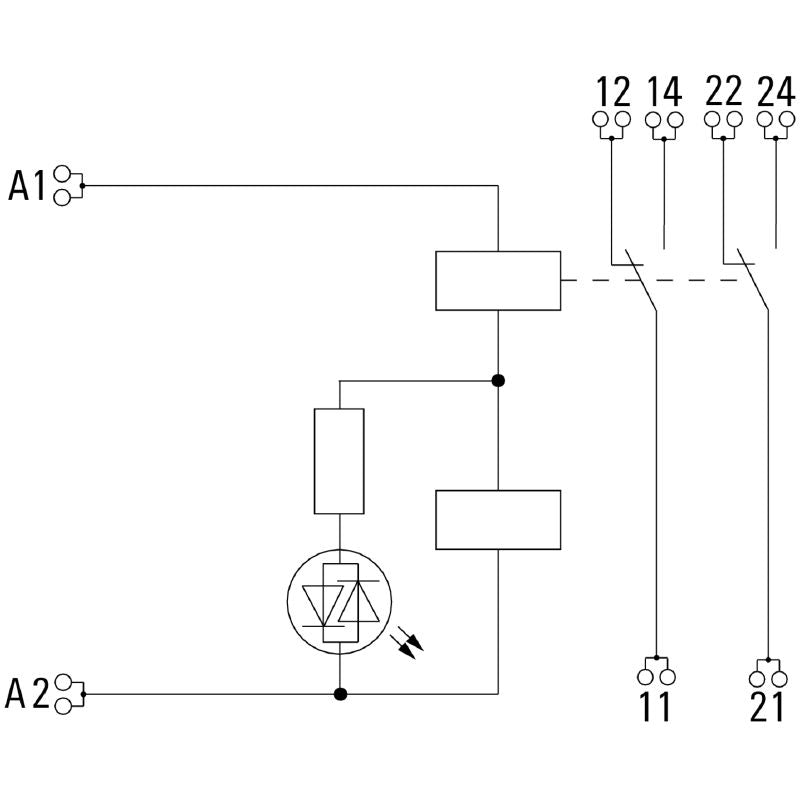

 Contact type 2 CO contact (AgSnO)

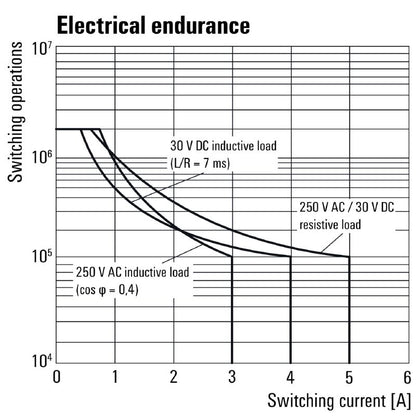

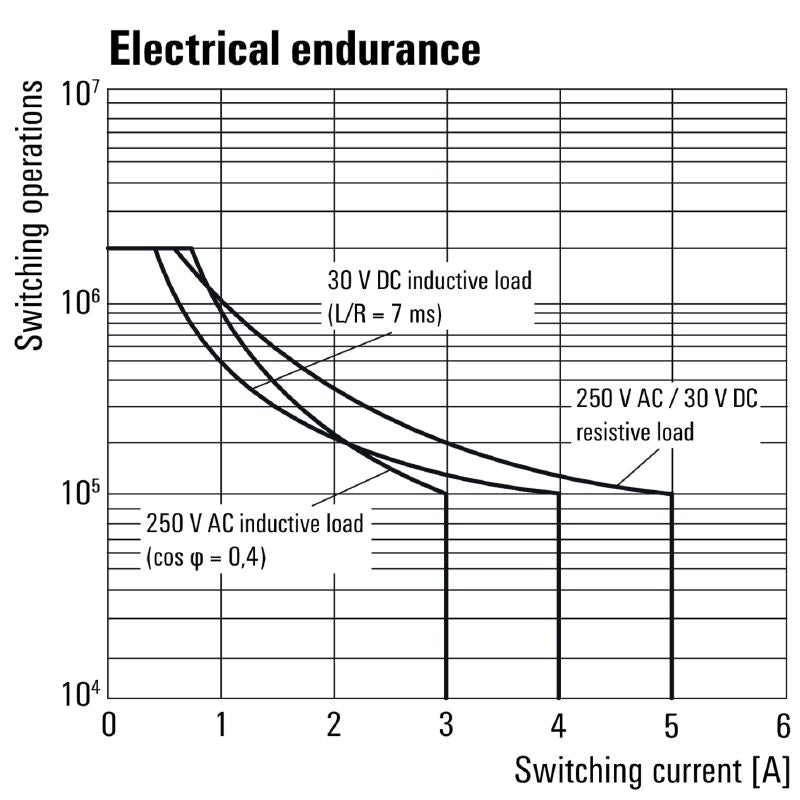

 Mechanical service life 10 x 10^6 switching cycles
 Protection degree IP20
 Wire connection method PUSH IN
 Clamping range, rated connection 1.5 mm²
 Rated voltage 250 V
 Pollution severity 2
 Surge voltage category III
 Dielectric strength 5 kV eff / 1min
